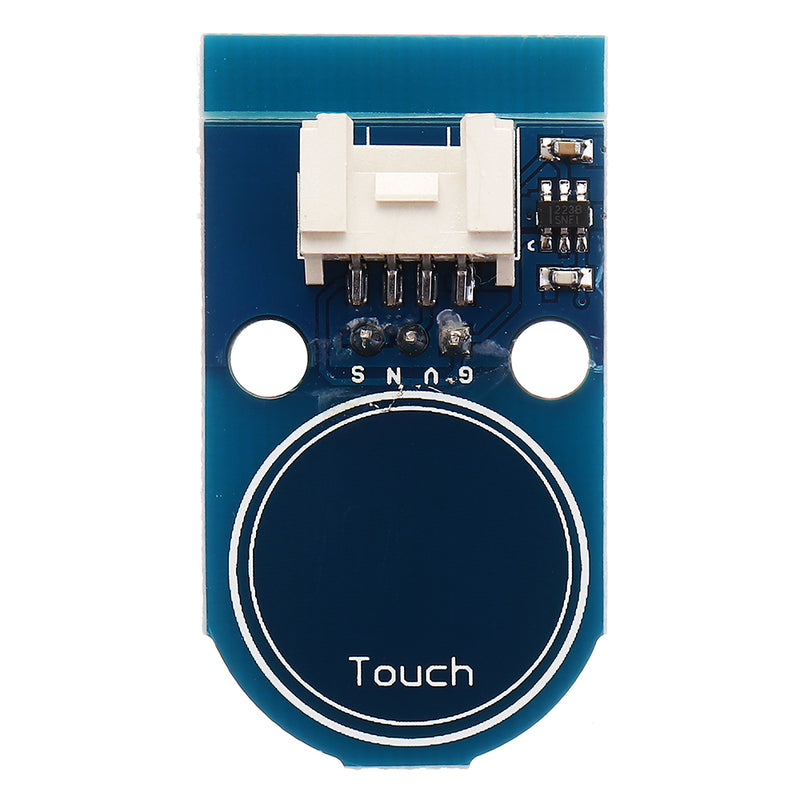

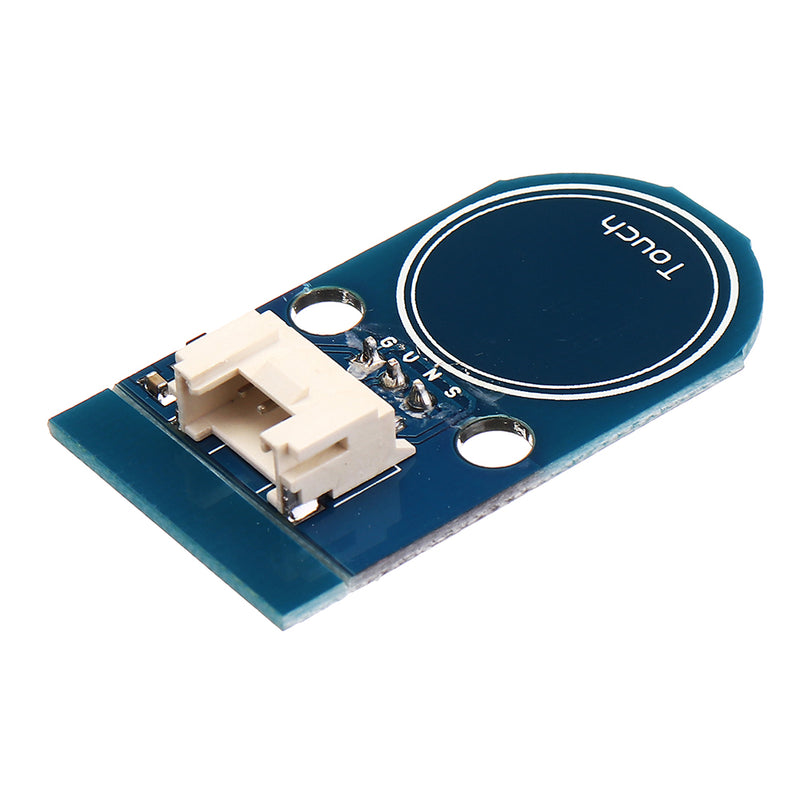

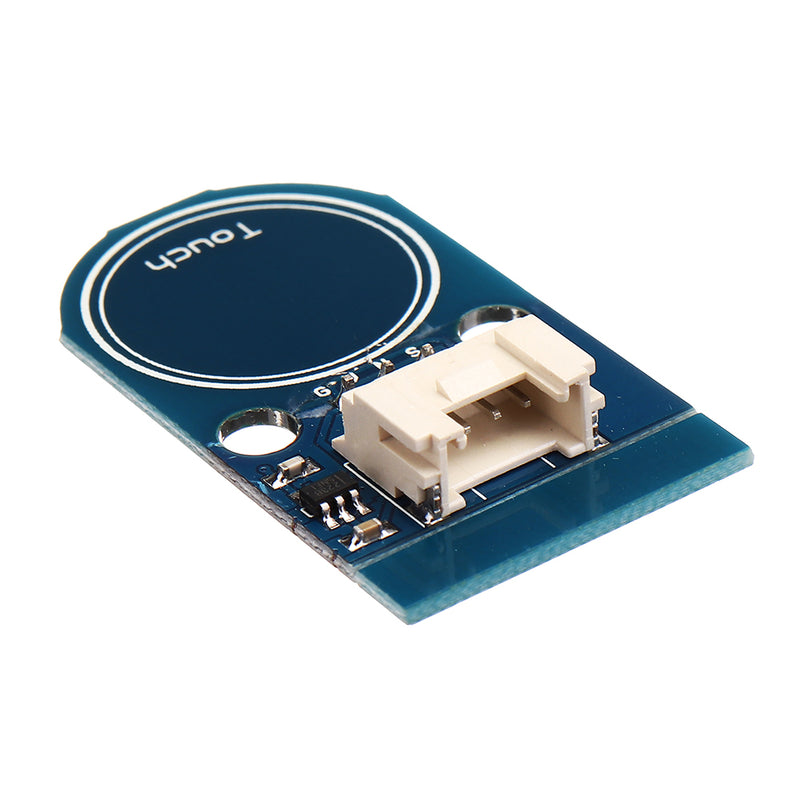

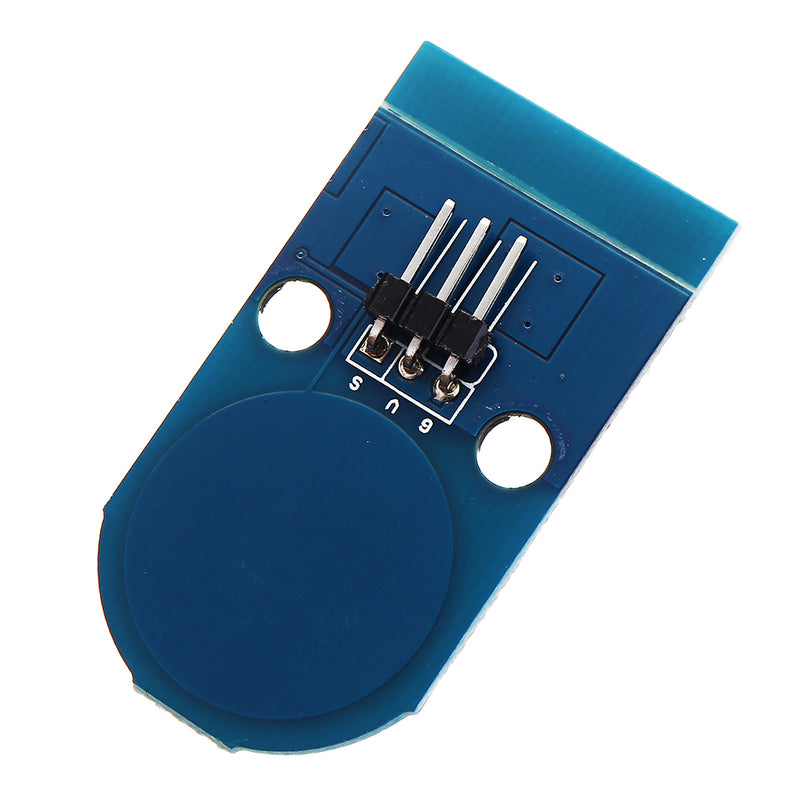

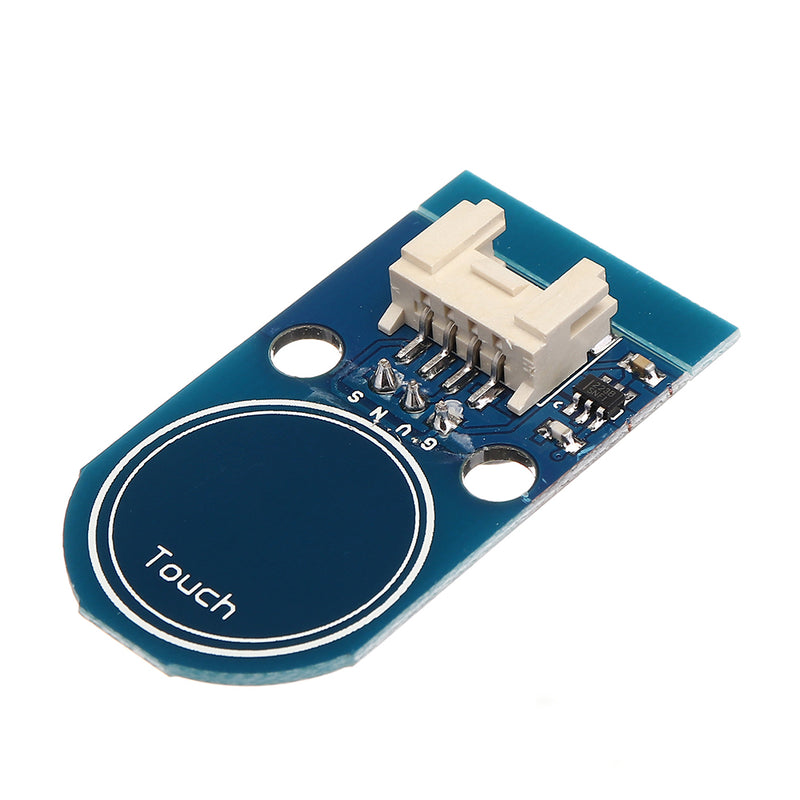

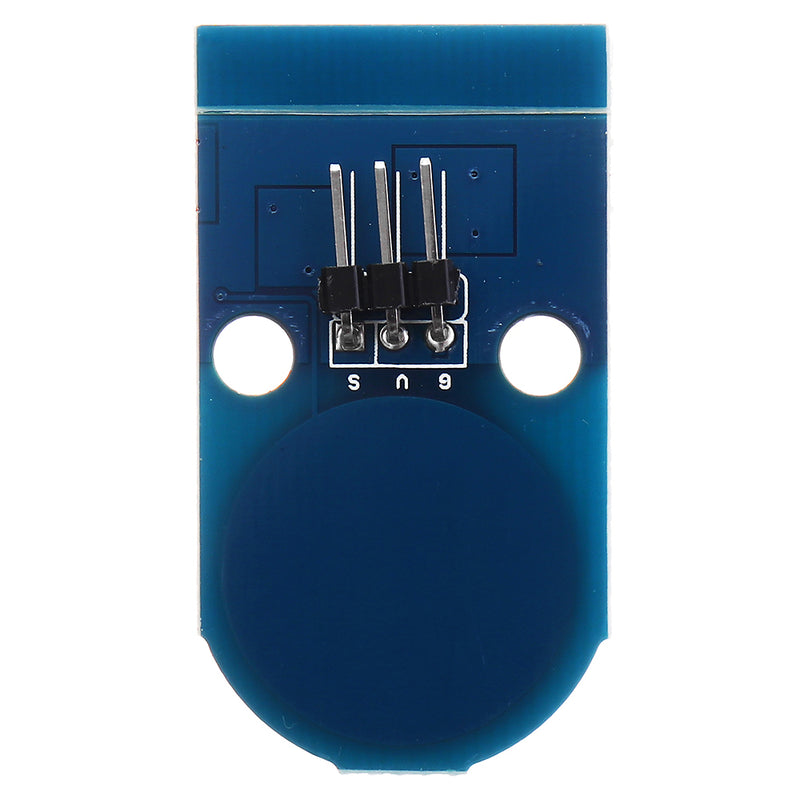

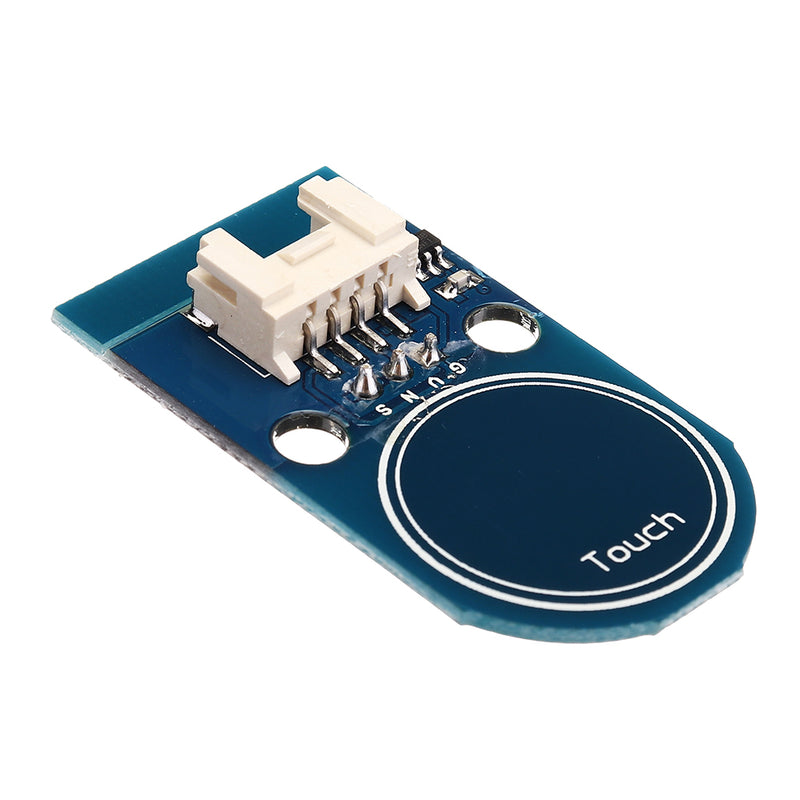

Feature:
PCB size: 38 x 24 x 1.6mm
Wokring voltage: 3.3/5VDC
Compatible interfaces: 2.54mm 3-pin interface and 4-pin grove interface
Note: S for voltage digital output port, N for not used pin, V and G for voltage at the common collector and ground respectively. When there is no operation, digital output is VDD, when the button is pressed down, the digital output is 0V.
| Electrical characteristics |
Min. |
Typical |
Max. |
Unit |
Supply voltage |
2 |
3 |
5.5 |
VDC |
| Working current (VCC=5V) |
- |
18 |
- |
uA |
| Digital output voltage (VCC=5V) |
0 |
- |
5 |
V |
Package includes:
1 x Touch Switch Module
