Features:
- FET module, input and output totally isolated from each other.
- Input signal voltage: 3V~20V; Input current: about 5mA.
- Output voltage: 5V~36V(Current: within 5A, Max. current is 20A. -When current is over 5A, please add heat sink).
- Signal trigger: digital high/low signal, can be connected to IO of micro-controller, PLC interface, DC power supply, etc.
- The output can control high-power devices: motor, light bulb, LED light & strips, DC motor, small pumps, solenoid valve.
- Based on FET model New original F5305S. We can input PWM signal to control motor speed, lightness of bulb, etc.
Specifications:
Input Signal: Voltage: 3V~20V; Current: 5mA
Output: Voltage: 5V~36V; Current: within 5A
Item Size: 46 * 25 * 18mm / 1.8 * 0.98 * 0.7in
Package Included:

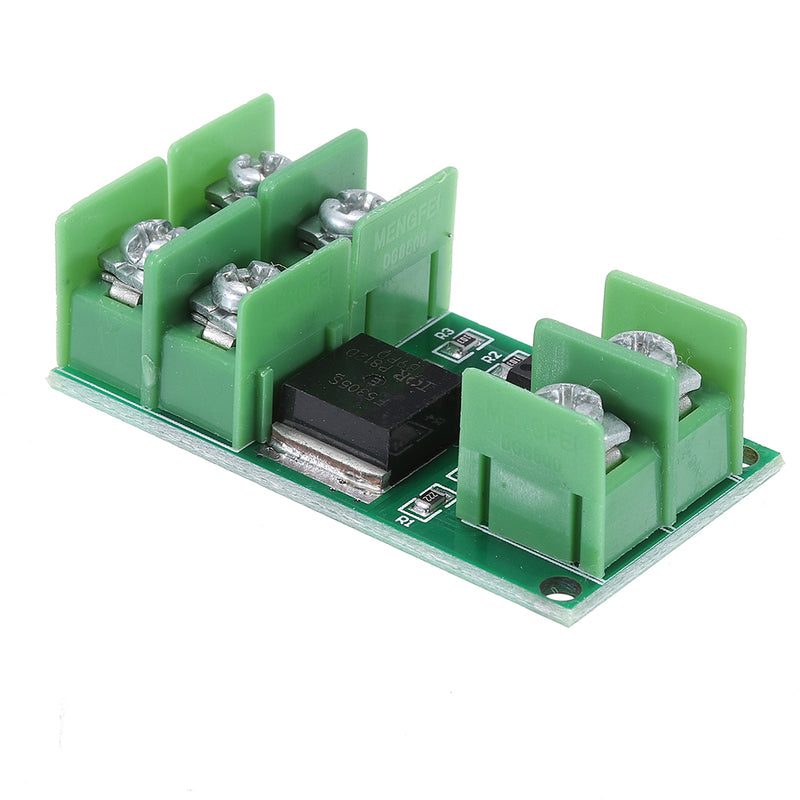

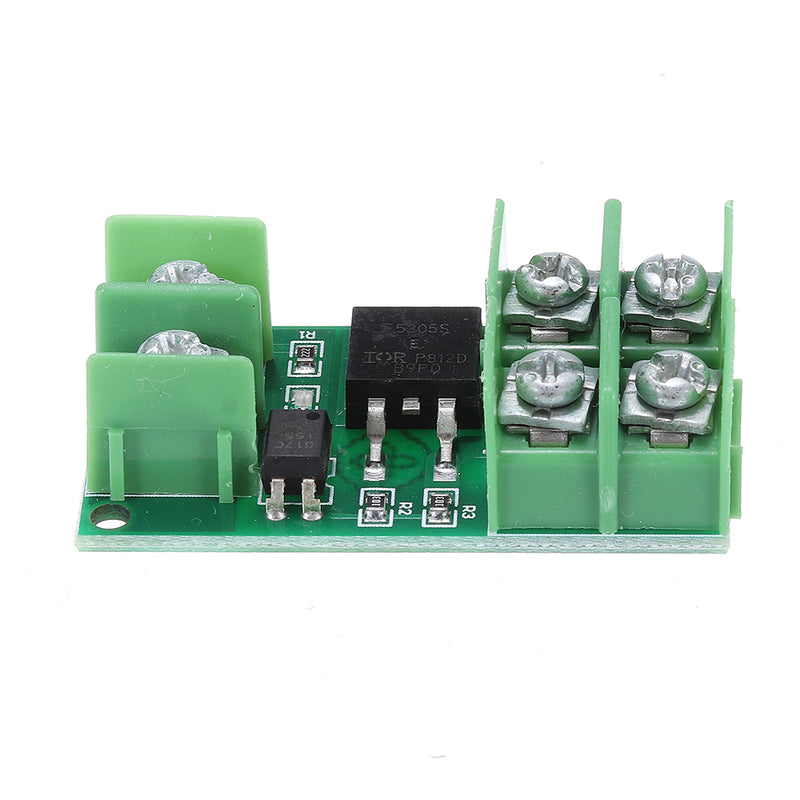

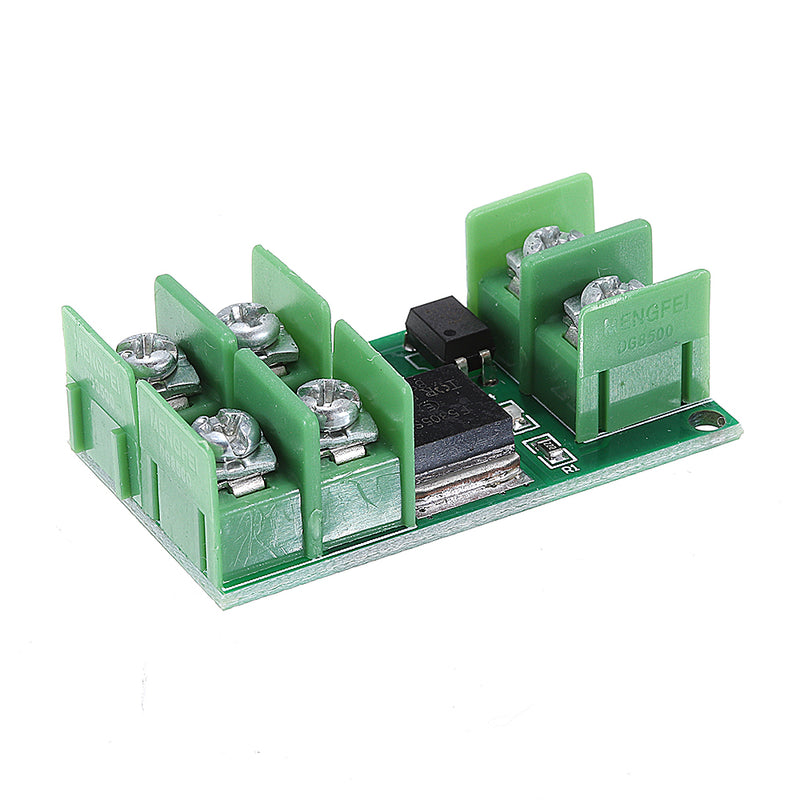

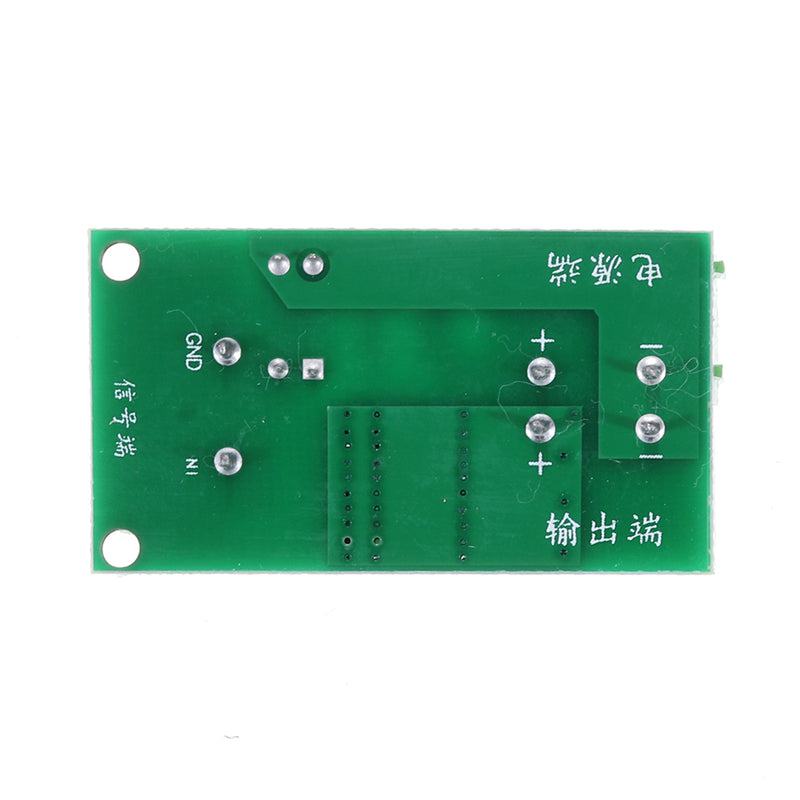

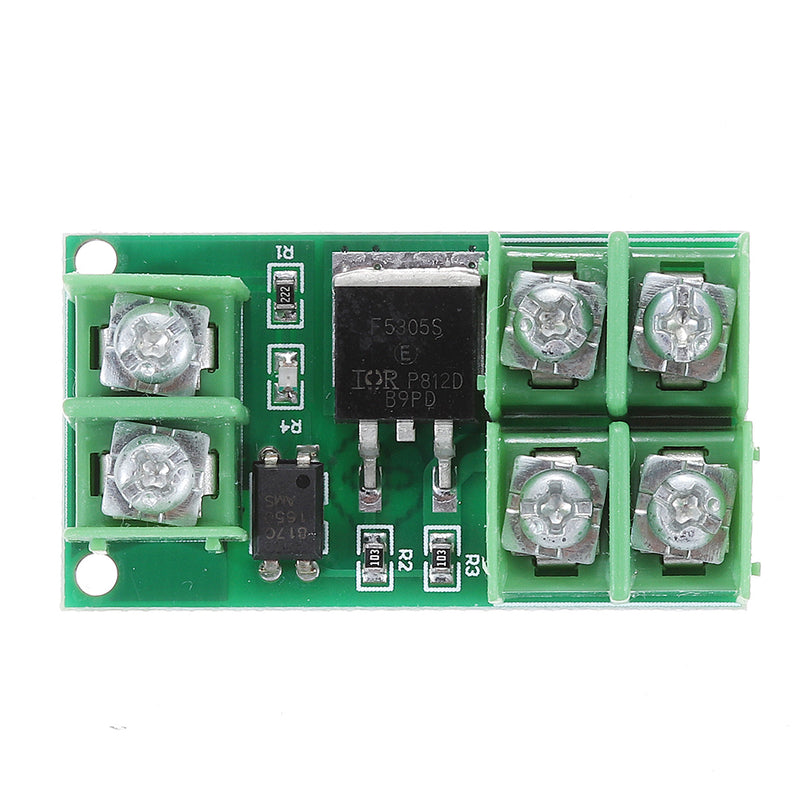

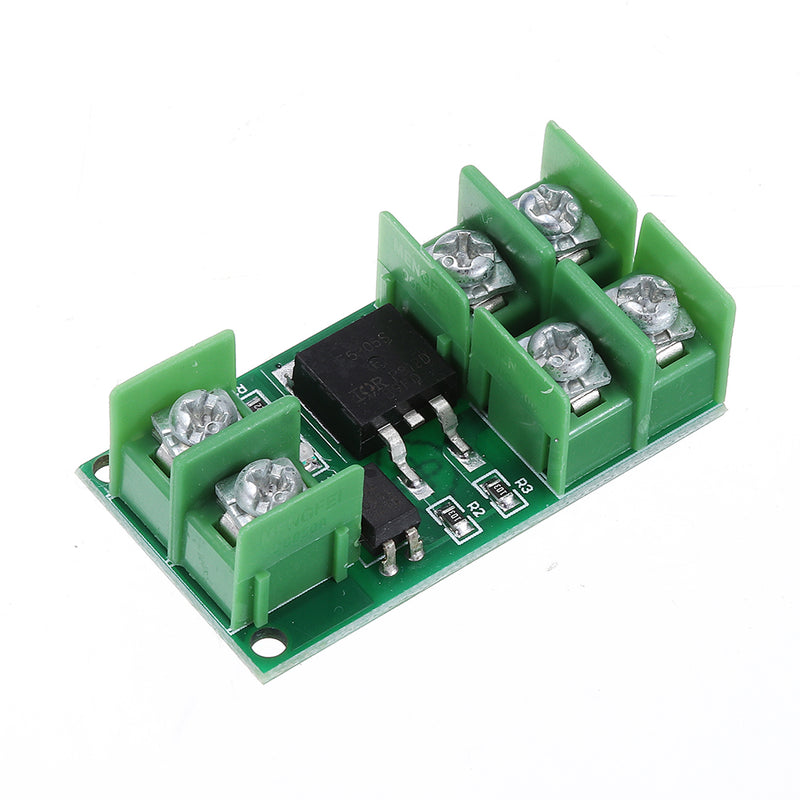

1 x Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor
