Features:
1. High sensitivity for low-light operation
2. Low operating voltage for embedded application
3. Standard SCCB interface compatible with I2C interface
4. With AL422 3M-Bits FIFO.
5. Raw RGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format.
6. Support VGA, CIF and from CIF to 40 x 30 format
7. Vario Pixel method for sub-sampling
8. Auto image control: AEC, AGC, AWB, ABF, ABLC
9. Image quality control: Color saturation, hue, gamma, sharpness and anti-blooming
10. ISP includes noise reduction and defect correction
11. Support image scaling
12. Lens shading correction
13. Flicker 50/60Hz auto detection
14. Color saturation level auto adjust
15. Edge enhancement level auto adjust
16. De-noise level auto adjust
Parameters:
IO voltage: 2.5V to 3.0V
Operating power: 60mW/15fpsVGAYUV
Sleeping mode: <20μA
Operating temperature: -30 to 70 deg C
Output format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
Lens size: 1/6"
Vision angle: 25 degree
Max. frame rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to noise ratio: 46 dB
Dynamic range: 52 dB
Browse mode: By row
Electronic exposure: 1 to 510 row
Pixel coverage: 3.6μm x 3.6μm
Duck current:: 12 mV/s at 60℃
Package included:

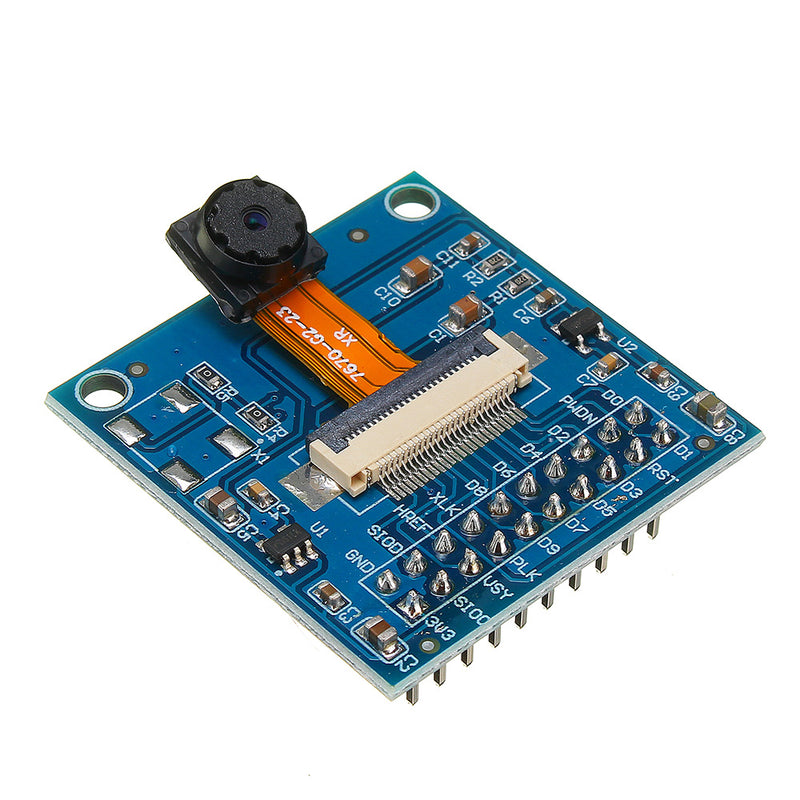

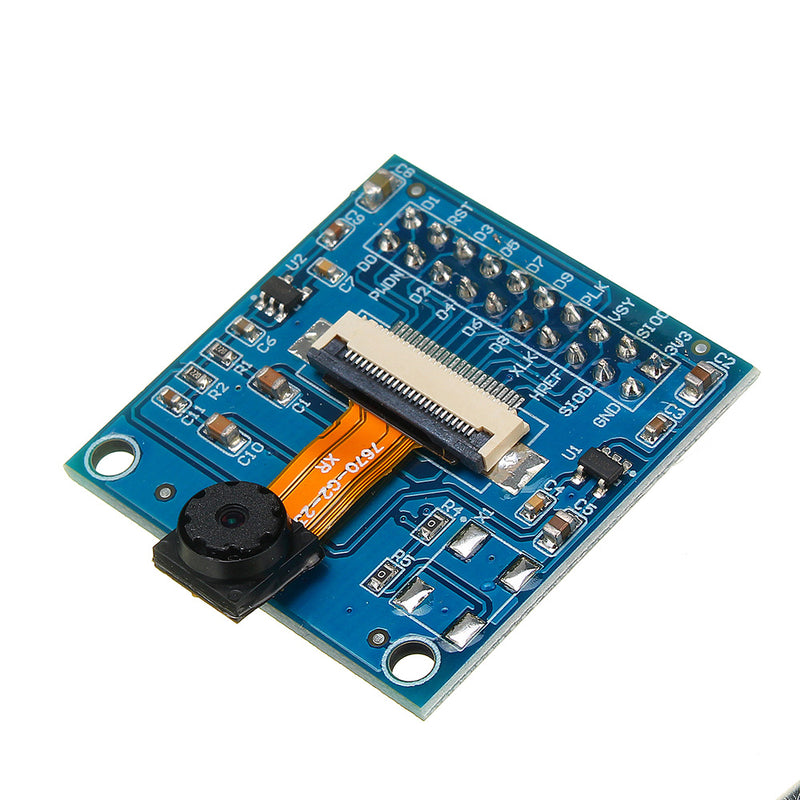

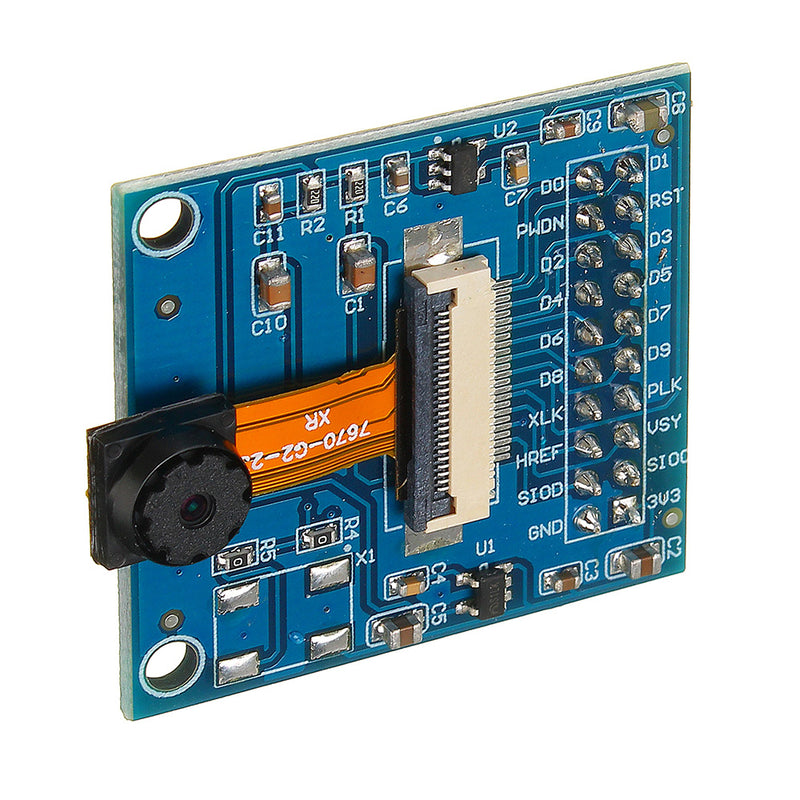

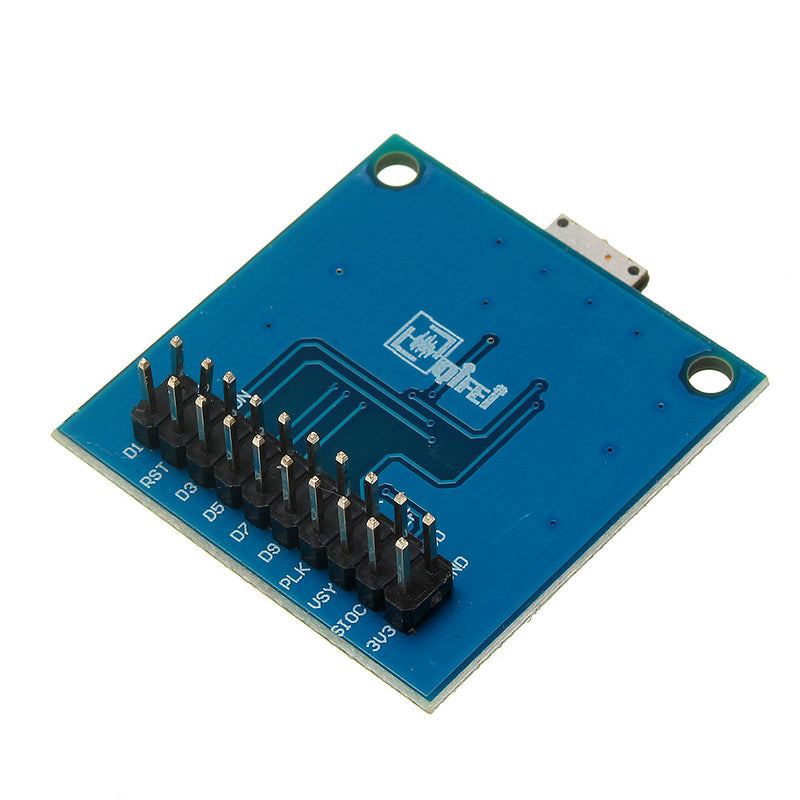

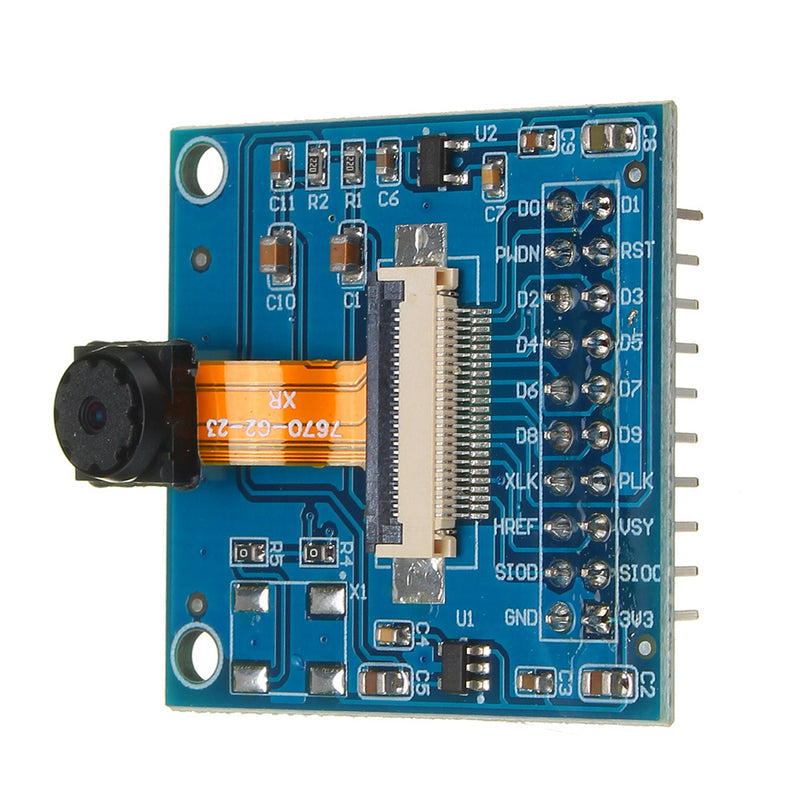

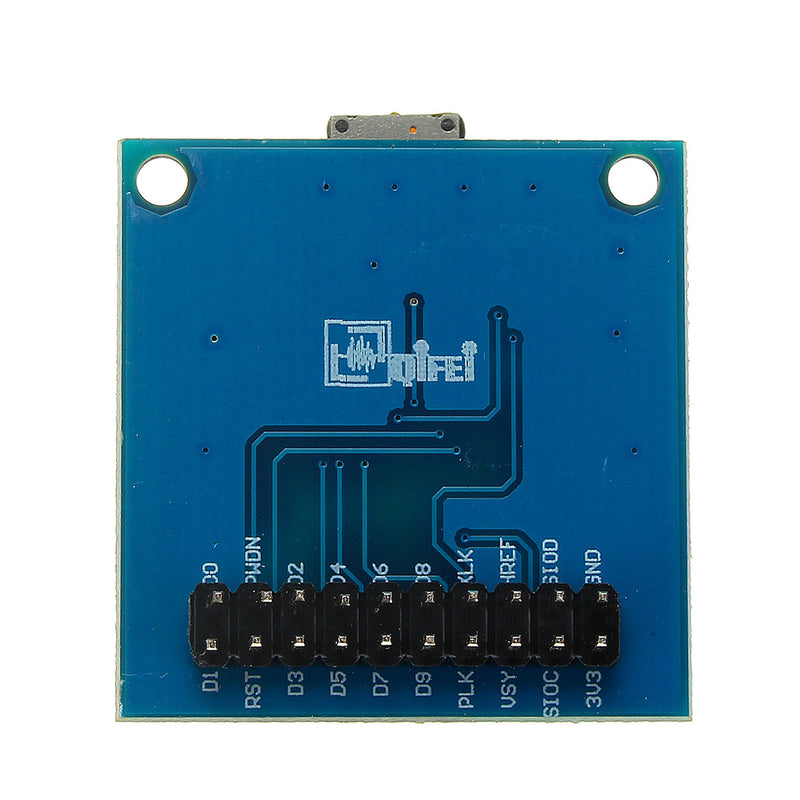

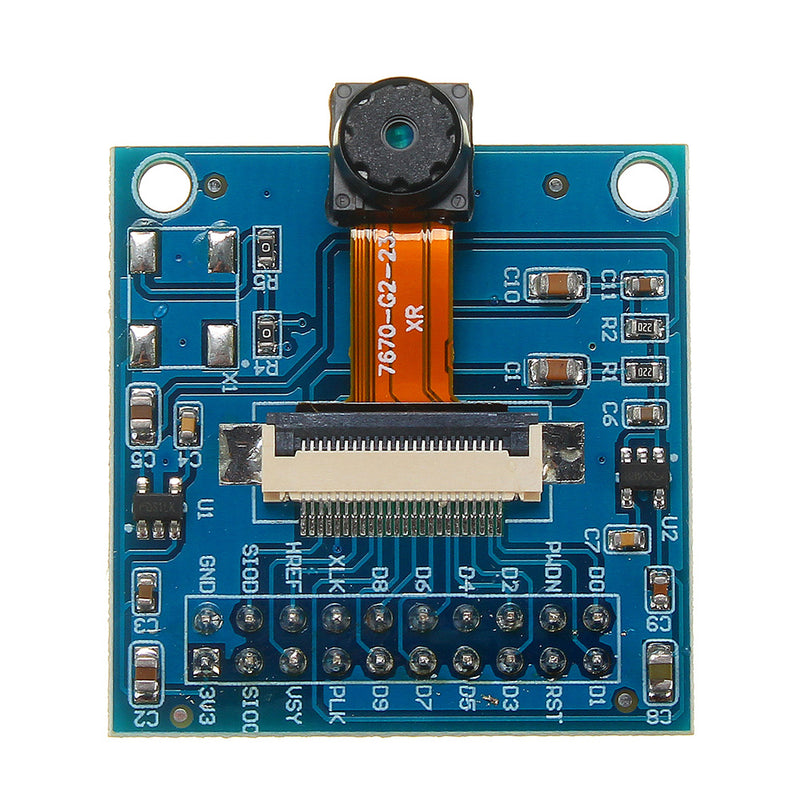

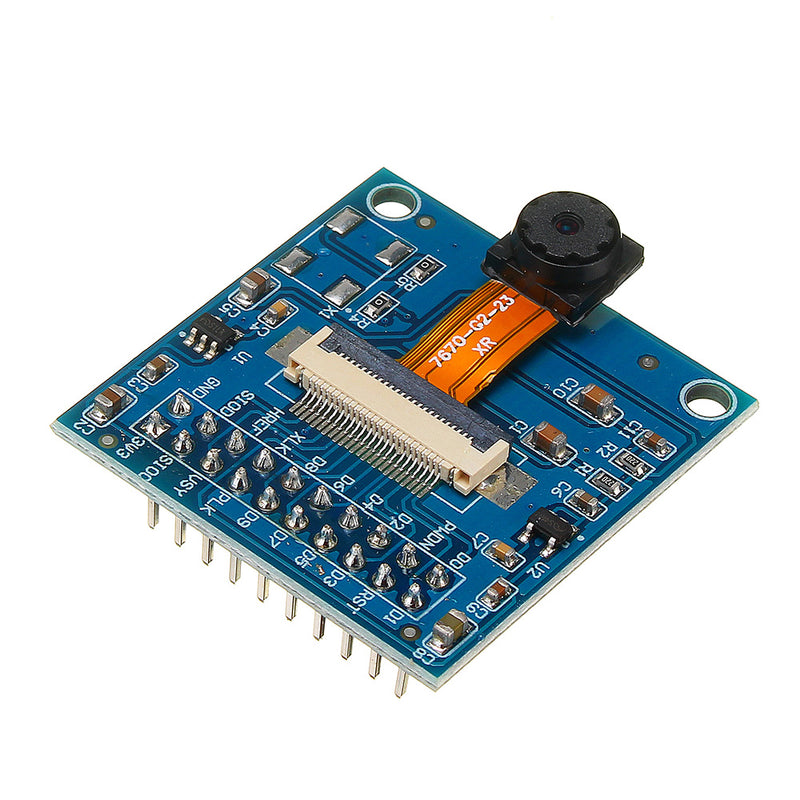

1 x OV7670 Camera Module
