Overview:

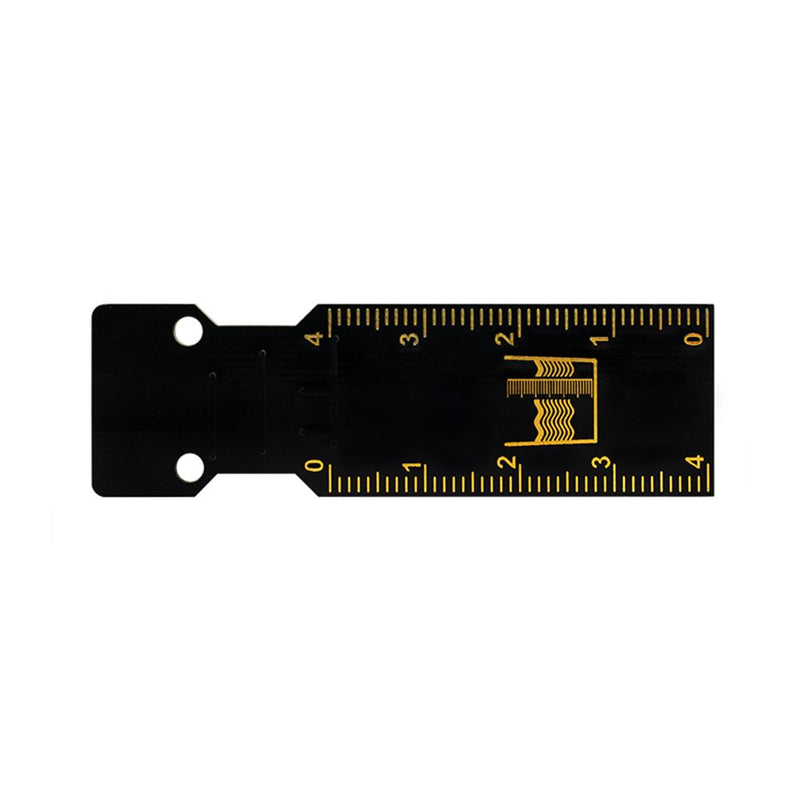

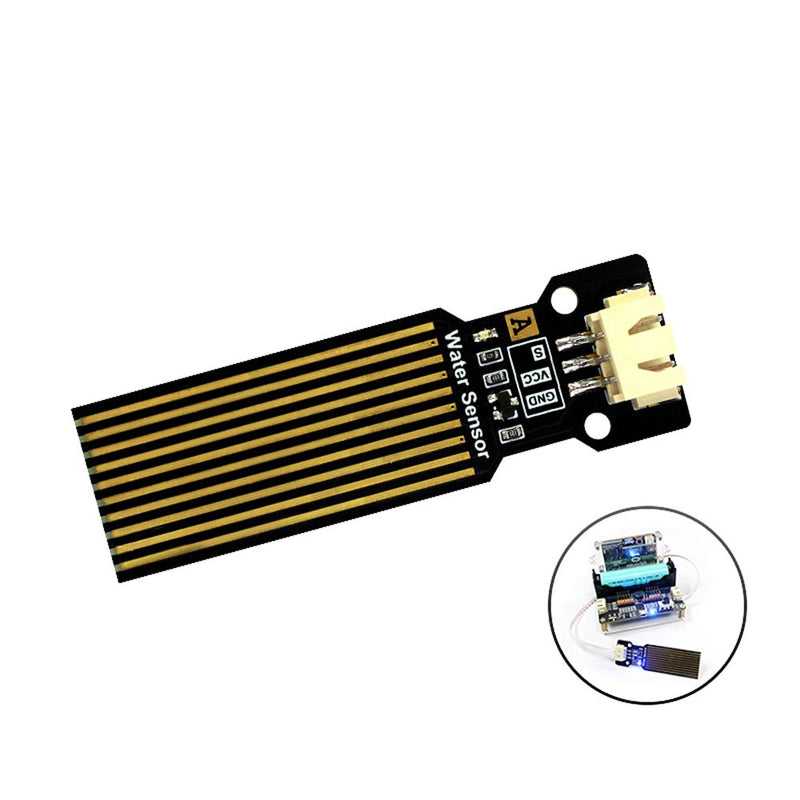

The water level (level) sensor is an easy-to-use, compact and lightweight water level / water droplet recognition detection sensor. The sensor measures its water droplets through a series of exposed parallel wire traces. The amount of water makes the analog signal output by the sensor change accordingly , So as to determine the water level, and easily complete the conversion of water volume to analog signals.
Specifications:
Specifications:
Power supply voltage: 3.3V-5V
Working current: <20mA
Working temperature: 0-60 ℃

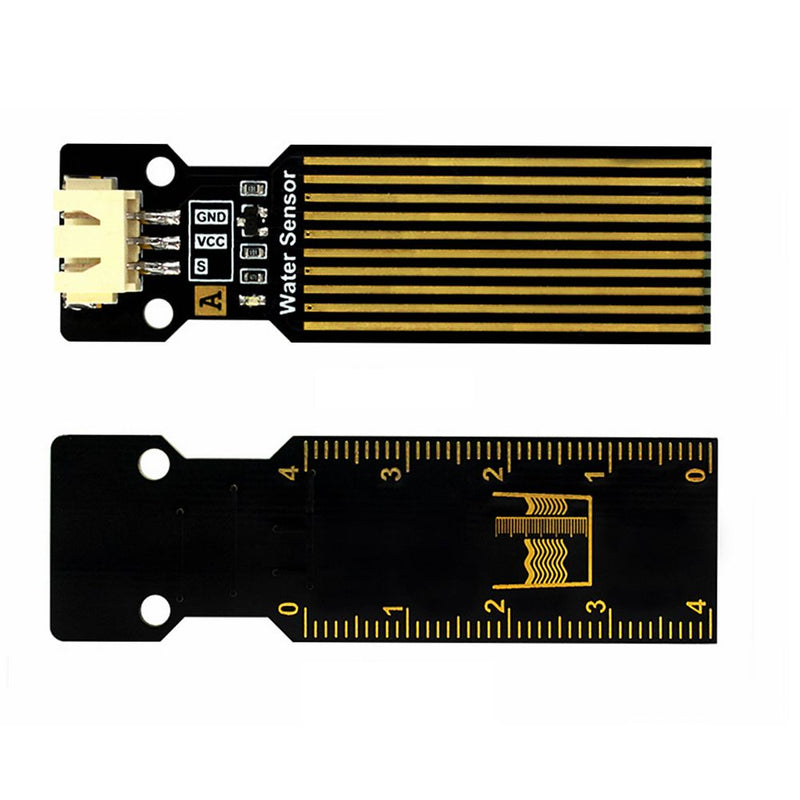

Interface definition: XH2.54 (3pin: GND, VCC, Singal)
Communication signal: analog signal output
Size: 20.4 * 66mm
Note: The exposed wire part of the water level sensor can be immersed in water, but the signal processing part next to the interface cannot touch the water, which may cause a short circuit on the control board. Therefore, when using it, you need to be careful not to measure the liquid level that exceeds the sensor water level line.
Applications:

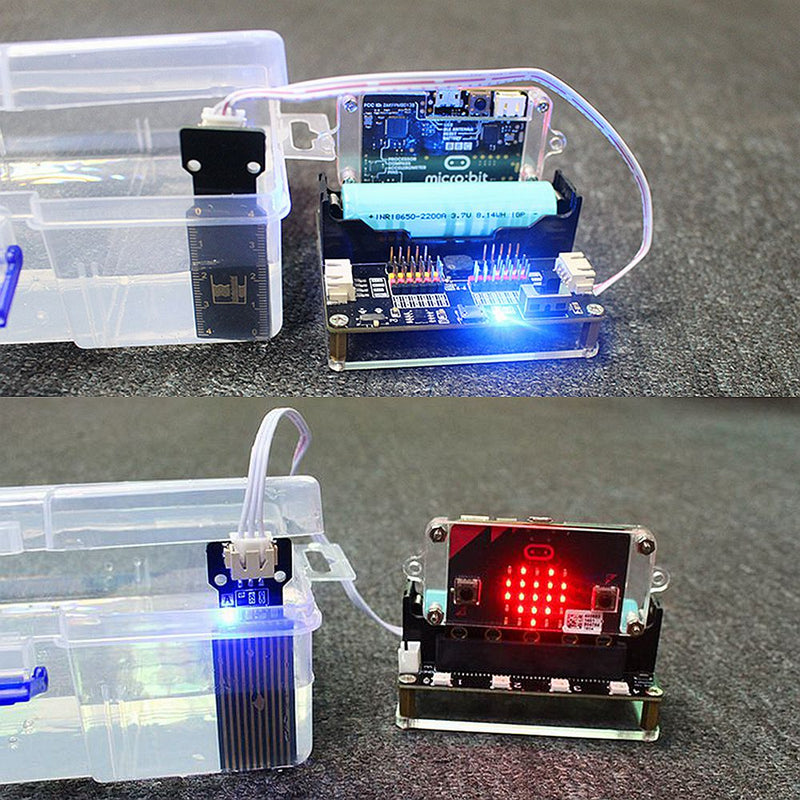

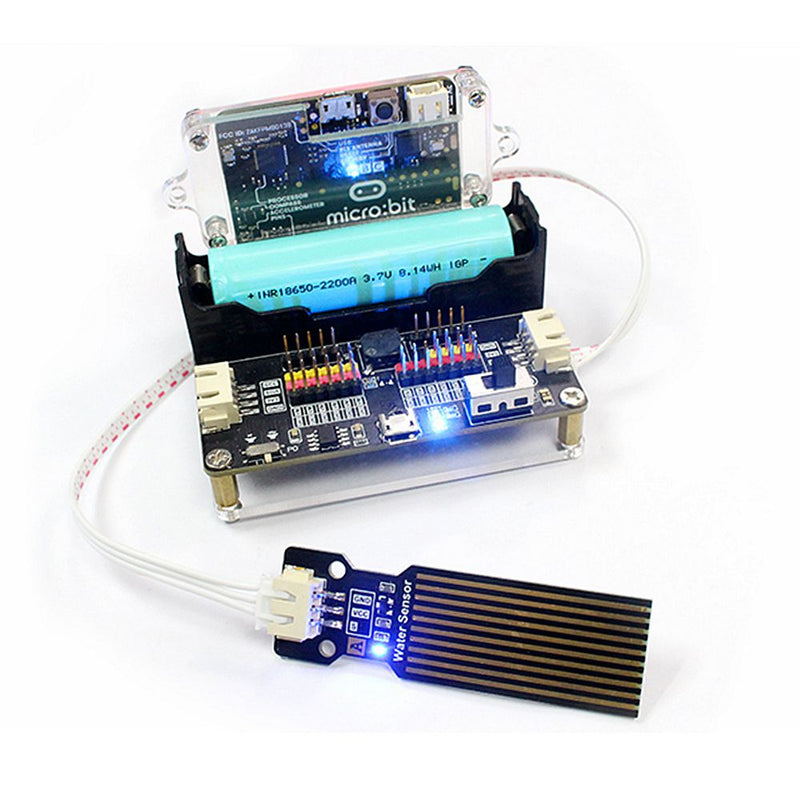

Using the characteristics of the water level sensor, you can cooperate with microbit to make a simple water level monitoring device. The output analog value can be directly applied by the program to achieve the effect of water level alarm, low power consumption and high sensitivity.
Package Included:
1 x Water Level Sensor Module for pyboard MicroPython Programming
