User Manual: Click here to open

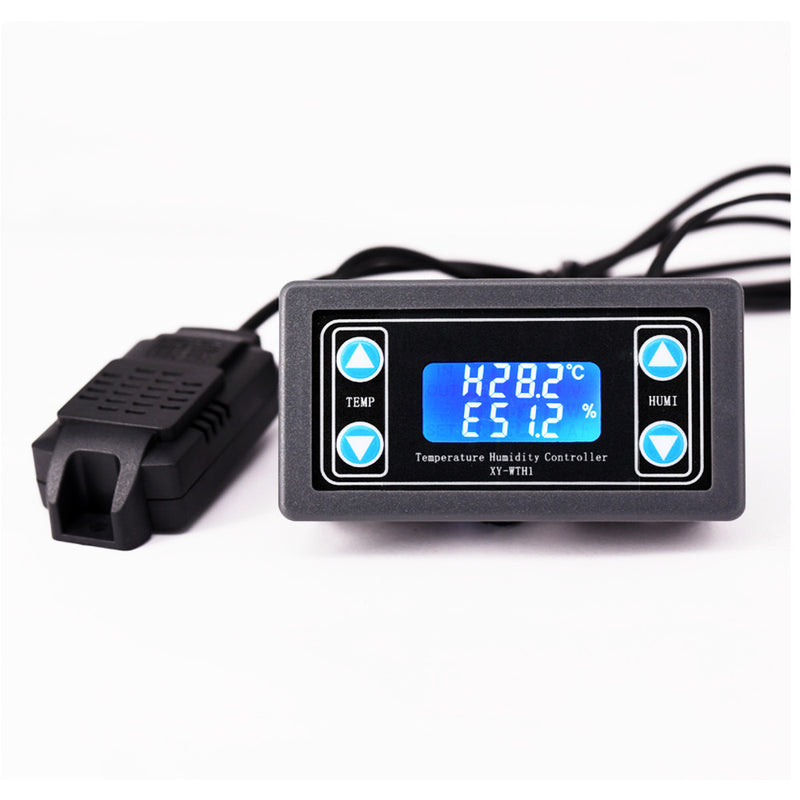

Feature:Model: XY-WTH1
Temperature range: -20 ° C ~ 60 ° C
Humidity range: 00%~100%RH
Control accuracy: 0.1 °C 0.1% RH
Detection probe: integrated sensor
Output type: relay output
Output capacity: up to 10AFunction:
Product features are two main types of classification: the functions of temperature and humidity.
The function of temperature are as follows:
1. The automatic identification of work mode:
The system automatically according to the start/stop temperature, identify work mode;
Start temperature > stop temperature, cooling mode'C'.
Start temperature < stop temperature, heating mode 'H'.
2. Cooling mode:
When the temperature≥Start temperature, relay conduction, red led on, refrigeration equipment begin to work;
When the temperature≤Stop temperature, relay disconnect, red led off, refrigeration equipment stop to work;
3. Heating mode:
When the temperature≤Start temperature, relay conduction, red led on, heating equipment begin to work;
When the temperature≥Stop temperature, relay disconnect, red led off, heating equipment stop to work;
4. Temperature correction function OFE (-10.0 ~ 10℃):
The system is working for a long time and may be biased, through this function correctly, the actual temperature = measuring temperature + calibration value;
How to set the start/stop temperature:
1. In the running interface, Long Press ' TM+ ' key more than 3 seconds, into the start temperature settings interface, can be modified by TM+ TM-key, to be modified, waiting for 6s automatic exit and save;
2. In the running interface, Long Press ' TM-' key more than 3 seconds, into the stop temperature settings interface, can be modified by TM+ TM-key, to be modified after the parameters, waiting for 6s automatic exit and save;The humidity function is as follows:
1. The automatic identification of work mode:
The system automatically according to the start/stop humidity, identify work mode;
Start humidity > stop humidity, dehumidification mode'D'.
Start humidity < stop humidity, humidification mode 'E'.
2. Dehumidification mode:
When the humidity ≥ Start humidity, relay conduction, green led on, dehumidification equipment begin to work;
When the humidity ≤ Shop humidity, relay disconnect, green led off, dehumidification equipment stops to work;
3. Humidificationmode:
When the humidity ≤ Start humidity, relay conduction, green led on, humidification equipment begin to work;
When the humidity ≥ Shop humidity, relay disconnect, green led off, humidification equipment stops to work;
4. Humidificationcorrection function RH (-10.0 ~ 10%):
The system is working for a long time and may be biased, through this function correctly, the actual humidity= measuring humidity + calibration value;
How to set the start/stop humidity:
1. In the running interface, Long Press ' RH+ ' key more than 3 seconds, into the start humidity settings interface, can be modified by RH+ RH- key, to be modified, waiting for 6s automatic exit and save;
2. In the running interface, Long Press ' RH-' key more than 3 seconds, into the stop humidity settings interface, can be modified by RH+ RH- key, to be modified after the parameters, waiting for 6s automatic exit and save;
Package includes:

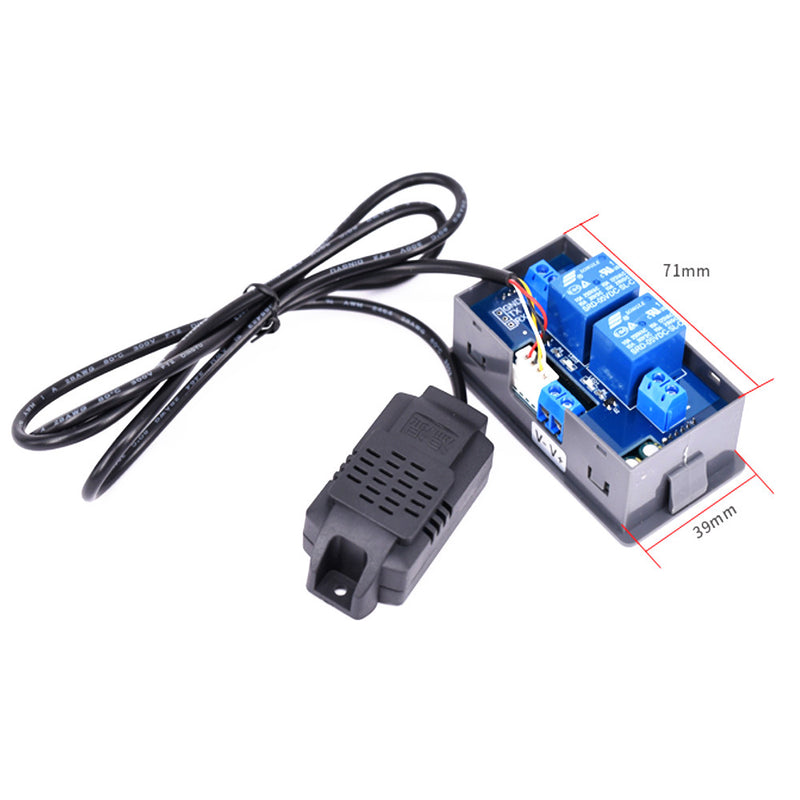

1 x Module with Sensor
