Specification:
Input voltage: DC 7 - 27V
Output power: can control the DC load within 10A
Time range: 0.001 seconds ~ 999 hours can be adjusted at any time
Function Description:
Power automatic cycle work, stop, work, stop...infinite cycle;
If the turn-on time is set to 0;Power delay start-up, no cycle;
If the disconnection time is set to 0;Power-on delay disconnection, no cycle;
Time Setting Instructions:
The above shows the working time;
The following shows the stop time;
The value can be adjusted by rotating the coded potentiometer.Press the coded potentiometer to adjust the time unit
Minimal Time Unit Description:
X. X. X. decimal point, time range: 0.001 seconds to 0.999 seconds
X. X decimal point after 100 bits, time range: 0.01 seconds to 9.99 seconds
X X. X decimal point after 10 bits, time range: 0.1 seconds to 99.9 seconds
X X X, no decimal point, time range:1 second to 999 seconds
After the decimal point, time range:1 minute to 999 minutes
X. X. X. decimal point in 10 and after, time range:1 hour to 999 hours
Package Included:

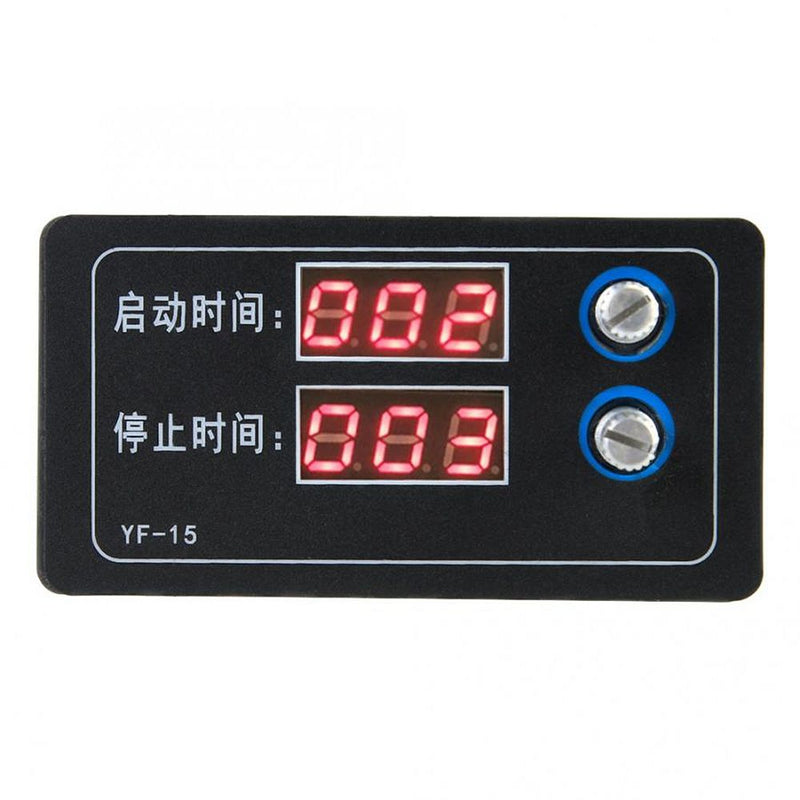

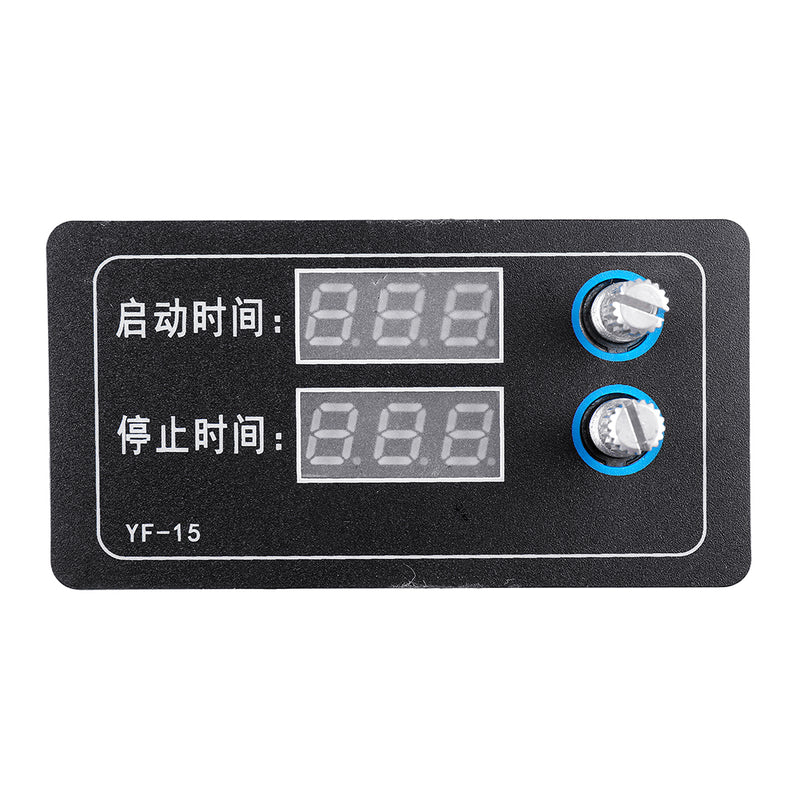

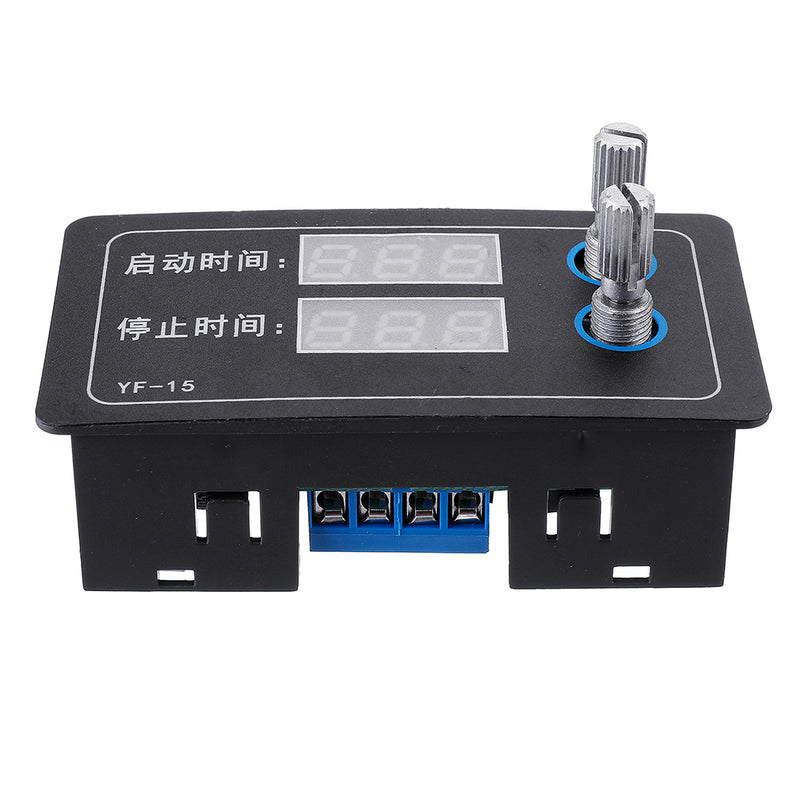

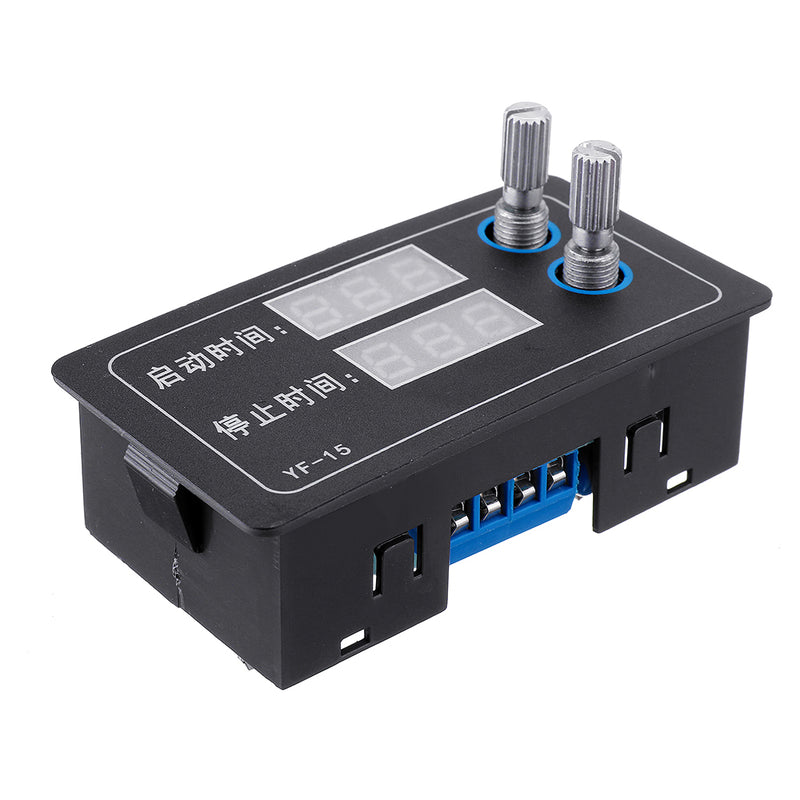

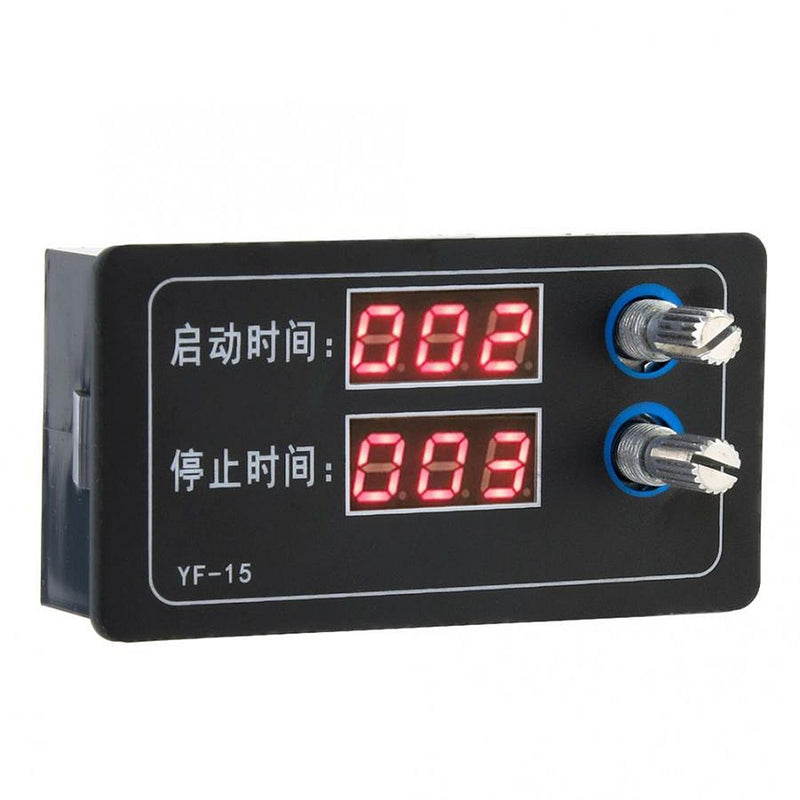

1 x YF-15 Delay Intermittent Cycle Countdown Controller Module 7-27V DC
