Features: OLED display, internal integrated control chip, good display effect and easy operation.
The principle of active light display is suitable for various environments.
I2C interface, easy to connect , occupy less IO
PH2.0 interface, strong connection, easy to use interface annotation.
Compatible with U8glib library files, easy to display characters and graphics.
Note: the product has no font, screen material is glass, knocking and falling will cause screen damage.
Specification: Size: 46 x 32 x 9mm
Fixed hole: 3mm
Hole position: 1600 x 1050mil (40.64 x 26.67mm)
Display size: 1.3 inches
Screen: 128 x 64 (dot matrix)
Color: black and white.
Voltage: 5V
Drive chip: SSH1106
Interface: I2C (PH2.0 4P)
I2C address: 0x78
Package Included:

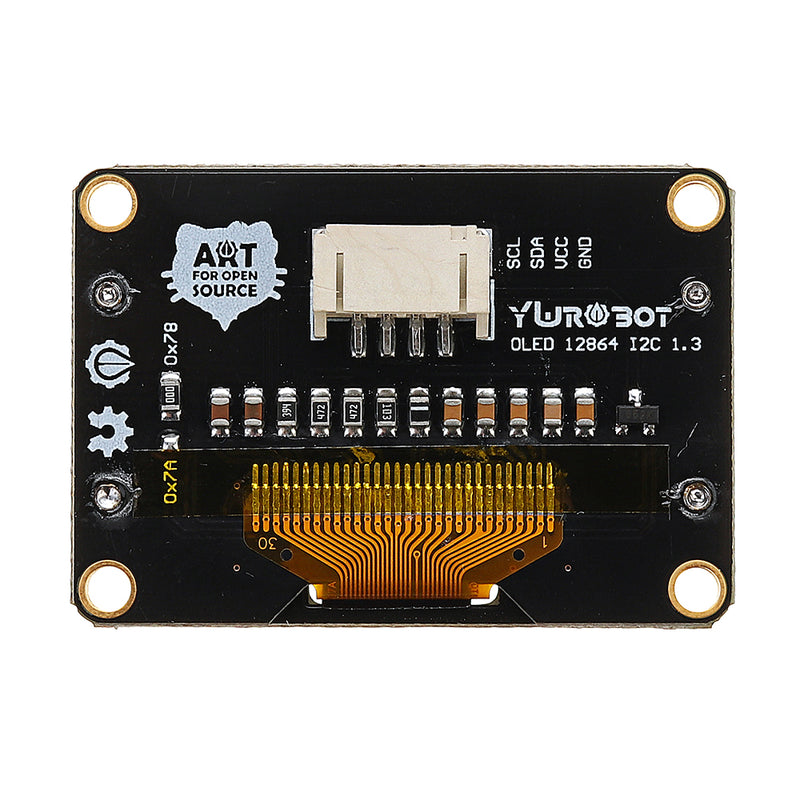

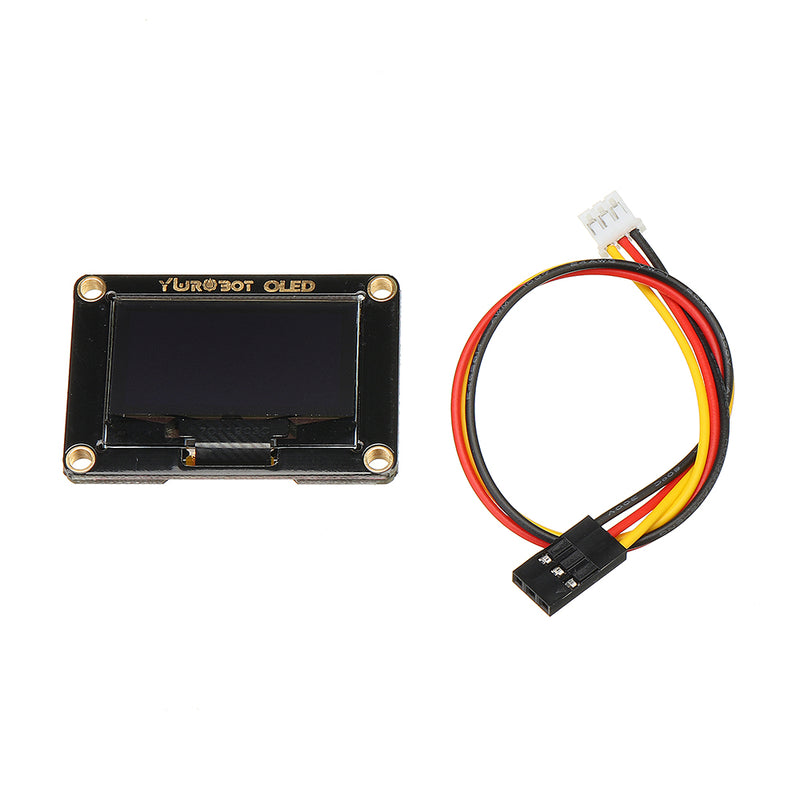

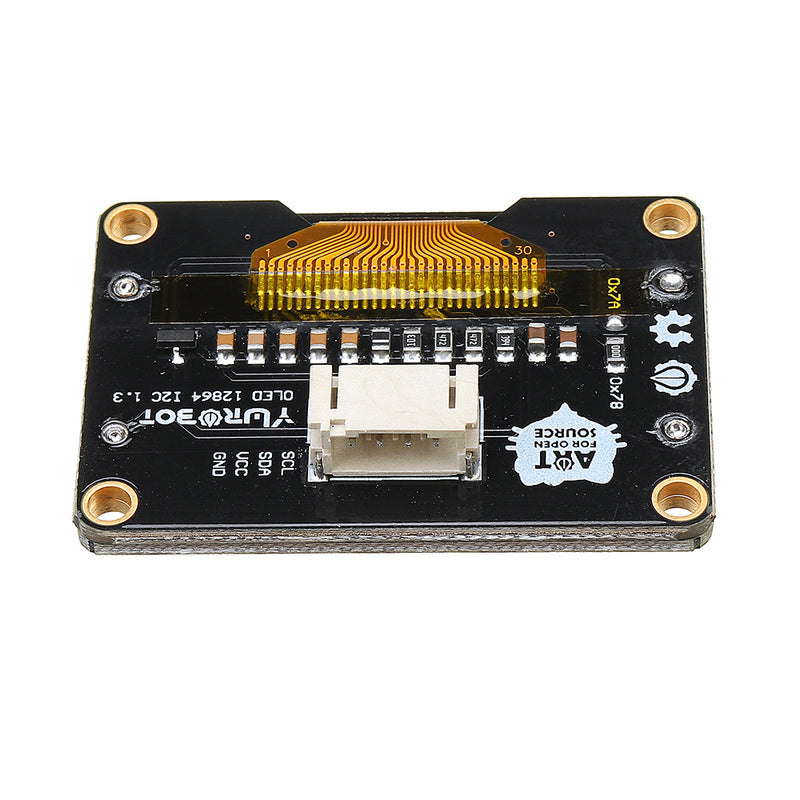

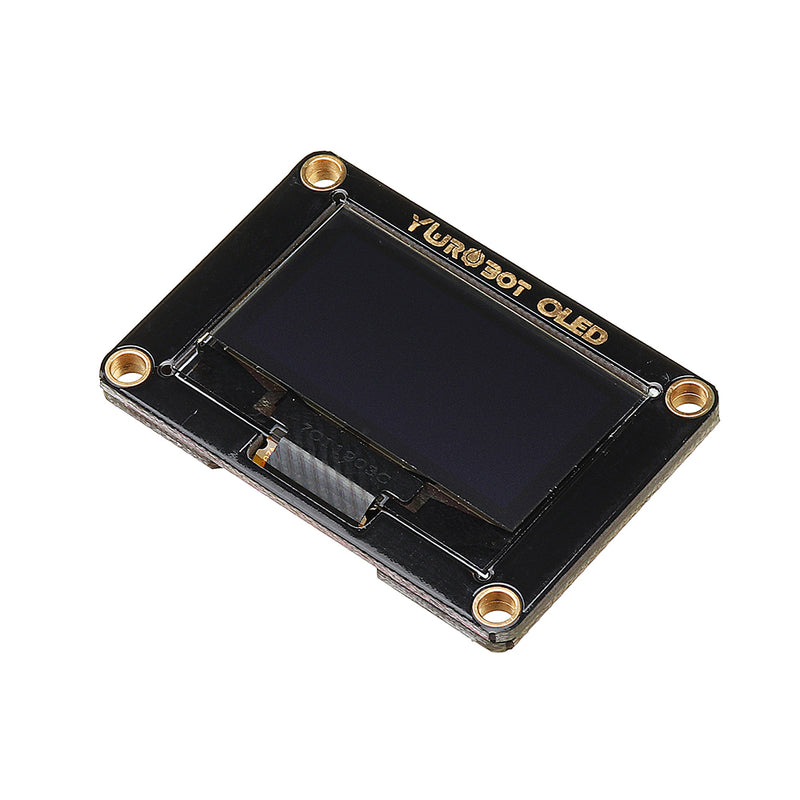

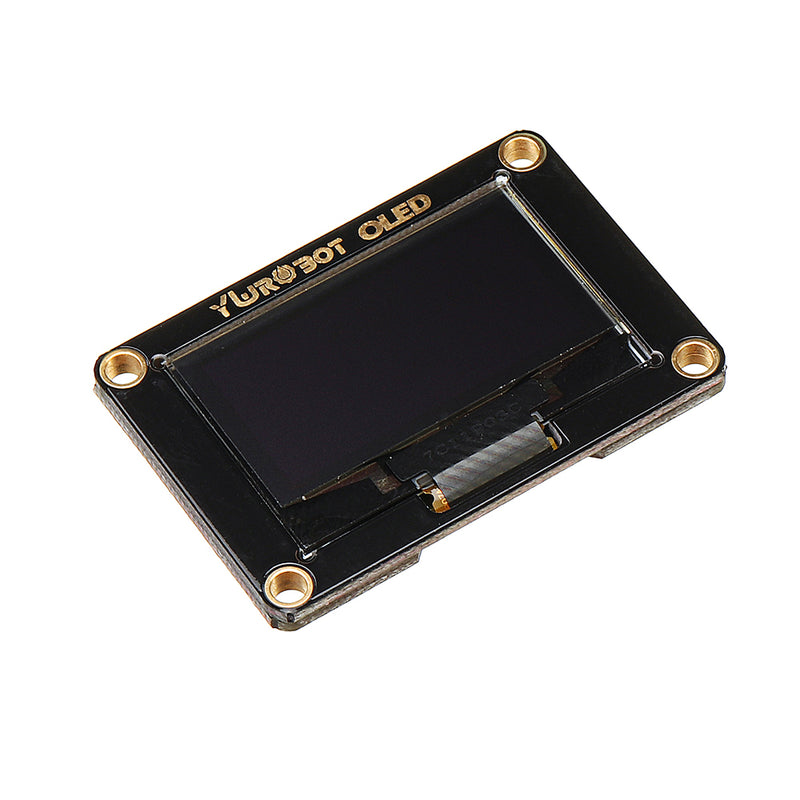

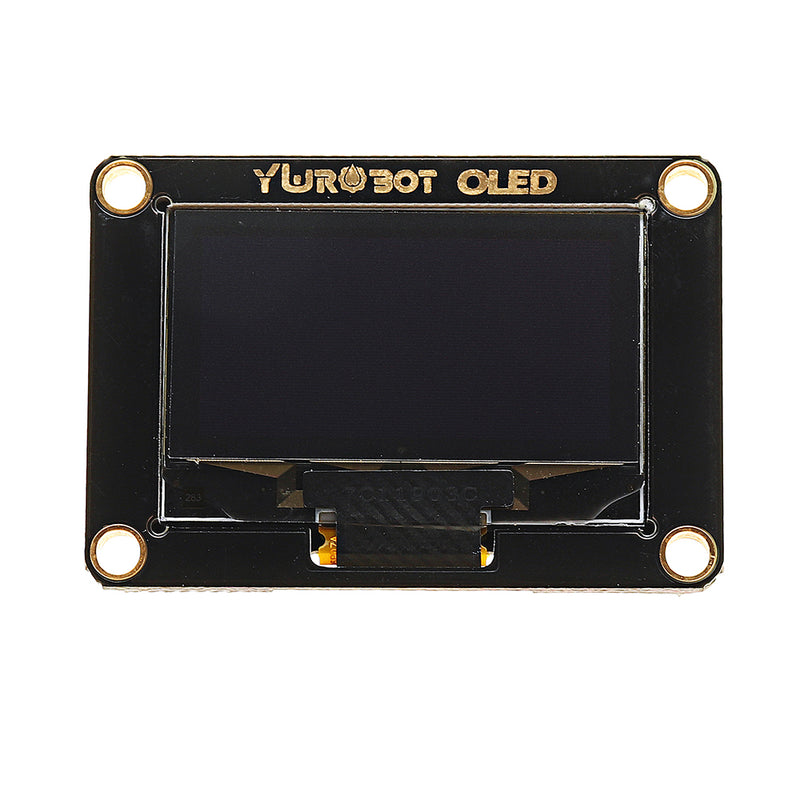

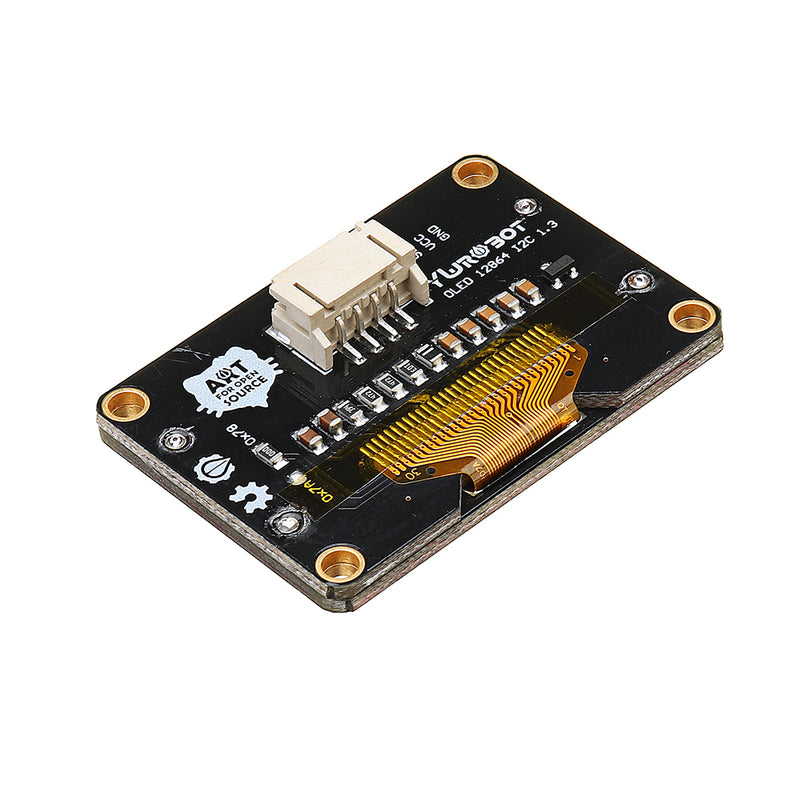

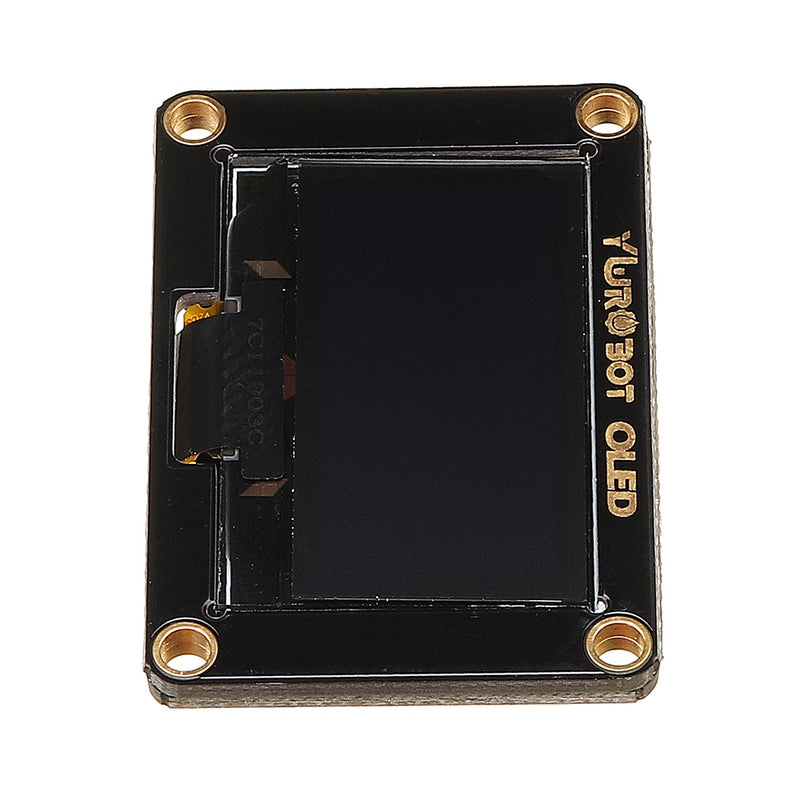

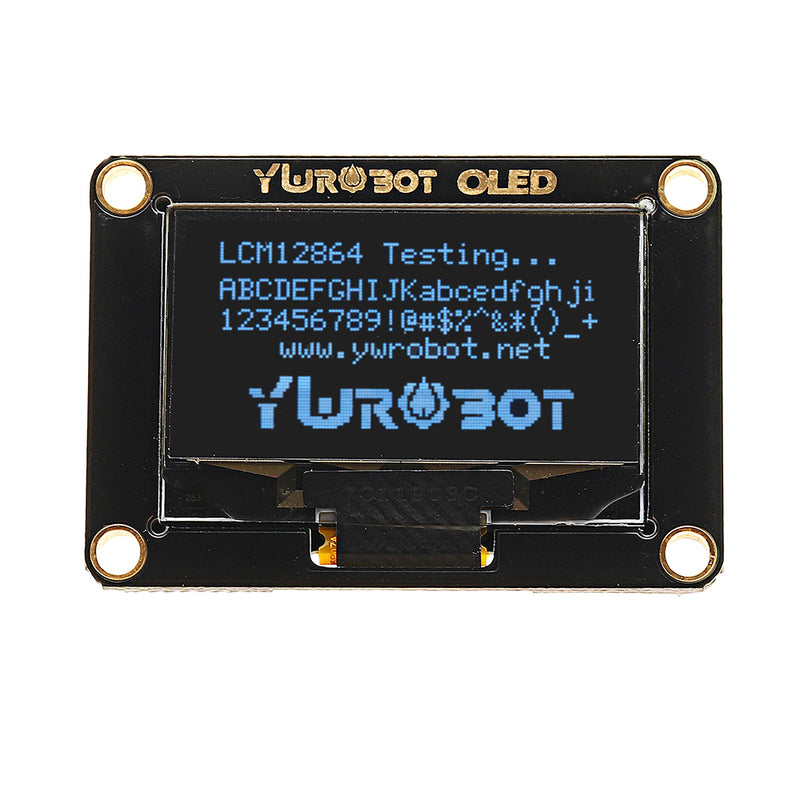

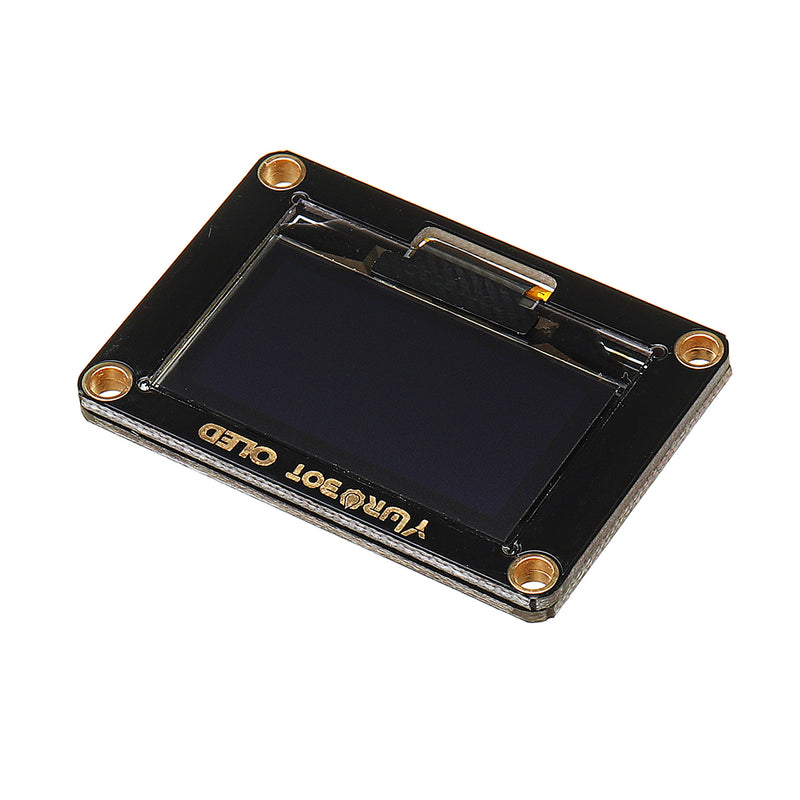

1 x 1.3 Inch OLED Display Module
