Specifications:
Power supply voltage: 12VAC (AC 12V transformer must be powered independently)
Channel type: two channels
Load type: maximum current 10A
Output power: up to 400W*2
Product size: length 65mm* width 39.5mm* height 23mm
Installation size: 58*33mm
Product weight: 37g
Features:
The speaker protection board has the function of power-on delay (about 3 seconds) and DC protection (control voltage is about 1V). The board circuit is simple, easy to manufacture, safe and reliable. With LED status display, it lights up when it is protected, and it works normally. It is extinguished at the time. It adopts 15A high current relay, which is suitable for most power amplifier boards. The working voltage is 12-15V, which needs independent power supply.
Tips:
1. Speaker protection requires independent power supply and cannot share one winding with other circuits.
2. The BTL circuit requires two sets of protection boards (one set of one channel)
3. The protection board is only suitable for dual power supply amplifiers, and cannot be used for single power supply amplifiers.
Package Included:

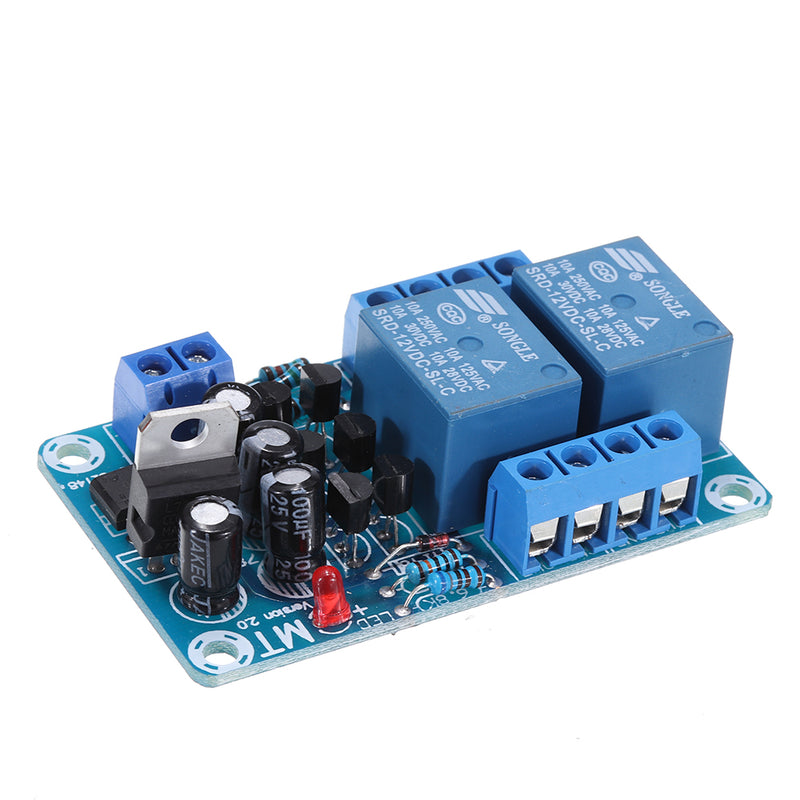

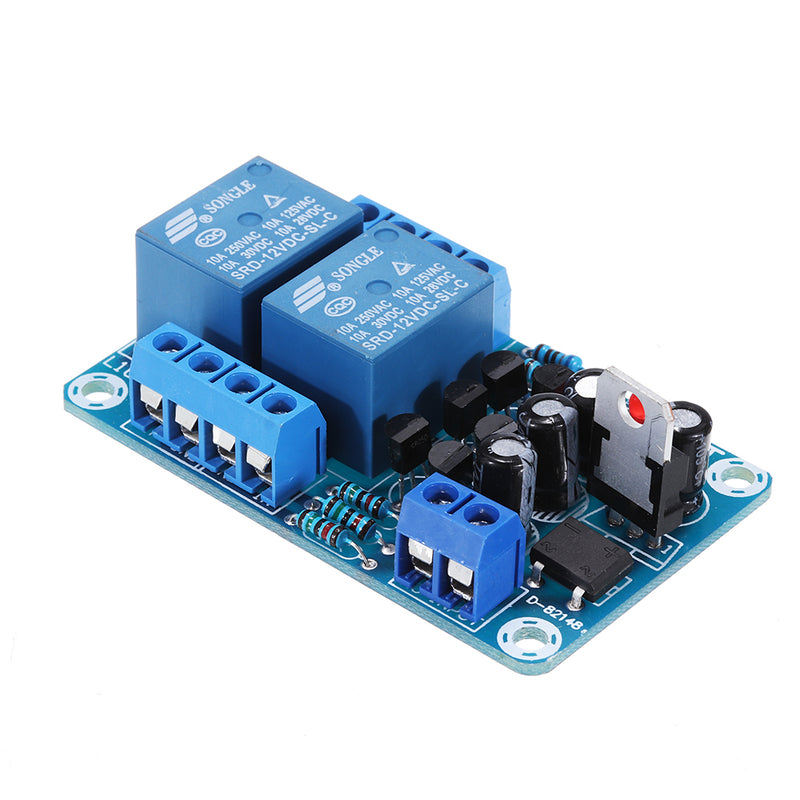

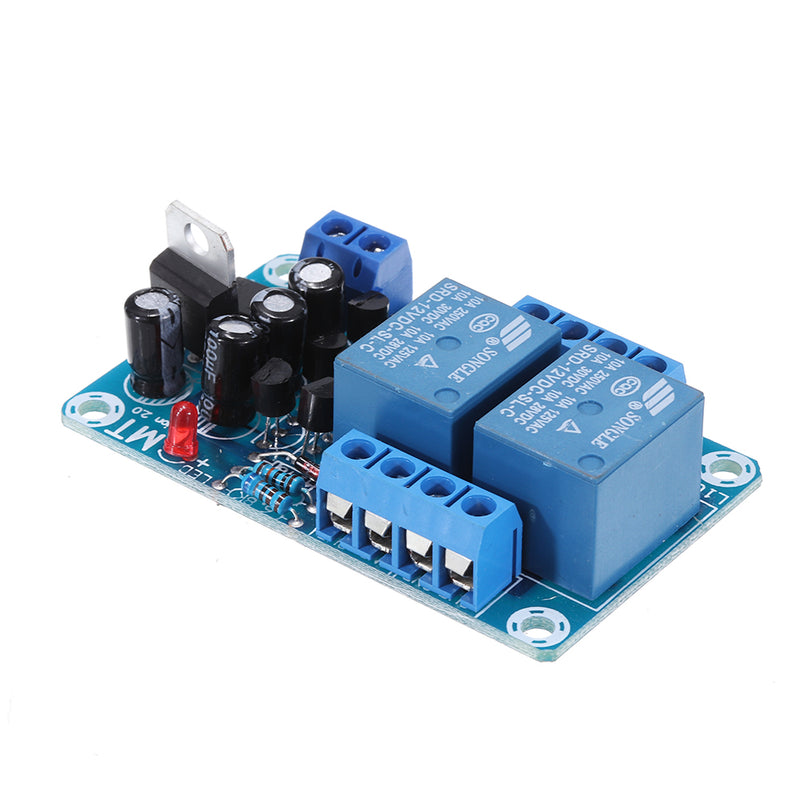

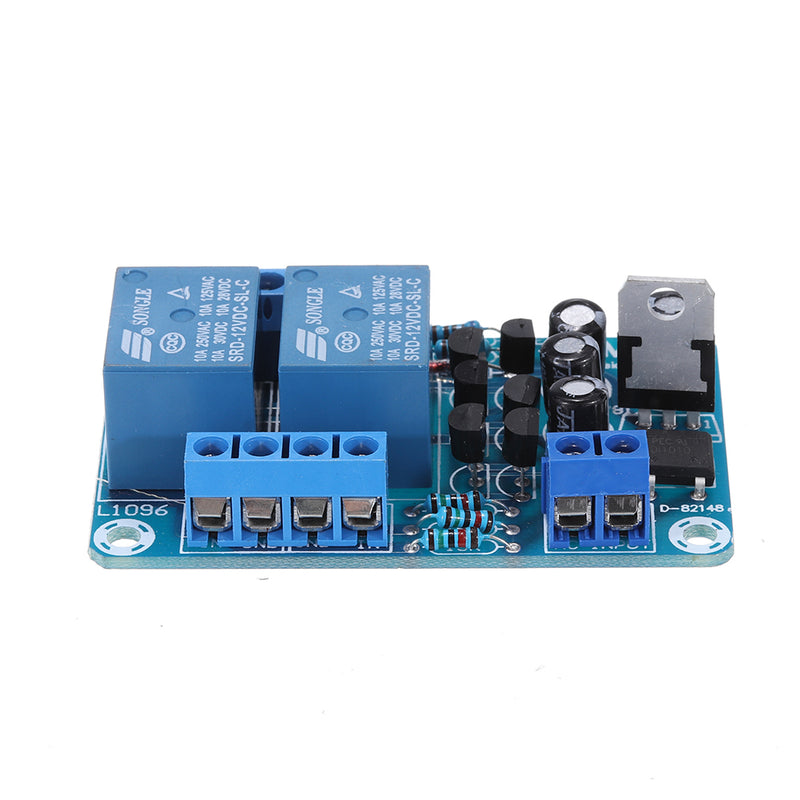

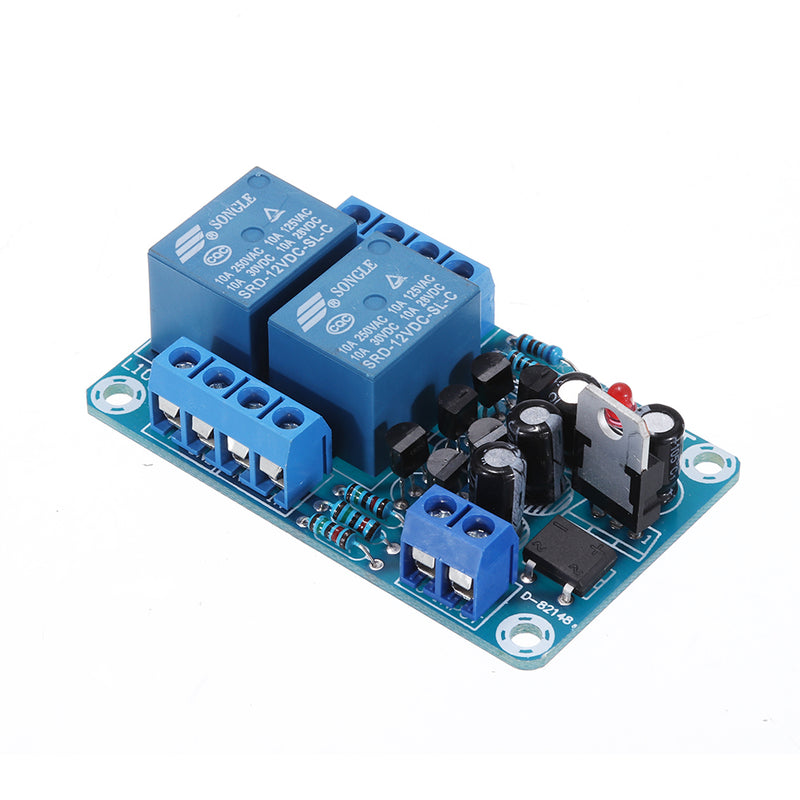

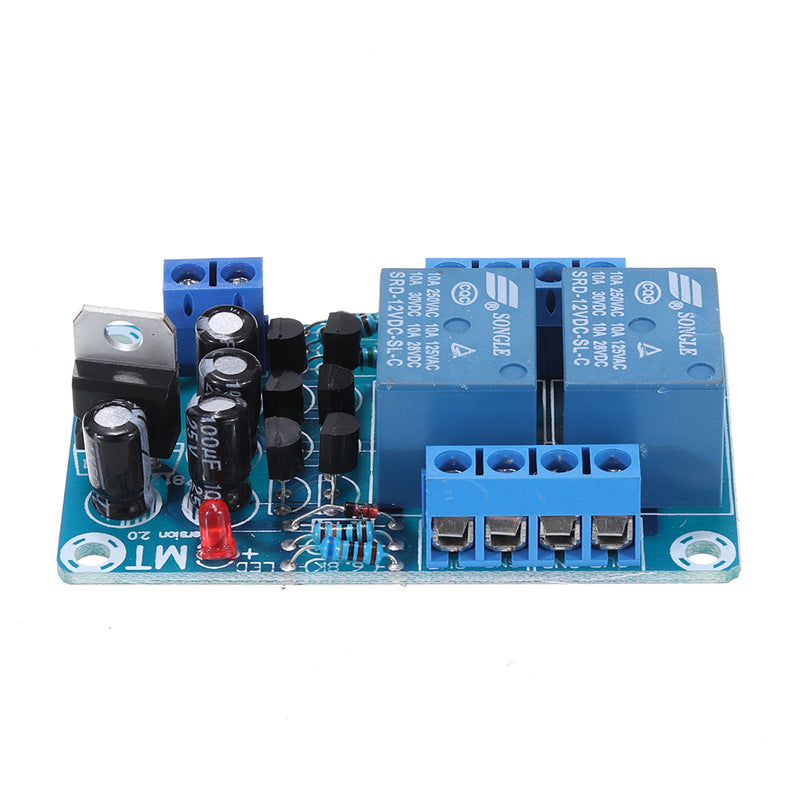

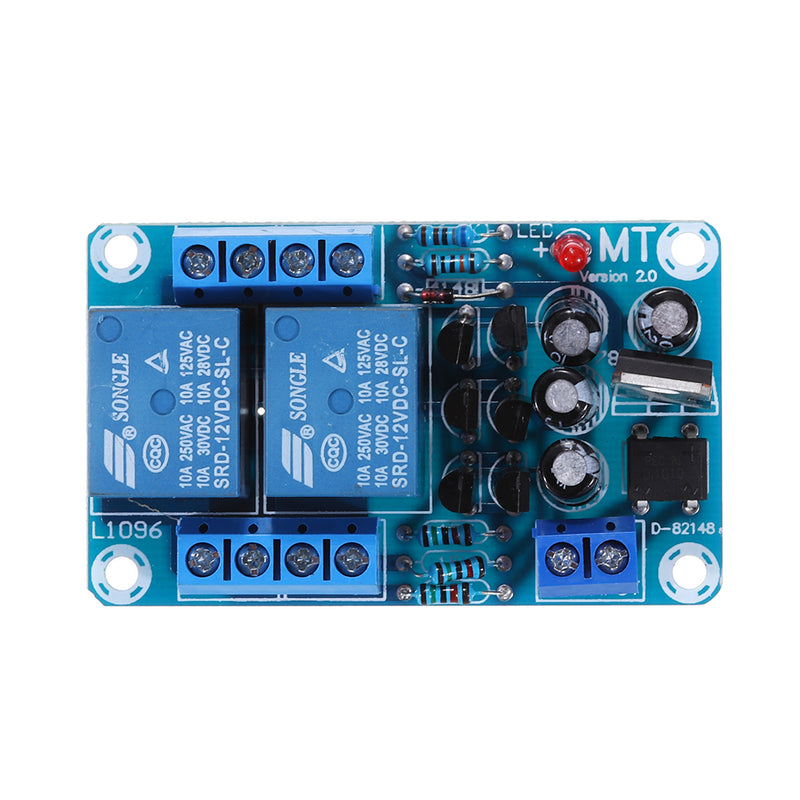

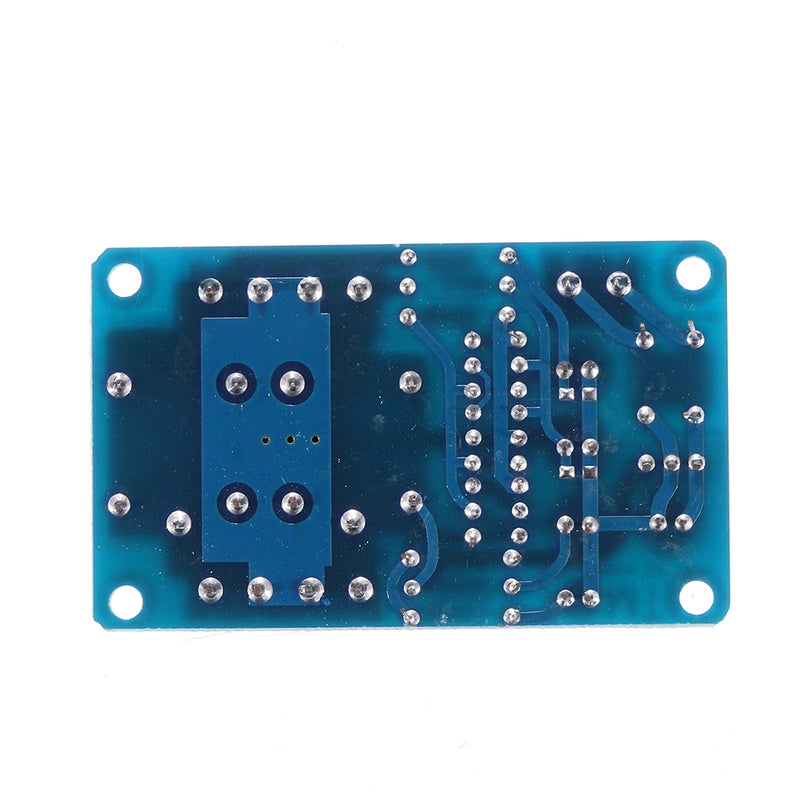

1 x YX1096 400W*2 Dual Relay Protection Speaker Stereo Amplifier Board
