Specifications:
Working current: 1A
Input voltage: 12/24/220V
Relay power: 1200W
Relay timer: 1-999 S
Display: 0.1 S
Size: 76x55x31
Description:

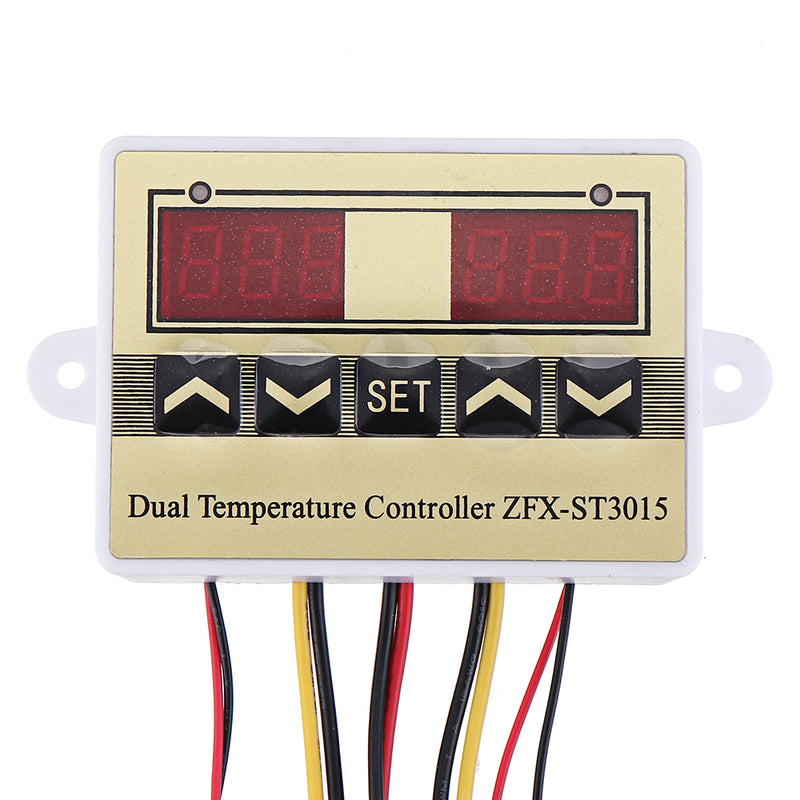

1. Turn on the power and display the delay time on both sides.
2. Press the “SET” button once, the left digital tube flashes, and the No. 1 relay works by adding and subtracting keys.
3. Press the “SET” button twice, the right digital tube flashes, and the 2nd relay is set by the addition and subtraction keys.
4. Press and hold the “SET” button for 10 seconds to enter the project menu.

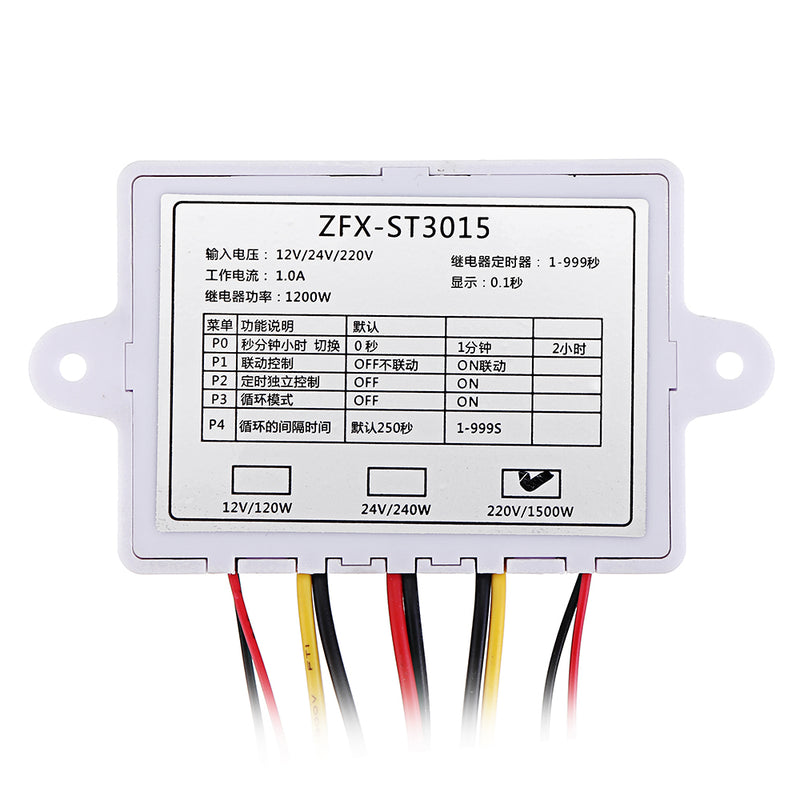

| Menu |
Function Description |
(Default) |
|
|
| P0 |
Switch Seconds/minutes/hours |
0 S |
1 minute |
2 hours |
| P1 |
Linkage control |
OFF |
ON |
|
| P2 |
Timed independent control |
OFF |
ON |
|
| P3 |
Loop mode |
OFF |
ON |
|
| P4 |
(1-999S) Cycle interval |
|
|
|
Package Included:
1 x 12V/24V/220V Cycle Timer Switch Timing Controller
