Overview:
The ZP13 smoke module uses advanced chip thick film semiconductor gas sensors. The module is extremely sensitive to gases such as smoke, propane, and the like. The module is aging, debugged, calibrated, and calibrated with good consistency and high sensitivity.
Application:
The air is widely used in home smoke alarms, industrial smoke alarms and portable smoke detection instruments.
Specifications:
Detection gas: propane, smoke
Physical interface: XH2.54-4P terminal socket
Output data: A signal switching output
Operating voltage: 5.0±0.2V DC (no voltage reverse connection protection)
Output data type: TTL level (built-in 200Ω protection
resistance)
Working current: ≤60mA
Warm-up time: ≤ 3 minutes
Response time: ≤ 20 seconds
Recovery time : ≤ 60 seconds
Working temperature: 0 - 50°C
Working humidity: ≤95%RH
Storage temperature: -20 ~ 60 ° C
Dimensions: 24 × 20 × 15mm
Package Included:

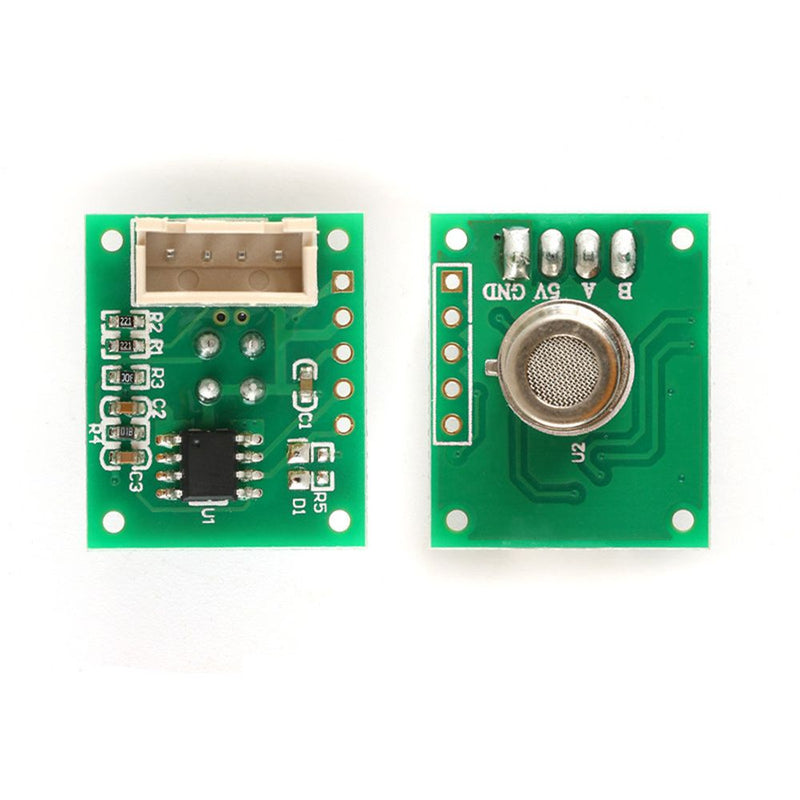

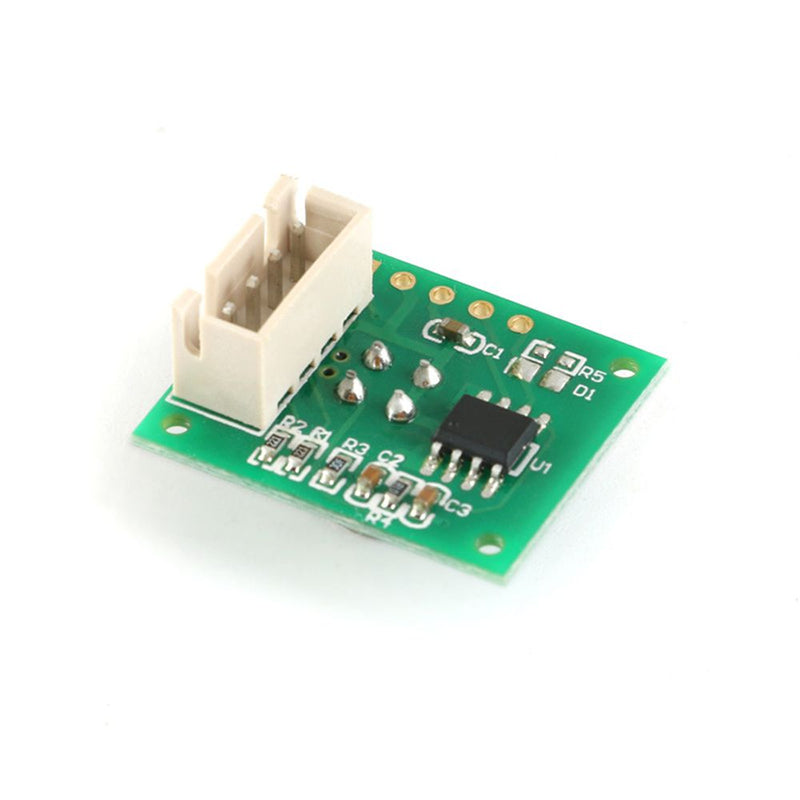

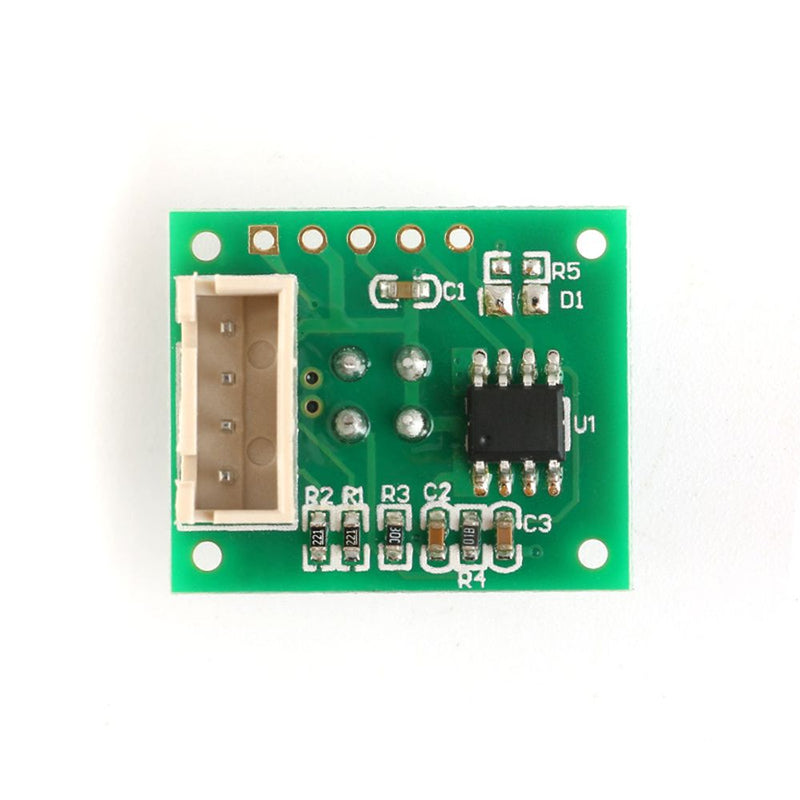

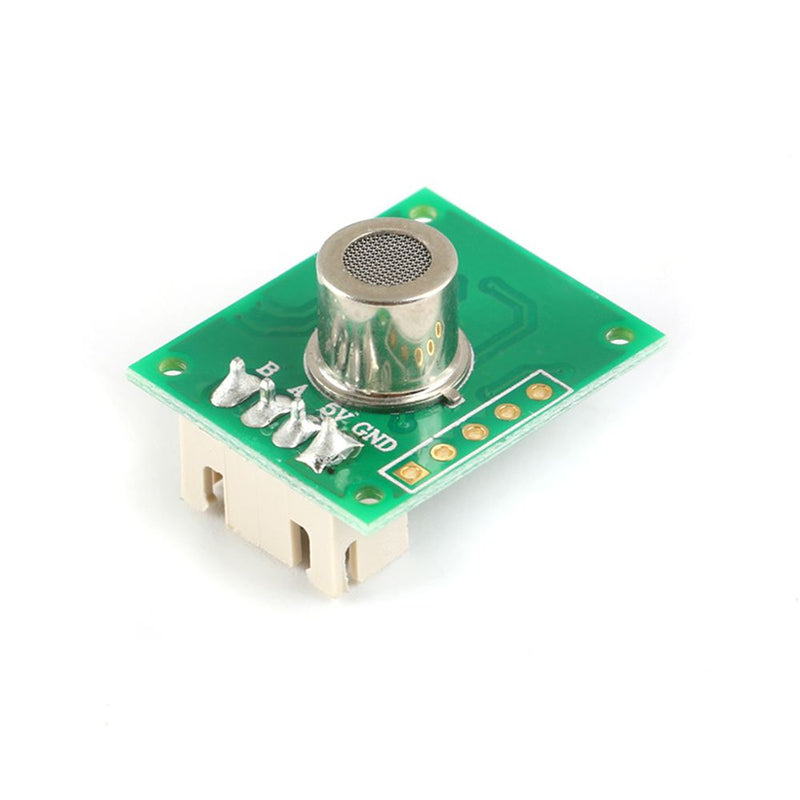

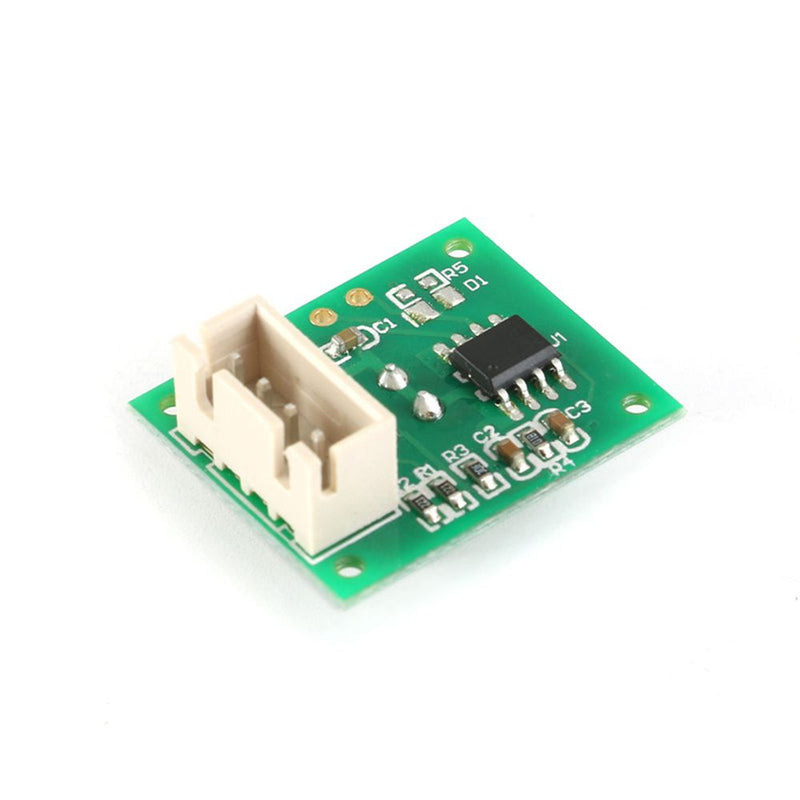

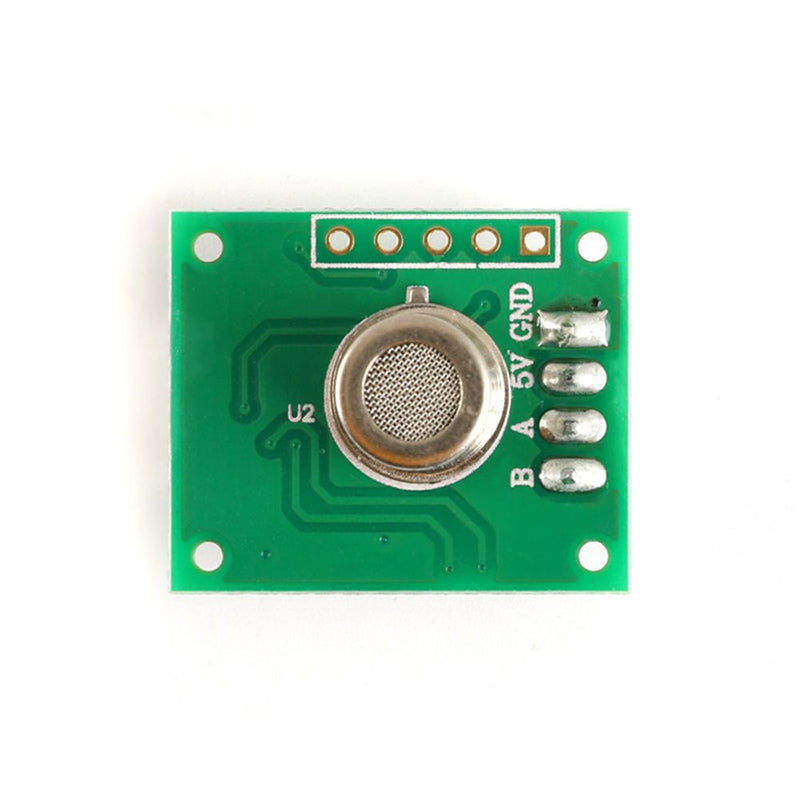

1 x ZP13 Smoke Sensor Module Gas Sensor Detection Module
