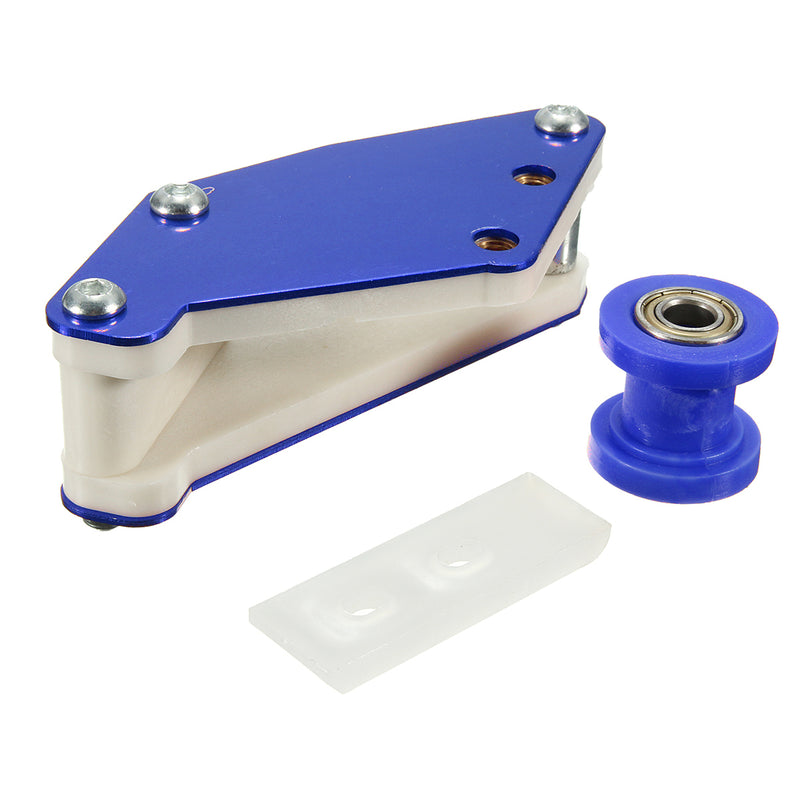

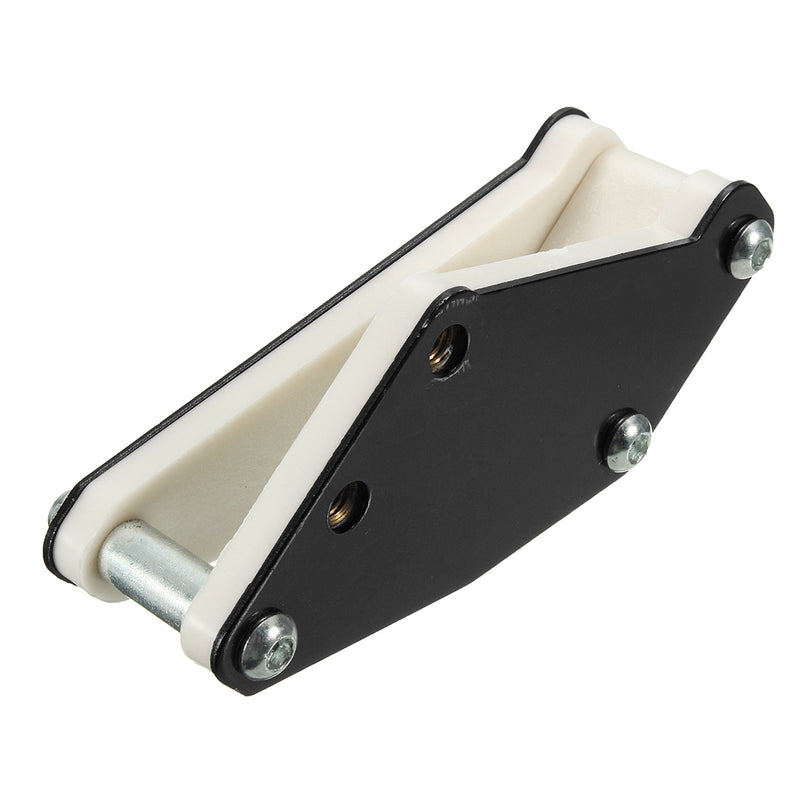

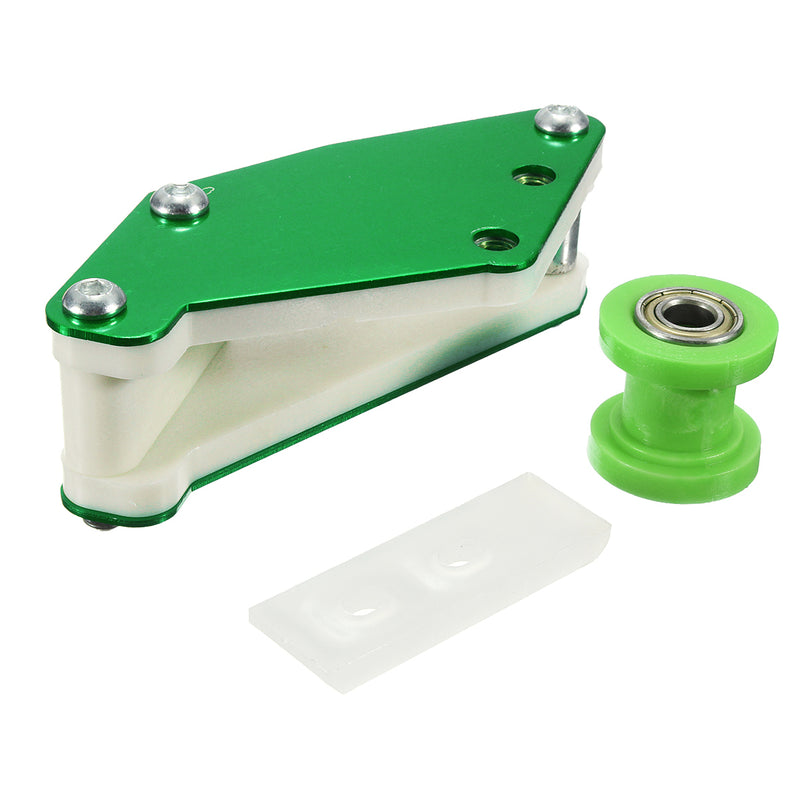

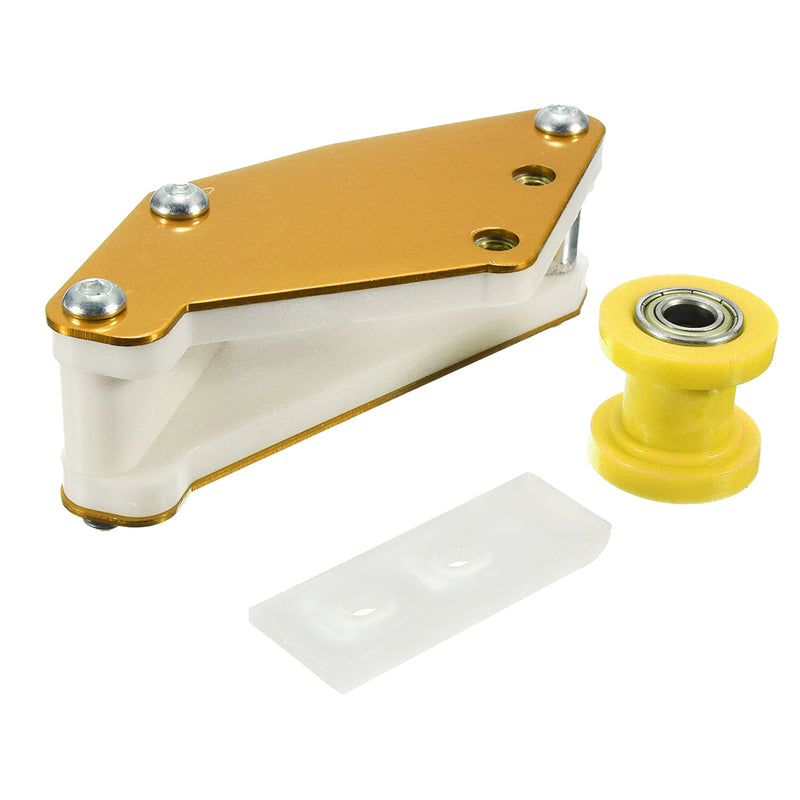

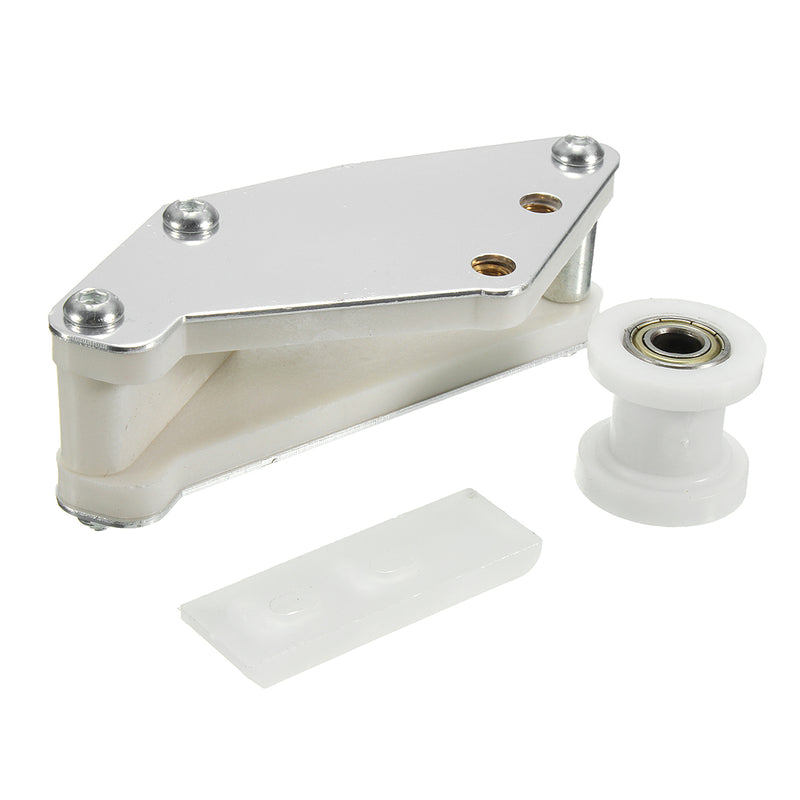

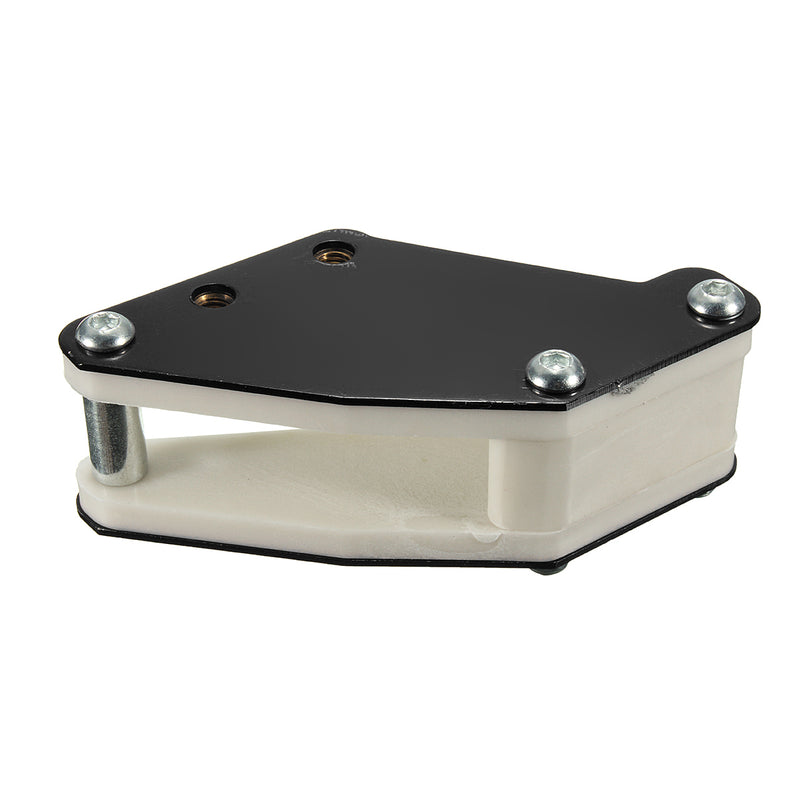

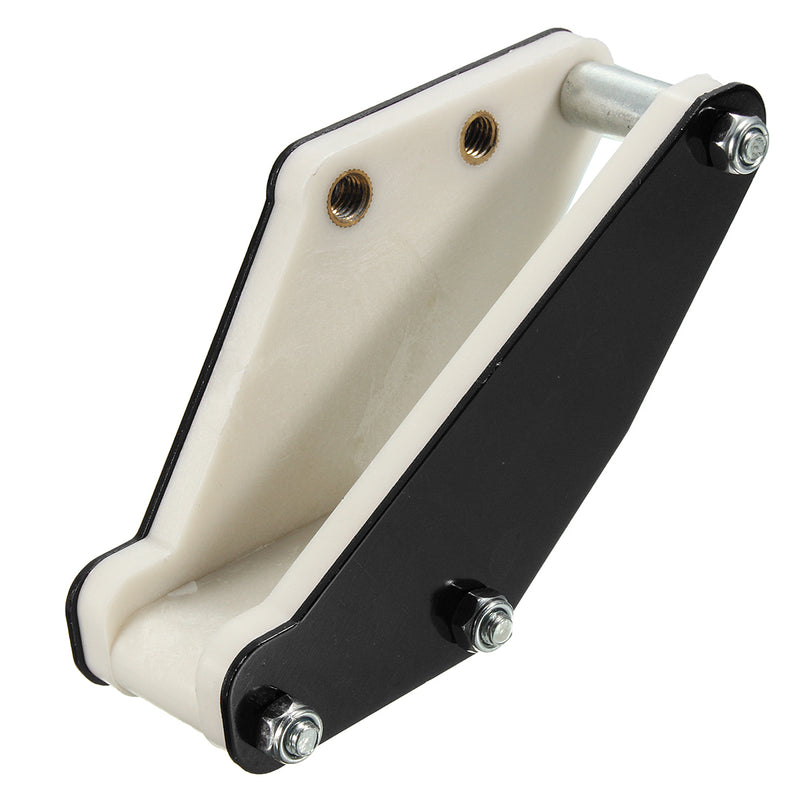

Description:
1.This chain guide ensures the chain does not grind on the swing arm and stays aligned with the sprockets.
2 All the parts the chain can touch are heavy duty long life nylon.
3.Kit includes a 10mm chain roller and double hole chain runner.
4.The roller comes with twin roller bearings for smooth operation.
5.Designed for any pit bike but comes as standard on many Stomps,
Demon X, SSR, Pitster Pro Atomic, Braaap, DMX, WPB, Atomics and Piranhas.
Specification:
Product Name: Pitbike Chain Tensioner
mounting hole: 10mm

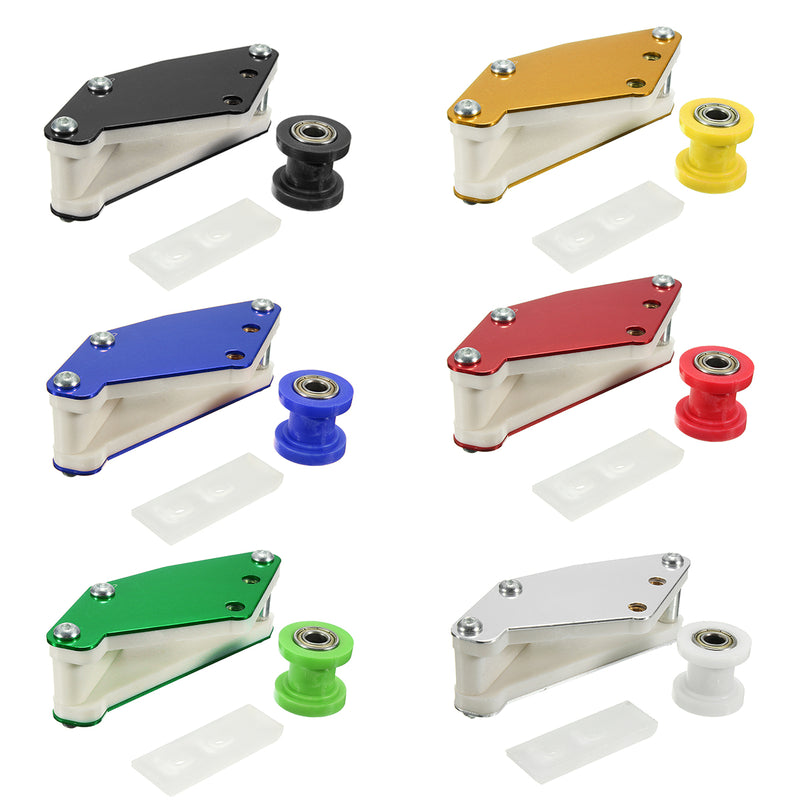

Color: Black, Red, Blue, White, Green, Yellow
Cylinder exhaust: 110cc 125cc 140cc 150cc 200cc
Overall Length: 141mm /5.55"
Width: 43mm /1.69"
Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 29.5mm /1.16"
Diameter of Fixing Hole(s): 7mm /0.28"
Distance Between Guide Plates (Inside to Inside): 23.5mm /0.93"
Roller Pulley Length: 33mm /1.23"
Roller Pulley Width: 35mm /1.38"
Roller Pulley eye: 10mm/ 0.39"
Note:
Please allow 1-3CM differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
Package Included:
1 X Guide Plate
1 X Chain Slider Protector
1 X Chain Roller Pulley
