Description:

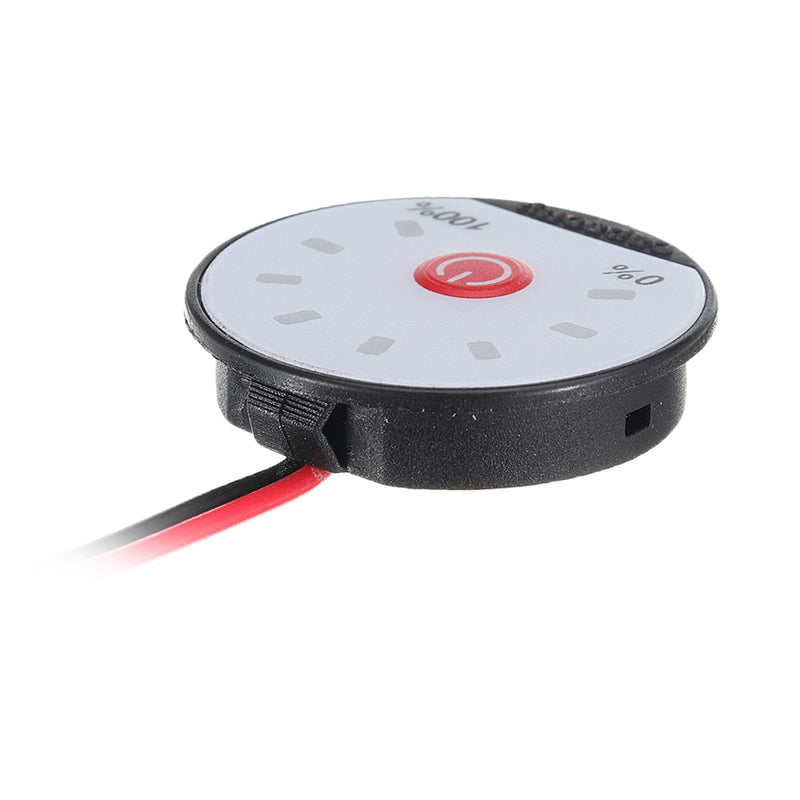

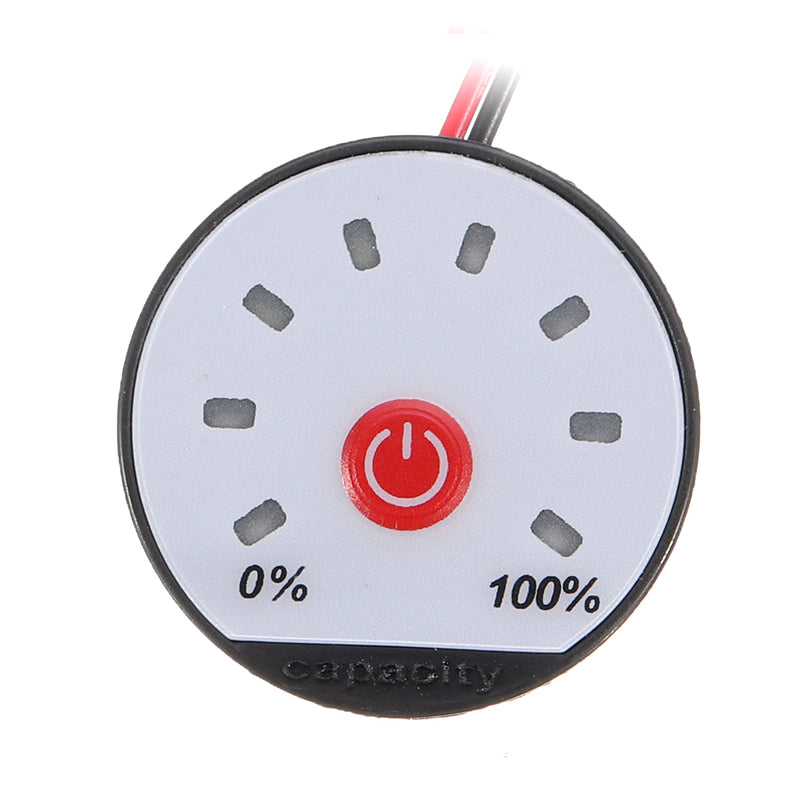

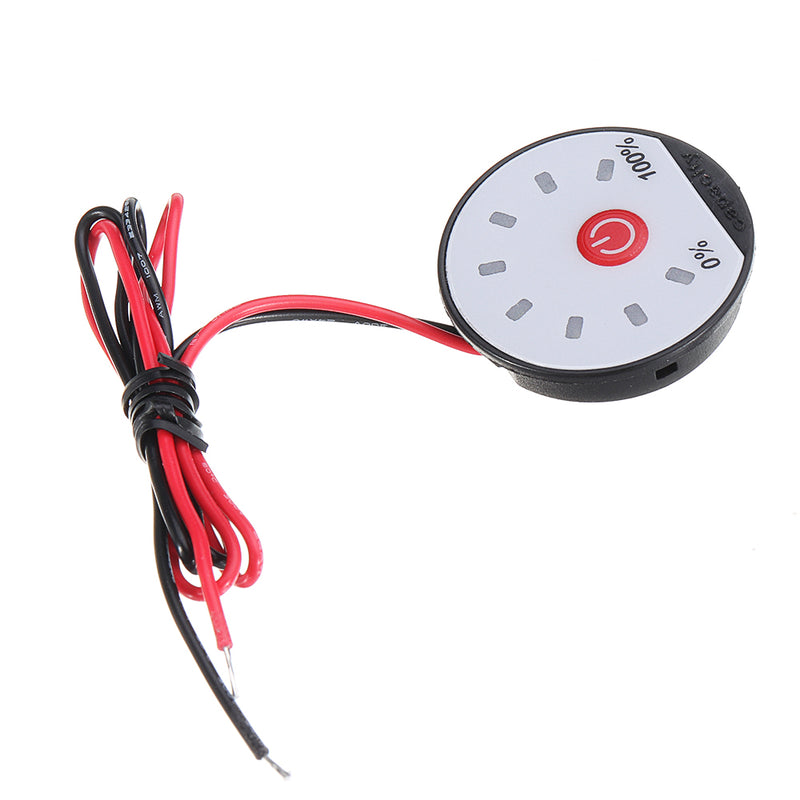

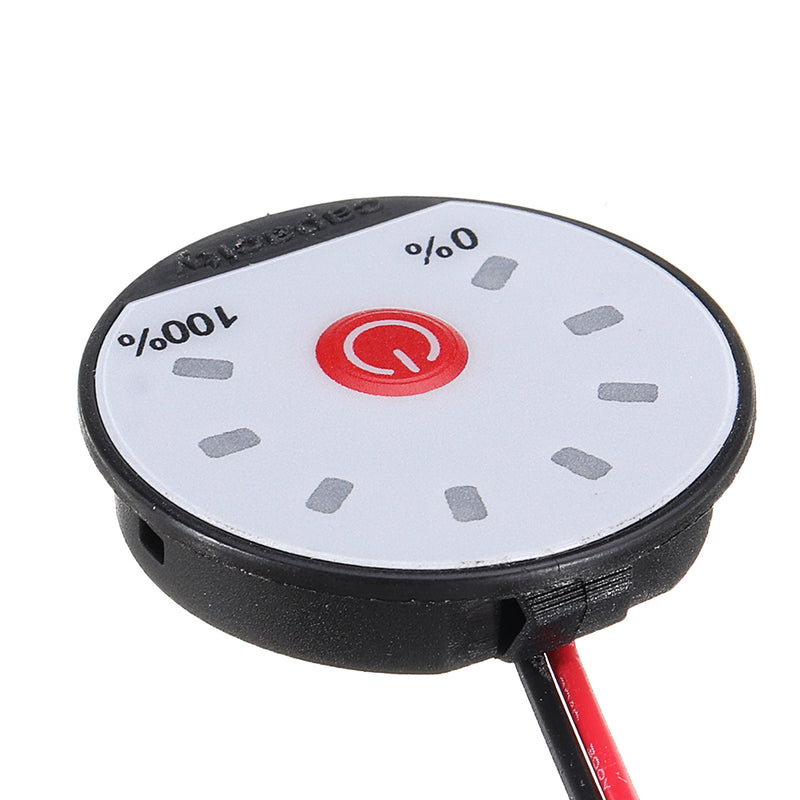

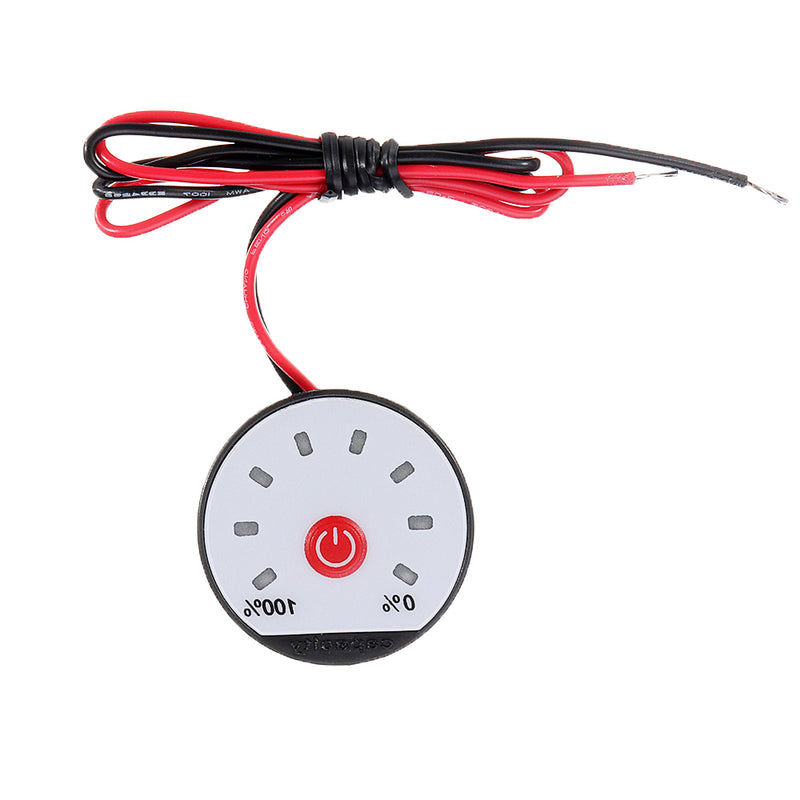

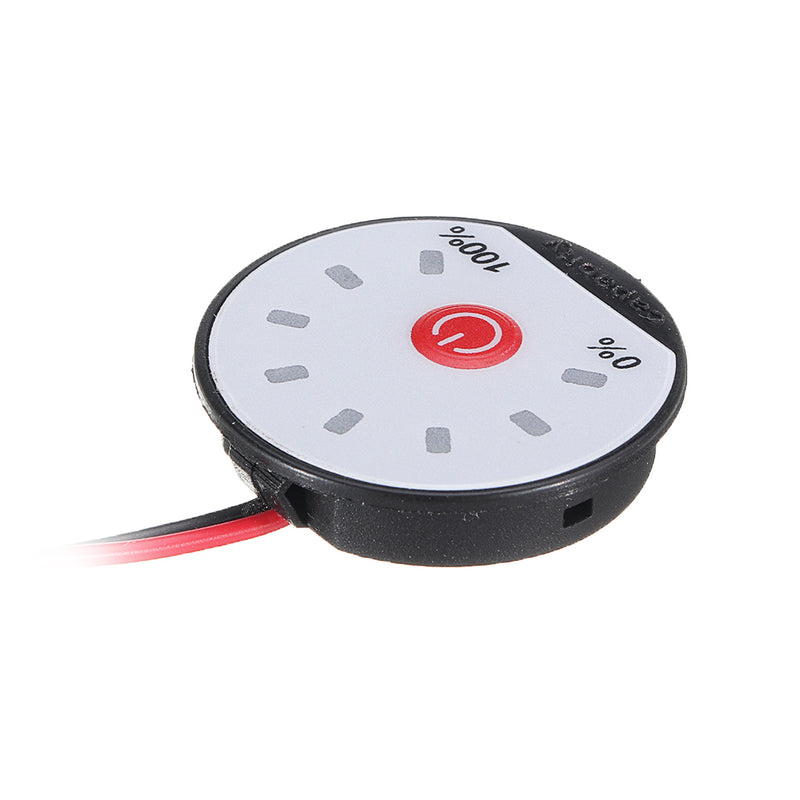

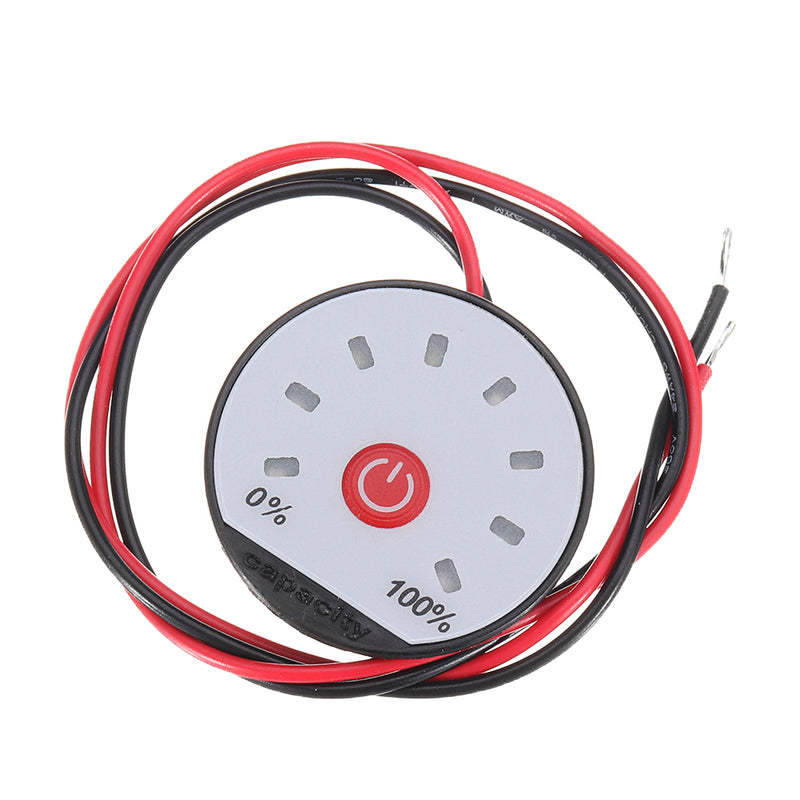

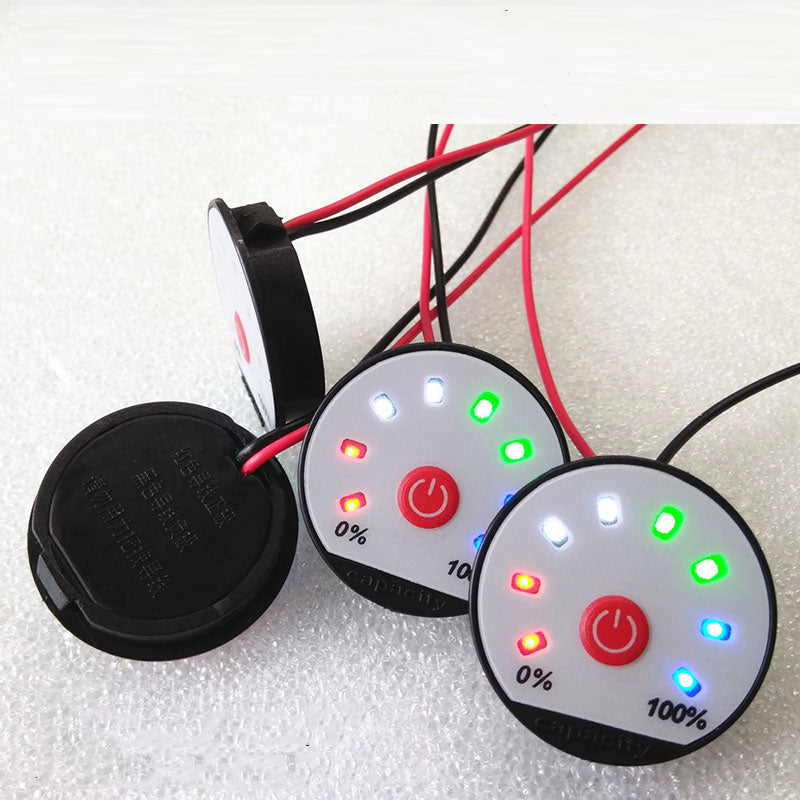

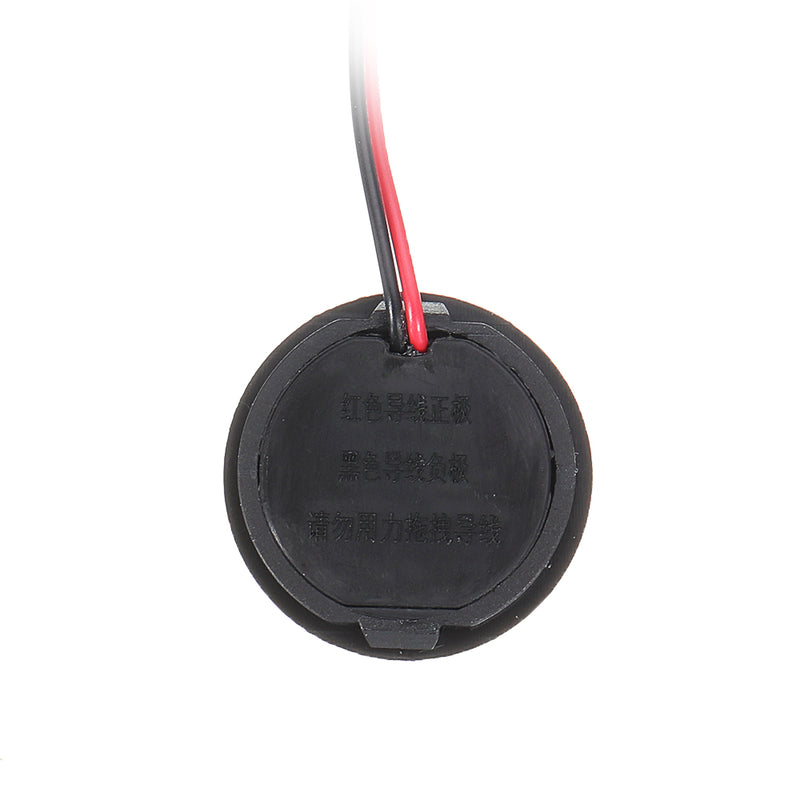

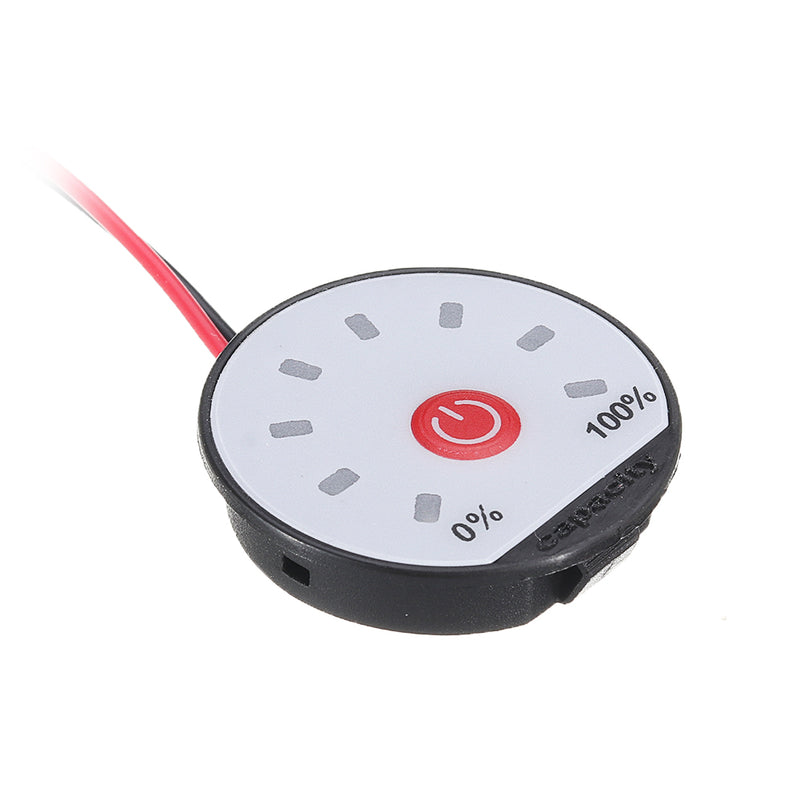

3.7V 4.2V 7.4V 12V 16.8V 24V 36V Lithium Battery Capacity Indicator 1S 2S 3S 5S 10S Power Level Marker Meter LED Li-Ion Tester
Specification:
01#: 3.7V/1S/4.2V
02#: 7.2V/2S/8.4V
03#: 12V/3S/12.6V
04#: 14.4V/4S/16.8V
06#: 24V/6S/25.2V
07#: 24V/7S/29.4V
10#: 36V/10S/42V
Enter programming mode:
First, please read the instructions thoroughly after the experiment
Second, the programming mode can be customized battery 0% no voltage, 100% full voltage, set after the 8 LED will be in the
Set the voltage range automatically assigned, can be flexibly applied to any battery
Third, before entering the programming mode, please be ready to adjust the voltage power adapter
Fourth, for example: ready to set 9 v-12 v for the light interval
Press and hold the switch, the device power adapter, 2 seconds after the publishing switch, automatically enter the set interface
1, the first red light flashes to indicate success
2, set the 0% voltage, the adjustable power supply voltage is set to the required voltage 9 v
3, the voltage is stable, click the switch to save the first, the second red light is always lit, save the seventh blue light after the success of flashing
4, set 100% voltage, the adjustable power supply voltage is set to the required voltage 12v
5, the voltage is stable, click the switch to save, save all the lights are lit all the lights
6, the product was working in accordance with the set parameter
The button will be pressed while the energy is gone.
Package Included:
1 X Lithium Battery Capacity Indicator
