Description:
5V 1/8NPT Stainless Steel Fuel Pressure Transducer Sender For Oil Air Water 5/15/30/60/100/150/200/300/500/1000/1600 Psi
Specification:
Product Name: Oil Fuel PressureTransducer
Material: Stainless Steel & Rubber
Color: Silver & Black
Voltage: DC 5V
Length: 53mm
Thread: 1/8"-27 NPT / 1/8" NPT
Pressure: 5psi, 15psi, 30psi,60psi, 100psi, 150psi,200psi,300psi,500psi,1000psi,1600psi
(Please let us know the pressure you’d like,You can leave the message on your Paypal note to tell us.)
Quantity: 1pc

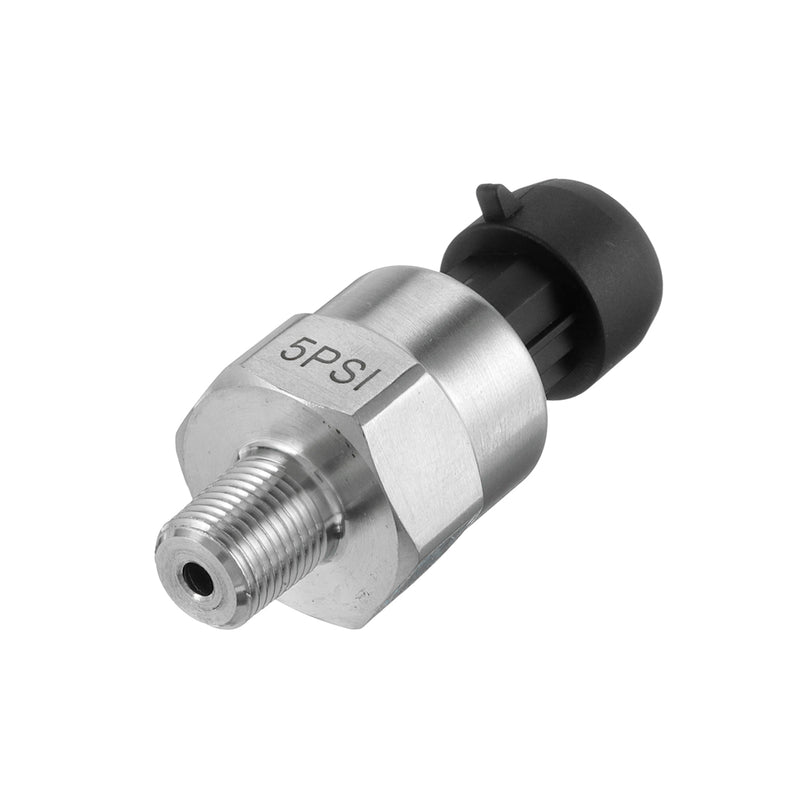

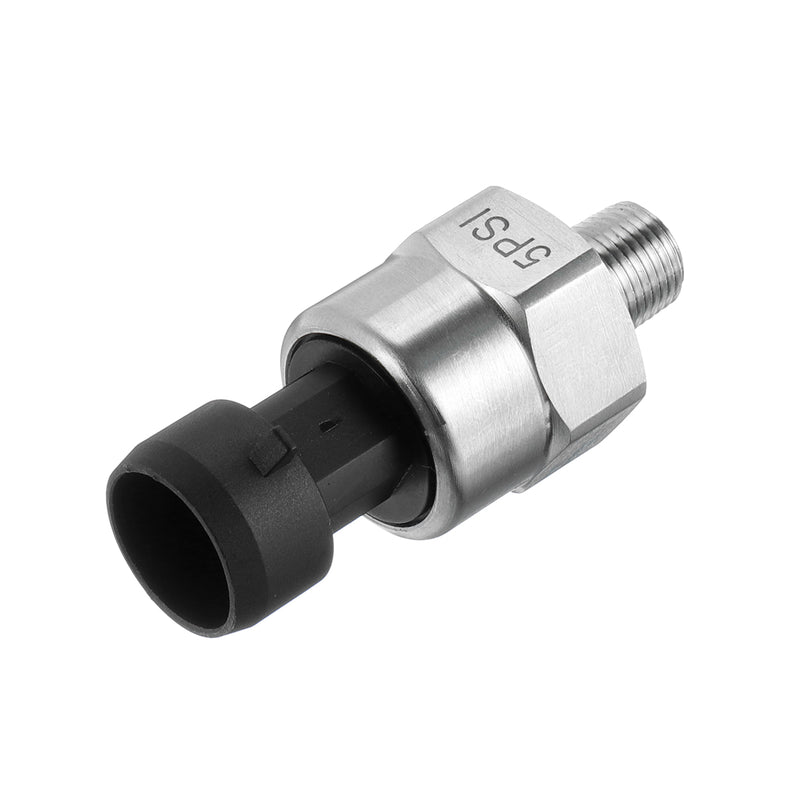

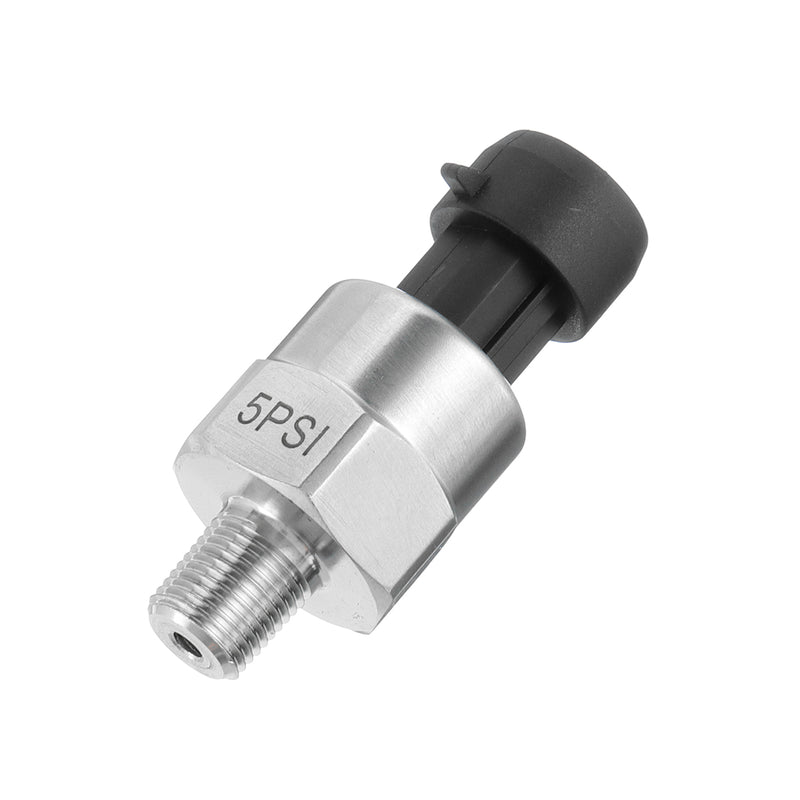

5 psi
Input: 0-5 psi.
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 2.5 psi outputs 2.5V, 5 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8”-27 NPT.

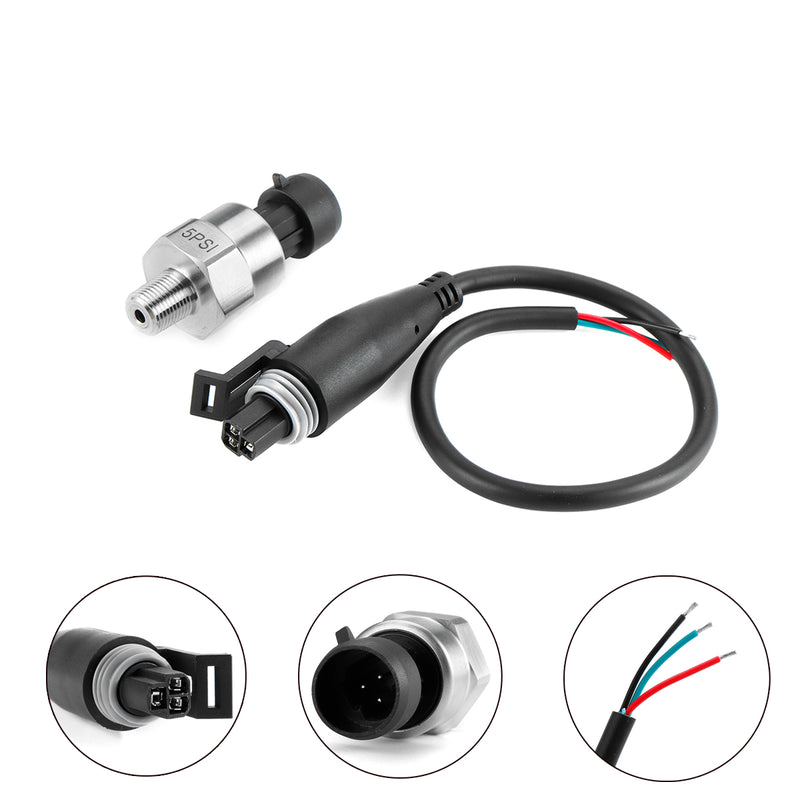

Wiring connector: water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for +5V. Black for ground. Blue for signal output.
15 psi
Input: 0-15 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 7.5 psi outputs 2.5V, 15 psi outputs 4.5V.
Accuracy: +/-0.5%FS;
Thread: 1/8” NPT;
Wiring Connector: Packard plug-in unit is included;
Wiring: Red: +5V; Black: ground; Green: signal output;
Overload Capacity: 2-4 times;
Working Temperature: -40—+120ºC;
Compensation Temperature: -20—+80ºC;
Protection Class: IP67;
Pressure Medium: The gas and liquid which is compatible with 316L stainless steel;
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω;
Long-term stability: Less than 0.1%FS/year;
Temperature Effect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;
Temperature Effect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;
Shock Resistance: 1000g;
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g);
Response Time: ≤1ms;
Insulation Resistance: >100mΩ 500VDC;
Explosion-proof Class: ExiaTTCT6;
Electromagnetism Compatibility: EN50051-1.

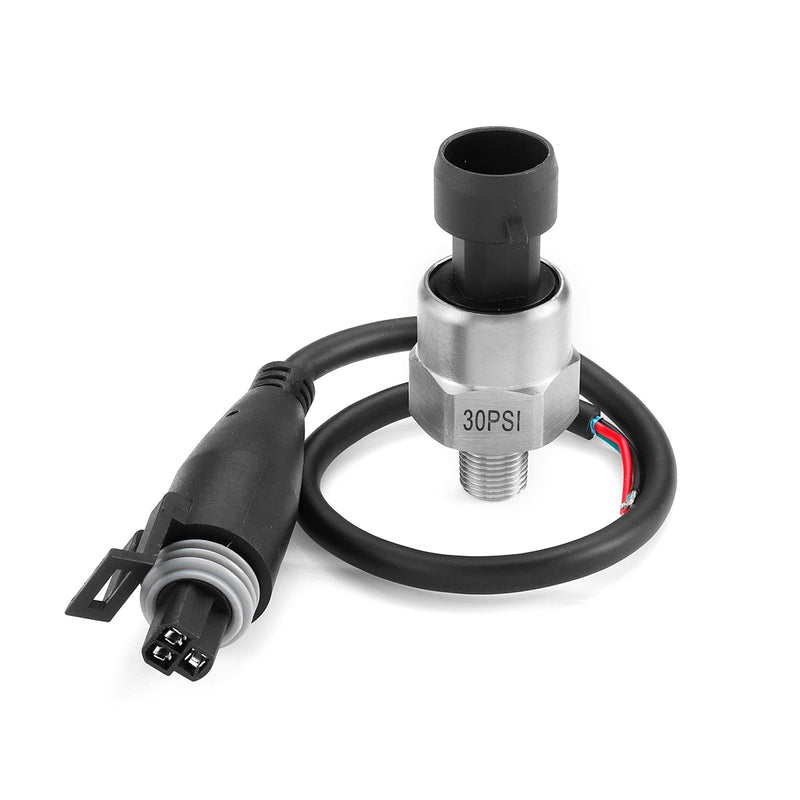

30 psi
Input: 0-30 psi.
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8”-27 NPT.
Wiring connector: water sealed quick disconnect. Mating connector is included.
Wiring: Red for +5V. Black for ground. Blue for signal output.
100 psi
Input: 0-100 psi.
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8”-27 NPT.
Wiring connector: water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for +5V. Black for ground. Blue for signal output.
200 psi
Pressure Range: 0-200 psi
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, 200 psi outputs 4.5V
Working Temperature: -40—+125ºC;.
Accuracy: ±1%FS;
Thread: 1/8”-27 NPT.
Overload Capacity: 2 times;
Pressure Medium: The gas and liquid which is compatible with 316L stainless steel;
Load Resistance: ≤(supply power-6.5V/0.02A)Ω;
Long-term stability: ± 0.2%FS/year;
Temperature Effect on Zero: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC;
Temperature Effect on Sensitivity: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC;
Shock Resistance: 100g;
Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g);
Response Time: ≤1ms;
Insulation Resistance: >100mΩ 500VDC;
Explosion-proof Class: ExiaTTCT6;
Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3 ;
Wiring: Red for IN+. Black for GND. Green for OUT.
300psi
Input: 0-300 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V.
Accuracy: +/-0.5%FS;
Thread: 1/8” NPT;
Wiring Connector: Packard plug-in unit is included;
Wiring: Red: +5V; Black: ground; Green: signal output;
Overload Capacity: 2-4 times;
Working Temperature: -40—+120ºC;
Compensation Temperature: -20—+80ºC;
Protection Class: IP67;
Pressure Medium: The gas and liquid which is compatible with 316L stainless steel;
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω;
Long-term stability: Less than 0.1%FS/year;
Temperature Effect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;
Temperature Effect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;
Shock Resistance: 1000g;
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g);
Response Time: ≤1ms;
Insulation Resistance: >100mΩ 500VDC;
Explosion-proof Class: ExiaTTCT6;
Electromagnetism Compatibility: EN50051-1.
500 psi
Input: 0-500 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, 500 psi outputs 4.5V.
1000 psi
Input: 0-1000 psi.
Output: 0.5V – 4.5V linear voltage out
1600psi
Input: 0-1600 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 80
Fitment:
For oil, fuel, diesel, gas, water, air pressure
Can be used in oil tank, gas tank, diesel tank etc.
Features:
It's an advance pressure sender than traditional mechanical pressure sender;
CMC for Load Cell Sensor;
CMC for Pressure and Pull Pressure Sensor.
Package Included:

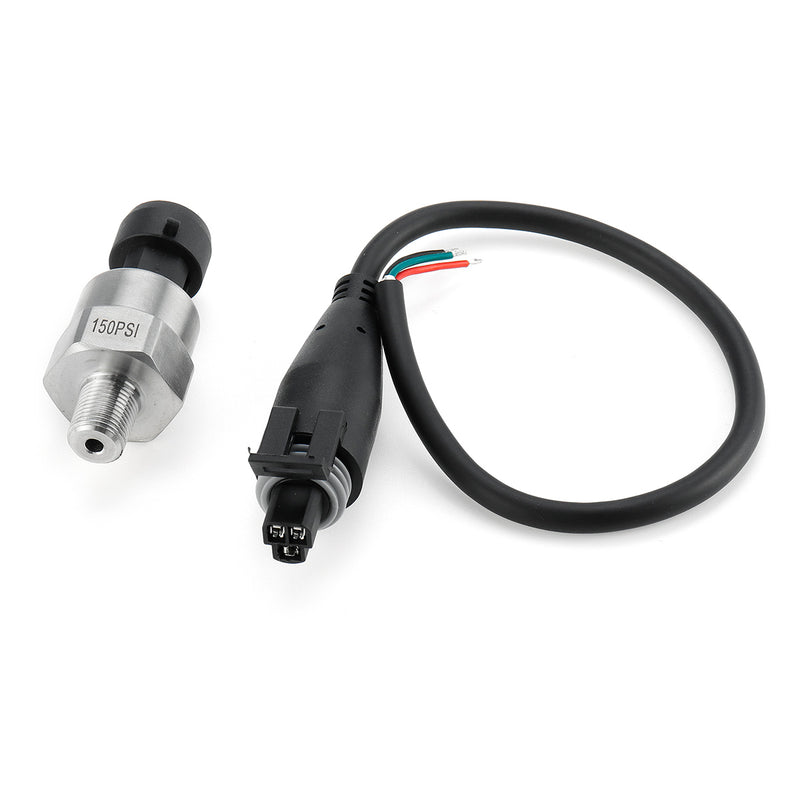

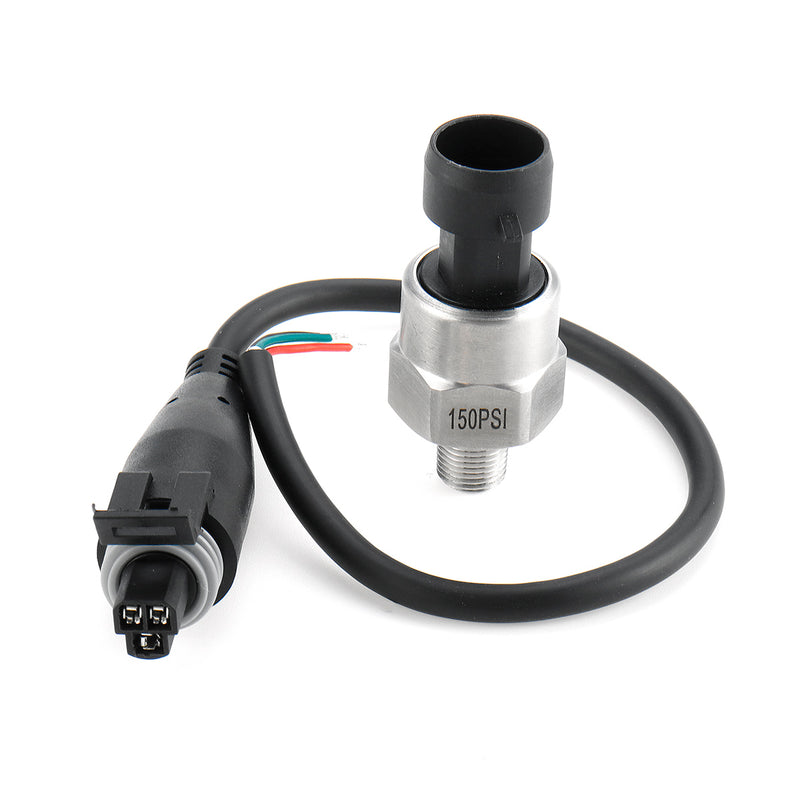

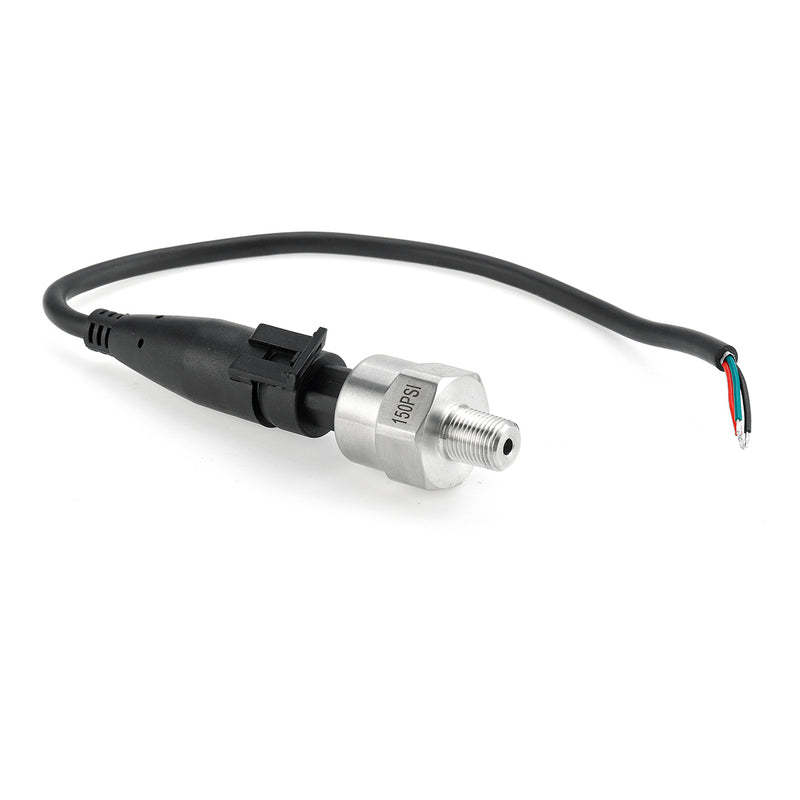

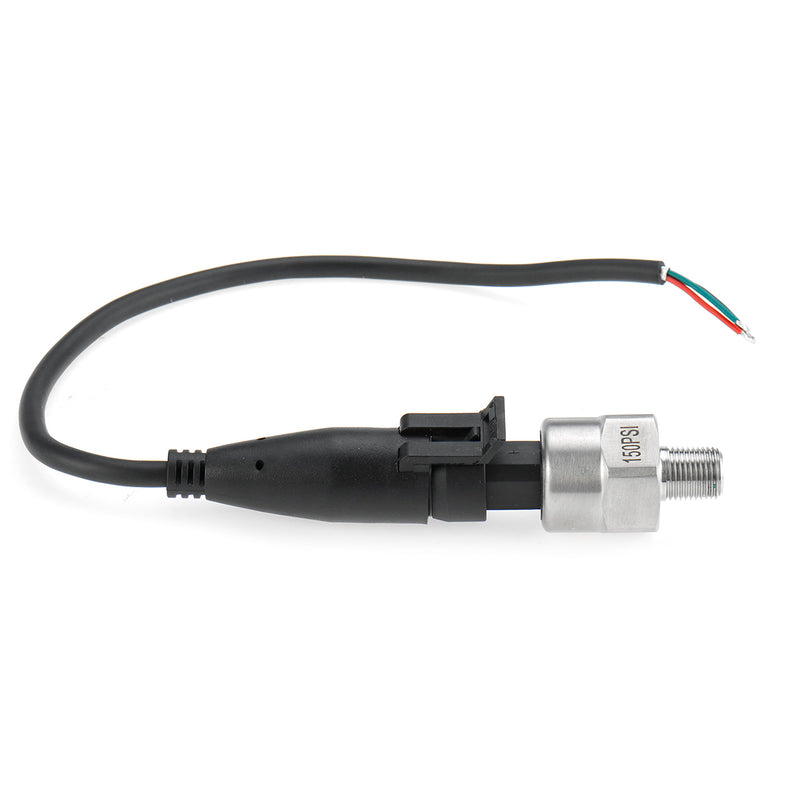

1 x Pressure Transducer (With Cable)
