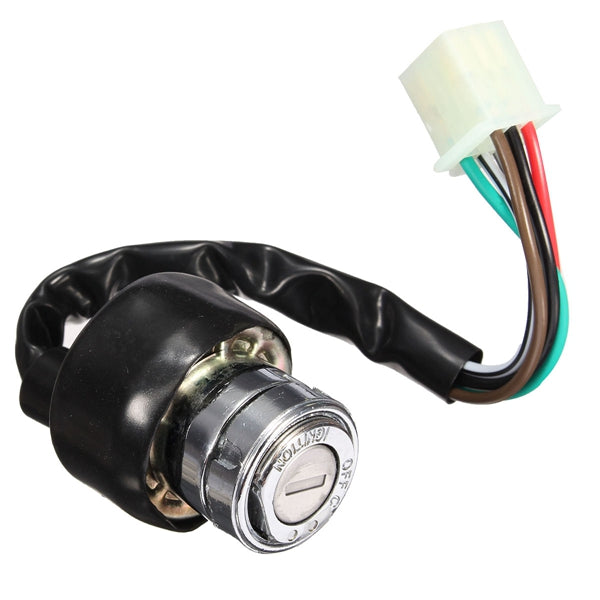

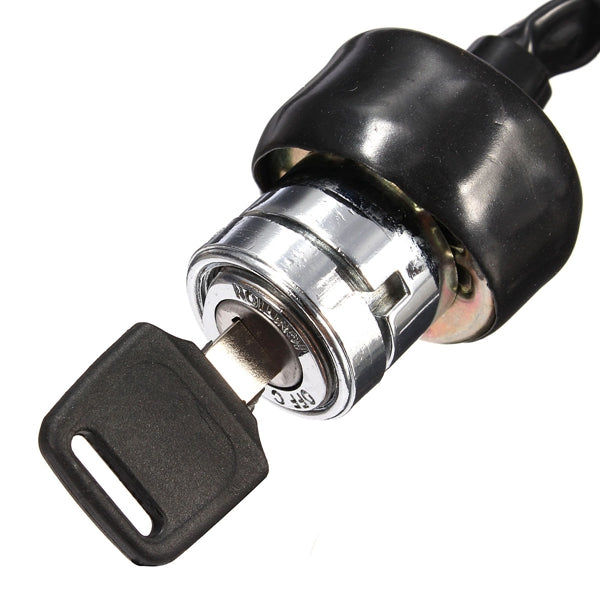

6 Wire Ignition Switch 2 Keys Universal For Car Motorcycle Scooter Bike Quad Go Kart

Description:

1.100% Brand new and high quality.
2.Easy to use and install,durable

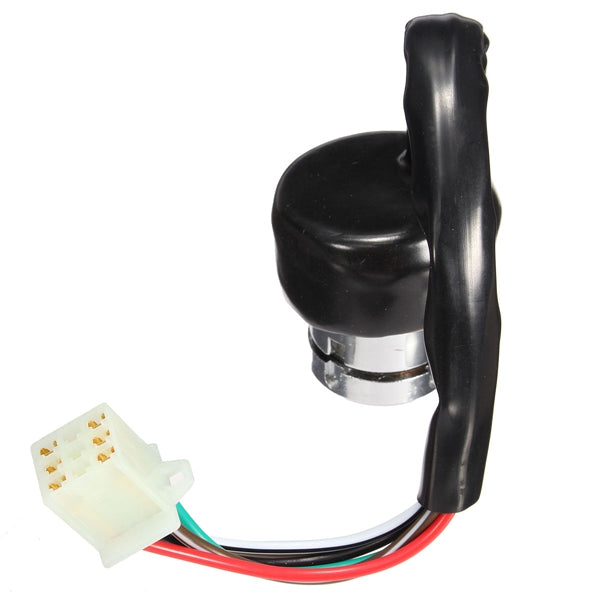

3.6 prongs in 9 pin plug,3 prongs on the top,middle 3 pi holes are empty,3 prongs on the botton
4.Suitable for many different types and styles of motorcycles.
5.Featuring one normally closed and two normally open contacts in a TPST
(Triple pole, single throw) orientation. So, three inputs and three outputs. In more detail...

When the switch is in the OFF position:
Input 1 & Output 1 are connected
Input 2 & Output 2 are disconnected
Input 3 & Output 3 are disconnected
In the ON position:
Input 1 & Output 1 are disconnected
Input 2 & Output 2 are connected
Input 3 & Output 3 are disconnected
In the PARK position:
Input 1 & Output 1 are disconnected
Input 2 & Output 2 are connected
Input 3 & Output 3 are connected

Specification:

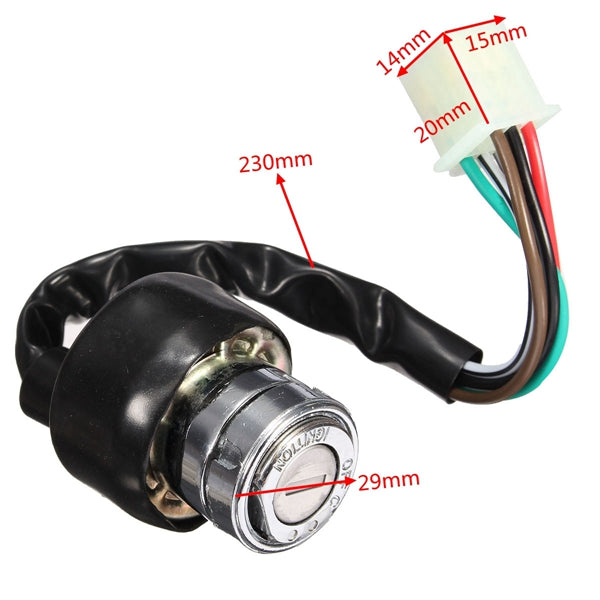

Wire Length:230mm
Number of Keys: 2
Switch Positions: 3(Off-On-Park)
Required Fixing Hole Diameter: 22.5mm
Max Barrel Diameter: 38mm (approx)
Connector Type: 9 way 2.8mm Motorcycle Connector

Note:Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)

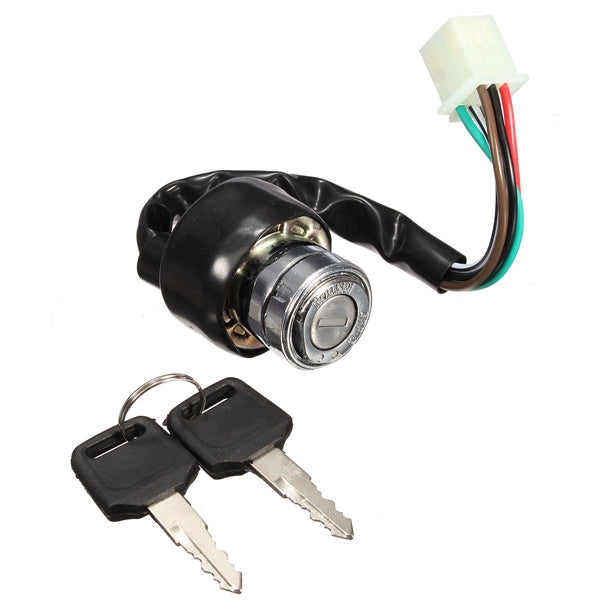

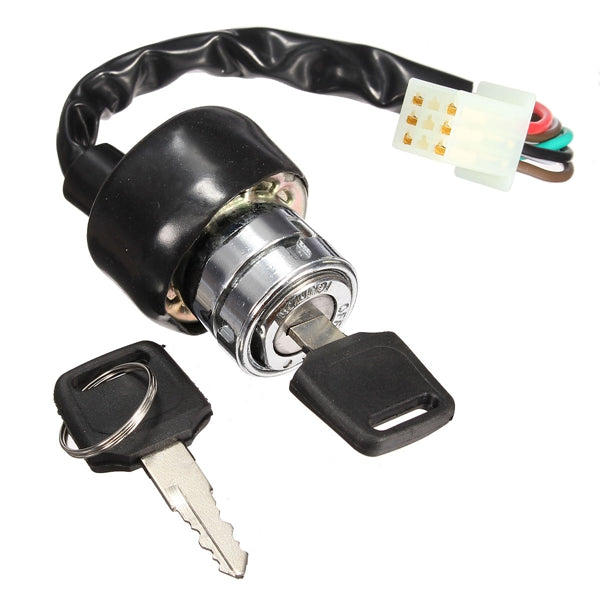

Package included:

1 x Ignition Key Switch
2 x Keys
