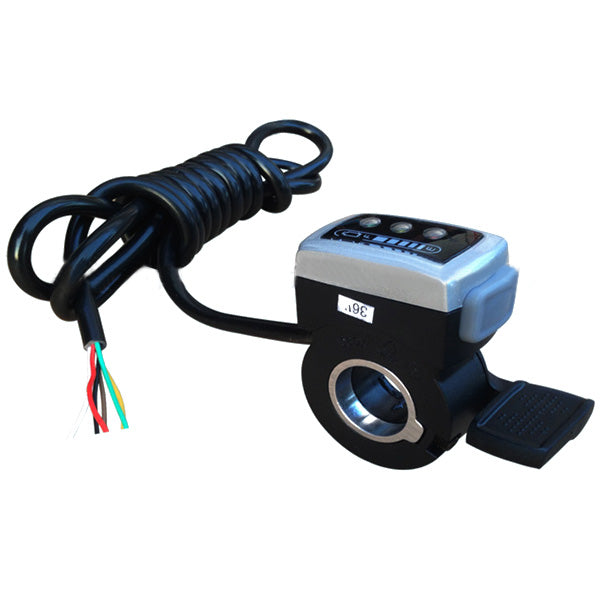

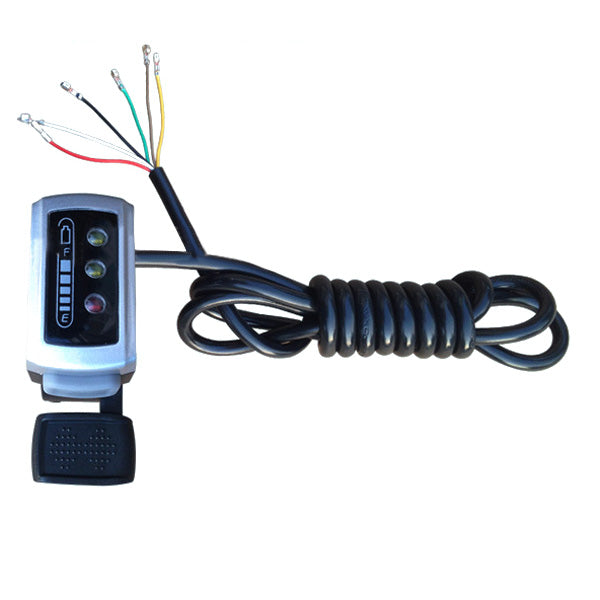

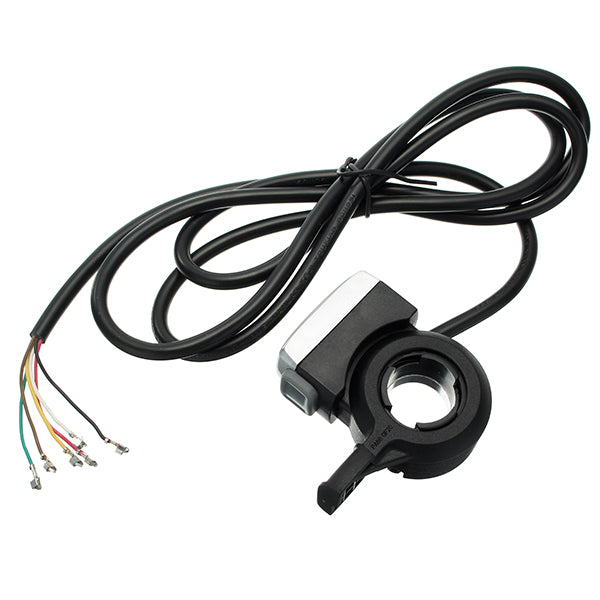

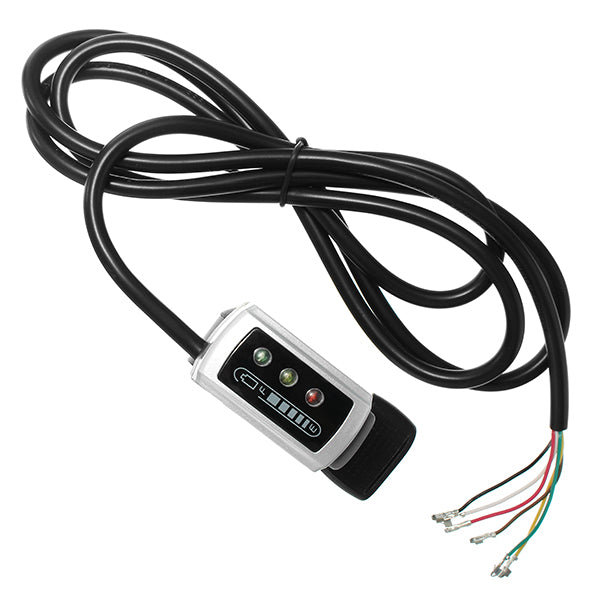

7/8 Electric Bike Handlebar Speed Battery Indicator Thumb Throttle With Self Lock

7/8 Electric Bike Handlebar Speed Battery Indicator Thumb Throttle With Self Lock

Name: 7/8 Electric Bike Handlebar Speed Battery Indicator Thumb Throttle With Self Lock
Brand: Banggood
SKU: U2I-BG-983624
Price: 3,026.00 INR
Availability: InStock

SKU: U2I-BG-983624

Voltage: 24V

Variant

Price:

Rs. 3,026

Quantity:

Share this product

Description:
Material:Plastic PA66 GF20
Cable Length: Approx. 160cm / 62.9inch
Battery Indicator Voltage: 24V / 36V / 48V
Adjust speed Working Voltage:5V
Adjust speed Output Voltage:0.8-4.3V
Rotation angle:0°---70°
Operation temperature:-40℃ ~ +80℃

Function:

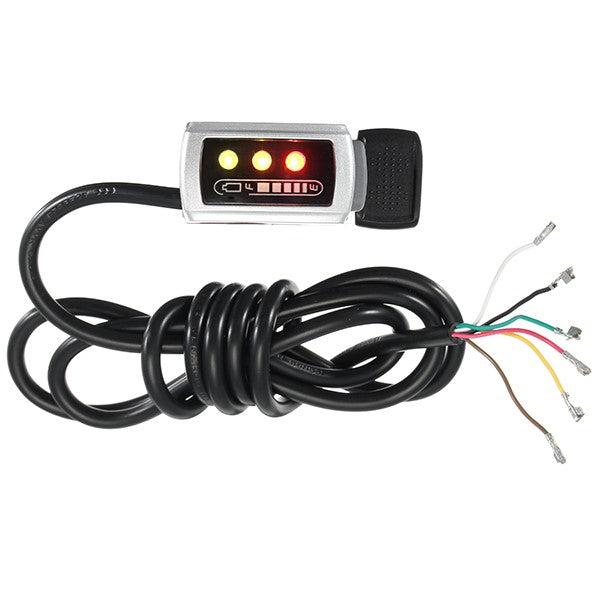

Battery Indicator(Green,Red,Yellow) + Self-Lock (The Red Button) + Adjust Speed (The Black Button)

Green Light =High Power
Yellow Light=Half Power
Red Light=Empty Power

Red ,Black and White wire--- Adjust speed
Green wire----Positive (Battery Indicator,
Yellow and coffee wire---Self-Lock/Switch on or off

Adjustable-Speed Button can be fit for this function,but your bike need to have this function. Cruise / Low Gear / High Gear /
Reversing Lamp switch / run at full speed Automatically / Handlebar Switch on or off / Low battery Keep working

Note:Do Not touch the Adjustable-Speed Button before installation!!!!Because if you touch the Adjustable-Speed Button
before installation,the inside springs may be taken out,this item can not be used.

Fit for Handle bar is 22mm or 7/8 Electric bicycle, Electric Scooter,MTV

Package Included:
1 X Handlebar with Battery Indicator
