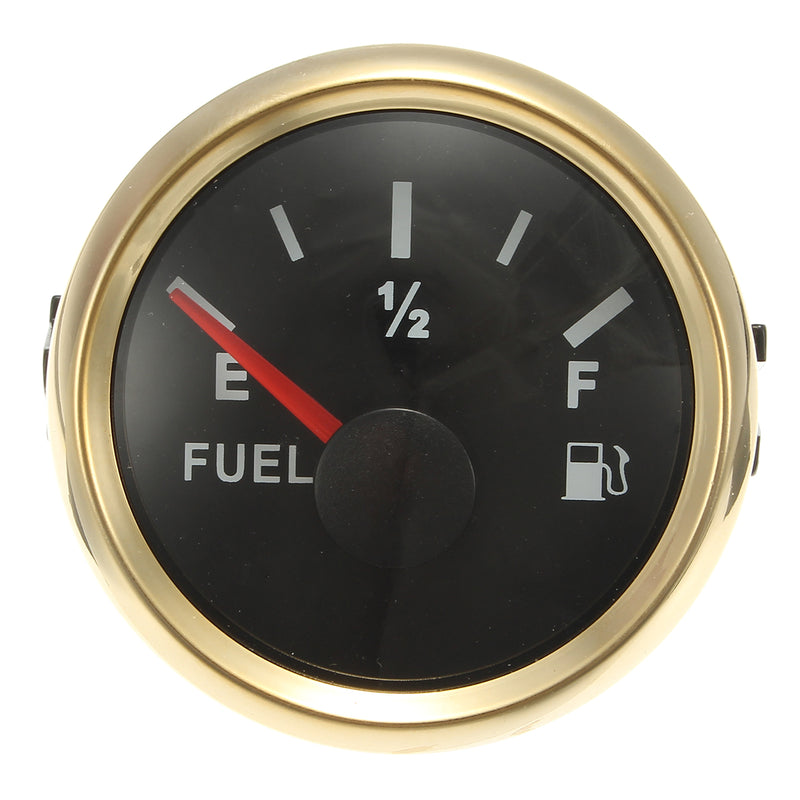

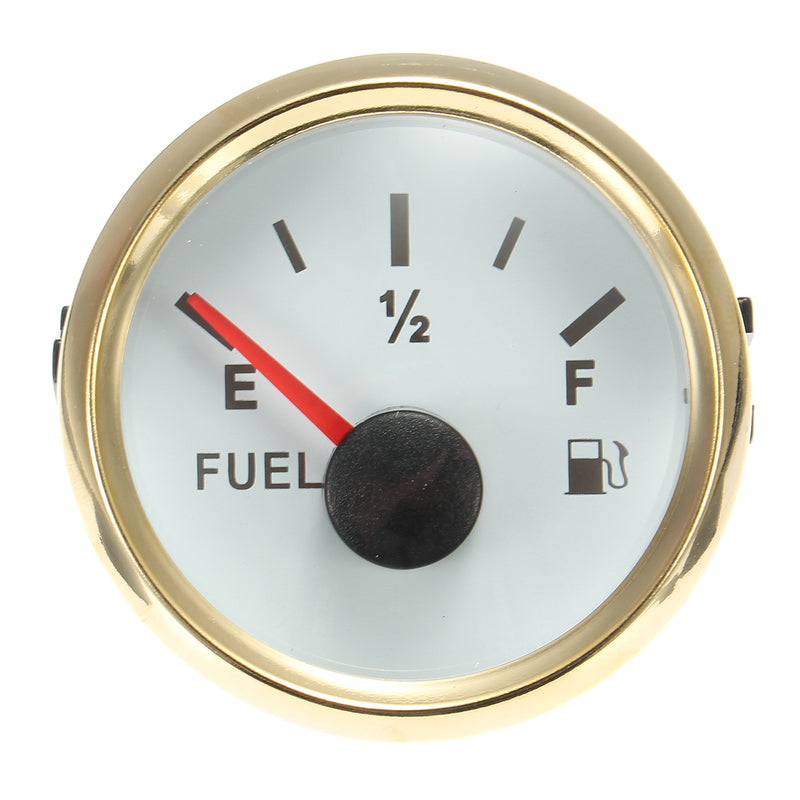

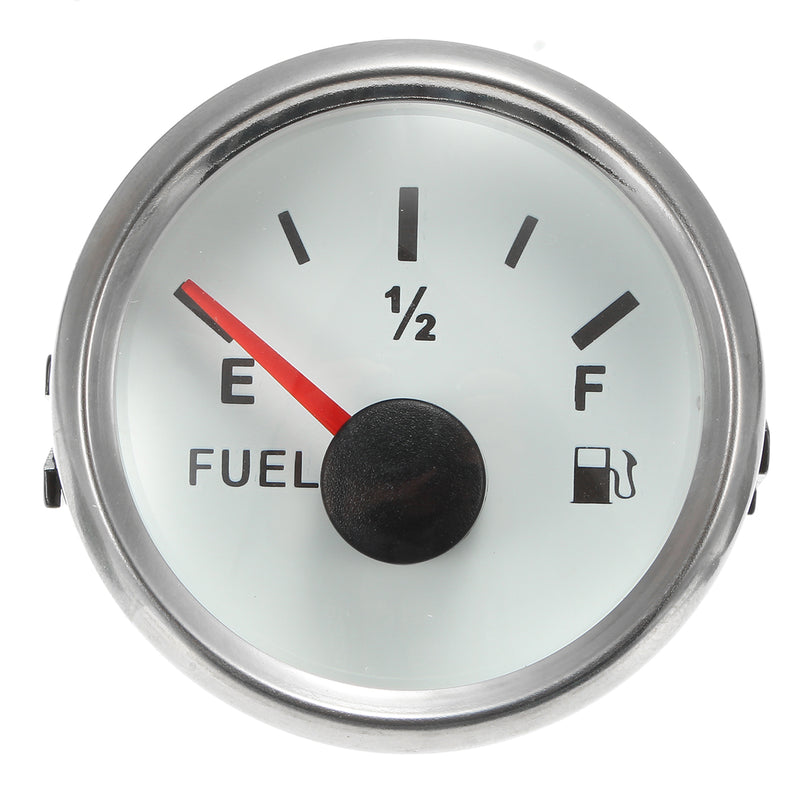

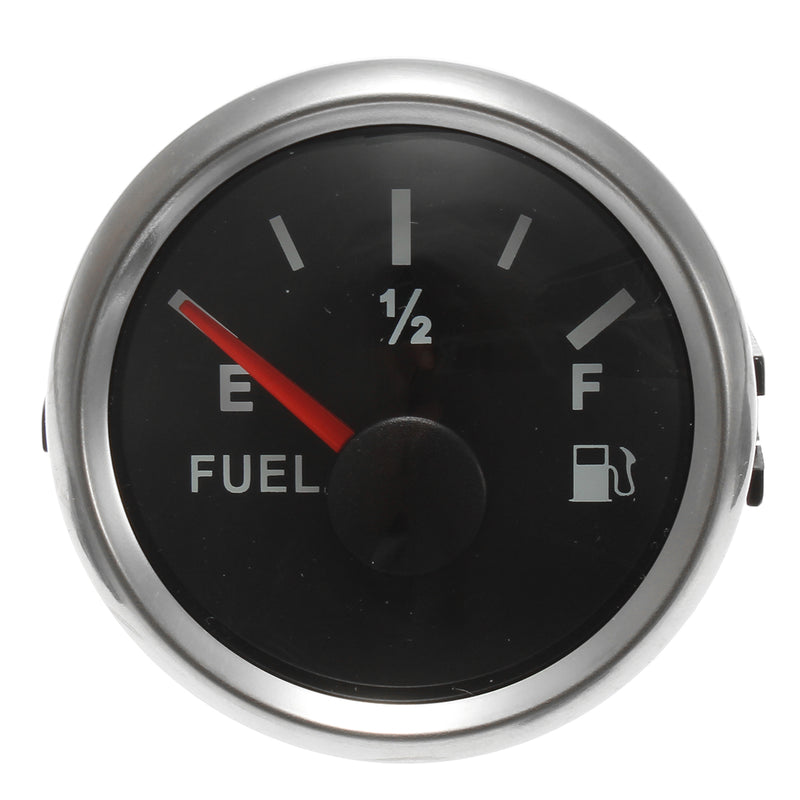

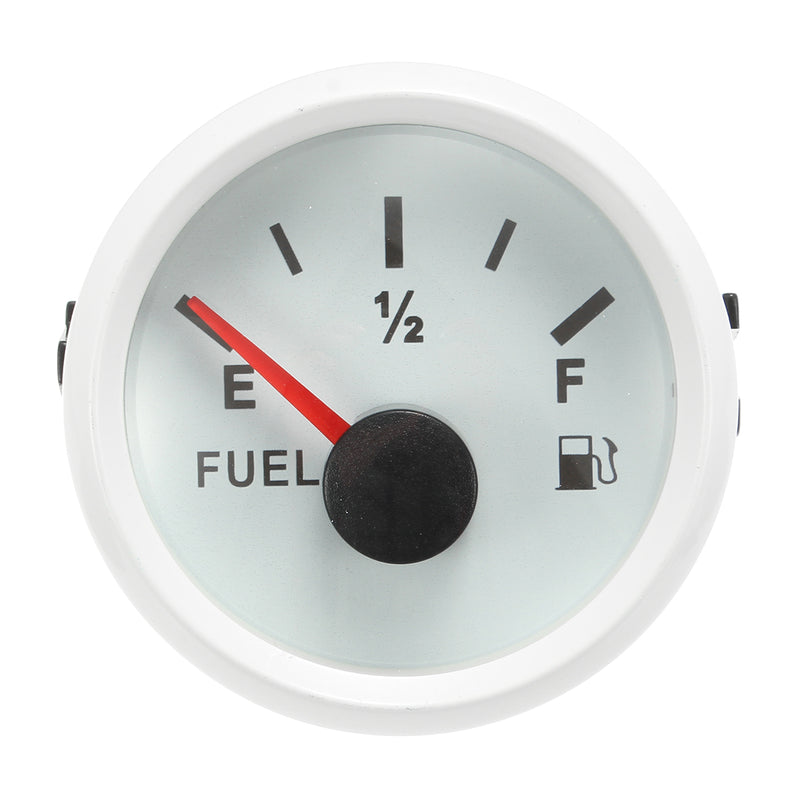

Description:

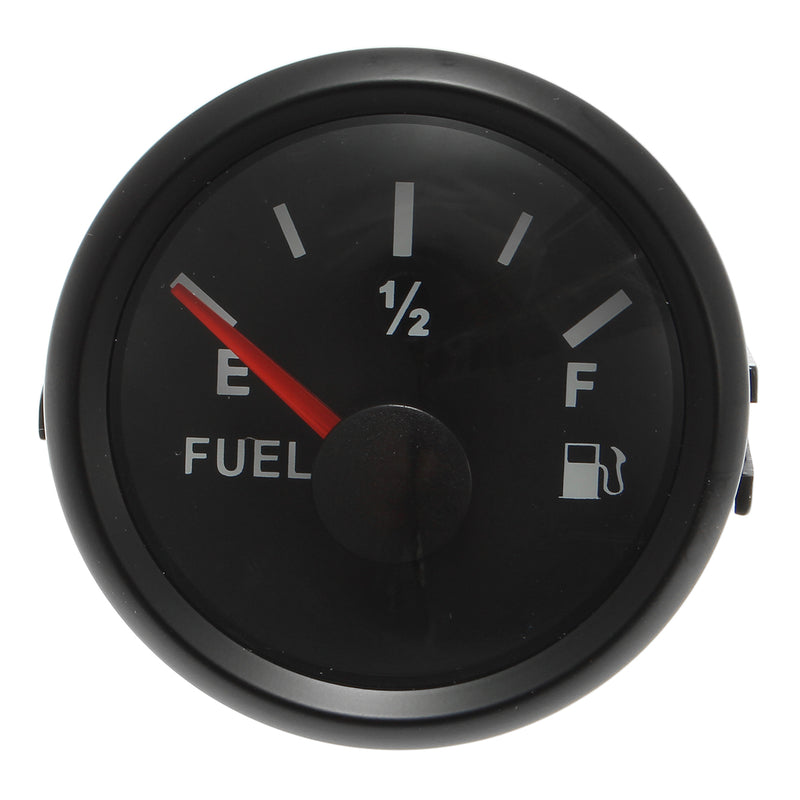

The fuel level gauge is suitable for all kinds of oil level sensor,
using the cross coil drive pointer, product durability and good shock resistance, with anti fog function.
Specification:
Material: 316L stainless steel front cover

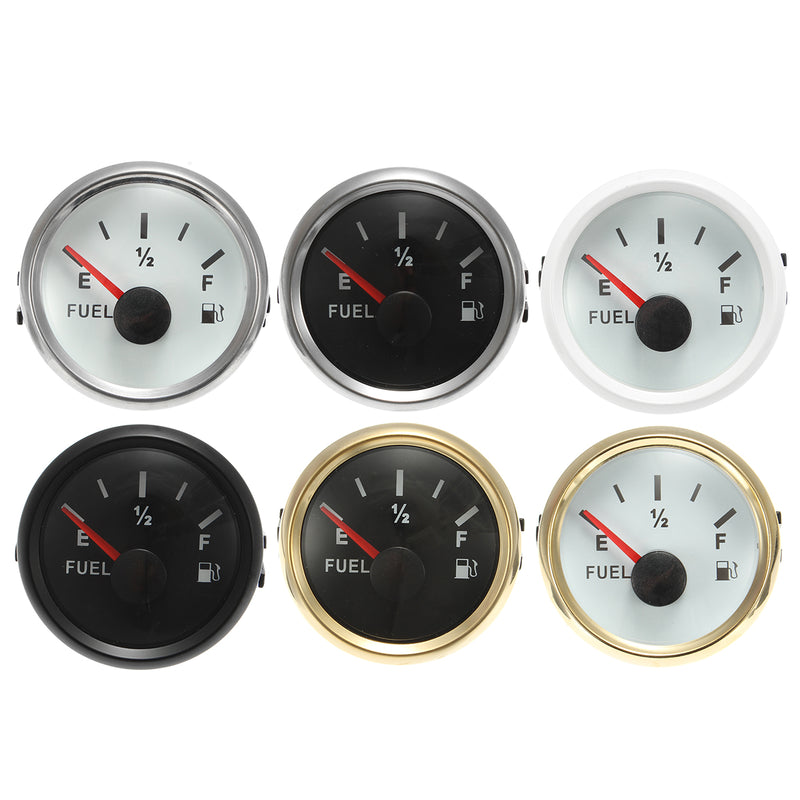

Color: As shown
Product size: approx.55.4mm*53mm
Panel opening diameter : 52mm (2-1/16")
Operating voltage: 9~32V DC
Signal: 0-190Ω
Range: EF
Working current: ≤60mA
Operating temperature:-30~+75℃
Storage temperature: -40~+85℃
Protection level: IP67
Application:
Suitable for various oil level sensor, display the position of the oil tank level;9~32V universal.
Main applications: craft, engineering machinery, vehicles, generators, engines, machinery etc.

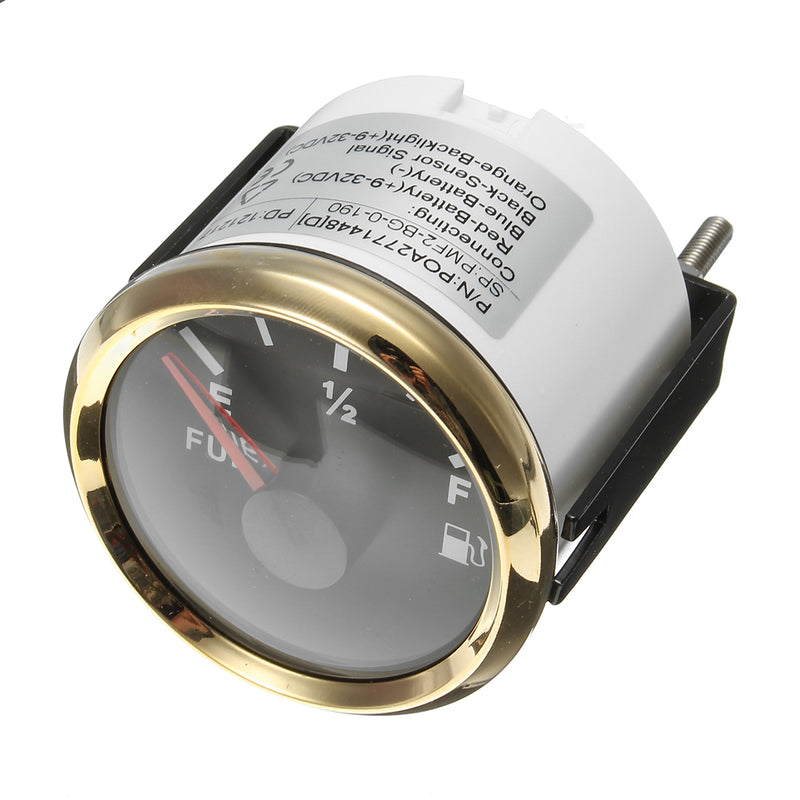

Connecting Instructions:
Orange - BlackLight
Red - (+9~32V)
Blue - (Battery-)
Black - Sensor signal
Installation Steps
1. As shown in figure A, having a opening of Φ52~53mm on the panel
which is in preparation for installing the instrument , and ensuring the space of at least 70mm behind the panel.

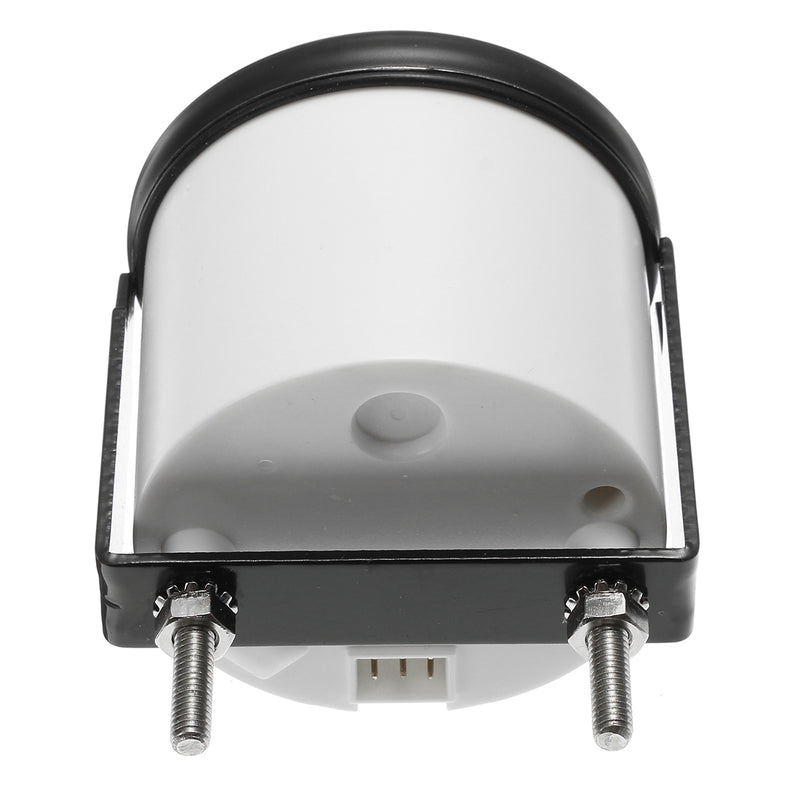

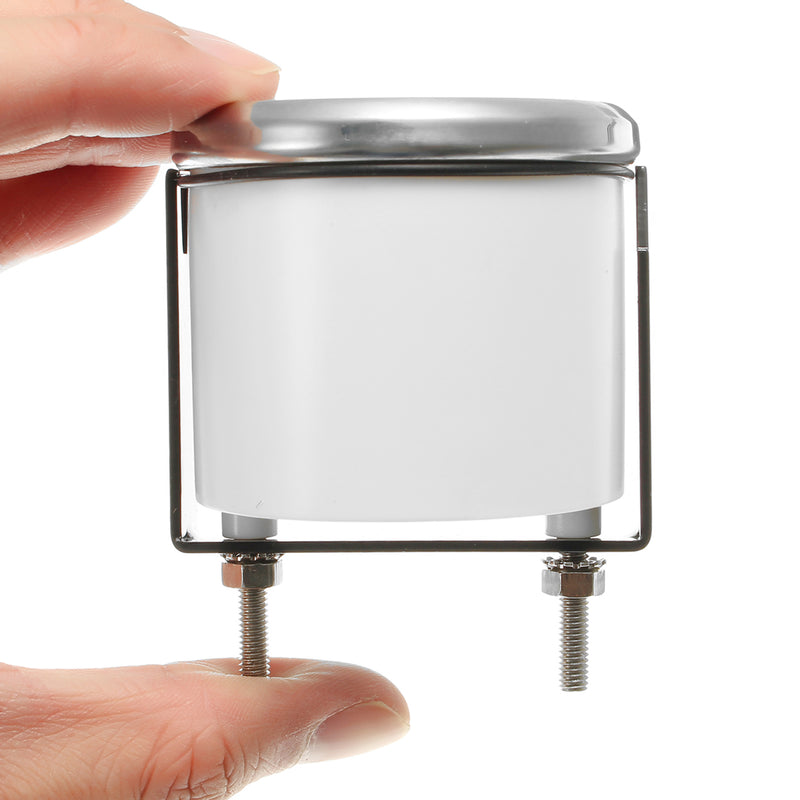

2. As shown in figure B, putting the instrument into the panel with a good opening,
and using accessories F and D t0 lock the instrument.
3. As shown in figure G, inserting the wire harness E into the instrument,
and connecting the wires well according to figure H the schematic diagram. If it is the voltage meter, there is no black wire.
4. Turn on the power, then the instrument can start work.
5. Technical parameter: working voltage: 9~32VDC;
working current is less than or equal to 50mA; working temperature: -30~+75 ℃; storage temperature: -40~+85 ℃.
Package Included:
1 X Fuel Level Gauge & line set
1 X Instruction
