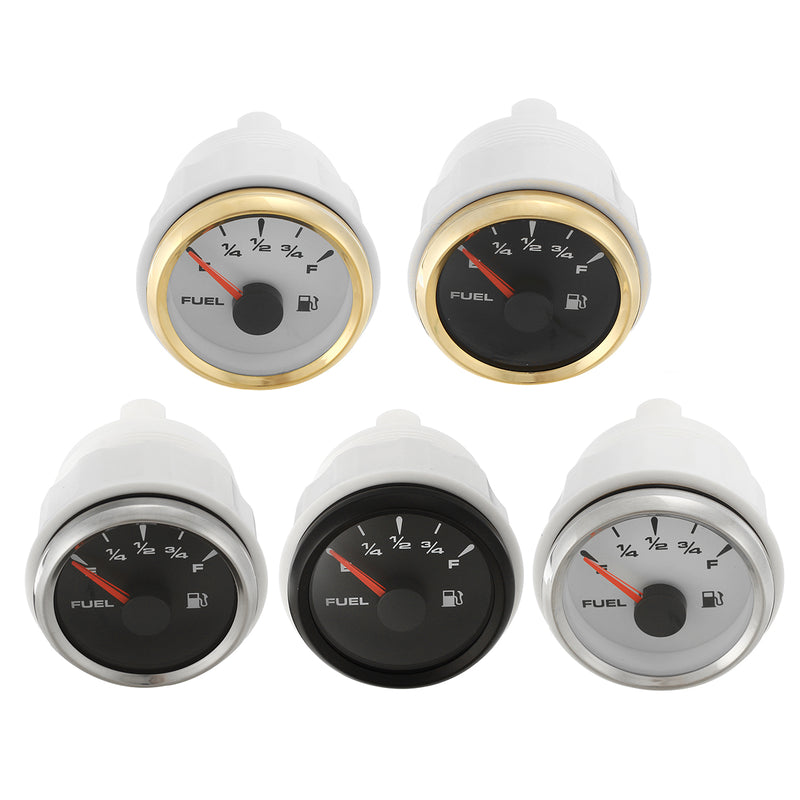

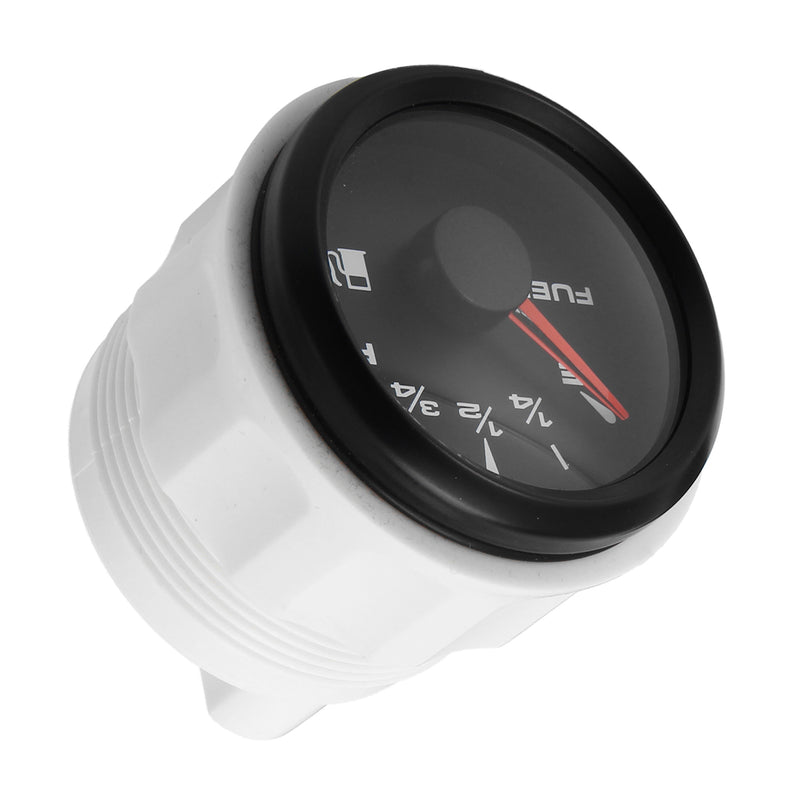

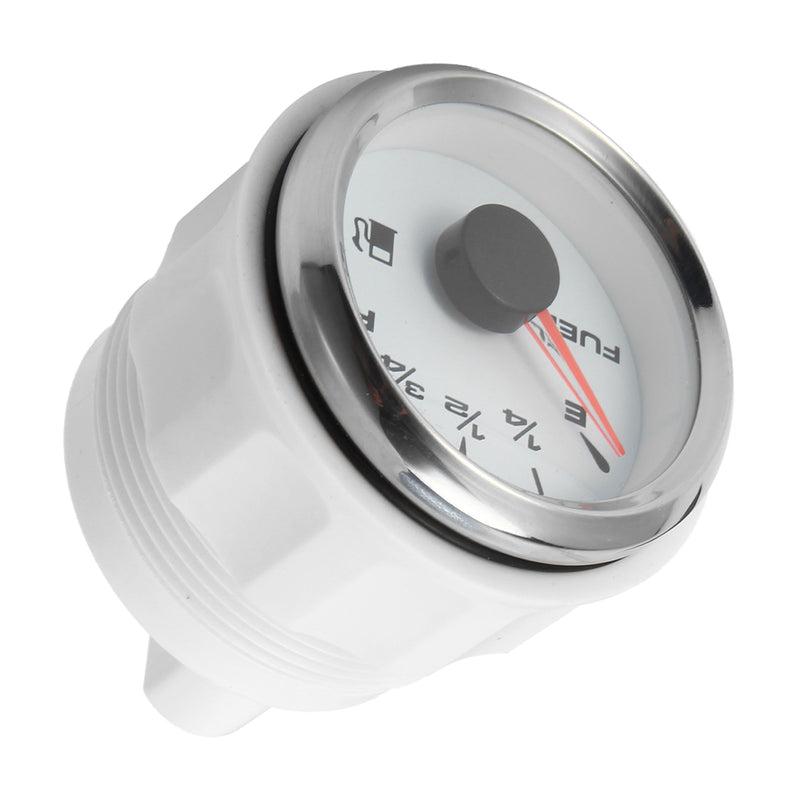

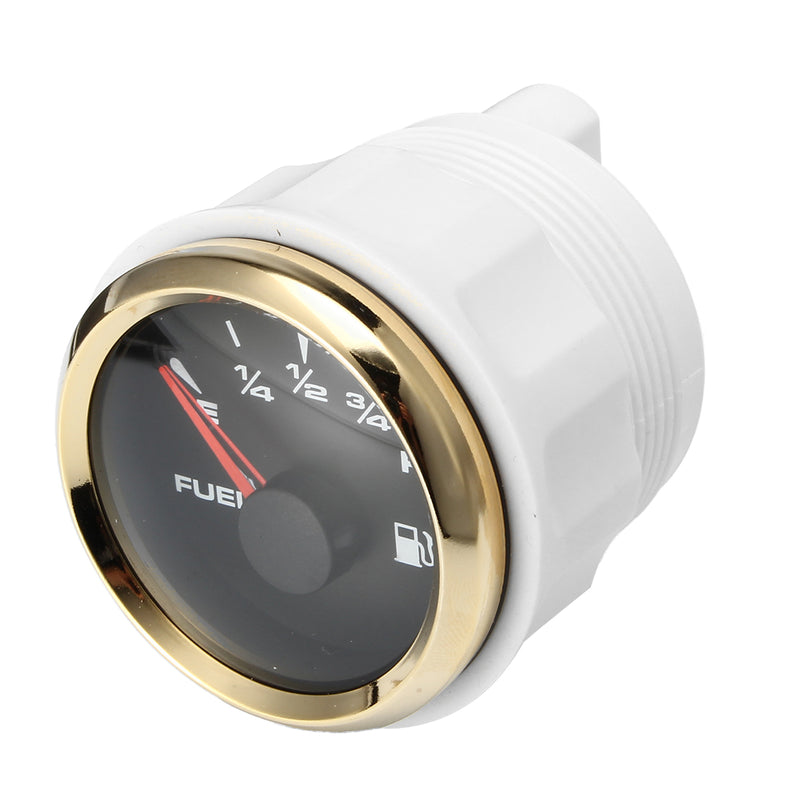

Description:
The fuel level gauge is suitable for all kinds of oil level sensor,
using the cross coil drive pointer, product durability and good shock resistance, with anti fog function.
Specification:
Material: 316L stainless steel front cover

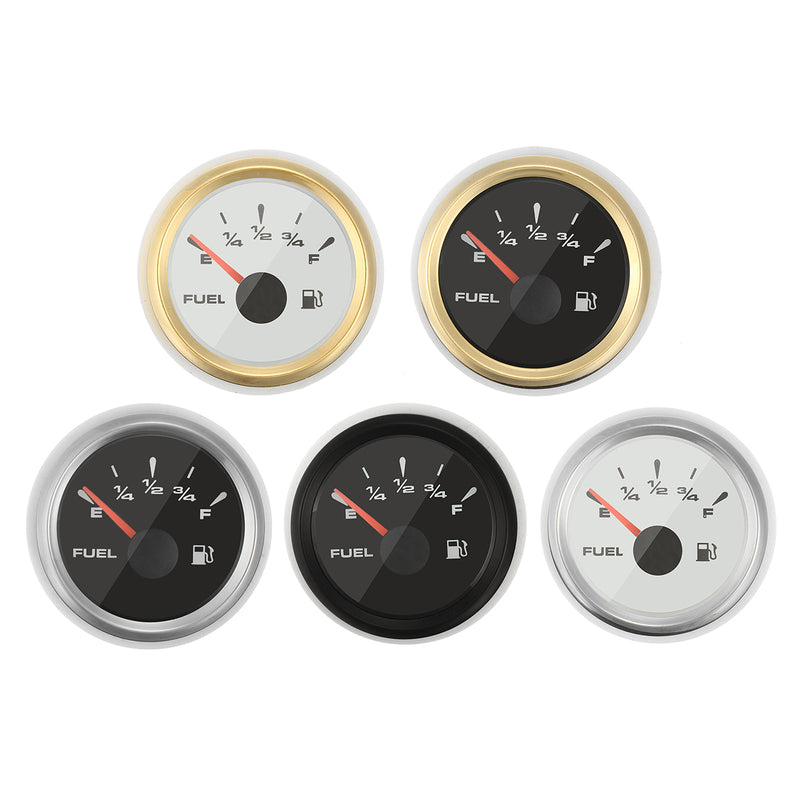

Color: As shown

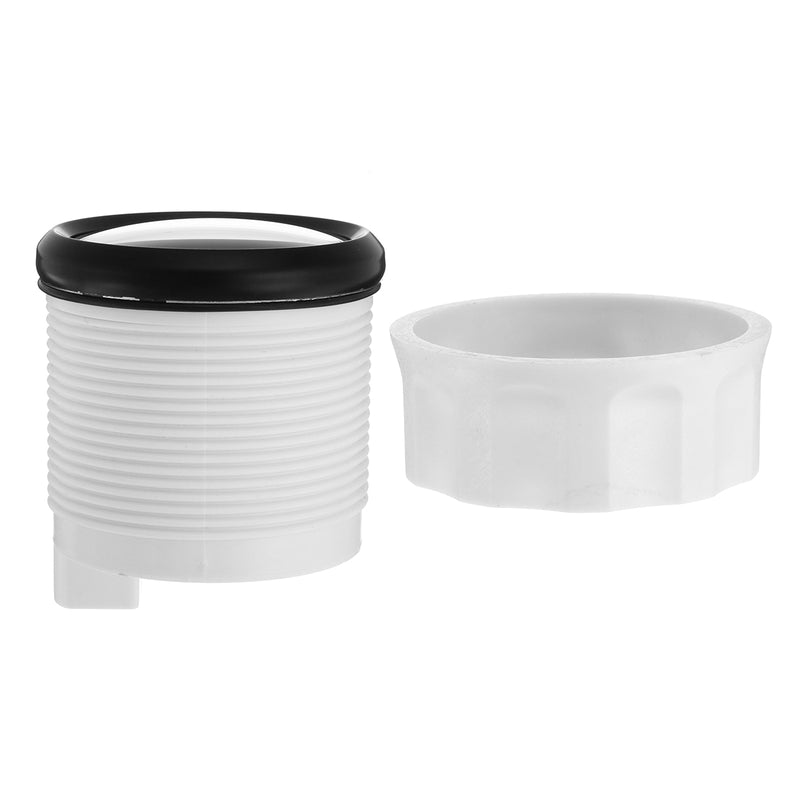

Product Size: Approx.55.4mm*62mm
Operating Voltage: 9~32V DC
Signal: 0-190Ω

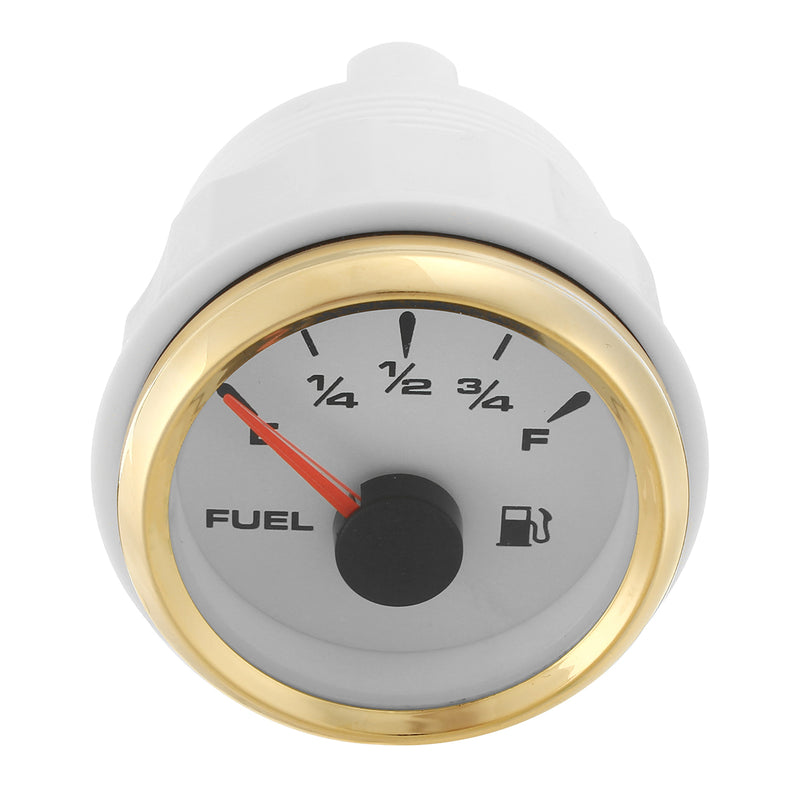

Range: EF
Working Current: ≤70mA
Operating Temperature:-30~+75℃
Storage Temperature: -40~+85℃
Protection Level: IP67
Application:
Suitable for various oil level sensor, display the position of the oil tank level;9~32V universal.
Main applications: craft, engineering machinery, vehicles, generators, engines, machinery etc.

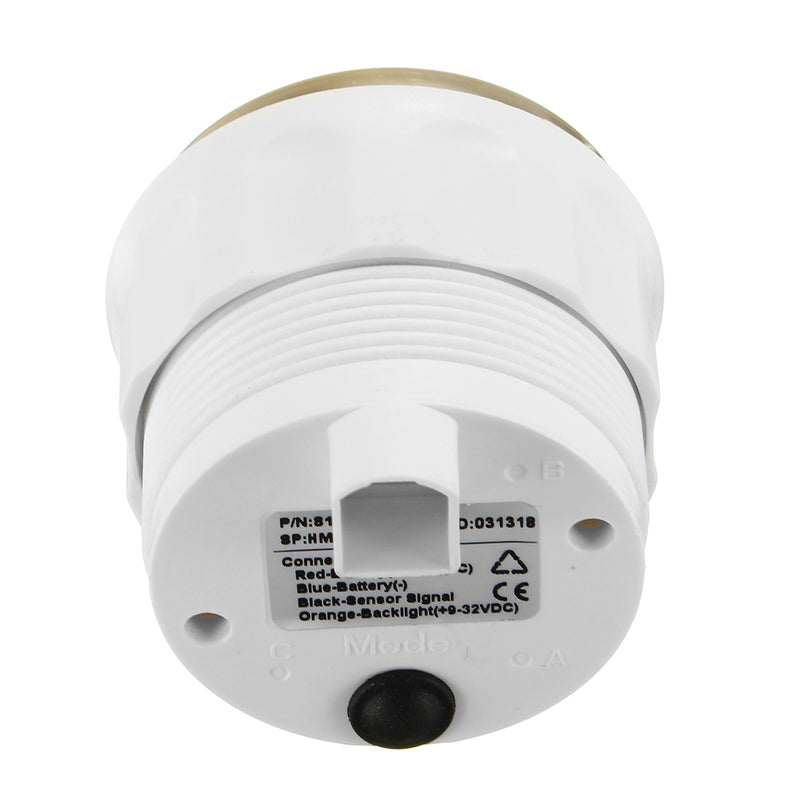

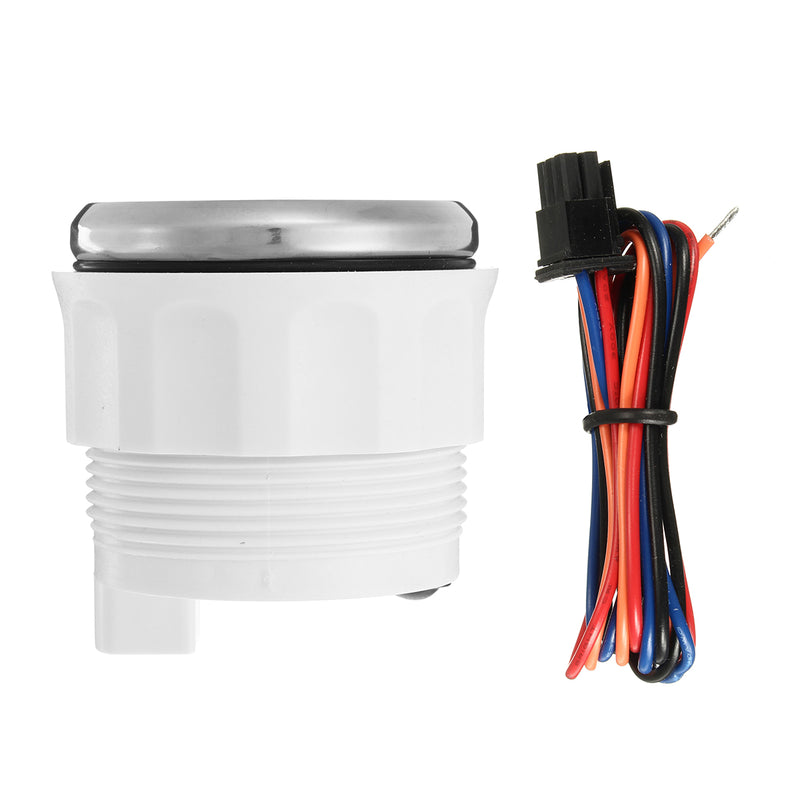

Connecting Instructions:
Orange - BlackLight
Red - (+9~32V)
Blue - (Battery-)
Black - Sensor signal
Operation:
1, Press the Mode button (less than 1 second) to change the backlight color: Backlight changed in sequence: red (default) → green → blue → white → yellow → yellow green → orange → Purple → (automatic). Automatic: As the gauges was set with the automatic , the backlight will be off for 2 seconds then lighten up, And will swithc the backlight color as above sequence.
2, Users could select the input resistance as down below operations if you have Fuel /Water/Sewage level gauge.Hold the Mode button for 3 seconds to enter the setting mode, back light flickering for a while. The needle point at the "E" position, and you could select the corresponding parameter via pressing the button as down below form.
Note:
1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. The color may have different as the difference display,pls understand.
Package Included:
1 X Fuel Level Gauge
1 X Cable
