Description:

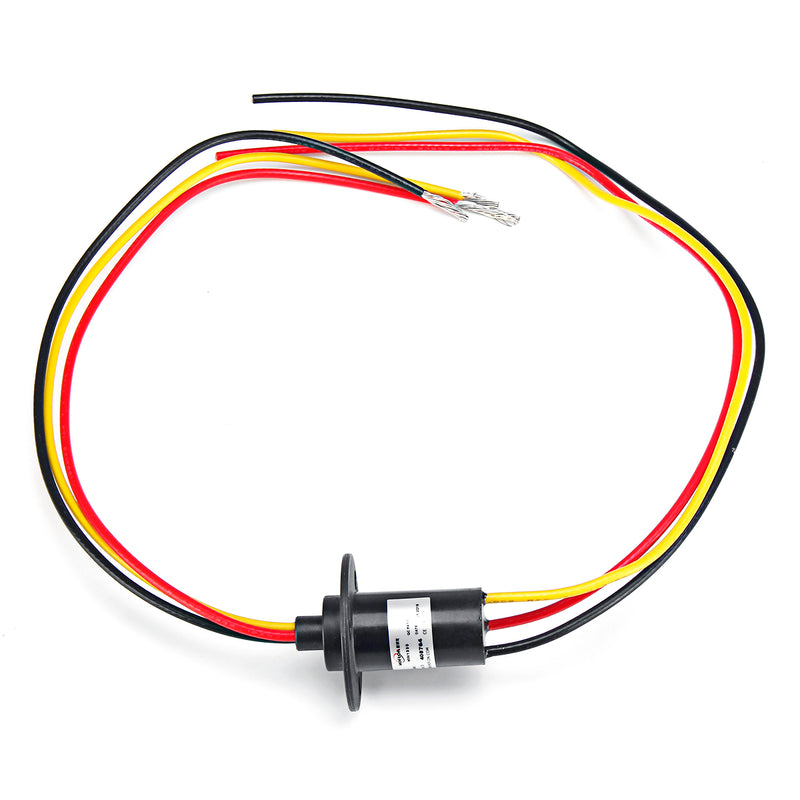

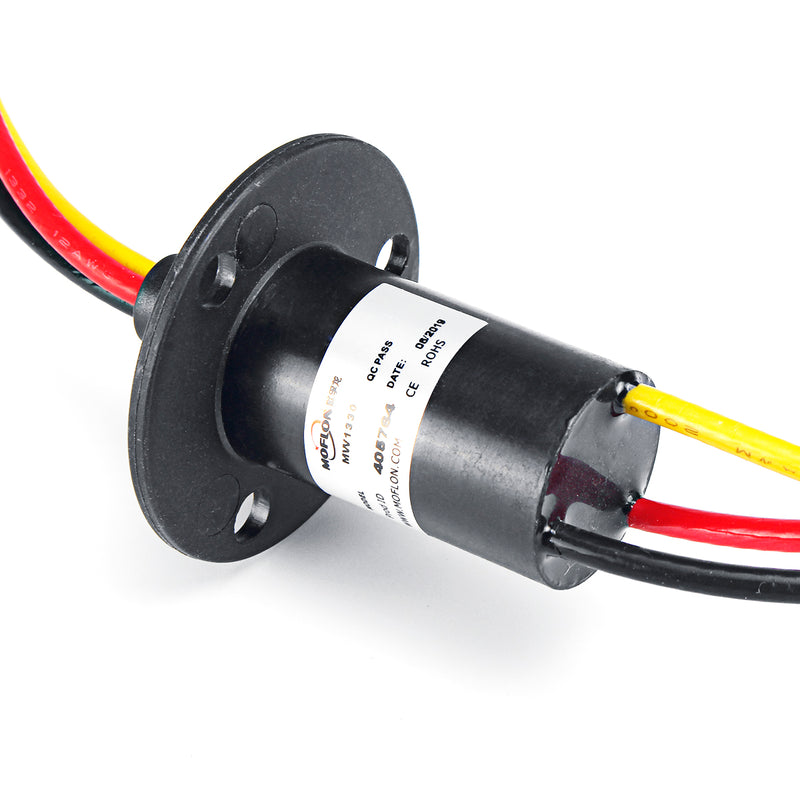

These 90 Amp 3 wire slip rings are small and compact with OD 22.00 mm * L 45 mm, standard, off-the-shelf.

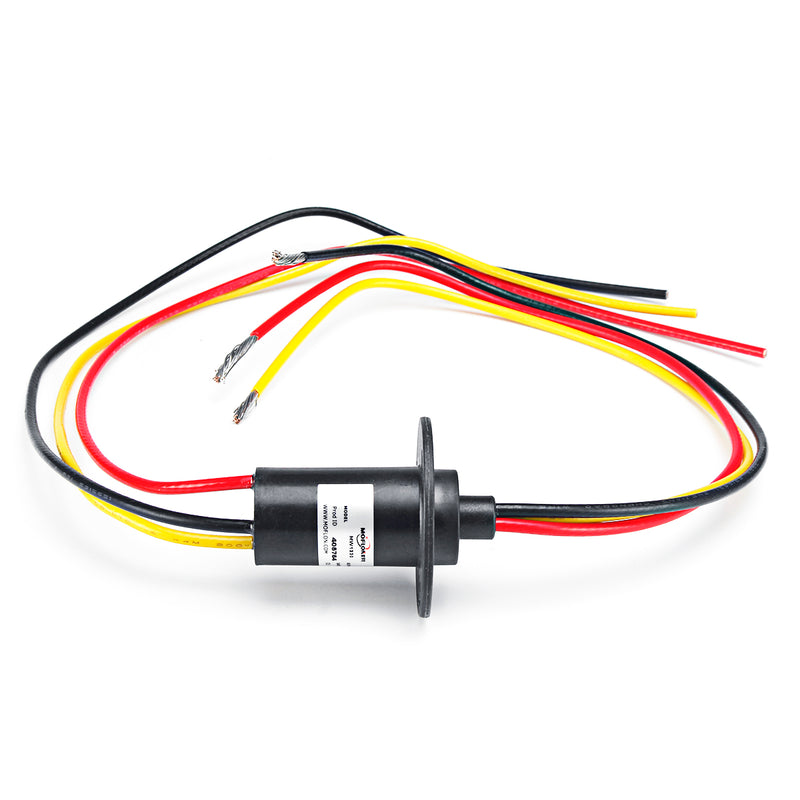

Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
Using a 90° V-groove ring design for each ring.
These slip rings are ideal for our Freedom PMGs and PMAs.
Specification:

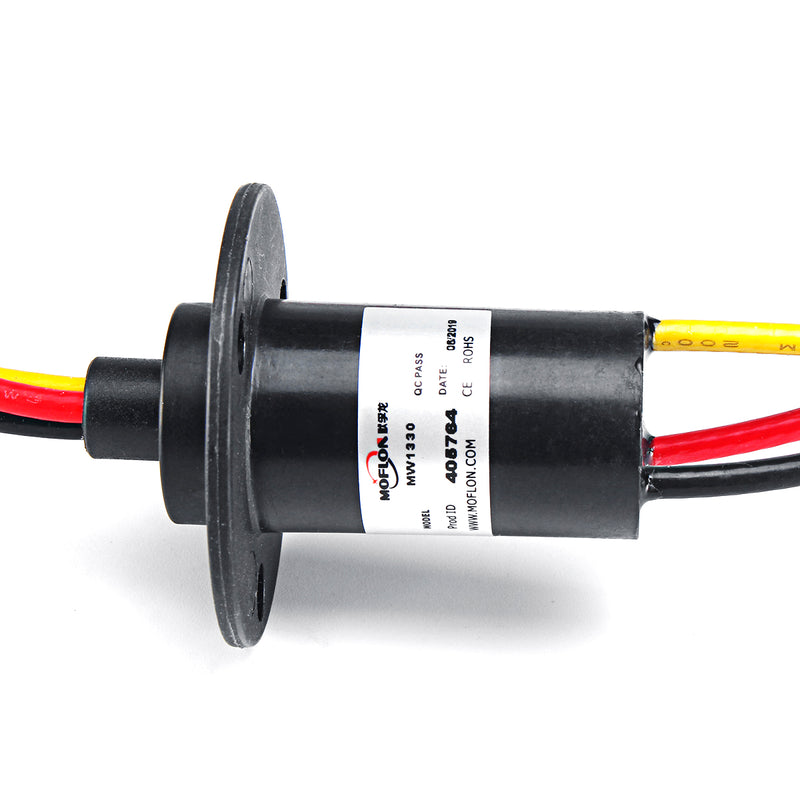

Model: MW1330
Size: 22*45 mm(OD*Length)
Wires: 3
Voltage: 600 VDC/VAC
Overall diameter: 22 mm
Contact Material: Precious Metal: gold-gold
Housing Material: Plastics
Working life: depends on working speed
Dielectric strength: 1000VDC@50Hz
Insulation resistance: 1000MΩ@600VDC
Operating Temp.: -40°C to 80°C
Shockproof Level: MIL-SID-810E
Materials: Lead Free, RoHS compliant
Current: 30A per wire (3 wires at 30 amps = 90 amps)
Max speed: 250 RPM
Contact Resistance: <2mOhm
Torque: 0.06N.m
Electrical noise: <5mΩ

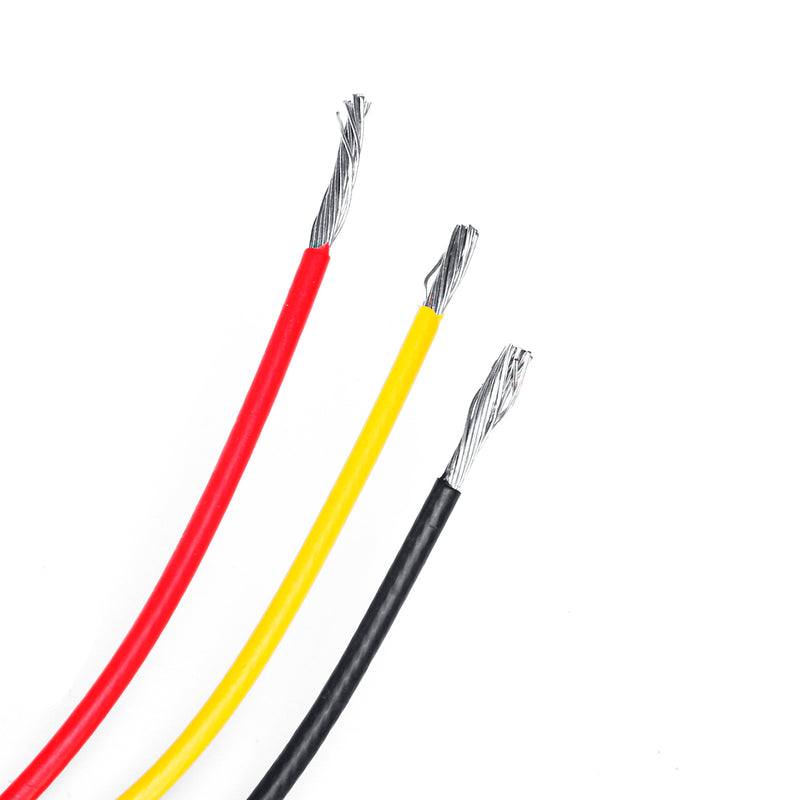

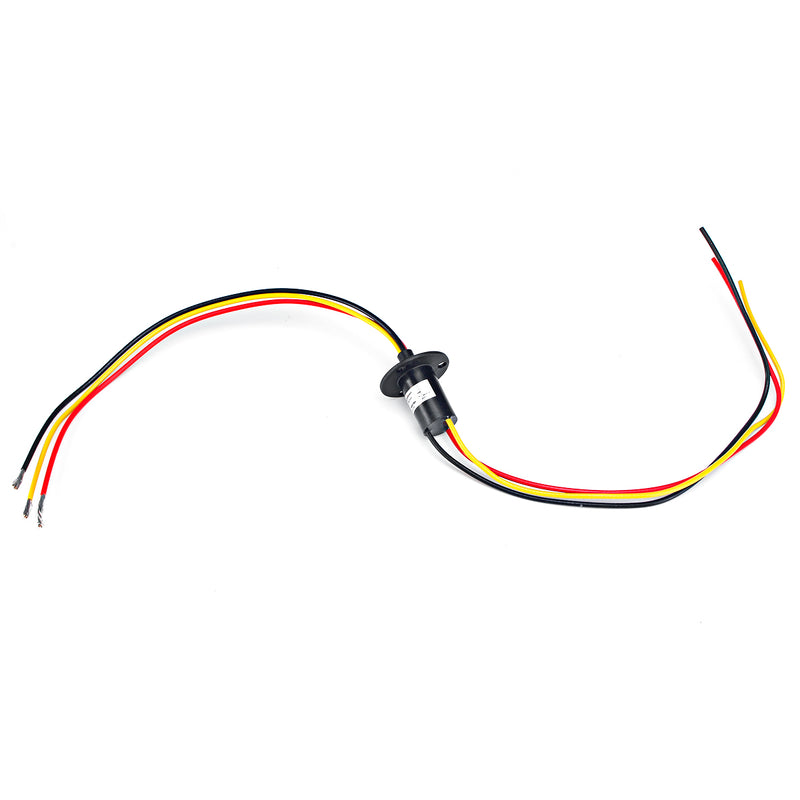

Lead Wire: UL Teflon® AWG 12

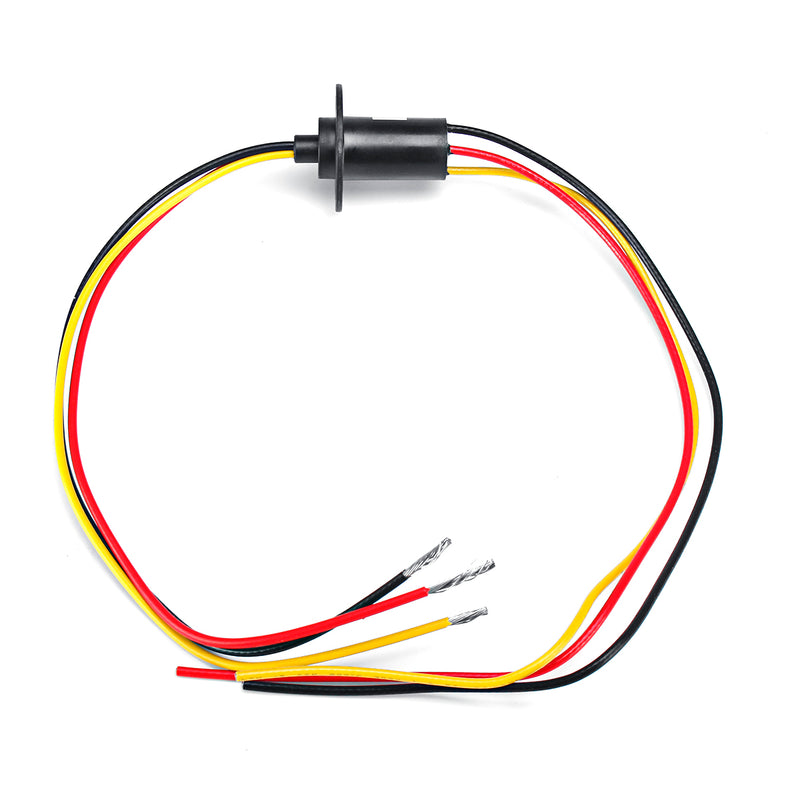

Lead Lengths: 300 mm
Protection: IP51
Humidity: 10% to 85% RH
CE Certified: YES
Slip Ring Features:
Keeps Wires on a Wind Turbine From Twisting
30 amps Per Conductor (3 wires = 90 amps total)

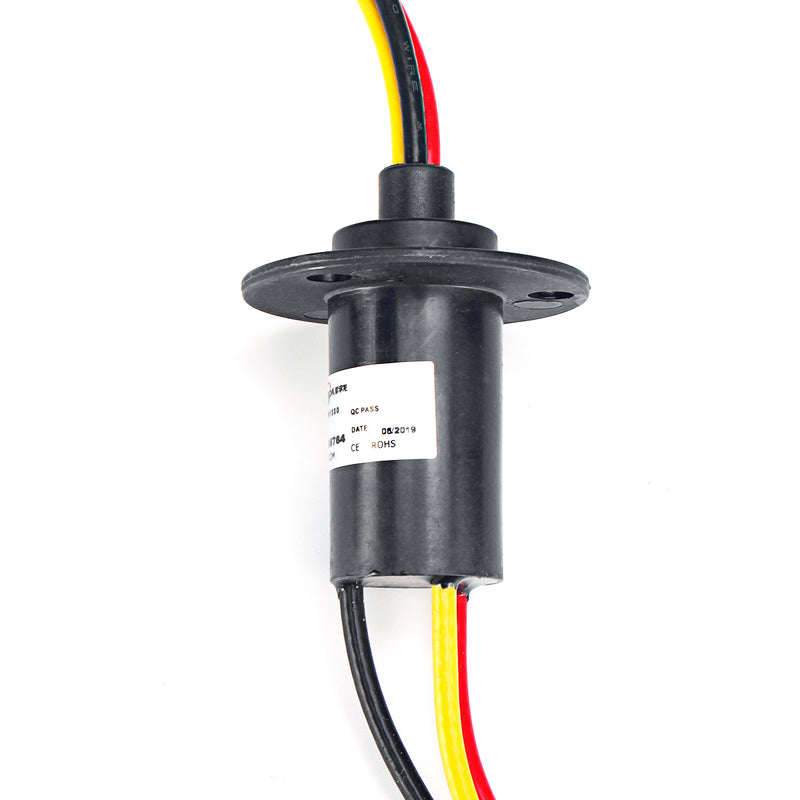

3 Mounting Holes in Collar for Easy Installation

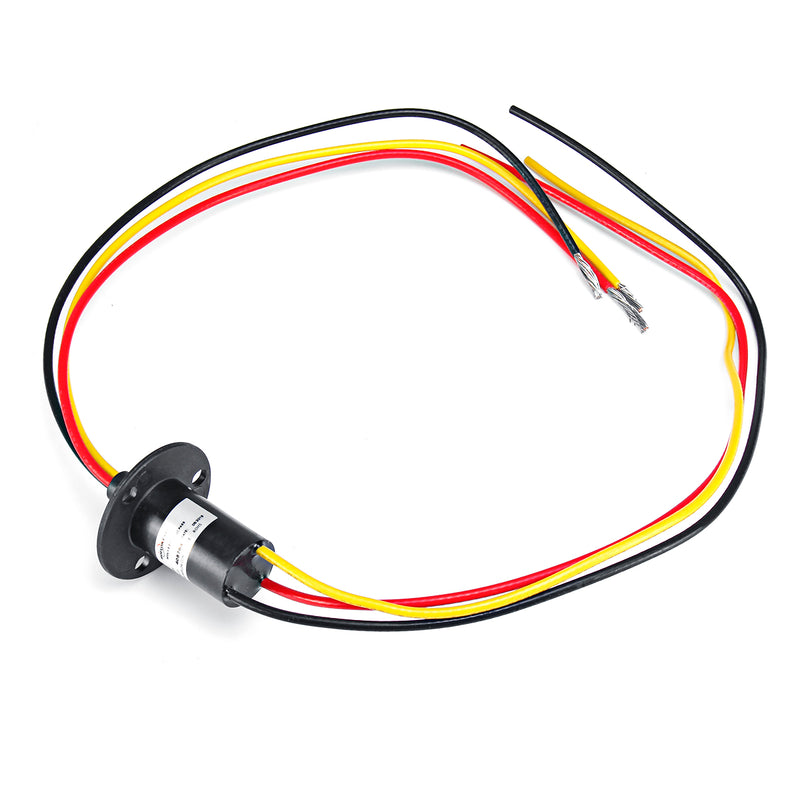

Long Wires.
Note:
1. The operational life of the unit is dependent upon rotational speed, environment and temperature.
2. Lead Wire size: 8A -> AWG16,15A -> AWG16,30A -> AWG12 colored code.
3. Electrical noise is dependent upon the rotating speed and current,voltage.
Package Included:
1 x 3 Wire Slip Ring
