Description:

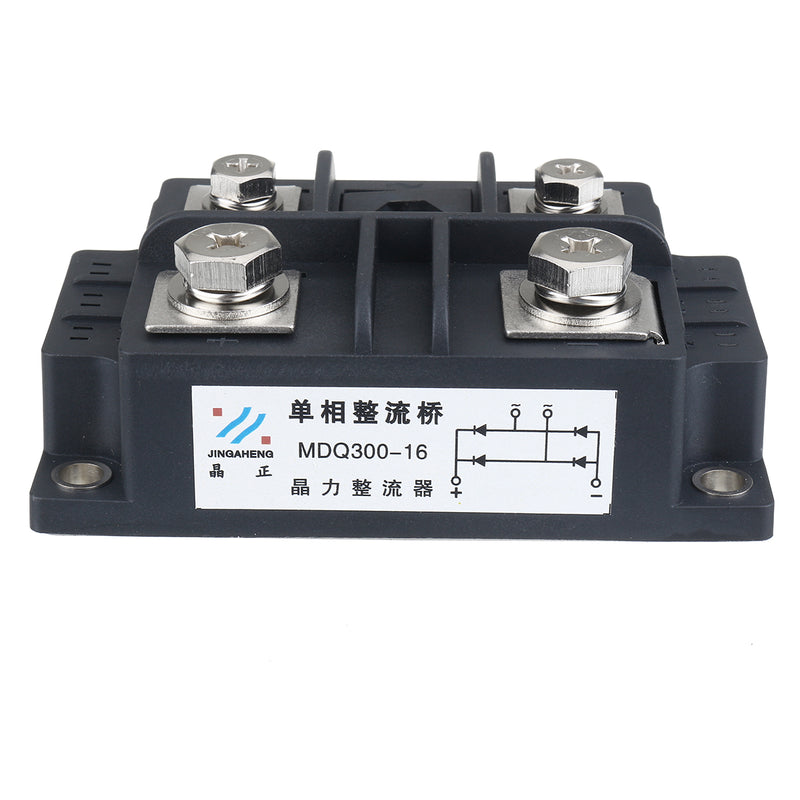

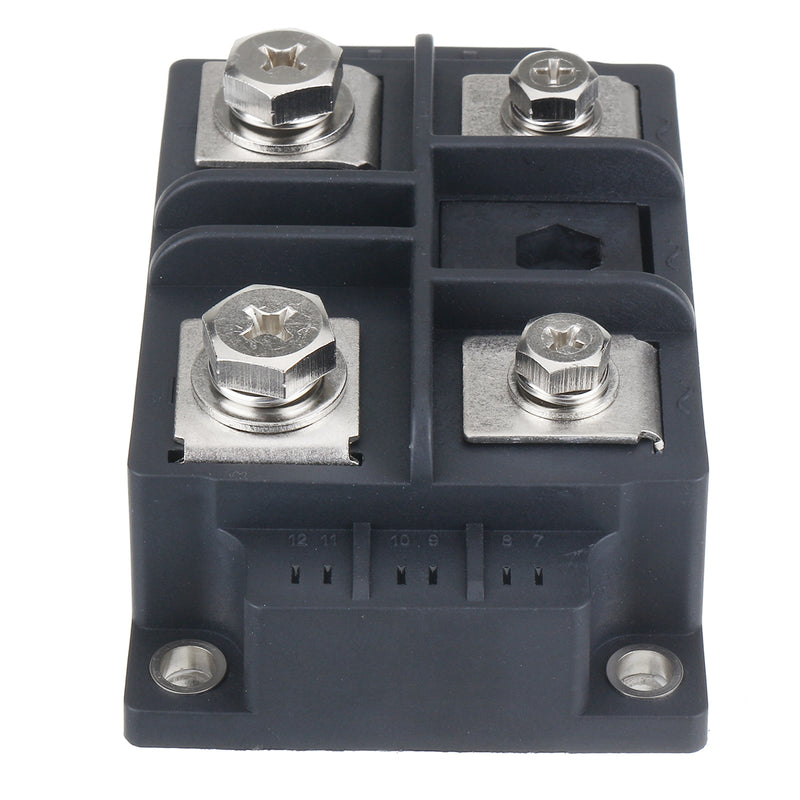

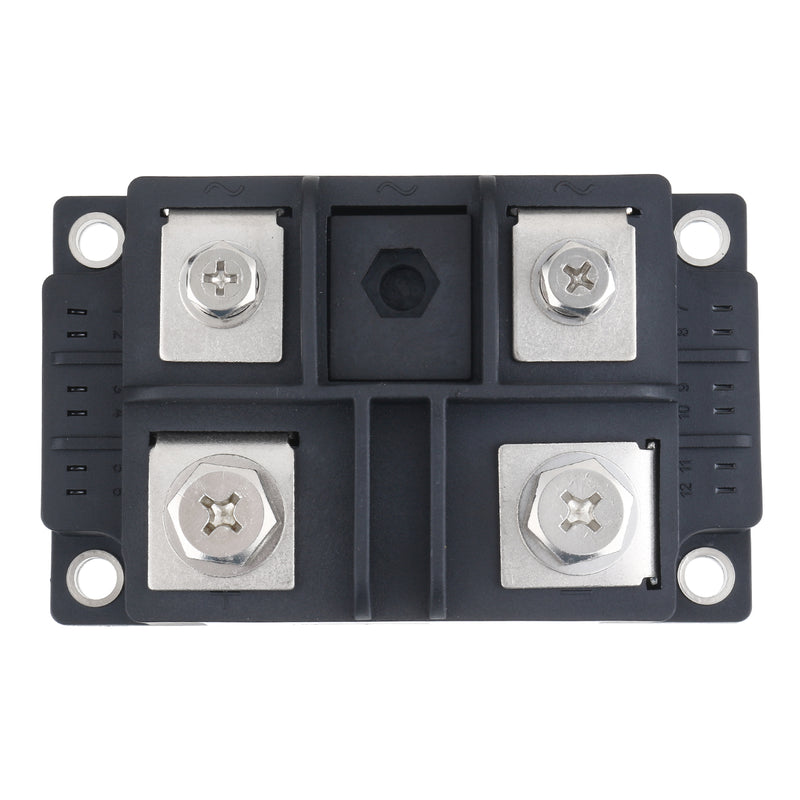

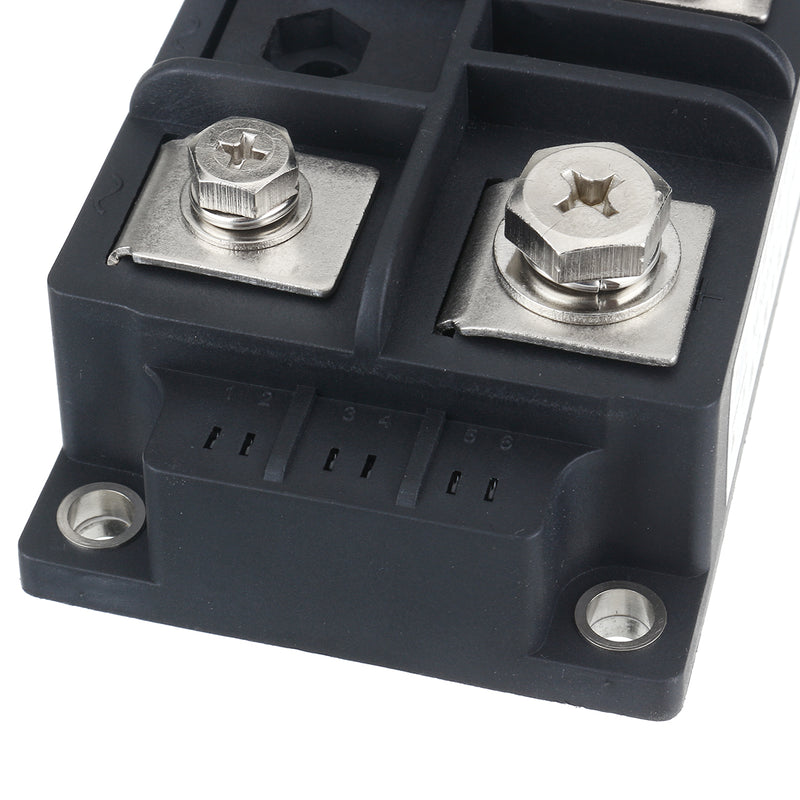

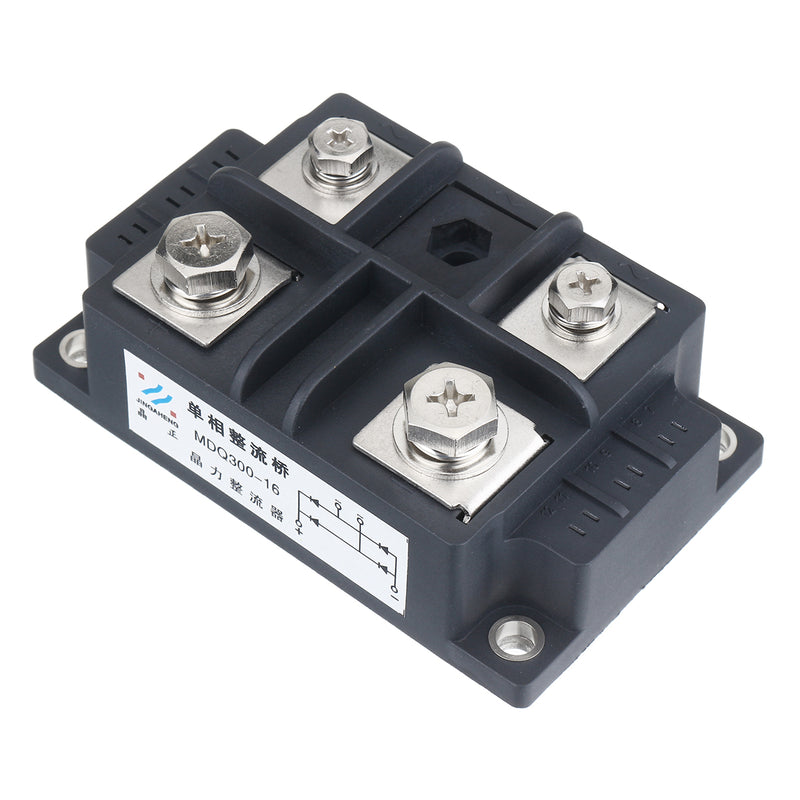

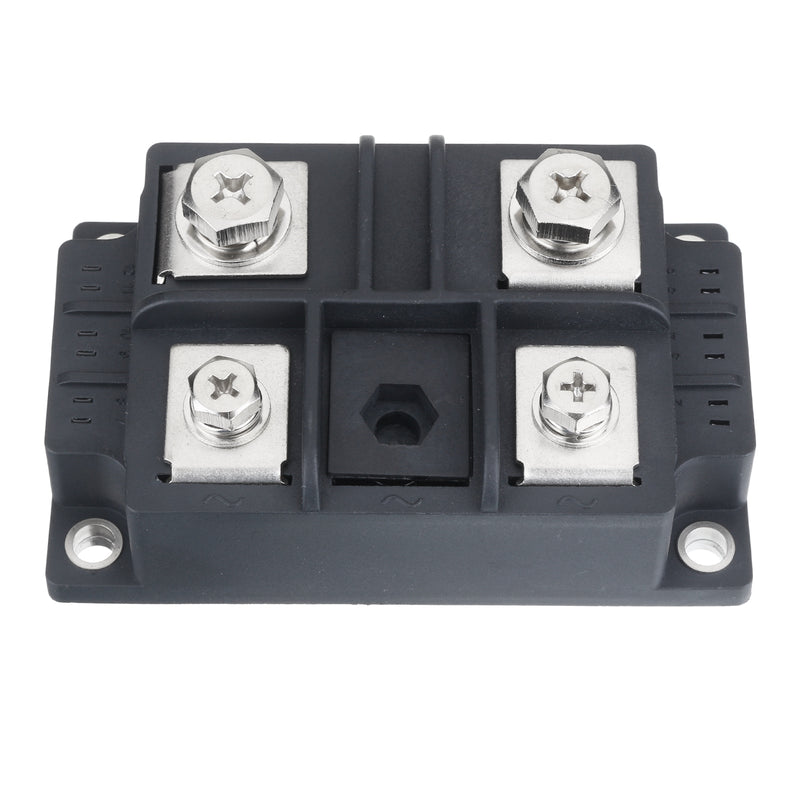

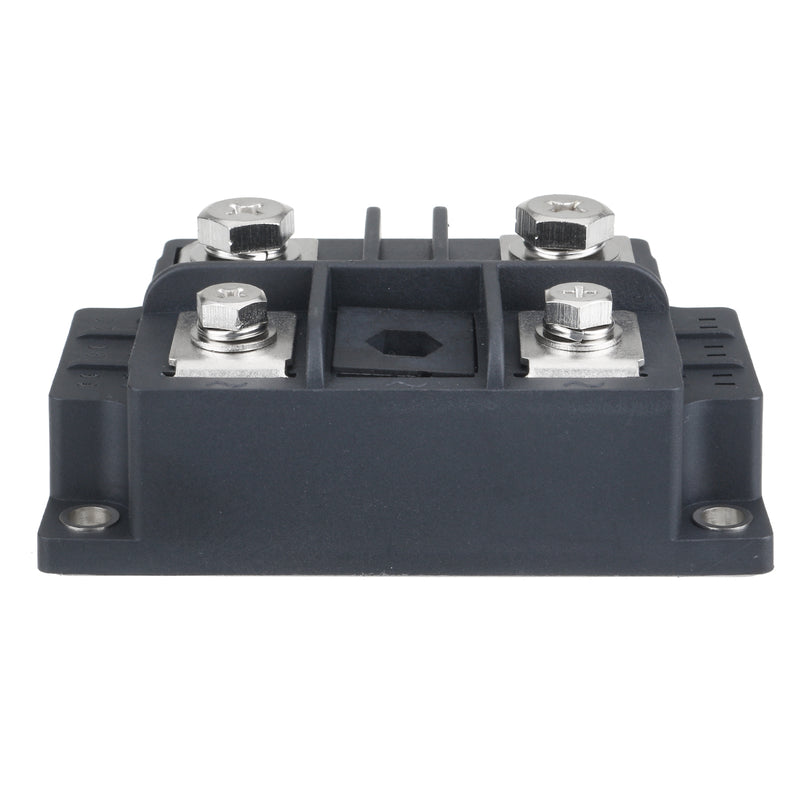

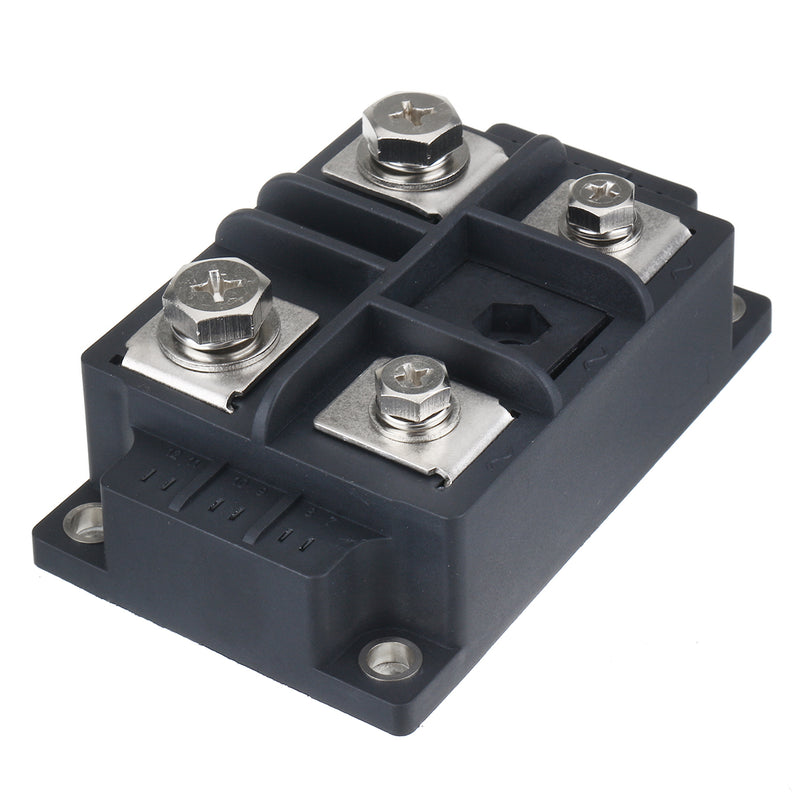

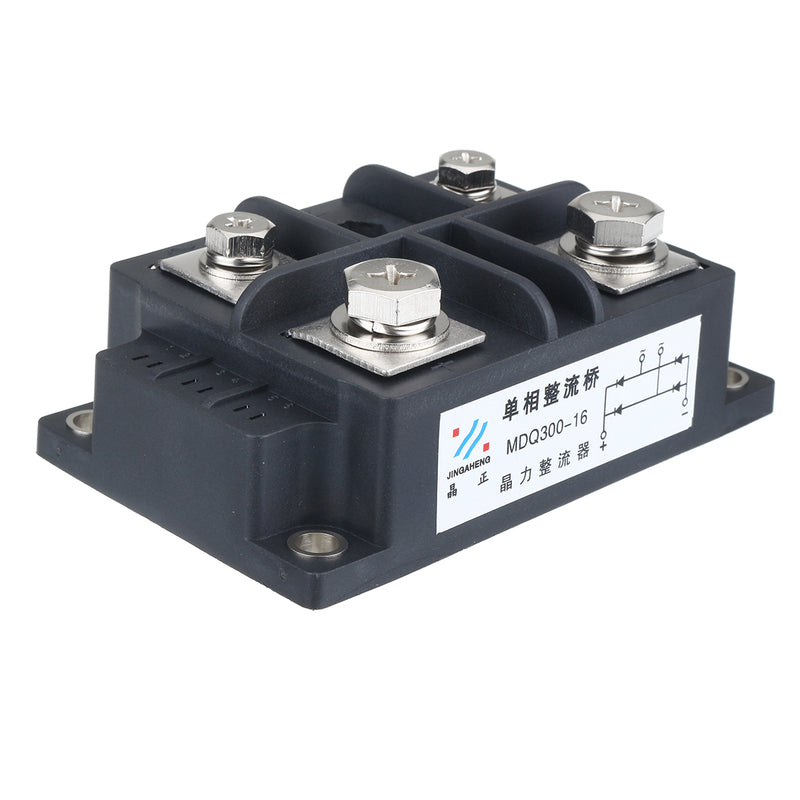

1. MDQ 300A single phase diode metal case bridge rectifier.
2. Convert your three phase current input into DC with this bridge rectifier.
3. This bridge rectifier can be used in a wide variety of applications.
4. Chip and floor electrical insulation, 1600V AC voltage.
5. Vacuum protection welding technology.
6. Welding structure, excellent temperature characteristics and power cycle capacity.
7. Easy to install, easy to use and maintenance.
8. The maximum working temperature of 150 ℃.
Specification:
Type: Rectifier bridge, high pressure silicon
Phase: Single phase
Material: Silicon (Si)
Current: 300A
Model: MDQ300A
Working Temperature Range: 120 °C
Terminals: 4
Color: Black&chorme
Size: 10.8 x 6.7 x 4.2cm
Applications:
The equipment of the DC current
PWM inverter input rectifier power supply
DC motor excitation power
Switching power supply input rectifier
Soft start capacitor charging
Electrical drag and auxiliary current
Inverter welding machine
Current charging DC power supply
Note:
1. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
2. No Instructions Included. Professional Installation Is Highly Recommended!
Package Included:
1 X MDQ 300A Amp 1600V Single Phase Bridge Rectifier
