Note:
IMEI number:
Chile:You need to register for the GSM service using the IMEI number.
India, Pakistan and other countries,
You can register for global GSM carrier services.
Turkish customers can provide IMEI numbers for us to modify.
Desacription:
◆ Real-time tracking ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert ◆ Geo-fence
◆ History Route ◆ Cut and resume fuel remotely by App ◆ AGPS locating
Specification:
GSM: 850/900/1800/1900MHz
Networks: GSM/GPRS
Backup Battery: 3.7V 370mAh
Operating voltage: 9-100V
Location time: Cold start 35s-80s
Hot start: 1s
Location accuracy: 5 meters
Operating temperature: -20℃~ 55℃
Dimension: 74*25*13mm
Weight: 50 g
Warning:
Against pseudo base-station&detect function should under power save work mode!
The device would wake up when move and speed above 20km/h.
Manual:
http://myosuploads3.banggood.com/products/20190820/20190820032727CJ710--manule.docx
App:http://myosuploads3.banggood.com/products/20190820/20190820033324--manule1.docx
Faults & The solutions
Q: Start up Fail?
A: Check the cable connect right or not.
Q: The device can not obtain location information?
A: Place the unit at the open area to test.
Q: How to choose SIM card?
A: the SIM card must support GSM&GPRS,and ensure that the card has enough currency and credit.
Q: How to use in the foreign countries?
A: please set the APN before use, please edit the text “APN123456
CMNET “ and send it to the SIM card of the device, CMNET is
Chinese operator’s APN, Replace the corresponding APN when
use in other countries, APN details, please consult your local SIM
card carrier.

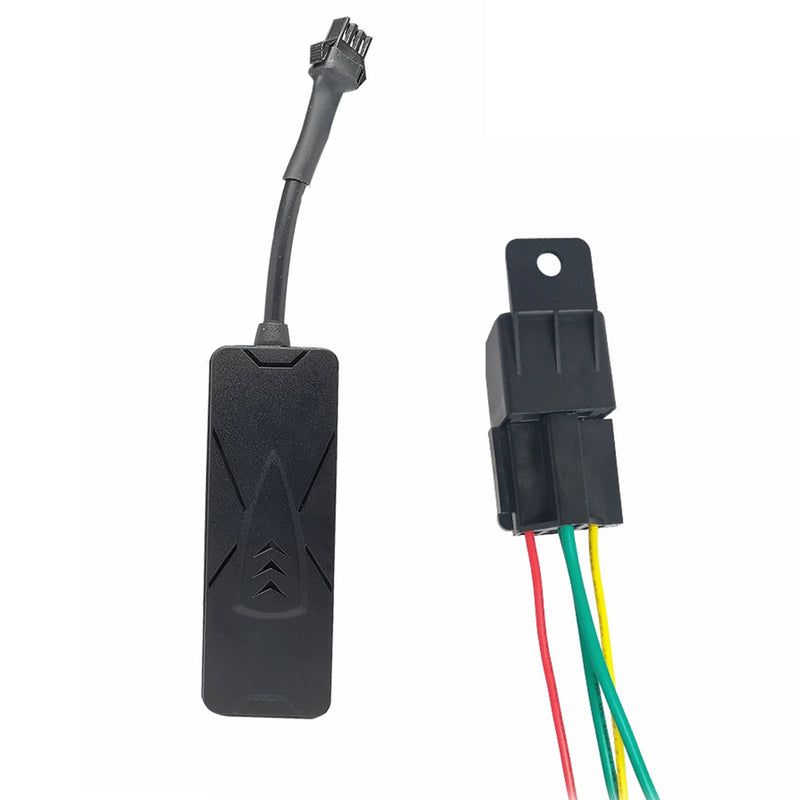

Package Included:

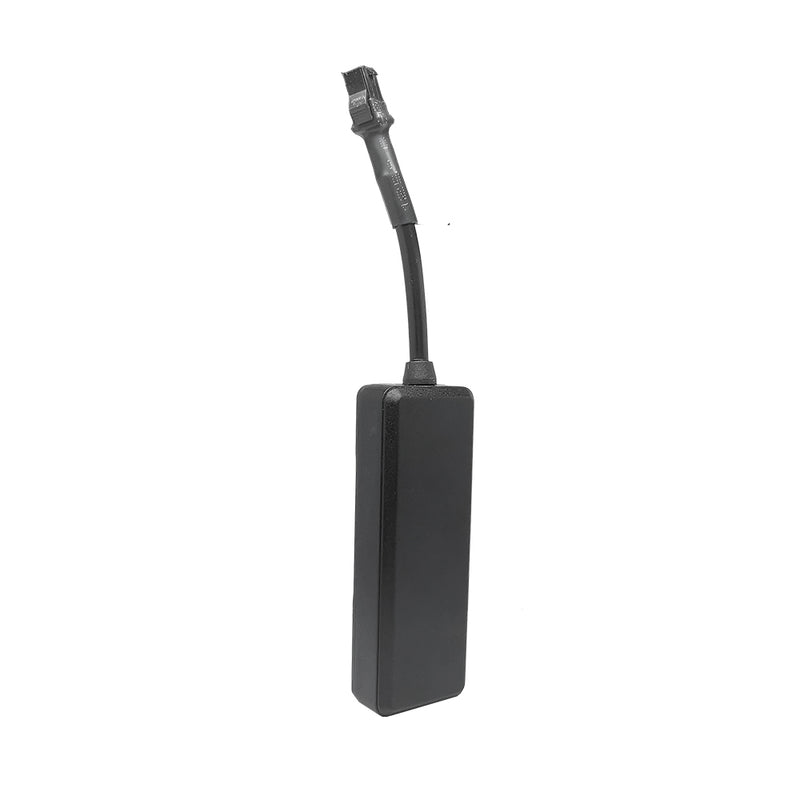

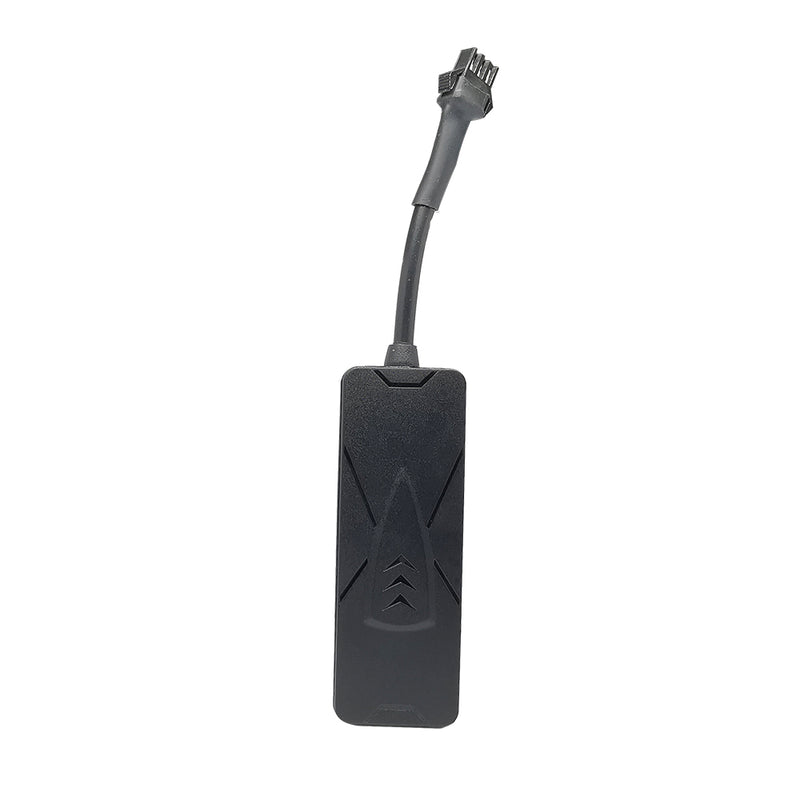

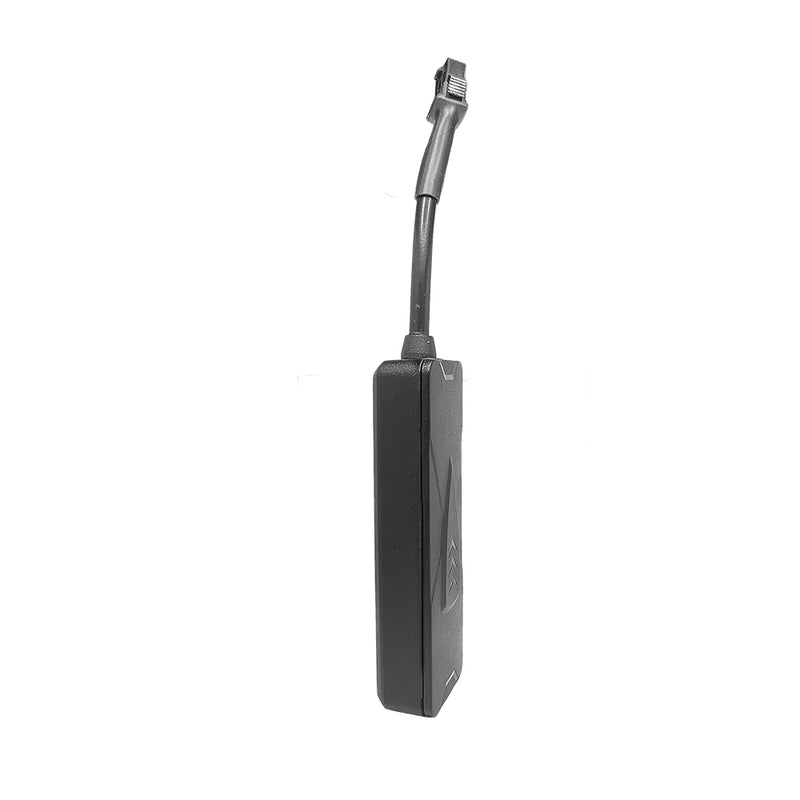

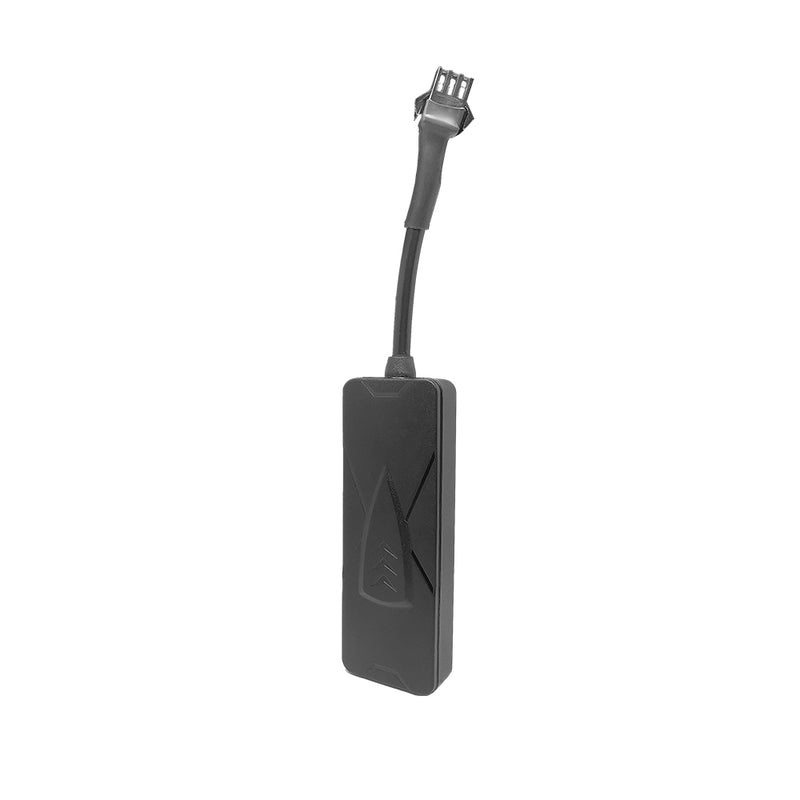

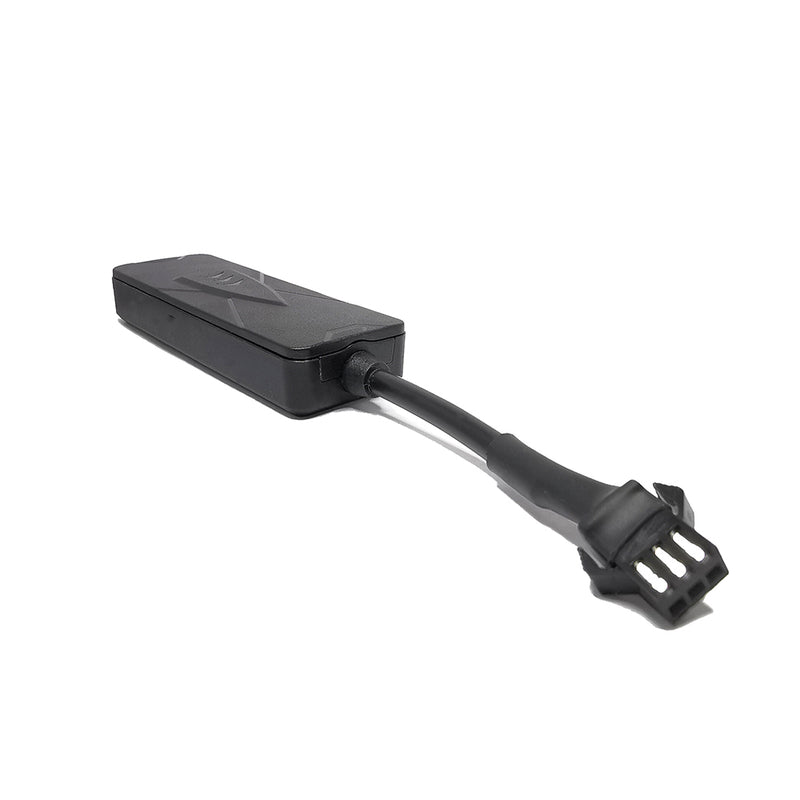

1 X GPS Tracker

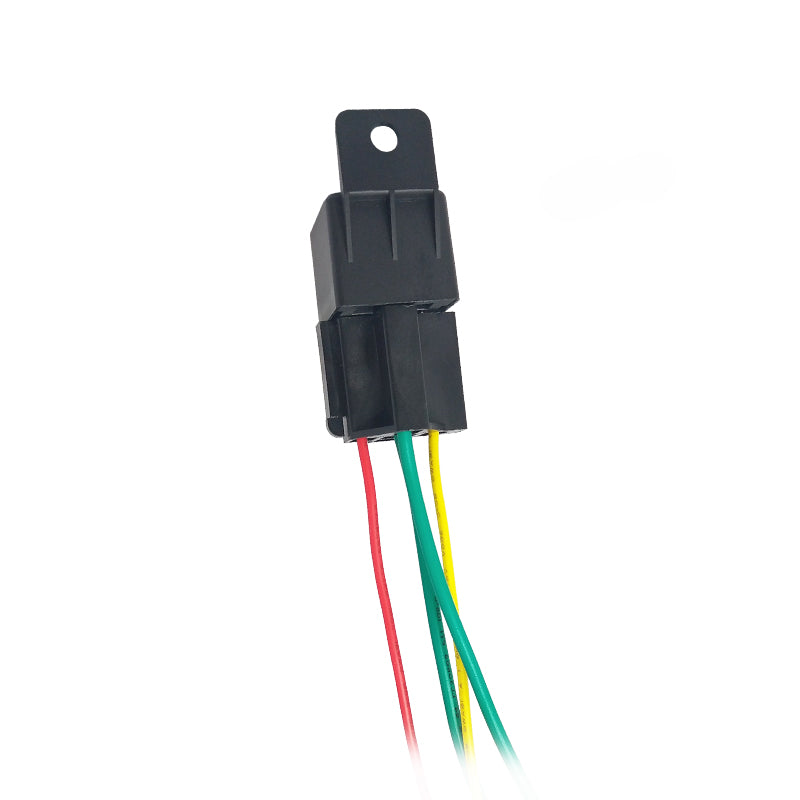

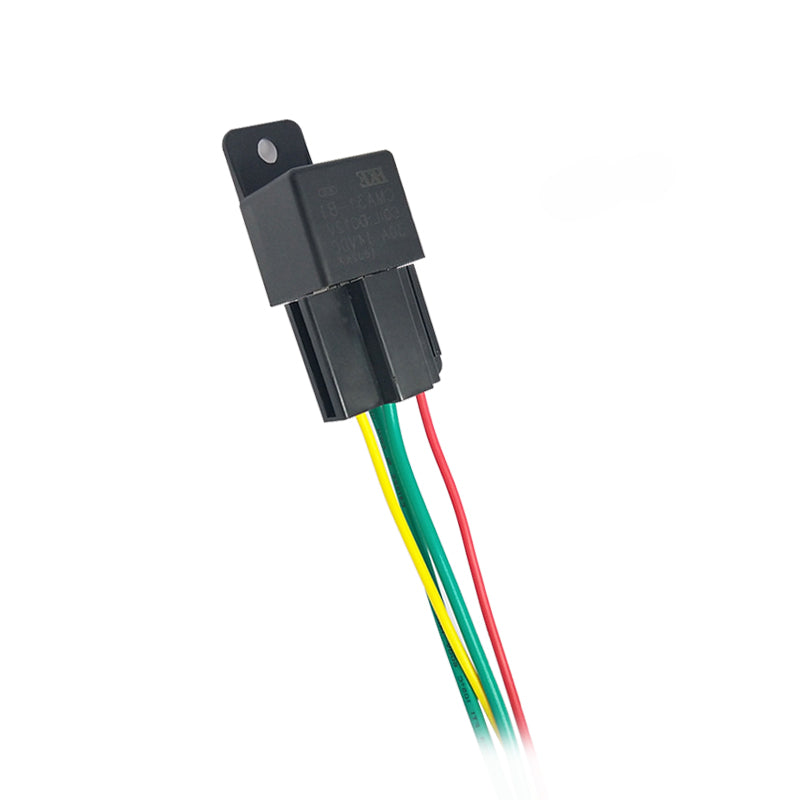

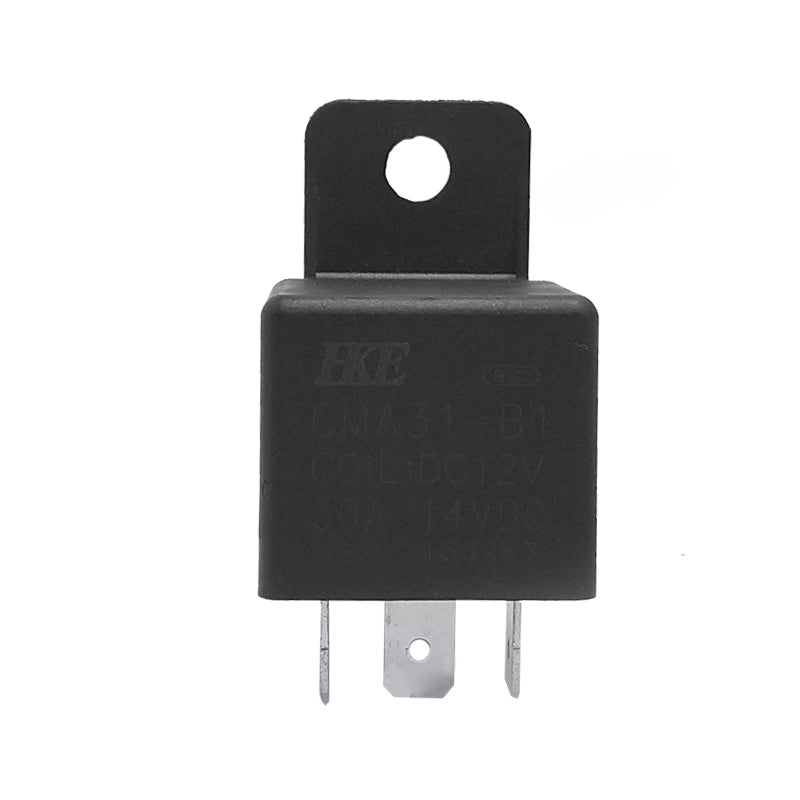

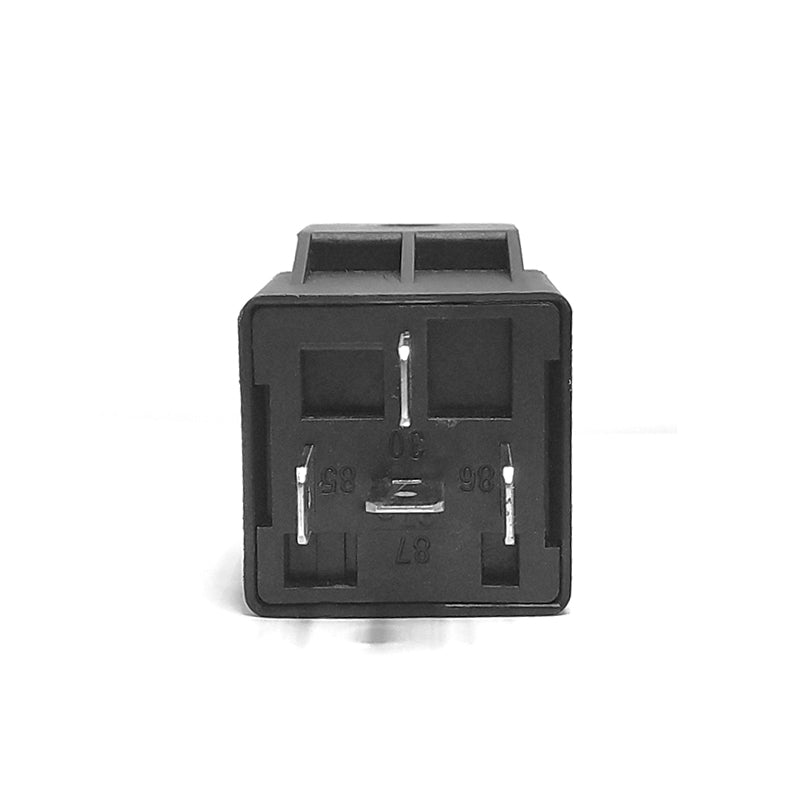

1 X Relay
