Note:
IMEI number:
Chile:You need to register for the GSM service using the IMEI number.
India, Pakistan and other countries,
You can register for global GSM carrier services.
Turkish customers can provide IMEI numbers for us to modify.
Description:
GPS and Russian GLONASS dual-mode positioning
◆ Real-time tracking ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert ◆ Geo-fence
◆ History Route ◆ AGPS locating

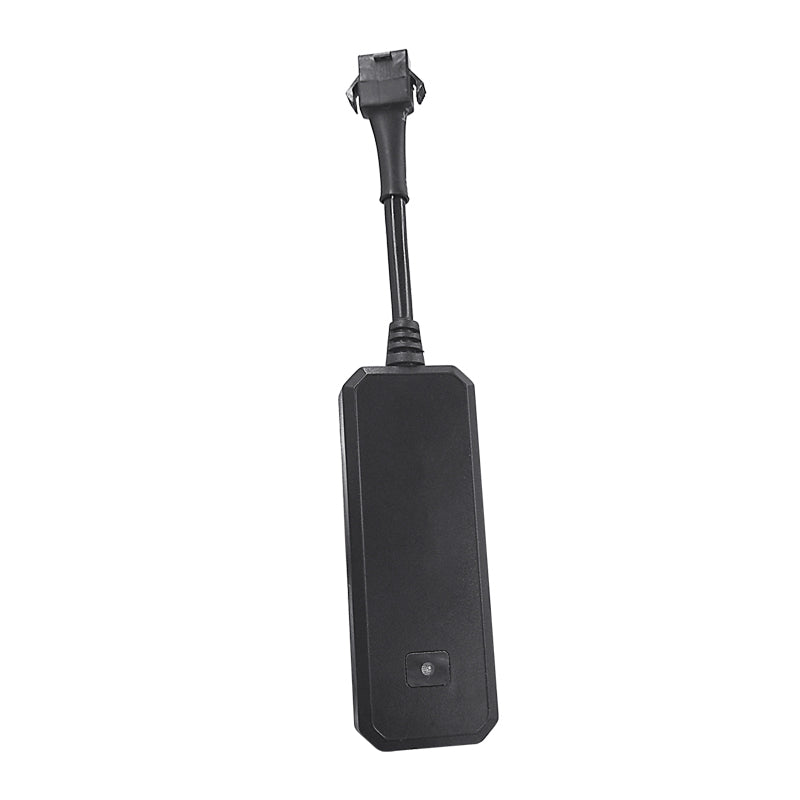

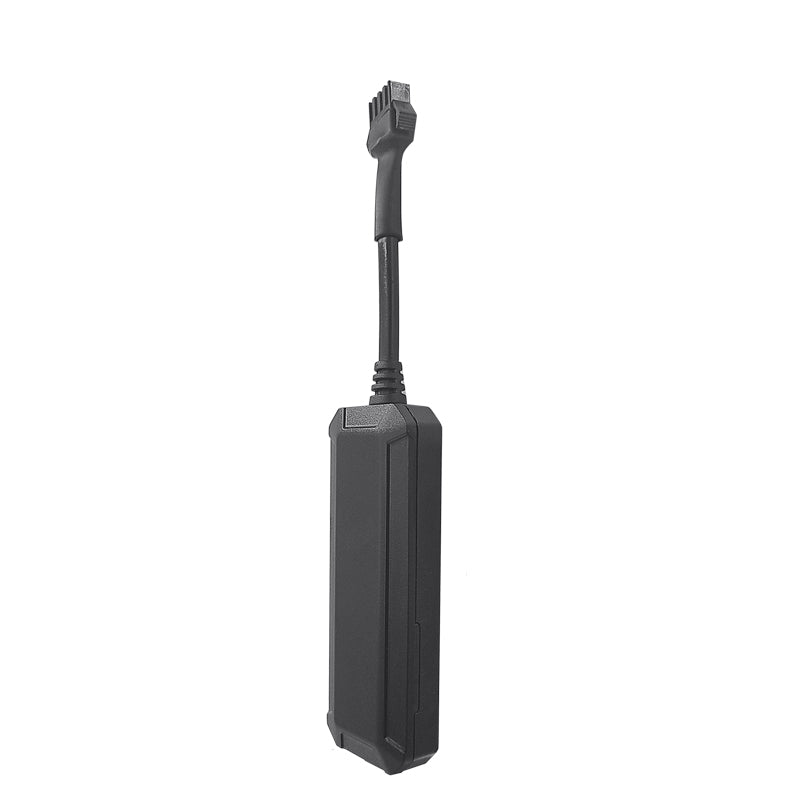

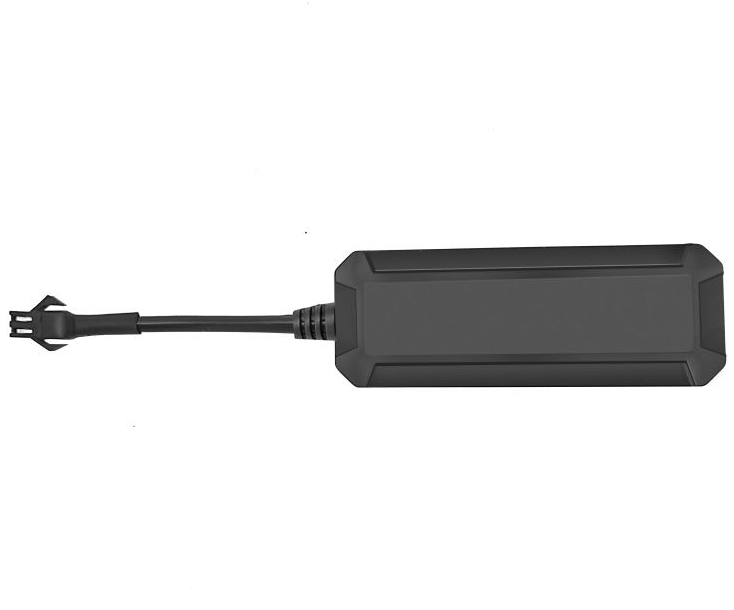

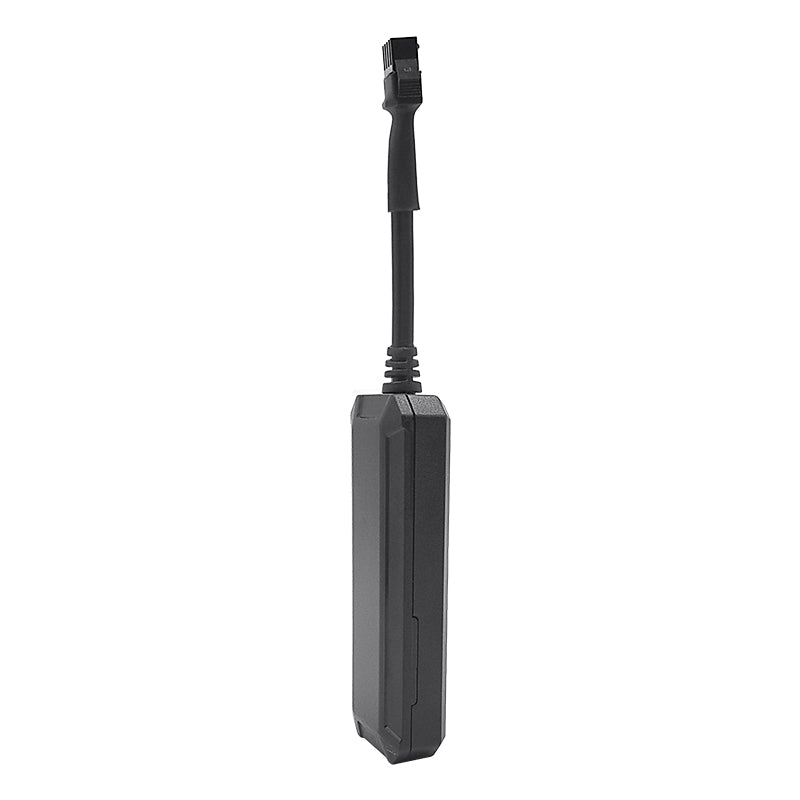

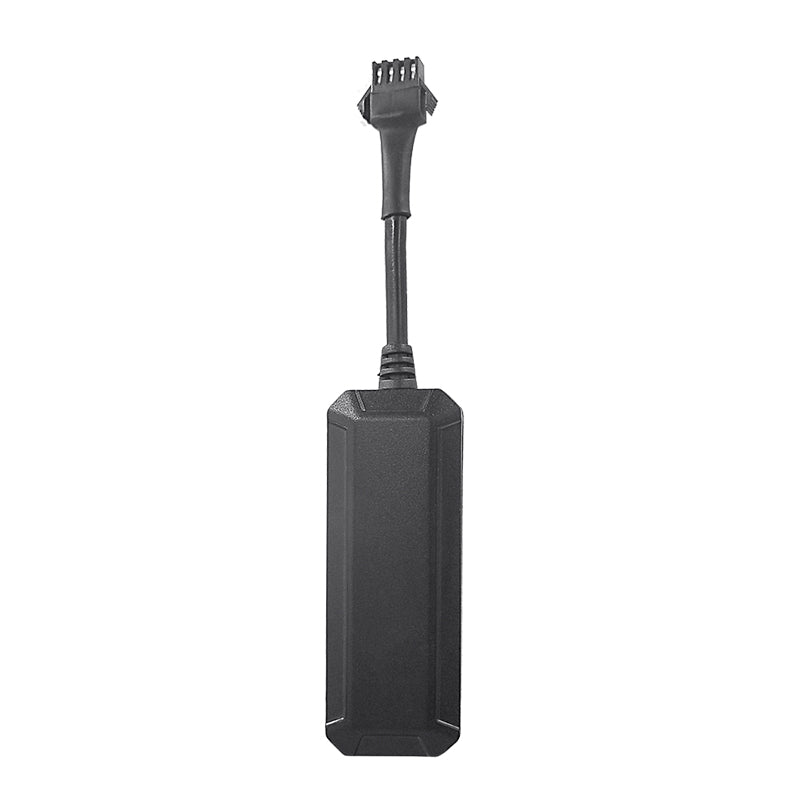

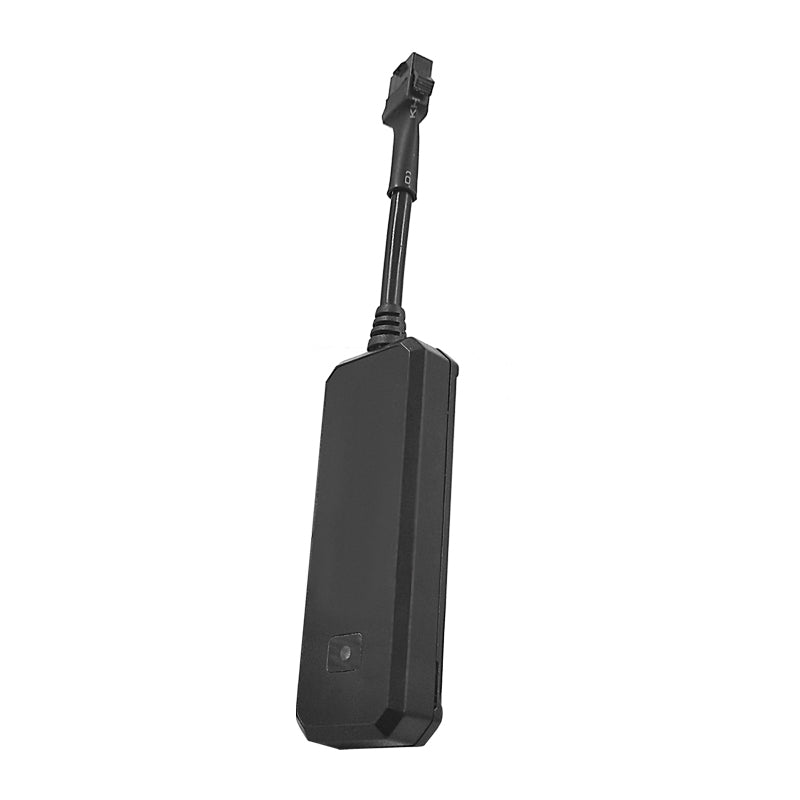

Functions and Product parameters (Relay GPS Tracker CJ720/ Off petrol and electricity)
Specifciation:
| Frequency |
GSM 850/900/1800/1900 MHz |
| Networks |
GSM / GPRS |
| Battery |
3.7V 70mAh |
| Operating Voltage |
8-95 v |
| Location Time |
Cold start 35 s-80 s, Hot start 1 s |
| Location Accuracy |
5 meters |
| Operating Temperature |
-20 ℃ ~ + 55 ℃ |
| Dimension |
74 * 25 * 13mm |
| System Language: |
Chinese/English |
How to use:
1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up
(blue light flashes, green light flashes,)
2.Set APN: APN123456 CMNET
(please use your local APN instead of CMNET,if you do not know the APN content,you should contact your SIM card supplier)
3. Set admin number by sending a SMS command to the SIM card inside device
For example: admin123456+86186******(+86186*****should be youe phone number)

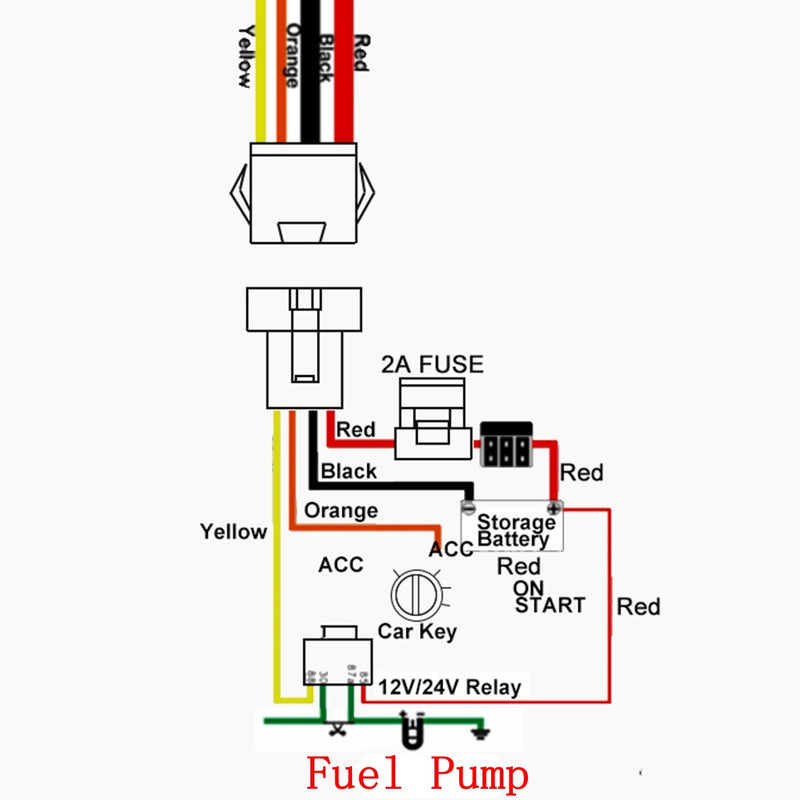

4.Connect cable follow the picture,(Fuel Pump cut test wiring video: https://www.youtube.com/watch?v=FiUN5nbAVMA)
Package Included:
1 X GPS Tracker With Relay
1 X Manual
