Specification:

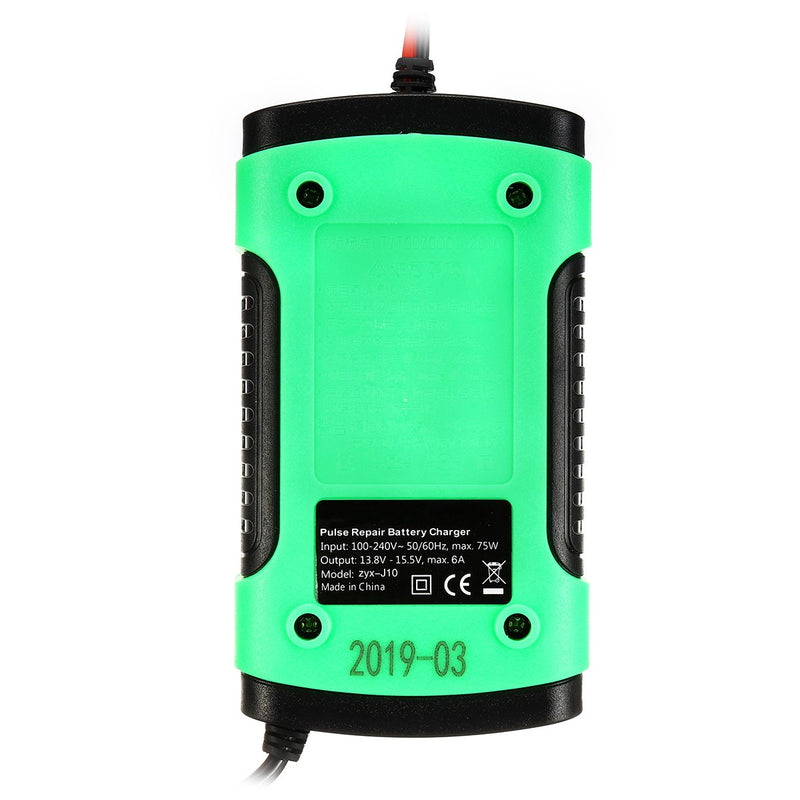

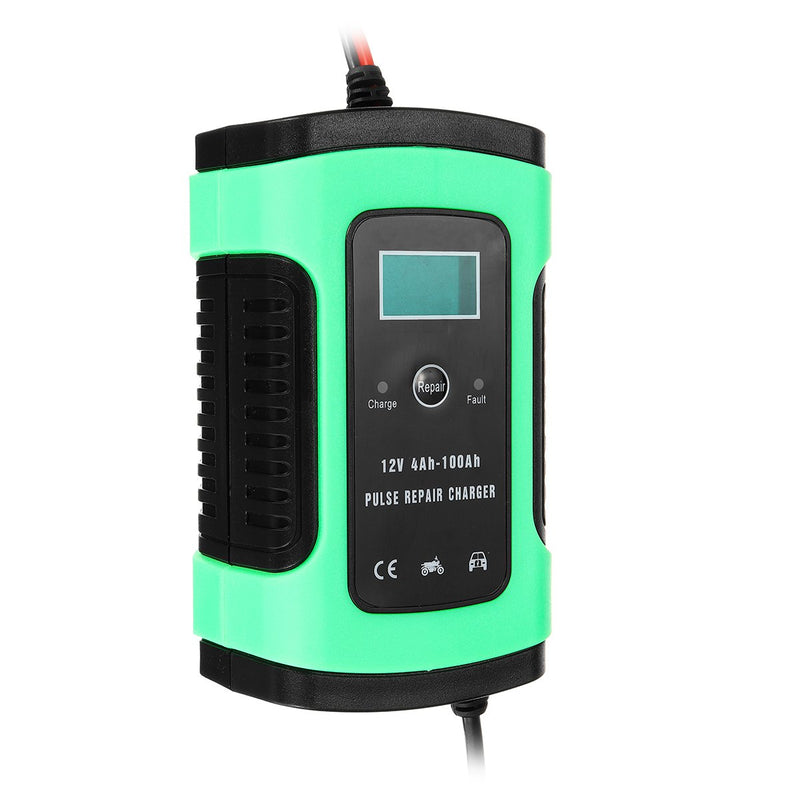

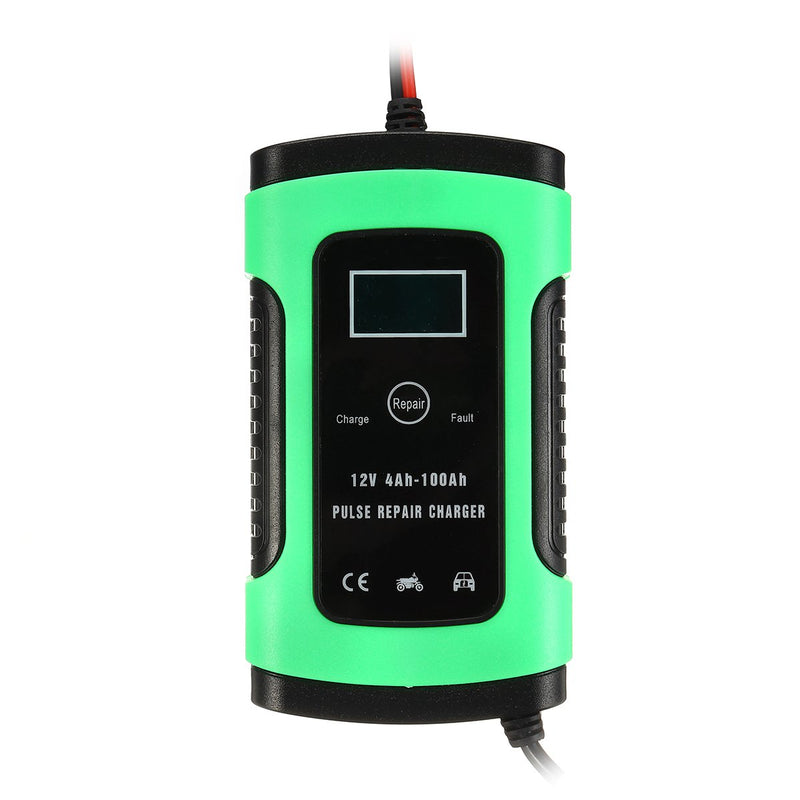

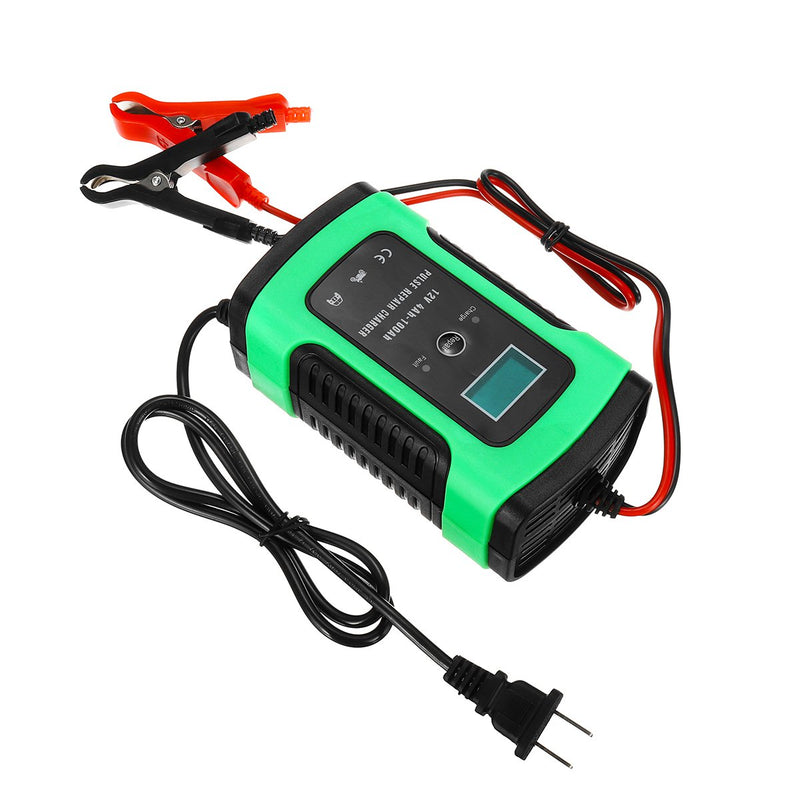

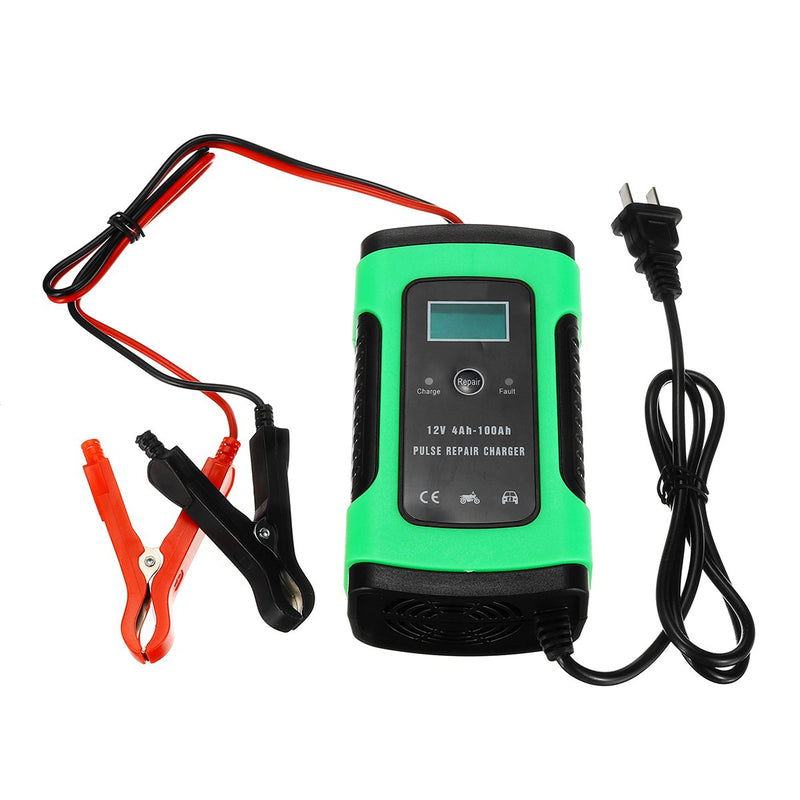

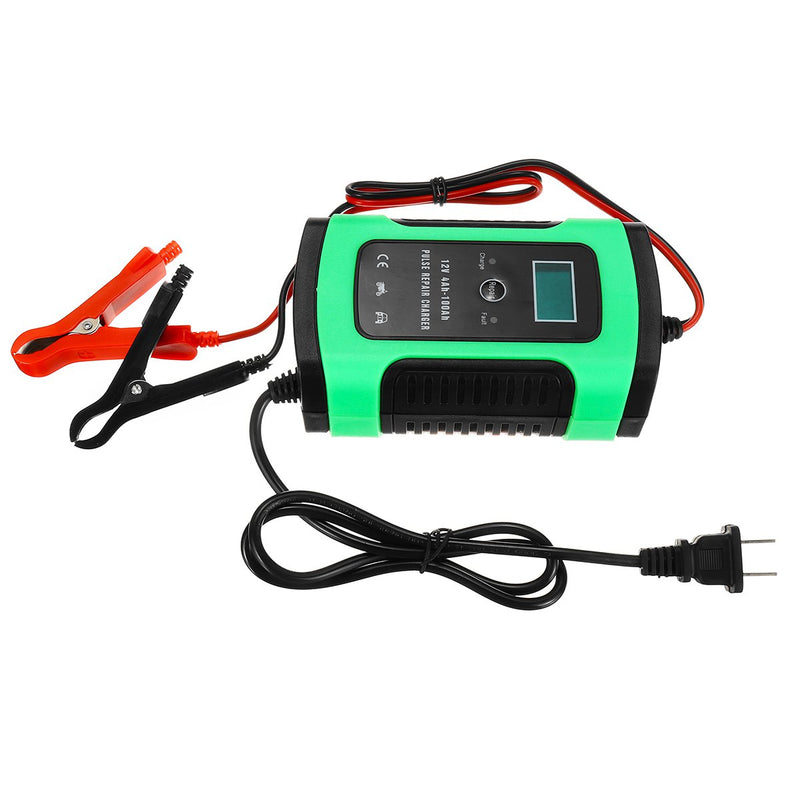

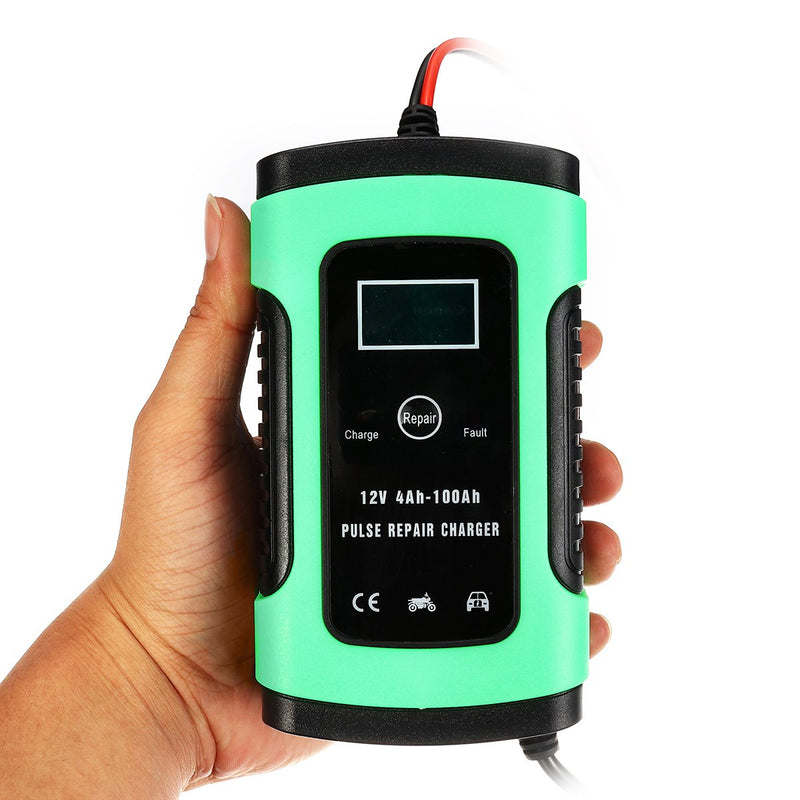

Name: 12V 6A Intelligent Charger
Input voltage: 100-240V AC, 50-60Hz 75W
Rated output: 12V DC, up to 5-6A.
Charge voltage:
Summer mode:14.4V,
Normal mode:14.7V,
Winter mode:15.5V
(Measurements allowed tolerance +/-0.4V)
Battery range: 4-100Ah
Thermal protection: 65'C +/- 5'C
Operate temperature:-20'C~45'C
Cooling:Fan
Chargeing process:3-stage:CC,CV,Float charge
Efficiency: App. 85%.
Size (length × width × height): 148 × 85 × 60mm

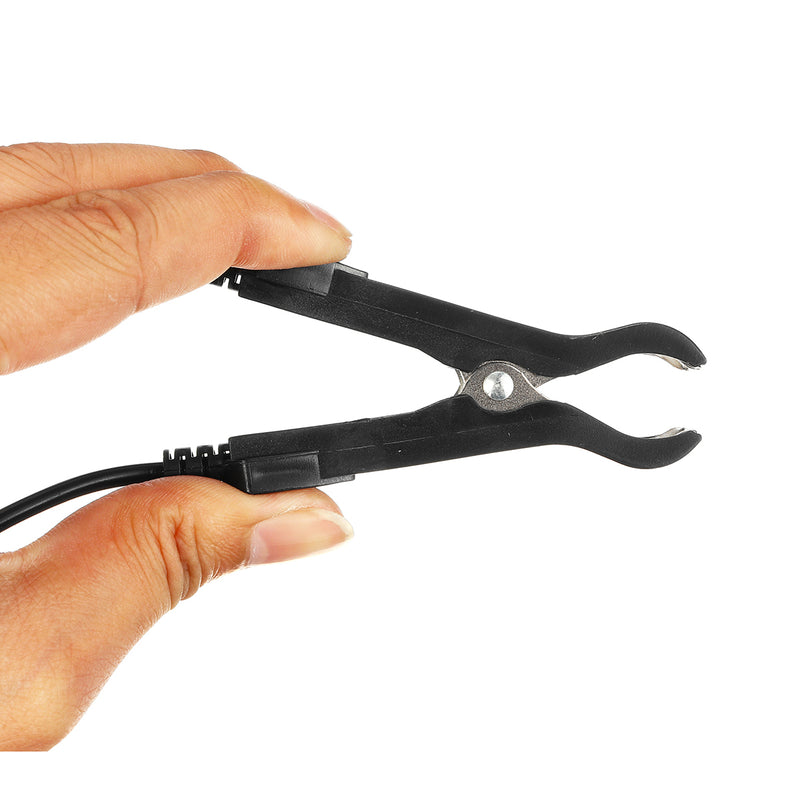

Charging line length 60CM, clip line 55CM
Features:
Microprocessor control (CPU).
LCD display charging voltage, charging current, display charger internal temperature (with a certain error)
For problematic batteries, press the Repair button to pulse repair the battery.
3-stage automatic charging:
Automatic charging prevents the battery from overcharging.
Therefore, you can connect the charger to the battery indefinitely.
Class 3 chargers are suitable for most battery types, including calcium, gel and AGM, wet batteries.
Can help restore drained and sulfated batteries.
Battery Type: Most types of lead acid batteries include calcium, GEL and AGM, wet, EFB, etc.
Switch mode technology: yes
Polarity protection: Yes
Output short circuit protection: yes
Non-Battery Link Protection: Yes
Overvoltage protection: Yes
Over temperature protection: Yes
Cold fan
Package Included:
1x12V 6A Intelligent Charger With EU Plug
1 x Manual
(we will provide adapter according to delivery country)
