Specification:

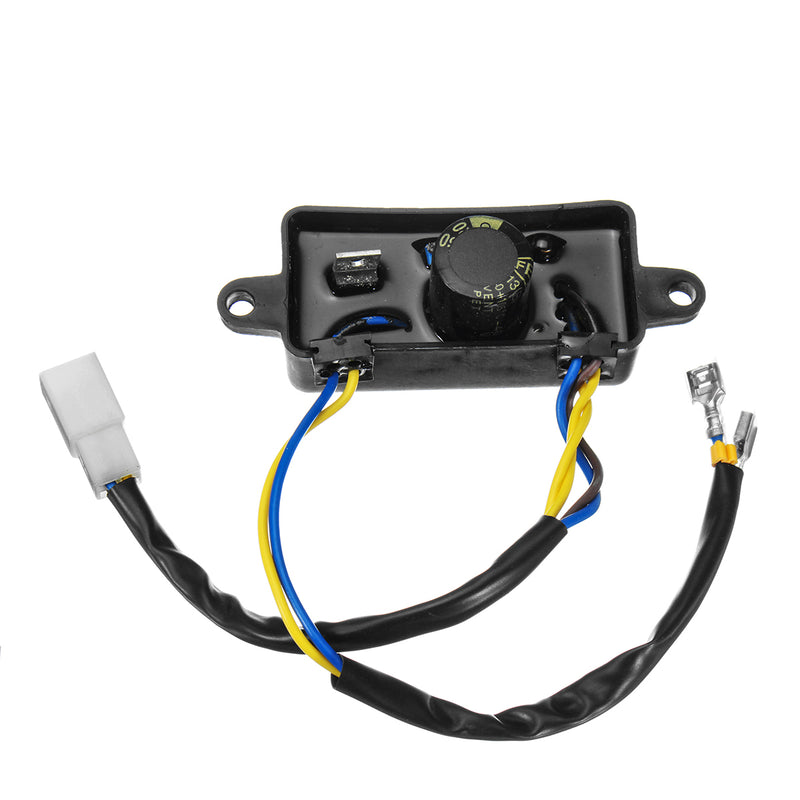

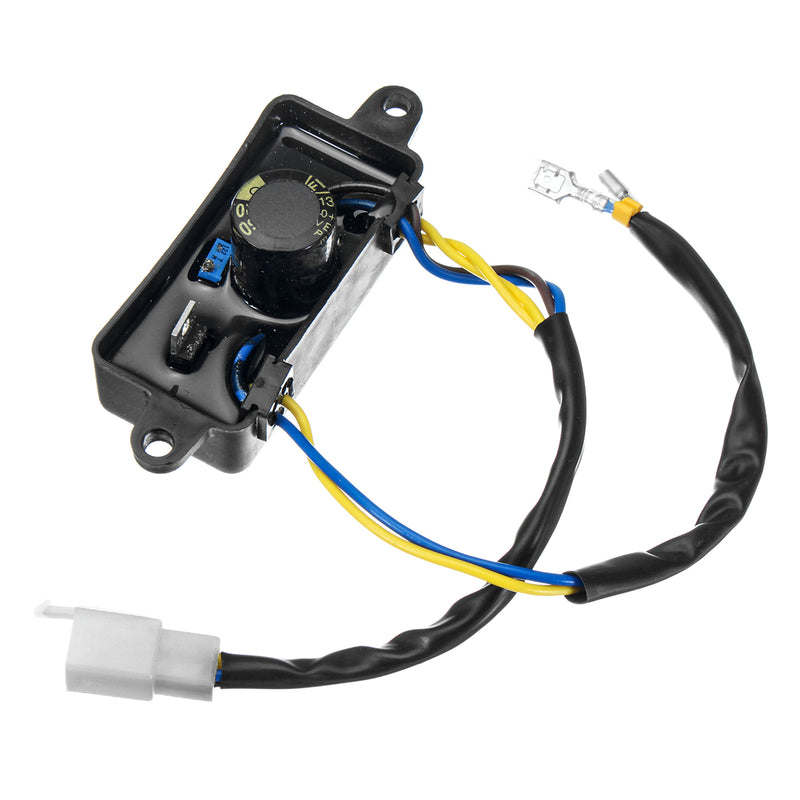

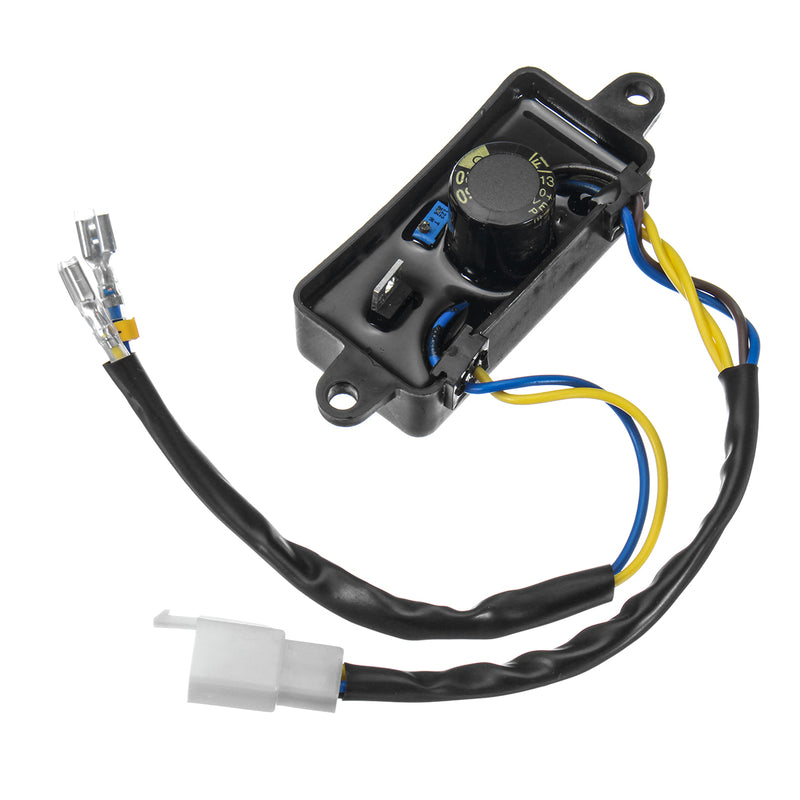

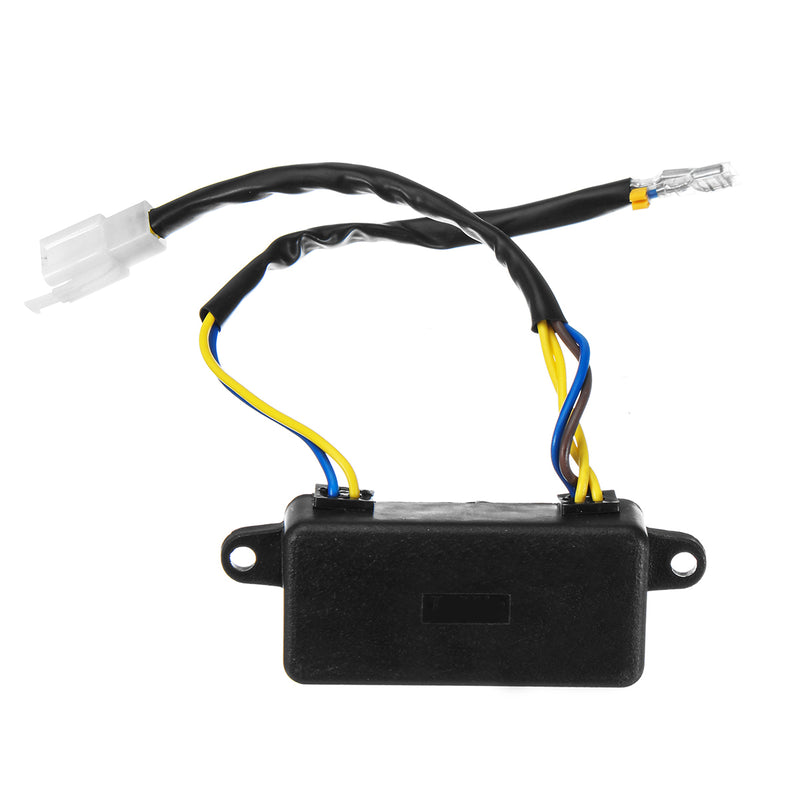

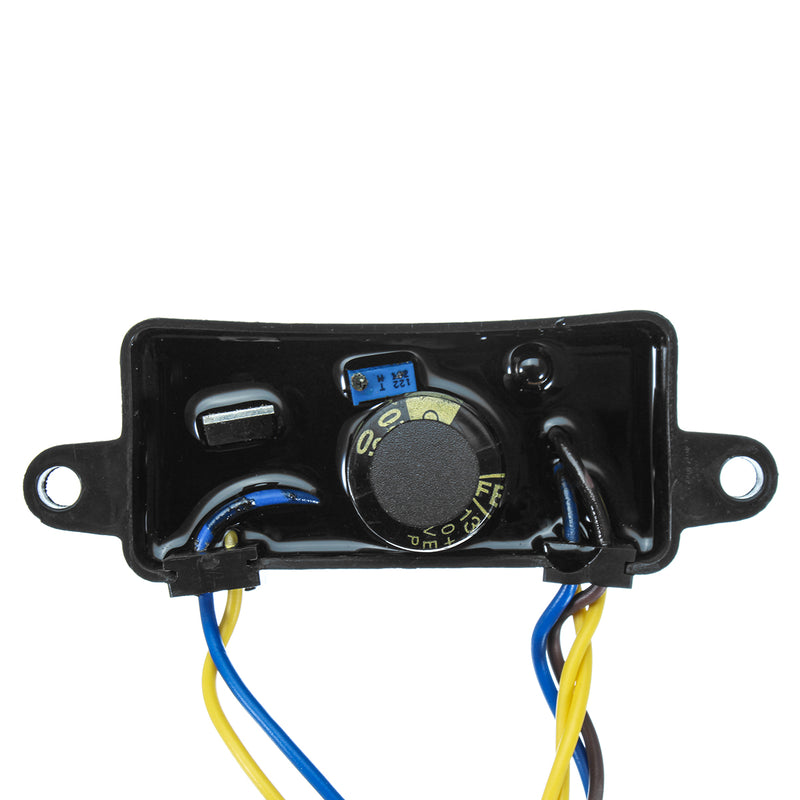

Name: Automatic Voltage Regulator Rectifier
Color: Mainly black
Material: Plastic+wires+power
Maximum Output: DC 90V 2.5A.
Excitation Voltage: 90V
Feedback Voltage: 16V ~ 20V
Frequency: 50/60Hz.
AC Voltage Output: 120V/240V.
Auto Voltage Adjusting Accuracy: ≤ ±1%.
Maximum Temperature Rise: 130C or 266F.
Continuous Working Time: ≥ 20 Hours.
Size: As shown in picture
Features:
Built-in Full-Wave Output Bridge Rectification.
Voltage Output Increase with Loading.
Stable Voltage Output with Negative Voltage Feedback.
Over Voltage, Over Current and Short Circuit Protection.
Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.
Application:
For Blackmax BM903500
Special Note:
1) A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output.

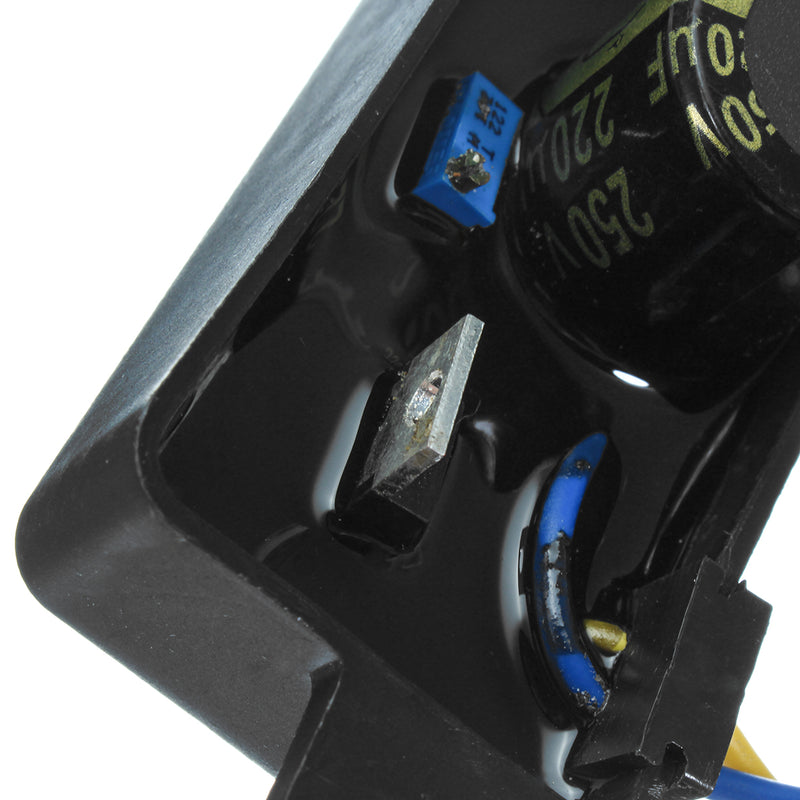

2) If our AVR is out of adjustment for your generator, please MANUALLY turn clockwise or counter-clockwise a small bronze screw in a blue rubber part(potentiometer) to reach your desirable power output. Clockwise turning is for increasing and counter-clockwise turning for decreasing voltage output. If this does not help you out, please contact with us for tech support.
Package included:
1 x Voltage Regulator
