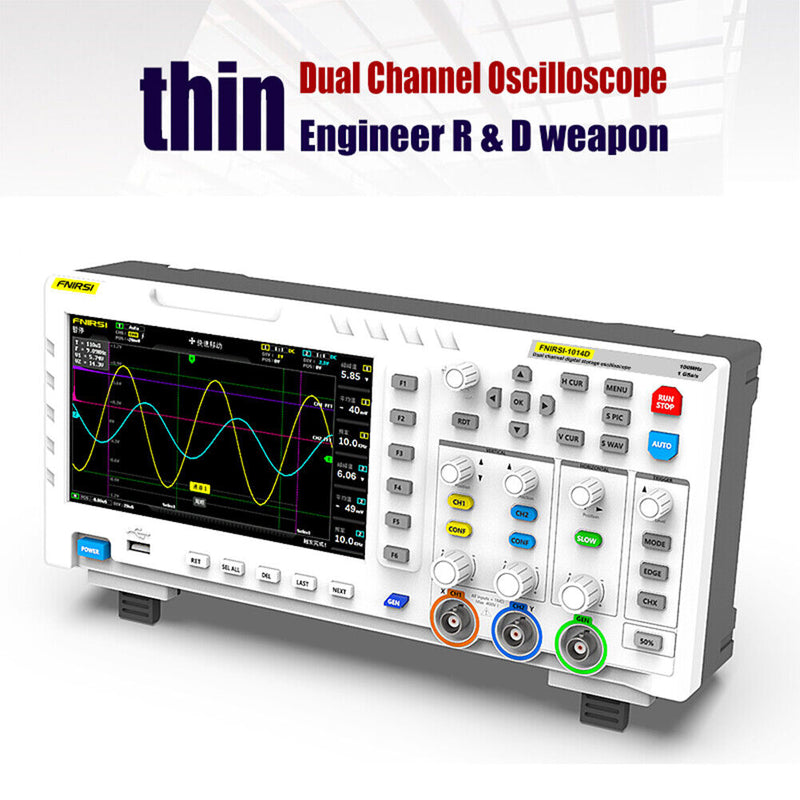

2 in 1 2 Channels 7 inch TFT LCD Display Digital Oscilloscope 1GSa/s Sampling Rate 100MHz Analog Bandwidth Signal Generator

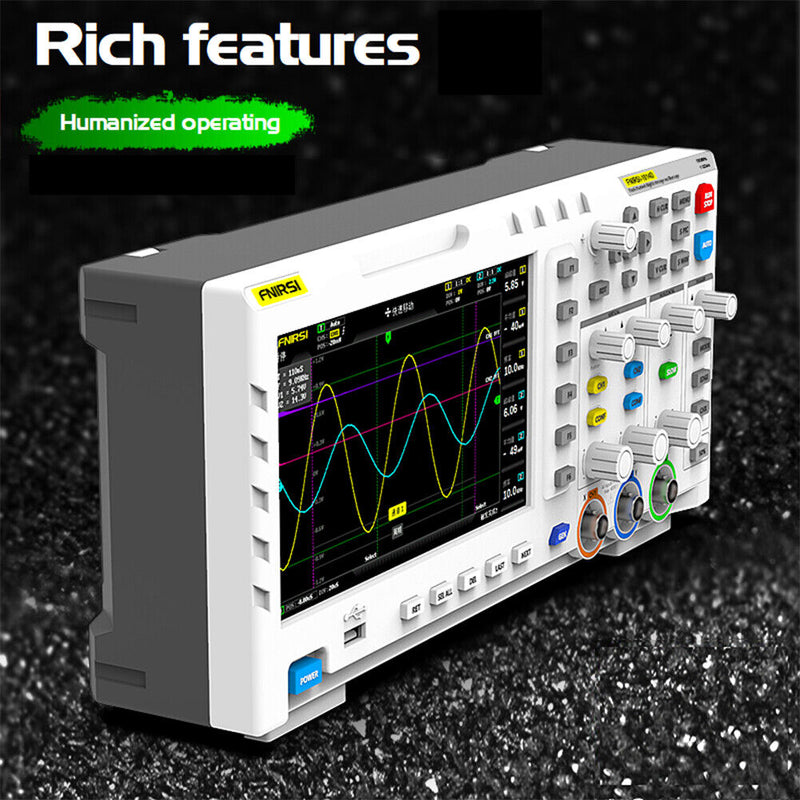

Feature:
1. Built in DDS signal generator, support 12 kinds of function signal.
2. Capture output signal function, which can store up to 1000 capture signals.
3. Targeted high intelligent decoding algorithm, the encoderlifeis infinite.

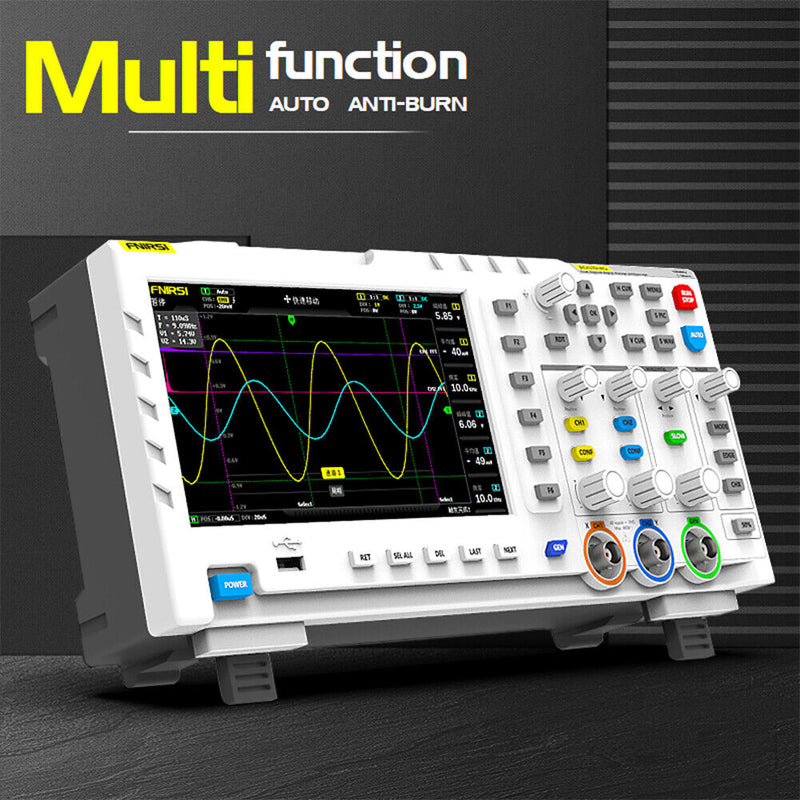

4. Intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.
5. With 100MHz * 2 analog bandwidth and @ 1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz).

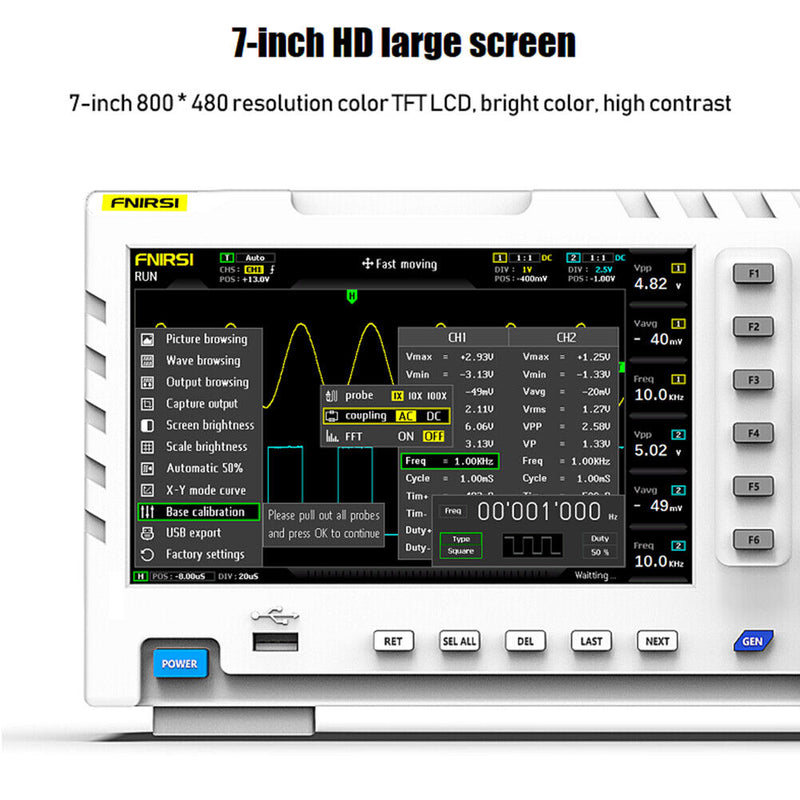

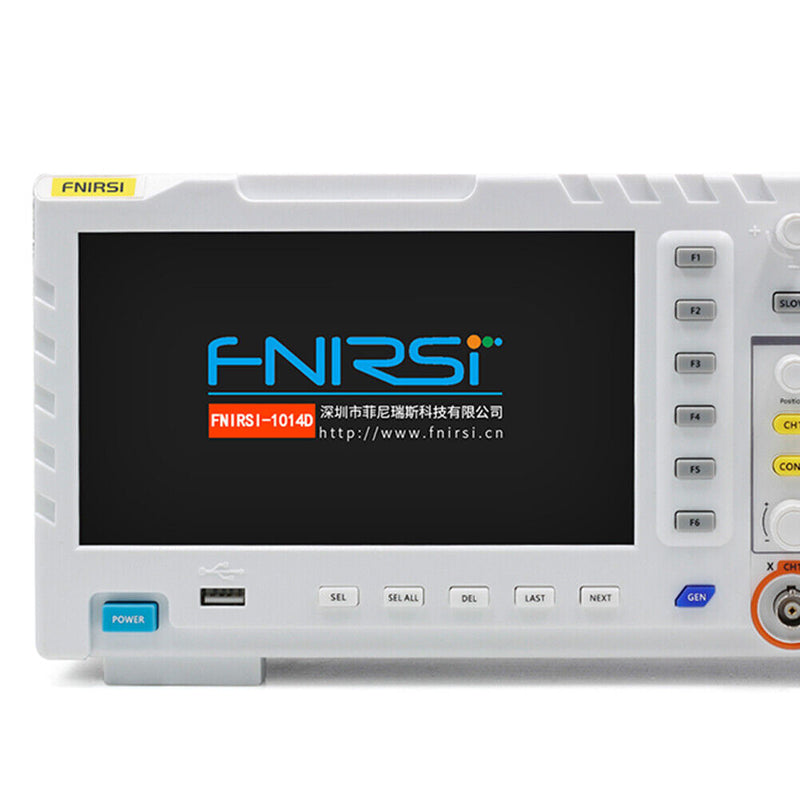

6. Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
7. High measurement voltage range: 1X can measure 0-40 V, 10X can measure 0-400V, 100X can measure 0-4000V.
8. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period.
9. Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.
10. Complete triggering function (single, normal, automatic)
11. At any time, the waveform display (pause function) is frozen.
12. Equipped with high efficiency One-button automatic transmission.
13. One-button waveform storage and screenshot function.
14. Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
15. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
16. Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.
17. Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
18. FFT display function, can analyze the spectral characteristics of the signal.
19. Memory compression technology, waveform refresh screen does not flicker.
20. With the screen brightness adjustment function and background grid brightness adjustment function, also easy to carry.
Specification:
1: Analog bandwidth: 100MHz*2
2: Number of channels: 2 channels
3: Maximum real-time sampling rate: 1GSa/s
4: Vertical sensitivity: 50 mV/div - 500 V/div
5: Horizontal time base range: 50S/div - 10nS/div
6: Maximum test voltage: 40 V (1 probe), 400 V (10 probes)
7: Storage depth: 240Kbit
8: Input resistance: 1M
9: ADC accuracy: 8 bits
10: Coupling mode: AC/DC
11: Trigger mode: Single, normal, automatic
12: Trigger edge: Rising edge/falling edge
13: External trigger voltage: 0-40 V
14: Display: 7 inches -800*480
16: Expansion port: USB picture export
18: Dimensions: 340x140x70mm/13.39x5.851x2.76in
19: Weight: 1.5kg

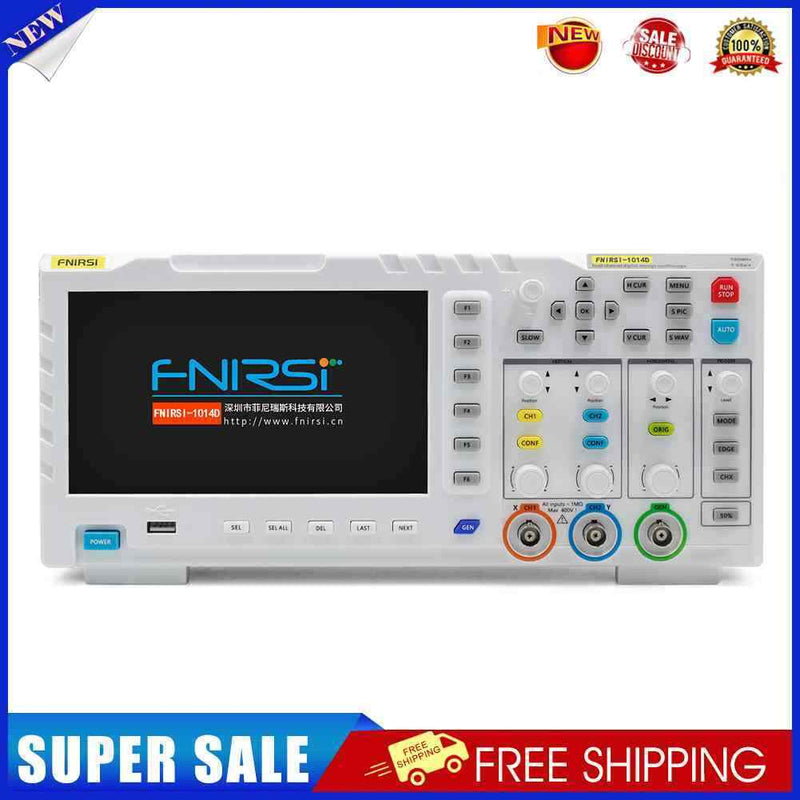

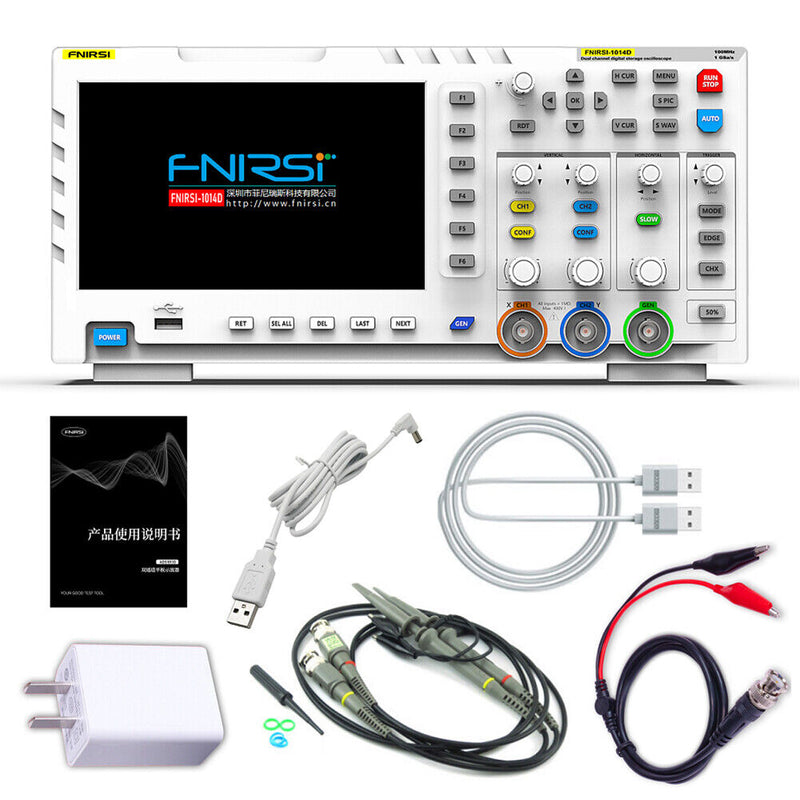

Introduction:

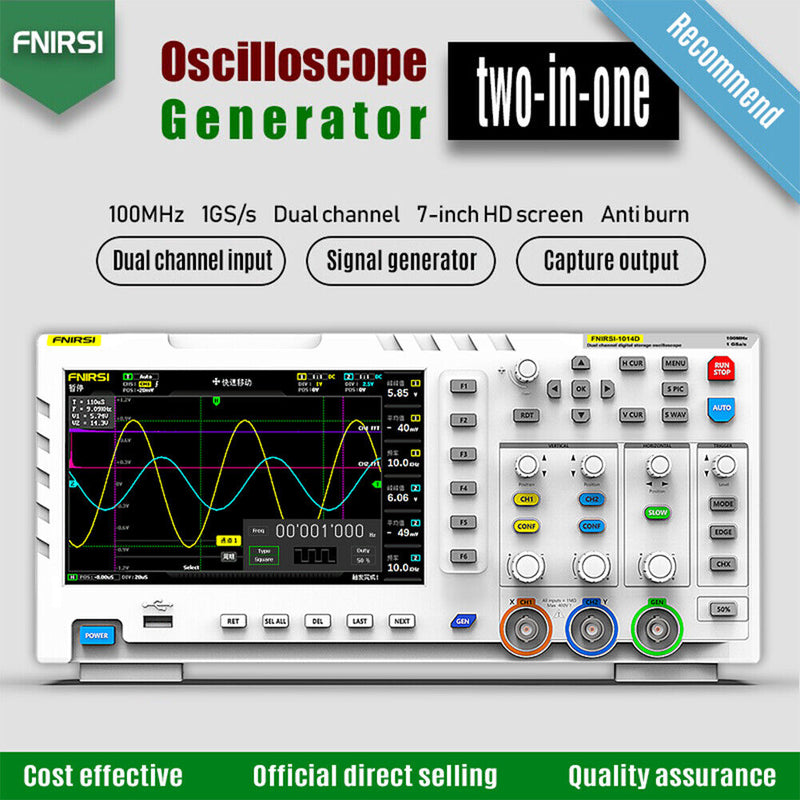

It is a two in one oscilloscope and signal generator. It has comprehensive functions and high practicability.
It is a cost-effective dual channel desktop oscilloscope for the maintenance industry and R & D industry. The oscilloscope has a real-time sampling rate of 1GSa / s and 100MHz* 2 analog bandwidth
Complete trigger function (single time / normal / automatic), both for periodic analog signal and aperiodic digital signal can be used freely
Built in DDS function signal generator and the industry's original chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals
The built-in high-voltage protection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear.
Built-in 1GB storage space, can store up to 1000 screen capture pictures + 1000 groups of waveform data, the storage process is simple and fast, save the current waveform with only one click, no cumbersome prompts and choices to save the current data, very convenient.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
