Item Name: AD HAT Extension Board for Raspberry Pi ADS1263 10-Channel-A/D and Jetson Nano. Product Description

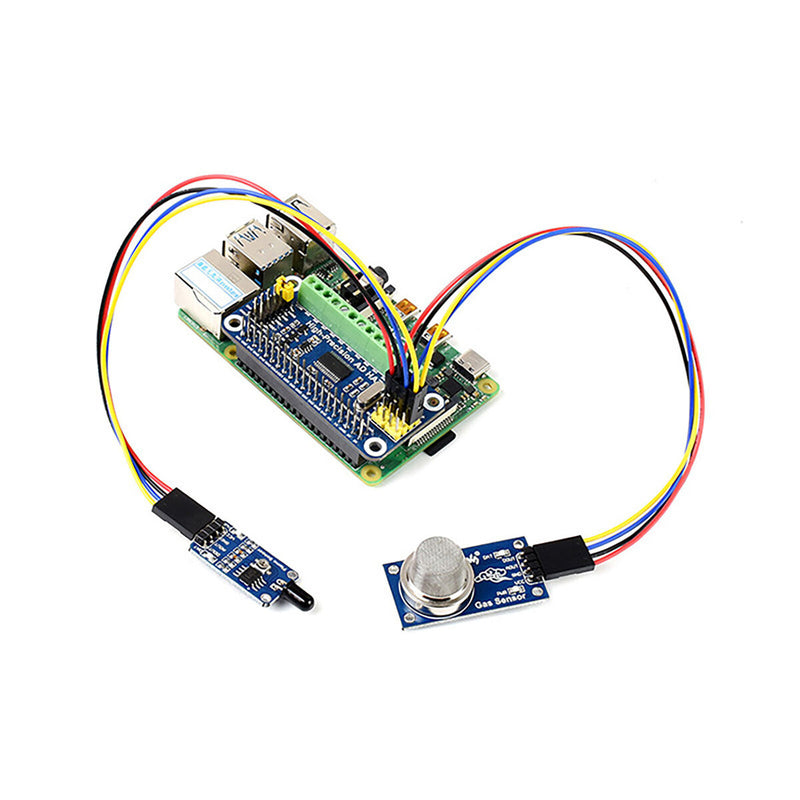

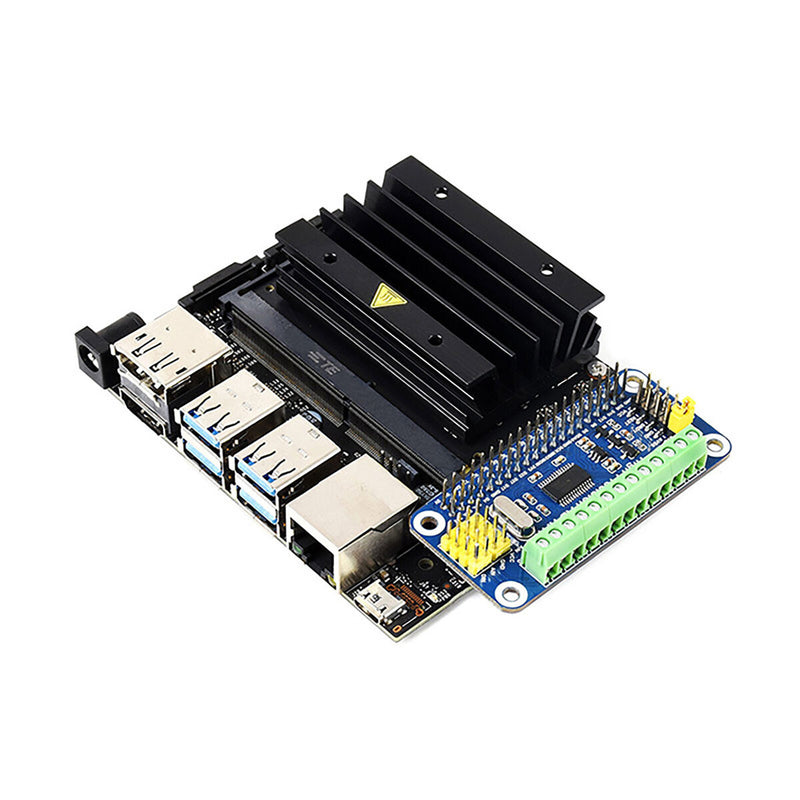

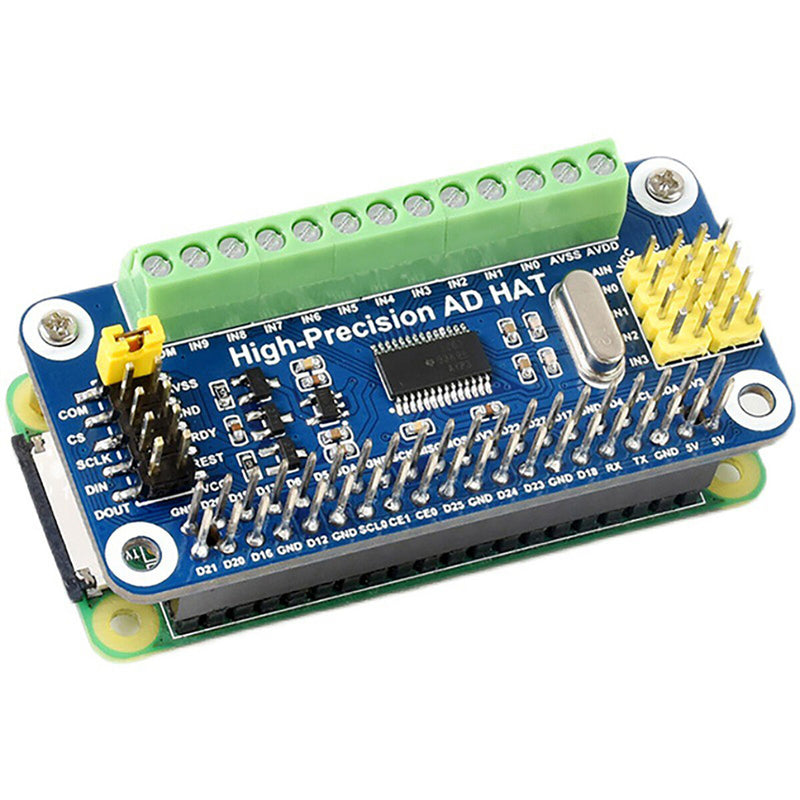

AD HAT-Erweiterungsboard fr Raspberry Pi ADS1263 10-Kanal-A/D und Jetson NanoHigh Precision ADHAT Expansion Board for Raspberry Pi ADS1263 10-Channel A/D and Jetson NanoFeatures:lOnboard ADS1263 chip, low noise, low temperature drift, 10-channel 32-bit precision ADC (5-channel differential input), 38.4kSPS Max sampling ratelThe chip comes with 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8 multiplexed GPIO, PGA (32 times max)lOn-board pin header package input interface, can access analog signals, compatible with Micro Snow sensor interface standards, easy to access various analog sensor moduleslOn-board terminal block package input interface, which can be connected to analog signal and analog power supply, which is convenient for use in various occasionslOn-board pin header package control interface, can access control signals, it is convenient to use devices other than Raspberry Pi to control this modulelOn-board three-wire RTD (resistance temperature detector) circuit, by soldering 0R resistors, it is convenient to use three-wire RTD for measurementSpecification:lSize: 65x30.5mmlResolution: 32 BitslNumber of Input Channels: 10lSampling Rate (Max): 38.4 KSPSlPGA Multiple (Max): 32lInterface Type: SPIlArchitecture: Delta-SigmalInput Voltage Range (Max): 2.5V, 5VlInput Voltage Range (Min): -2.5V, 0VlApplicable Model: for Raspberry Pi ADS1263 10-Channel A/D and Jetson NanoPackage:l1xAD HAT Expansion Board Set (Including 1x High-Precision AD HAT, 2x RPI Screws Pack)
