Item Name: ANENG MH10 Digital Insulation Resistance Tester 100-1000V Megger (Blue) Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

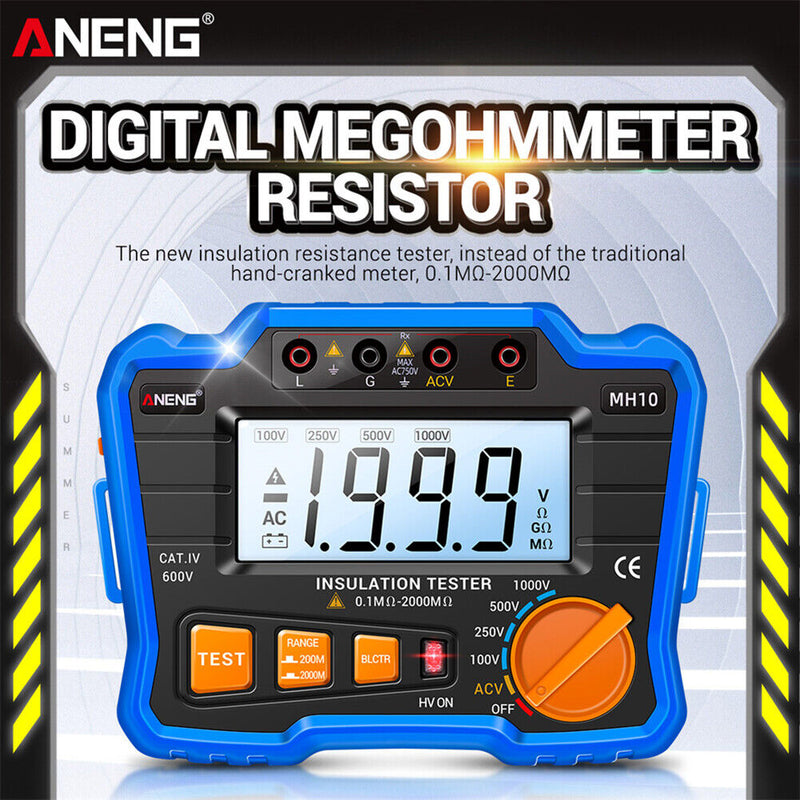

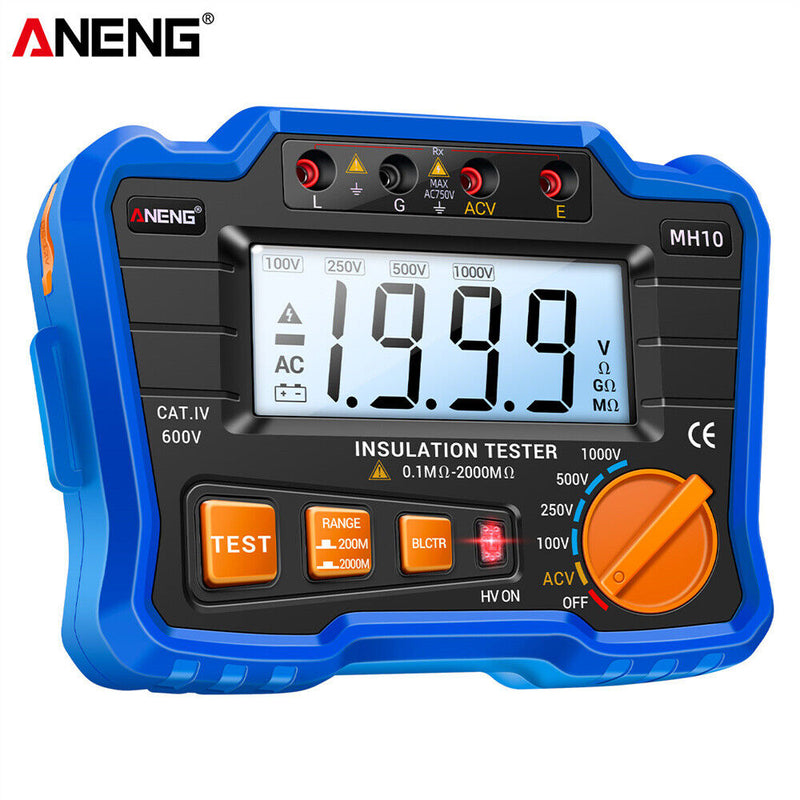

ANENG MH10 Digital Insulation Resistance Tester 100-1000V High Voltage Ohm Tester Auto Range Megger Megohmmeter Voltmeter
Description:
MH10 insulation resistance tester has various voltage levels of output, large capacity, strong anti-interference, and the instrument uses high-efficiency batteries.
Its operation convenience and safety are obviously better than traditional mechanical megger.
It is an ideal test instrument for measuring the insulation resistance of large transformers, mutual inductors, generators, high-voltage motors, power capacitors, power cables, lightning arresters and so on.
Feature:
MH10 is an electronically controlled micro instrument, in which the high-voltage insulation resistance detection has 4 rated test voltages to measure the insulation resistance.
Automatic voltage release function:
It is suitable for measuring the insulation resistance of transformers, motors, cables, switches, electrical appliances and other electrical equipment and insulating materials.
It is applicable to the maintenance, repair, test and verification of various electrical equipment.
Rated output voltage variable:
The rated output voltage can use the function knob, and the mh10 is at 100V, 250V, 500V and 1000V.
High voltage indication:
There is an LED light (HV on) in the machine, and "HV" is displayed on the left of the display screen, indicating that there is a high-voltage output in the instrument and there is a risk of electric shock. The operator should pay special attention to safety.
There is a low battery voltage indication
Battery driven, eliminating the operation of manual generator.
31 / 2 digit digital display, intuitive reading.

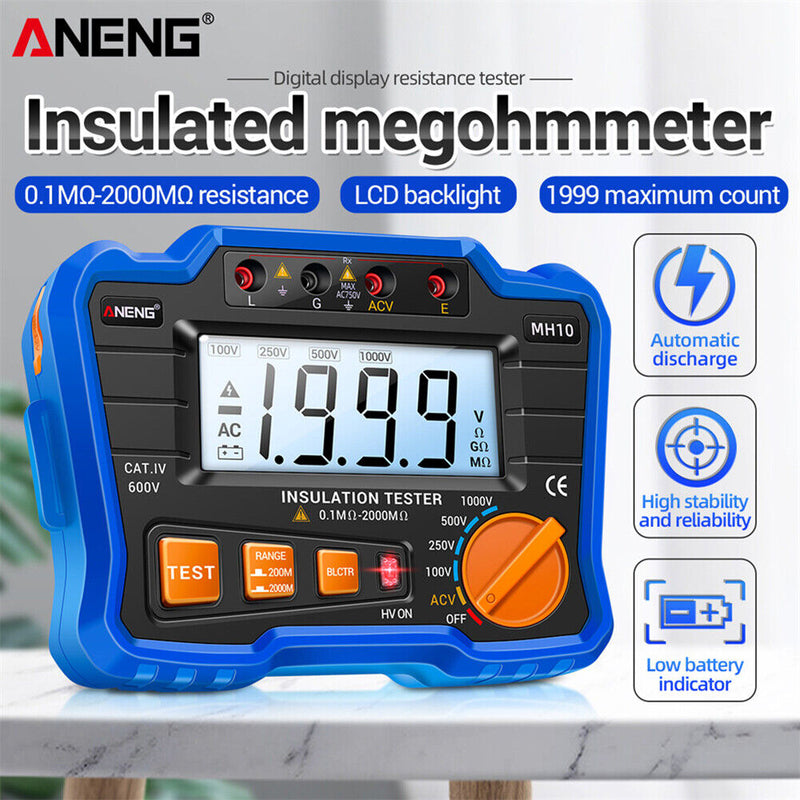

The measurement range of mh10 is 0.1M - 1999m , and the range is changed manually.
Easy to operate and carry.
Strong load carrying capacity, more than 1.0mA output short-circuit current.
The protection circuit is complete, not afraid of voltage counterattack, output short-circuit protection.
It can measure the AC voltage 1v-750v and the frequency of AC voltage 40hz-70hz.

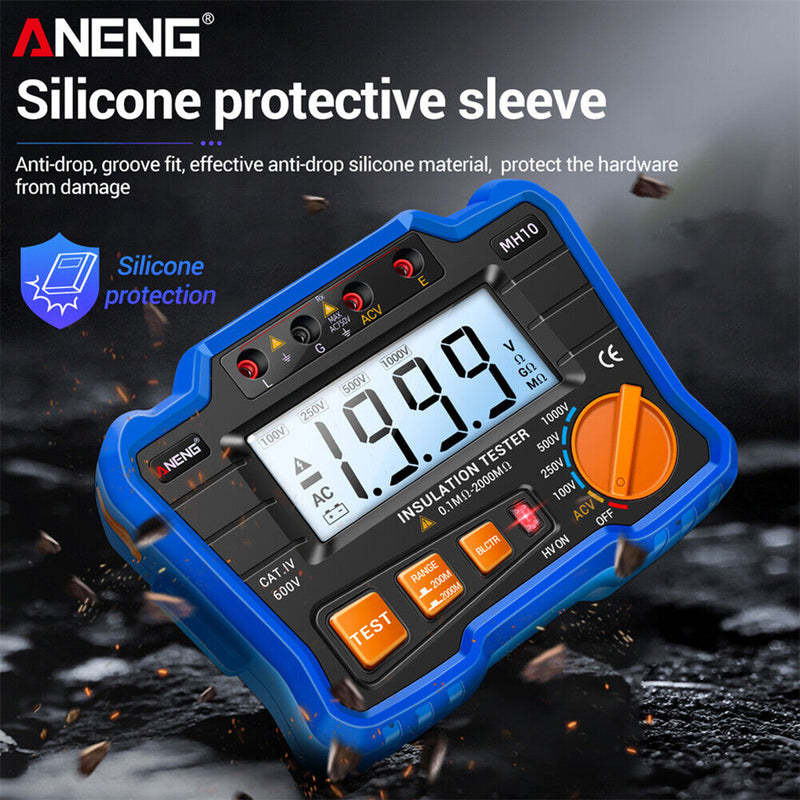

International popular style, dust-proof and moisture-proof structure, suitable for outdoor operation.
Specification:
Size: 160x125x85mm
Test
