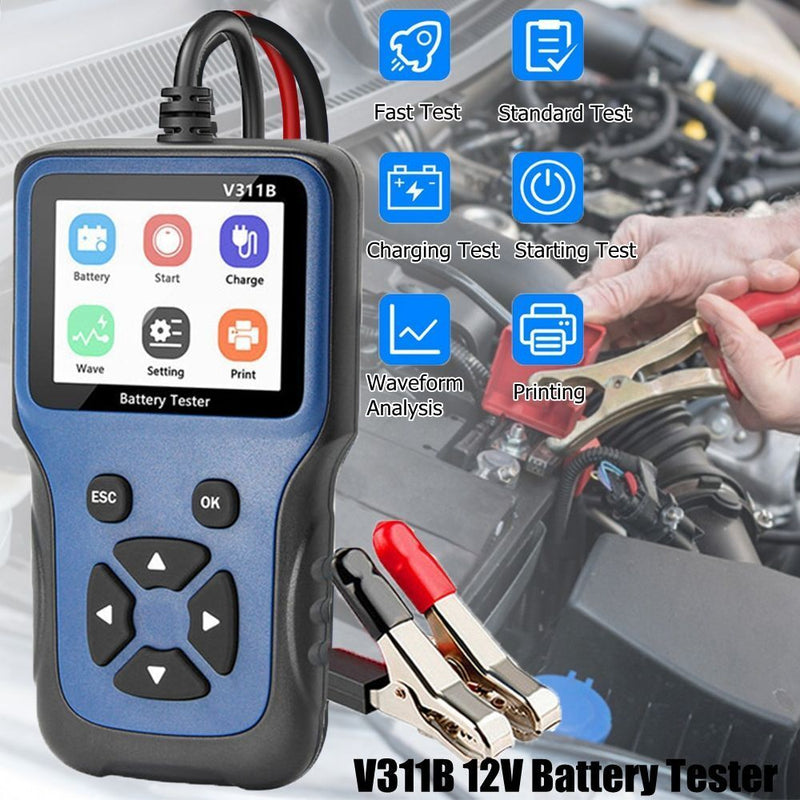

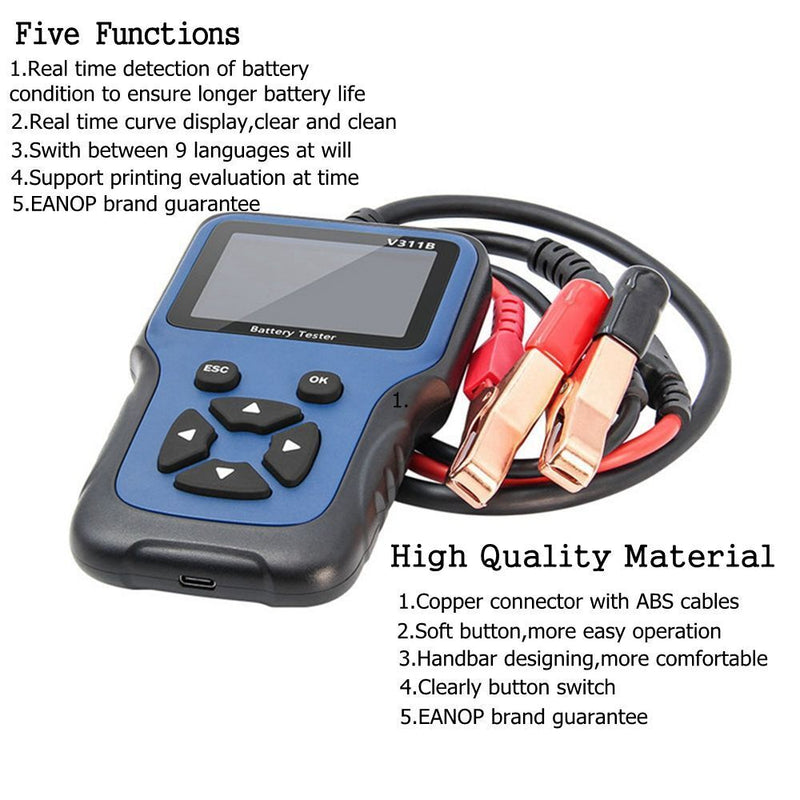

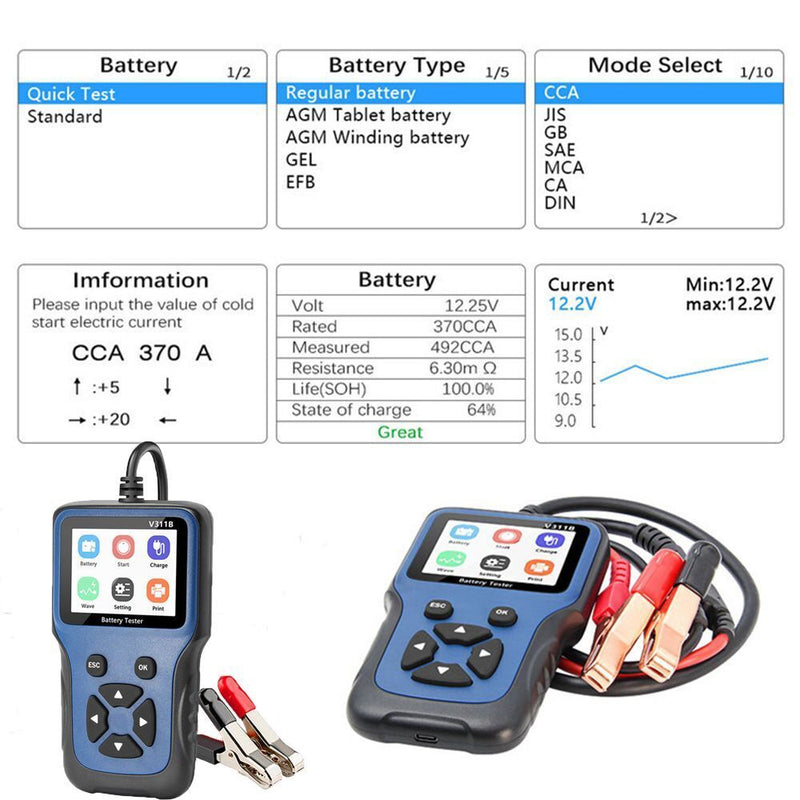

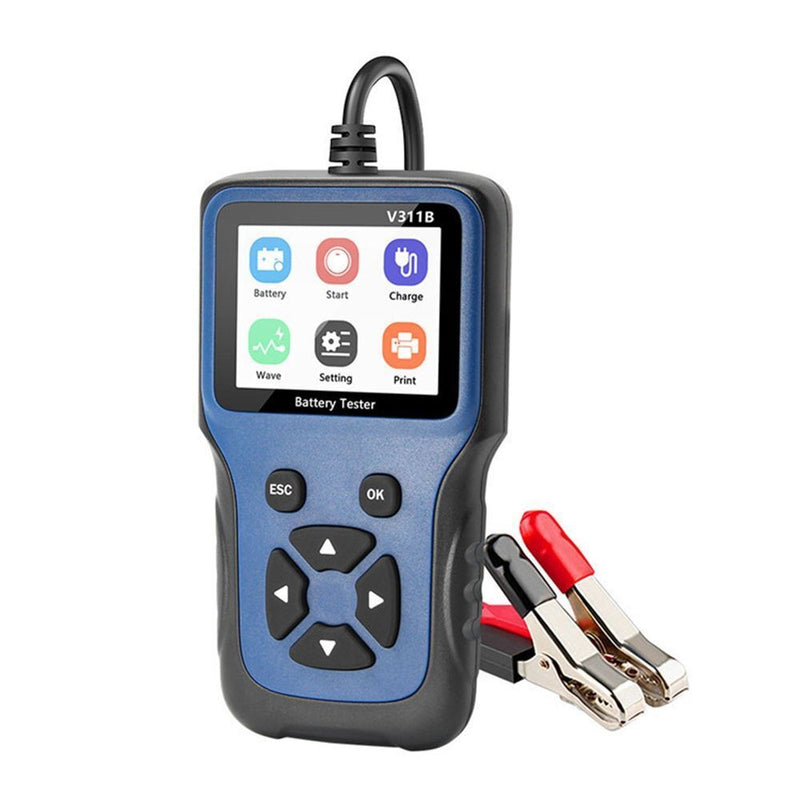

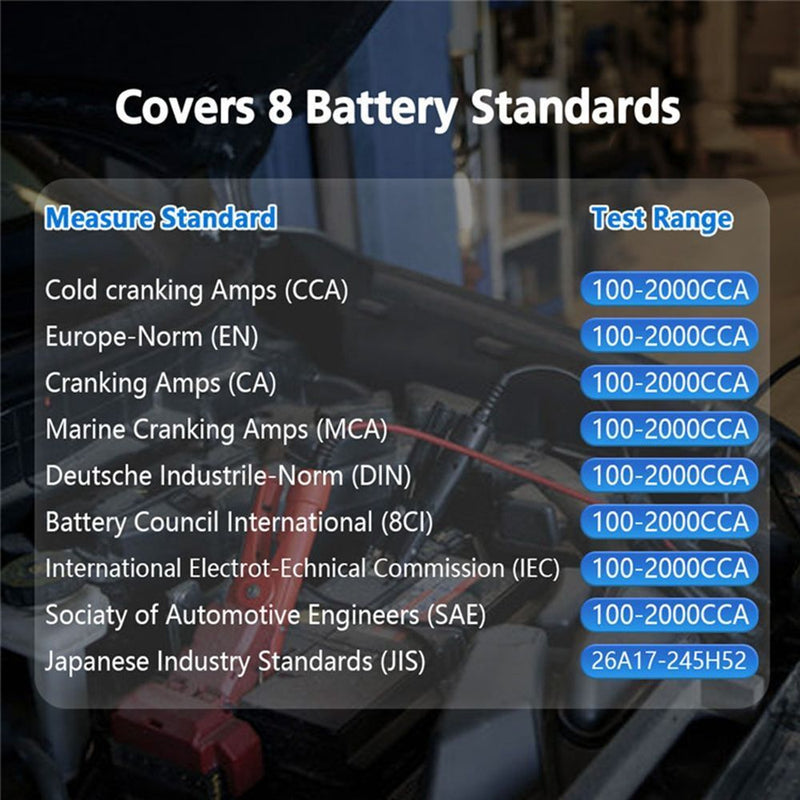

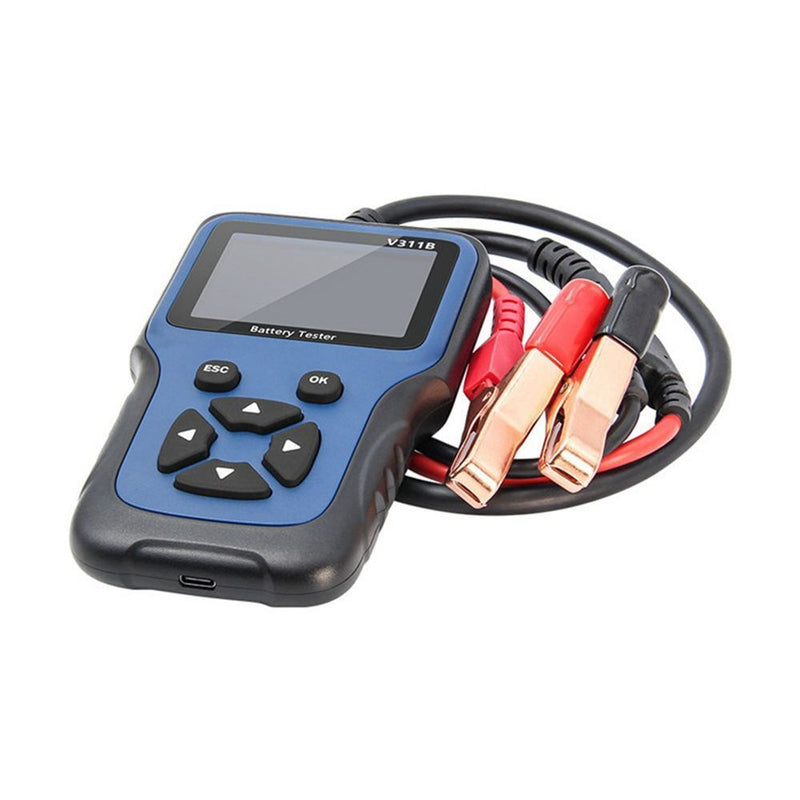

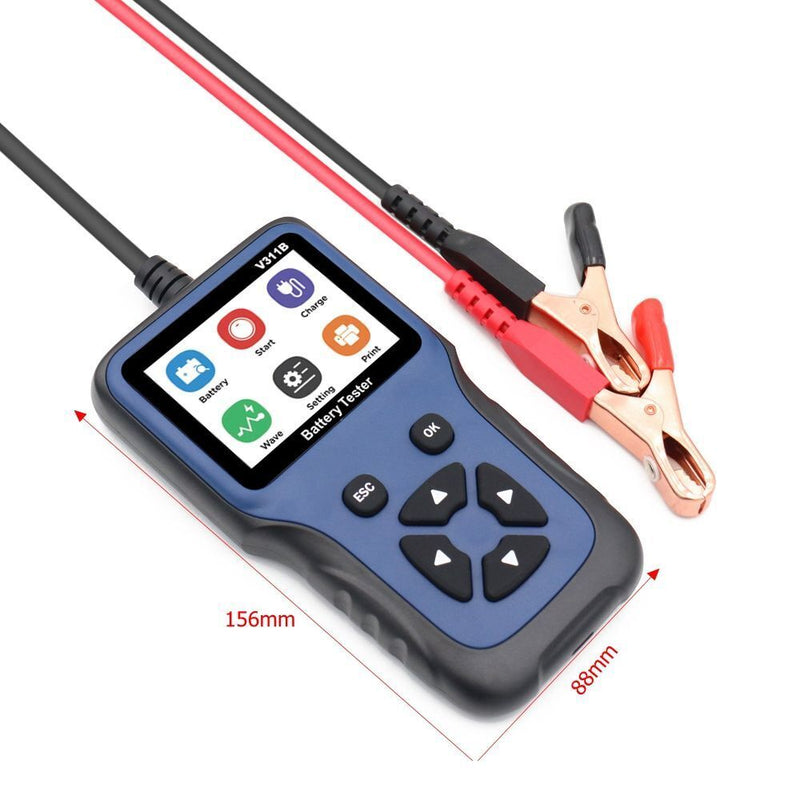

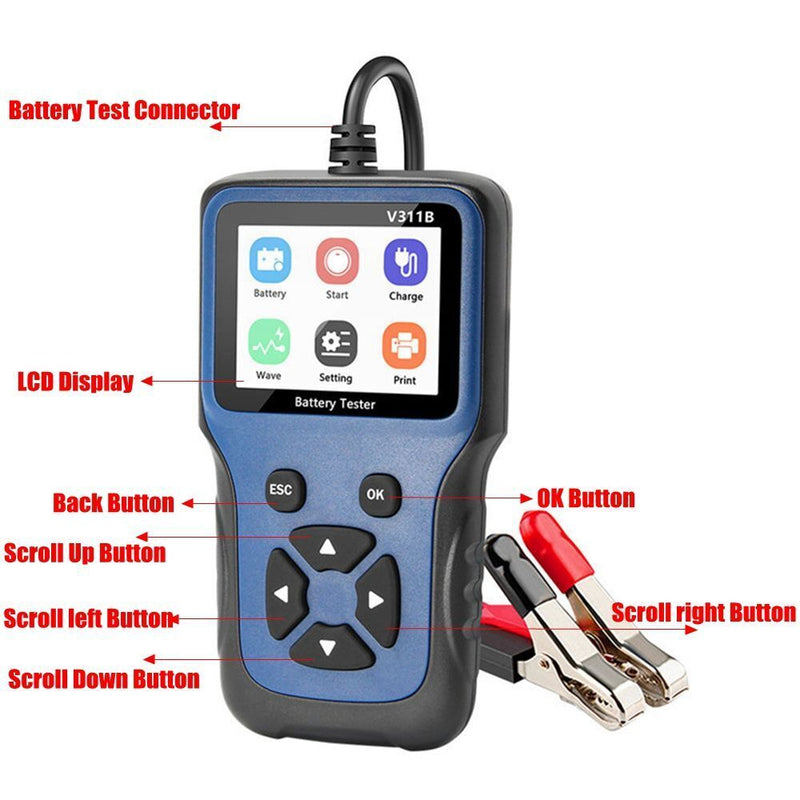

Item Name: Diagnostic Tool Car Charging Cricut Load Tester Vehicle Automobile Analyzer. Supporting: PrinttingProduct name: 12V battery testerSize:As the picture shownOperating Temperature: -20 to 60 degreeSpecial Functions: Battery Test, Charging TestMeasurement standards: CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCIAppearance color: blueInterface type: a pair of reverse black and red alligator clips, cable length 1 meterStorage Temperature: -20 to 70 degreeMeasurement type: ordinary battery, AGM flat plate, AGM winding, GEL, EFBShell material: ABSMainly include data information: voltage, rated value, measured value, internal resistance value, service life, remaining power, combined with test results to evaluate battery performance. Product advantages and selling points1. Support fast and standard test mode selection2. Support battery test under starting and charging status, test and display battery voltage, rated value, measured value, internal resistance value, service life, remaining battery parameter information3. Support viewing battery waveform analysis4. Support picture saving and printing function5. Support multiple modes and standard tests, can quickly evaluate the performance of the vehicle battery, and display the results 6. Support nine languages English, Chinese, Portuguese, Italian, French, German, Spanish, Polish, Russian7. Support picture saving and USB printing8. Test for car 12V battery, compatible with ordinary lead-acid battery, AGM flat battery, AGM spiral battery, GEL, EFB Product parameter information description:1. Voltage:The current voltage value of the battery measured 2. Rated value:The nominal value on the battery, such as SAE? ? ? CCA (cold start current value), GB? ? Ah (capacity value) You need to input the value on the battery label to the tester and select the corresponding test standard 3. Measured value:It is the difference between the nominal value and the measured value Generally, the measured value of a new battery will be close to the nominal value. The longer the battery is used, the worse the aging, and the lower the measured value will be 4. Internal resistance:The internal discharge resistance value of the battery varies with the brand, process, type, current temperature, and duration of use of the battery The better the performance of the general battery, the lower the internal resistance value 5. Life:The value calculated based on the evaluation of the rated value and the current state of the battery reflects the degree of aging of the battery and the percentage of life remaining 6. Remaining power:The value calculated according to the current state of the battery indicates how much power is left in the battery. Similar to the number of bars displayed on the phone 7. The starting voltage has a downward trend and is lower than 11V, it also shows that the starting voltage is normal. Which state is abnormal?The car battery will go from low to high in an instant when it starts. Generally, when the battery is lower than 8.5V, the car battery will not catch fire. 10.5V cars will give an alarm, and some cars will give an alarm at 11V. Most The alarm is about 10V, so 11V is the normal offline value. Measuring range CCA: 100-2000A.BCI: 100-2000A.CA: 100-2000A.MCA: 100-2000A.JIS: 26A17-24SH52.DIN: 100-1400A.IEC: 100-1400A.EN:100-2000A.SAE: 100-2000A.GB: 10-250Ah. Package:1PC Car Battery Tester Note:1.Please allow 1-2cm error due to manual measurement.
