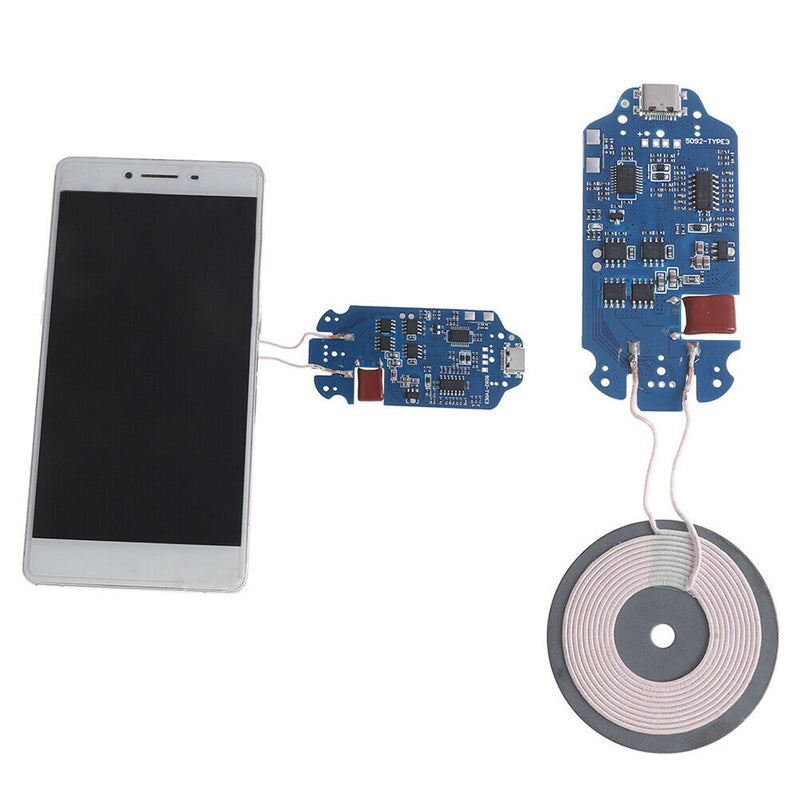

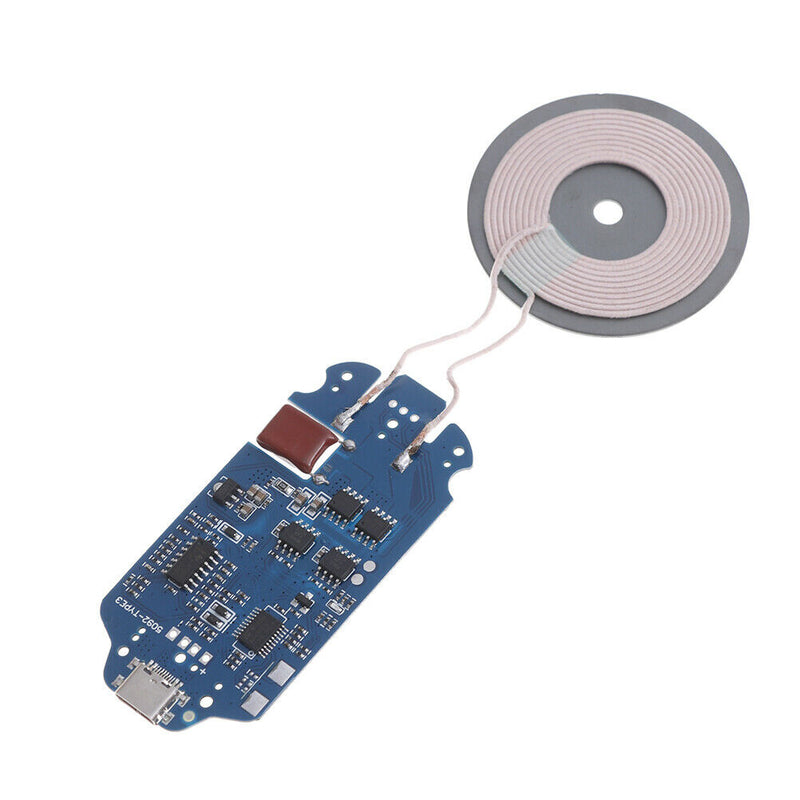

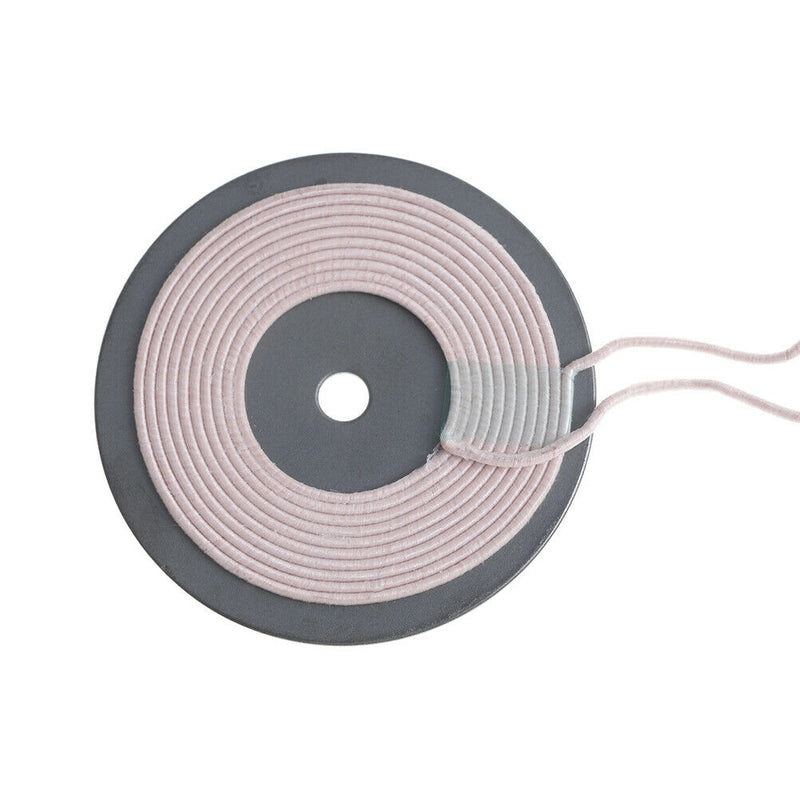

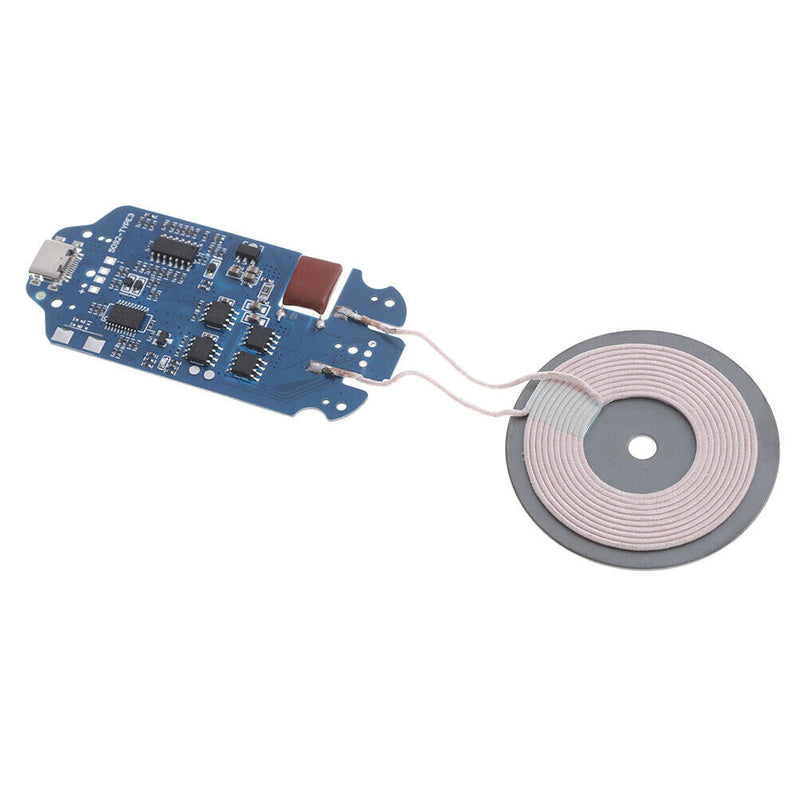

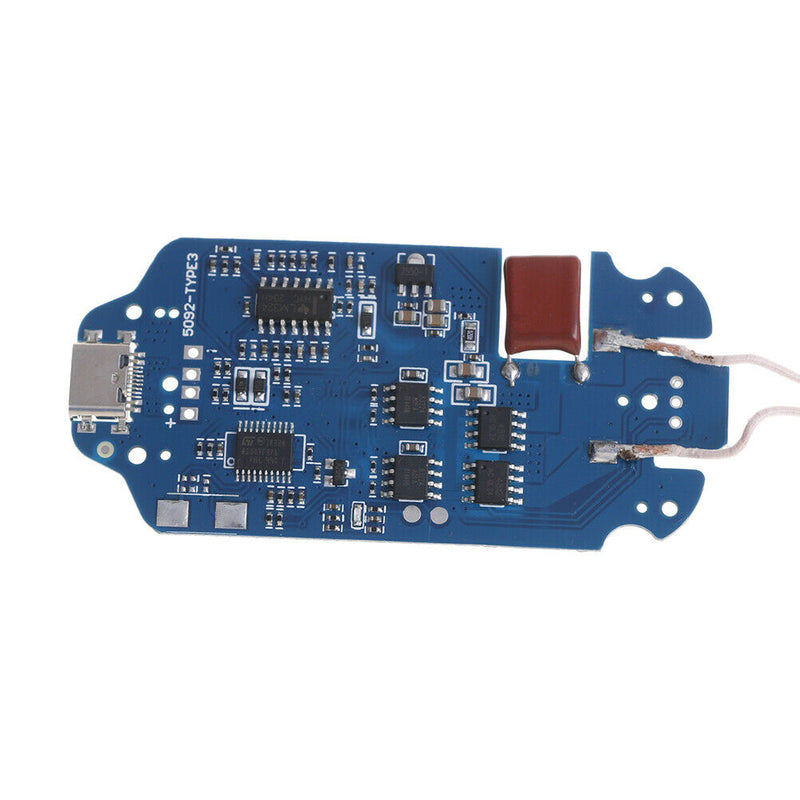

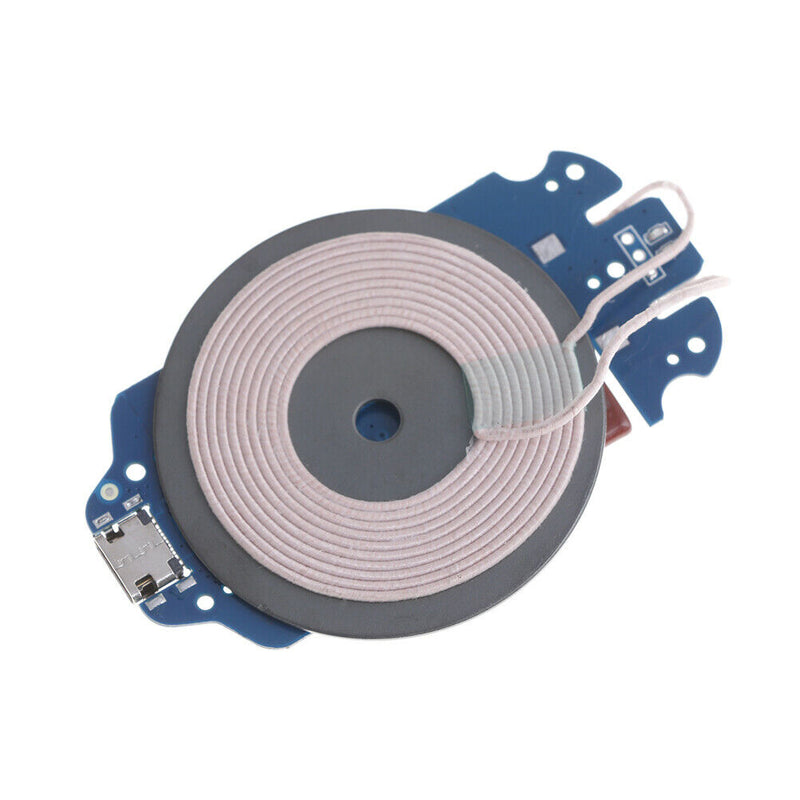

ITEM NAME:10W QI fast wireless charger transmitter module PCBA circuit board with coil M&E 10W QI fast wireless charger transmitter module PCBA circuit board with coil Specification: -100% brand new and high quality - Interface:Type-c -Input Voltage: DC9V1.5~2A, beyond this range voltage alarm and stop charging -Output voltage: 9V + 0.1V. -Charging current: 1100 mAh -Charging power: up to 10W compatible 7.5W compatible 5W -Conversion efficiency: greater than 73% -Transmission Distance: Maximum 10mm, Recommended Transmit-receive Distance 2mm~4mm -Standby power consumption: average power consumption is less than 50 mW -Over-temperature protection: When the charging temperature is higher than 60 degrees, automatically stop charging for 1 minute, and then recharge after the temperature drops, charging temperature is 40 degrees. -Over-current protection: When the output current is greater than 2A, the charging will stop automatically to prevent damage to the charger. -Implementation Standard: Qi Wireless Charging Standard -Product Certification: CE/FCC, Compatible with QI Certification Standard -Foreign body detection with FOD Package included:1 x Wireless Charger Transmitter Module Coil PCBA Circuit Board.Product Certification: CE/FCC, Compatible with QI Certification Standard. -Charging power: up to 10W compatible 7.5W compatible 5W.
