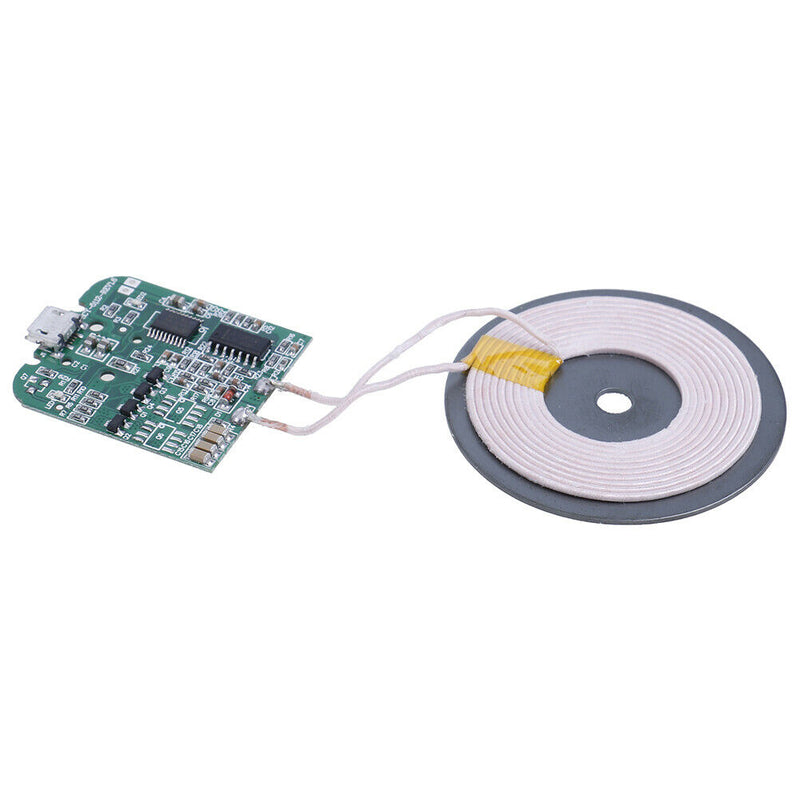

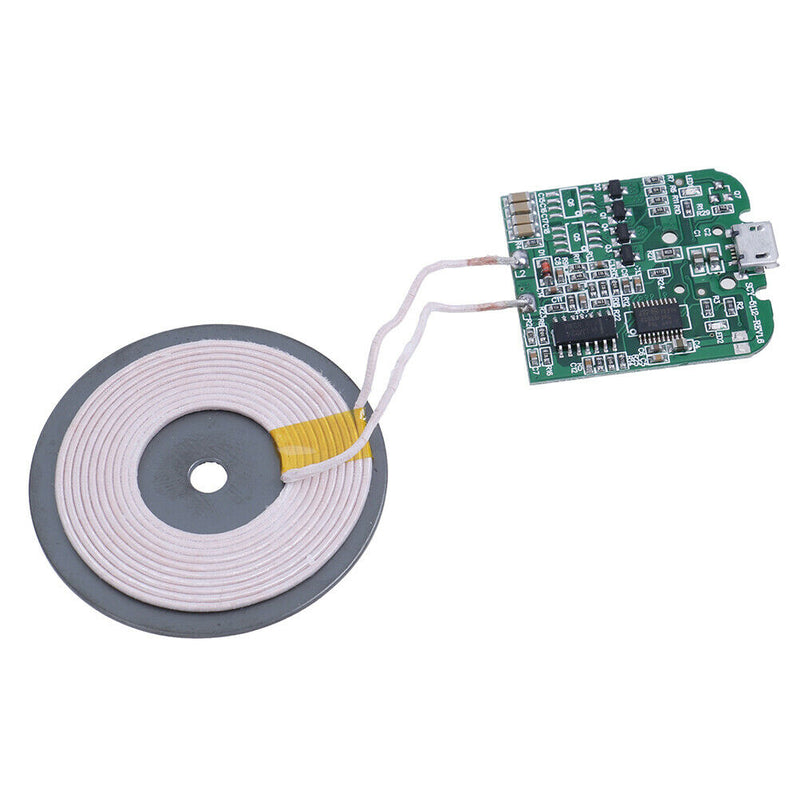

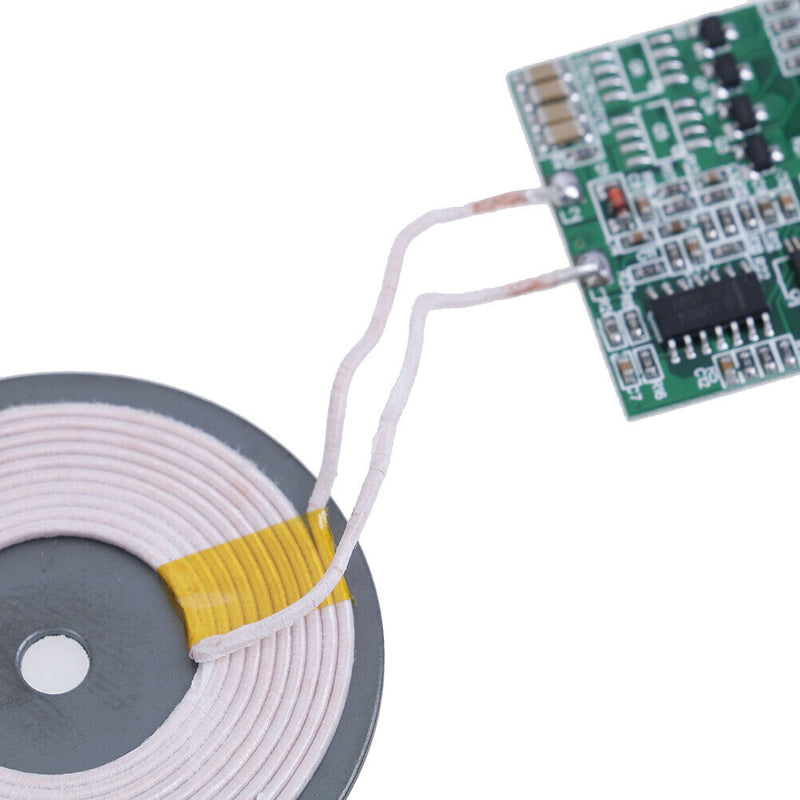

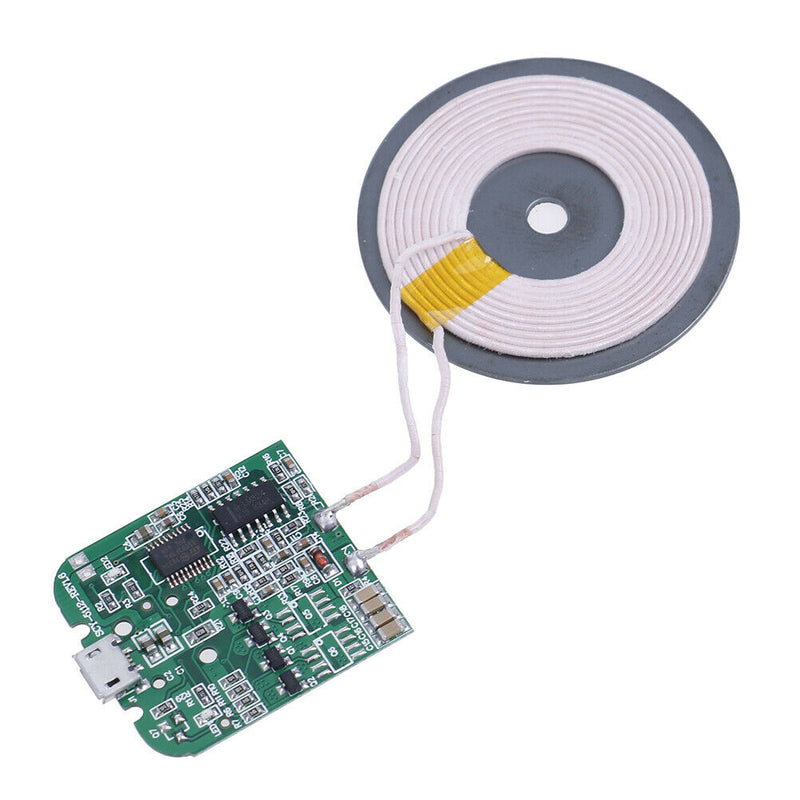

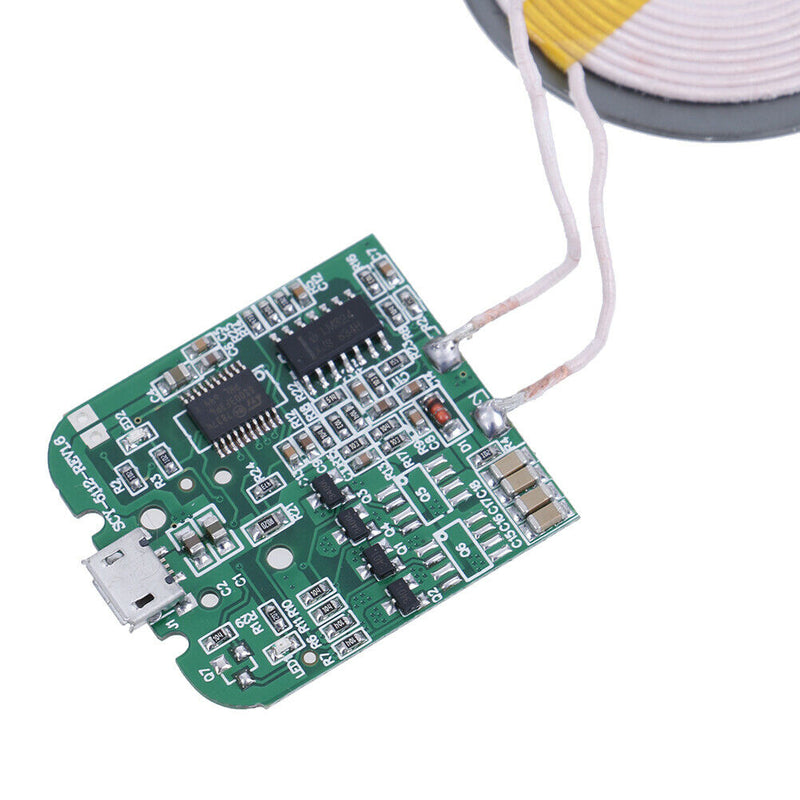

ITEM NAME:S6 diy Qi wireless charger PCBA circuit board with coil wireless charging JClj Description of functional parameters: 1. Input voltage: DC4.3V~5.5V/1.5~2A, beyond this range, voltage alarm and stop charging 2. Output voltage: 5V + 0.1V. 3. Charging current: 500 mAh-1000 mAh 4. Charging power: up to 5W 5. Conversion efficiency: greater than 73% 6. Transmission Distance: Maximum 10mm, Recommended Transmit-receive Distance 2mm~4mm 7. Standby power consumption: average power consumption is less than 50 mW 8. Over-temperature protection: When the charging temperature is higher than 60 degrees, automatically stop charging for 1 minute, and recharge after the temperature drops down. 9. Overcurrent protection: When charging, the output current is greater than 1.5A, it automatically stops charging and prevents damage to the charger. 10. Implementation Standard: Qi Wireless Charging Standard 11. Product Certification: CE/FCC, Compatible with QI Certification Standard 12. Product Specification: 32*38 13. Product Weight: 120g 14. Supporting foreign body detection: support 15. Indicator function: charge blue light, standby red light, fault double flashing Description: Wireless charging products, wireless transmitter, wireless charging board and wireless charging acceptance can be used. They are suitable for Nokia wireless charging mobile phone, Samsung wireless charging mobile phone, Google Nexus 4/Nexus 5 mobile phone, Nexus 10 flat panel, millet, Meizu, Huawei, ZTE, Lenovo and so on. They can be accepted by adding our company's universal wireless charging. Wireless charging. Qi is a global standard for wireless charging of devices. For Qi-compatible devices, you do not need to connect any cables. Just put your device on the charging surface. Charging time: Nokia Lumia 9202-4 hours, Samsung 3-6 hours, iPhone 3-4 hours. Other Android phones vary according to battery power..Product Certification: CE/FCC, Compatible with QI Certification Standard. Qi is a global standard for wireless charging of devices. For Qi-compatible devices, you do not need to connect any cables. Just put your device on the charging surface.
