Overview:
The B_XT-2WR2 family is designed for applications in board power systems that require a set of voltages that are isolated from the input supply. This product is suitable for:
1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin);
2. Requirements isolation between input and output (isolation voltage ≤ 1500VDC);
3. The output voltage stability and output ripple noise are not high.
Features:
- Operating temperature range: -40°C to +105°C
- Up to 84% efficiency
- Small SMD package
- Isolation voltage 1500VDC
- Internal patch design
- No additional components required
- International standard pin mode
- Certified by EN60950
Specifications:
Input voltage: 4.5-5.5V DC
Output voltage: ±5V DC
Output current: ±400/40mA (max/min)
Full load efficiency: 75/79
Maximum capacitive load:220uF
Package Included:

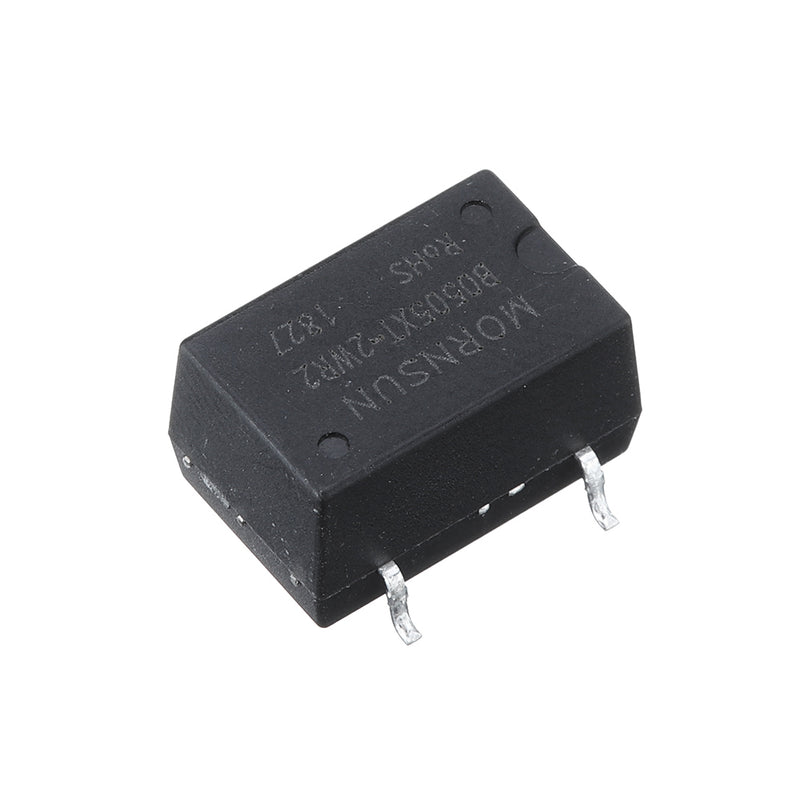

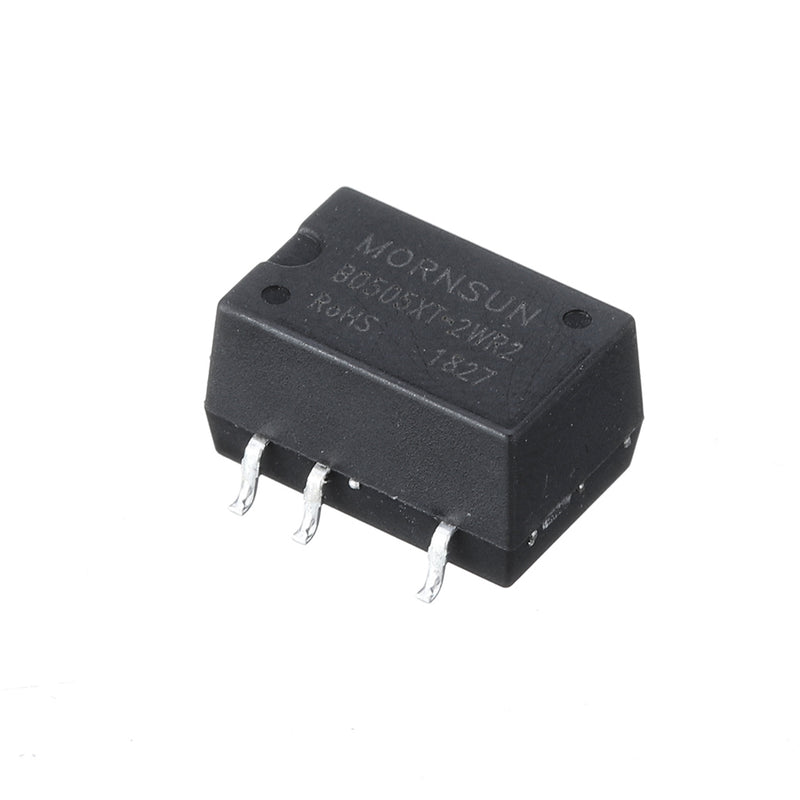

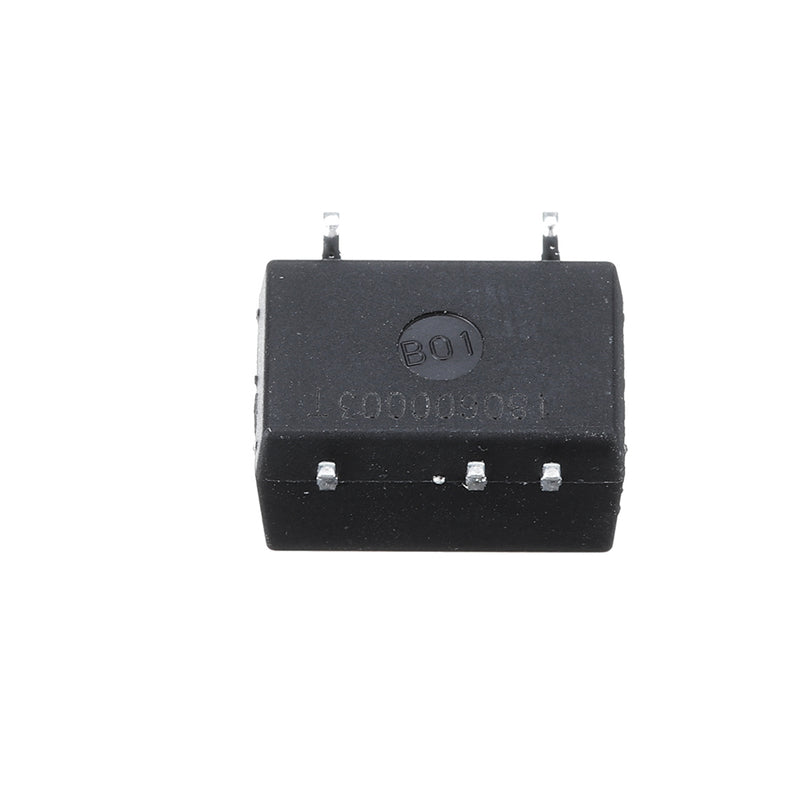

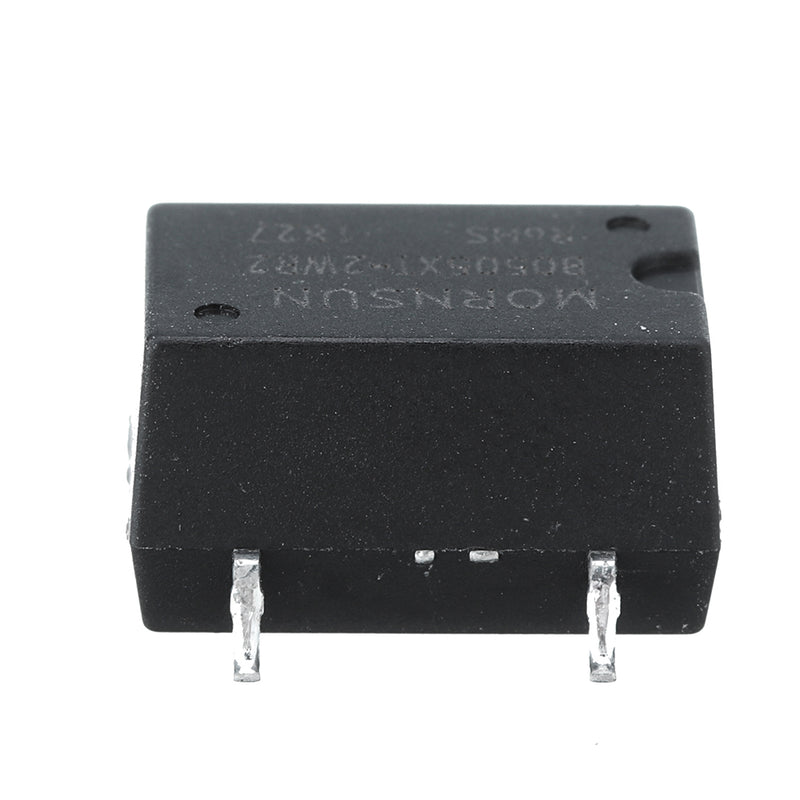

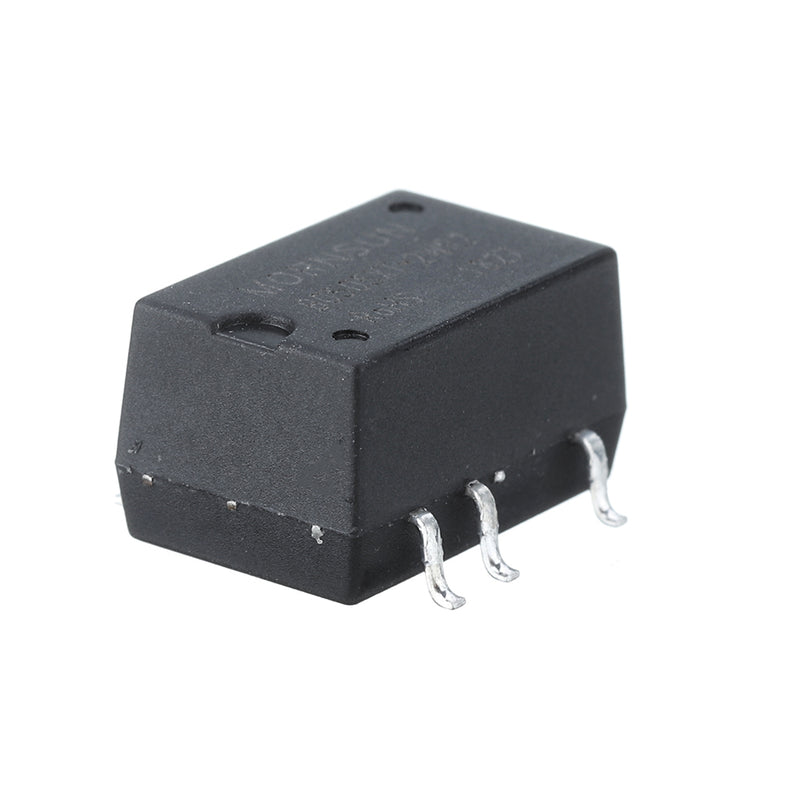

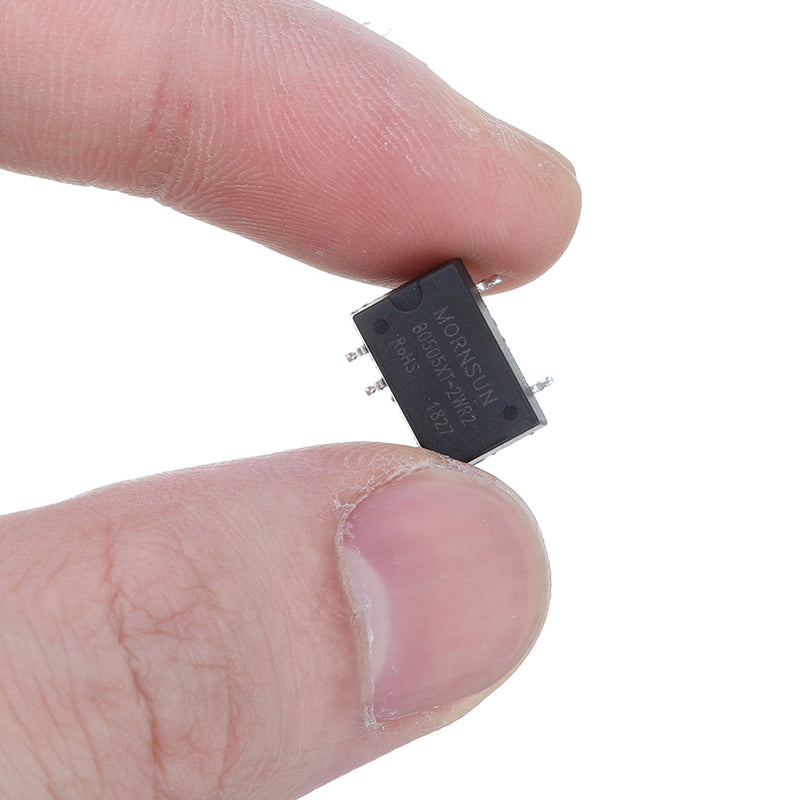

10 x B0505XT-2WR2 DC-DC 5V to 5V Isolation Power Supply Module
