The power supply is isolated industrial-grade module power supply, with temperature protection, over-current protection and short-circuit protection, high and low voltage isolation, AC85~265V wide voltage input, AC and DC, 431 precision regulated DC5V output, compact size, stable performance , cost-effective and so on.
Specifications:
Input voltage: AC 85 - 265V 50/60Hz or DC100V - 370V
Input current: 0.0273A (AC110V) / 0.014A (AC220V)
Output voltage: DC5V (±0.2V)
Output current: 0-600mA
Output peak current: 700mA
Power: 3W
Size: 3x2x1.8 cm
Output efficiency: 80%
Installation method: It can be directly soldered to the PCB at the input and output terminals, and glued to the PCB.
Protection function: short circuit / temperature / over current protection
Package Included:
10 x AC 85-265V or DC 100-370V to DC 5V AC-DC DC-DC Isolated Switching Power Supply

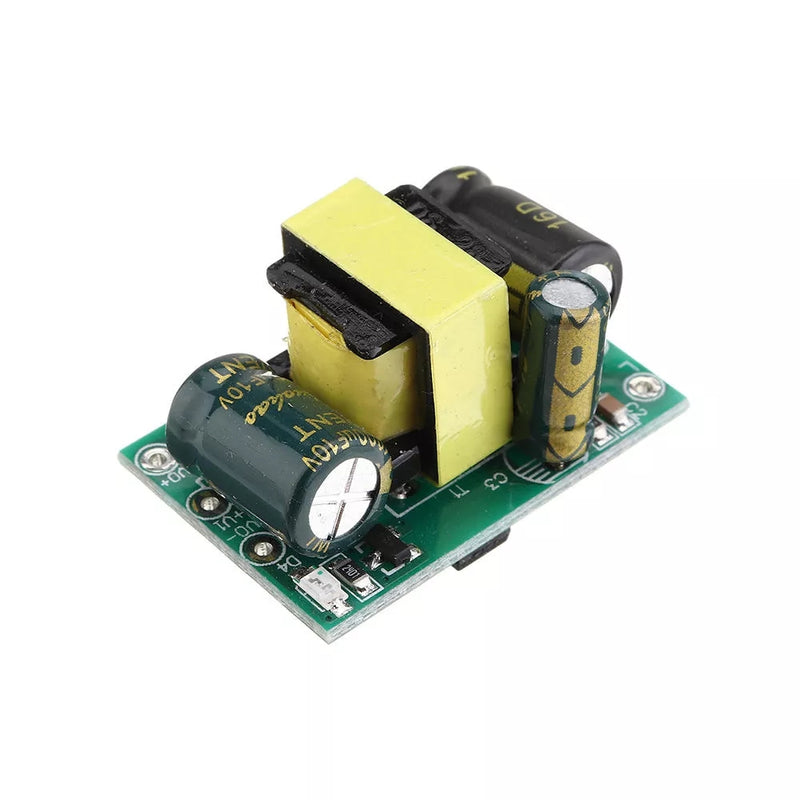

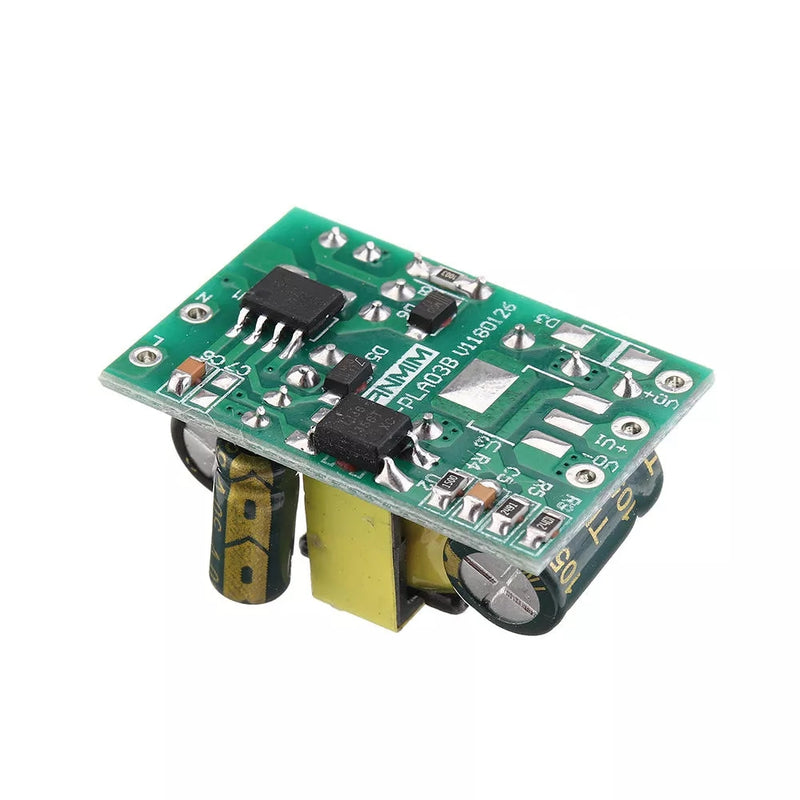

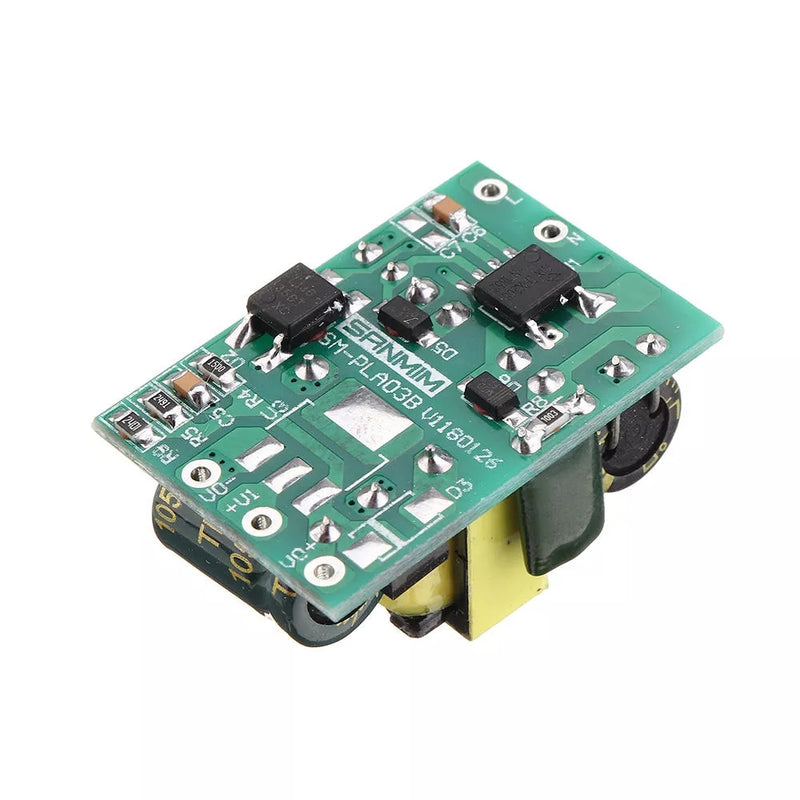

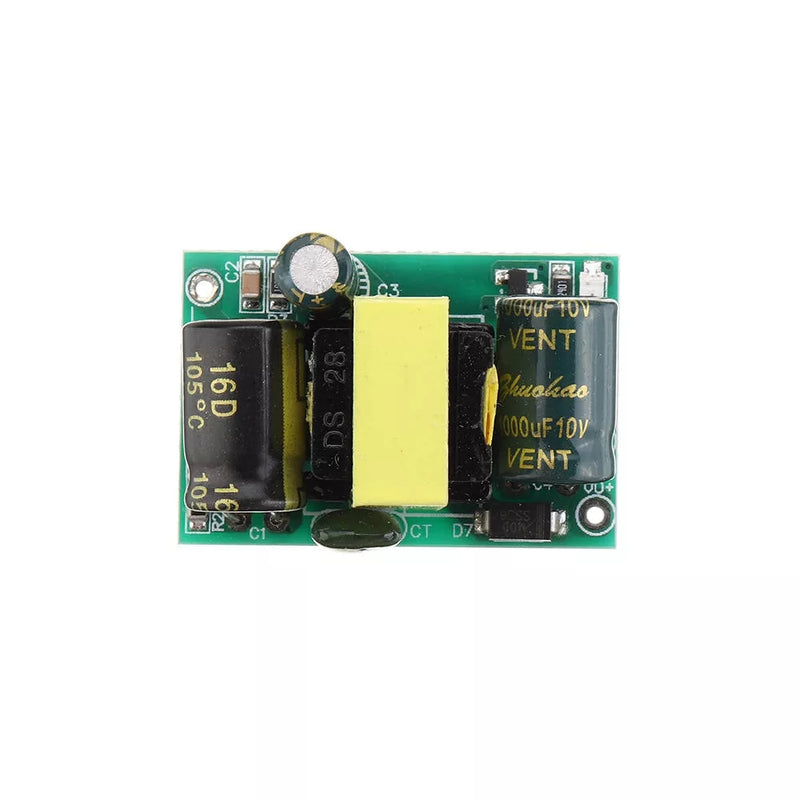

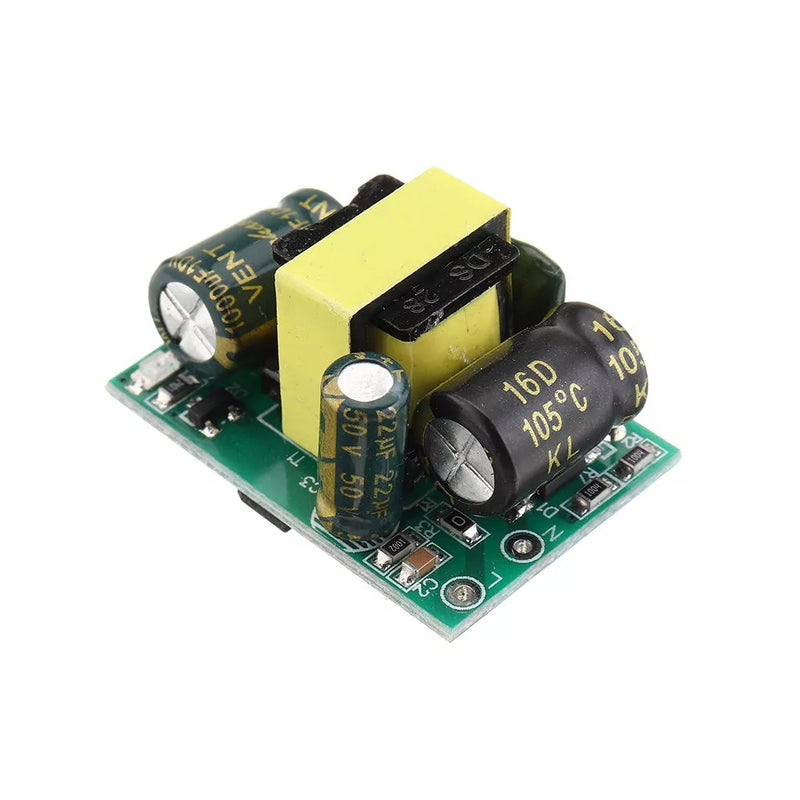

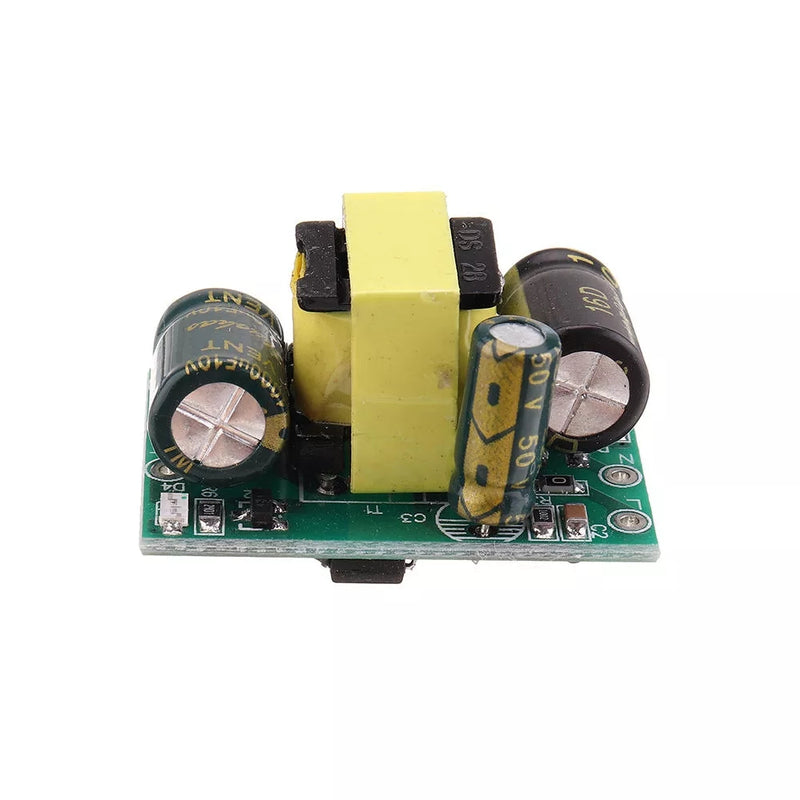

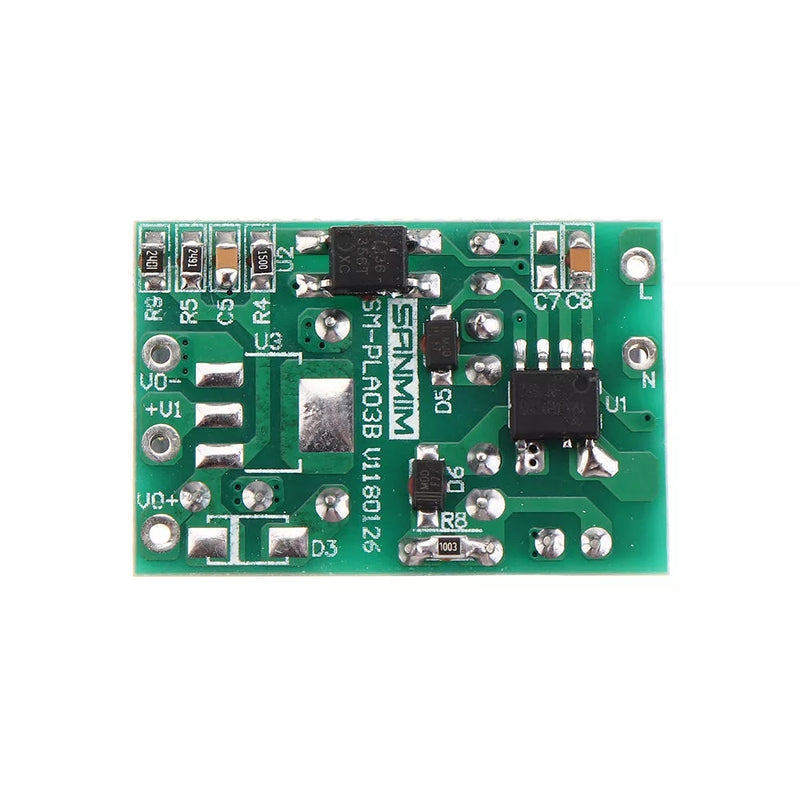

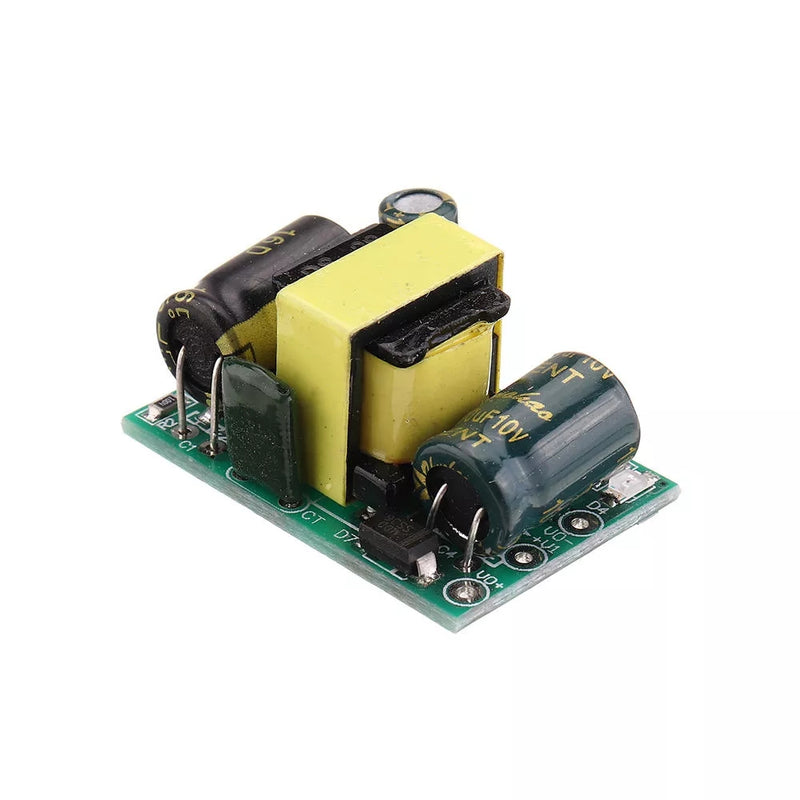

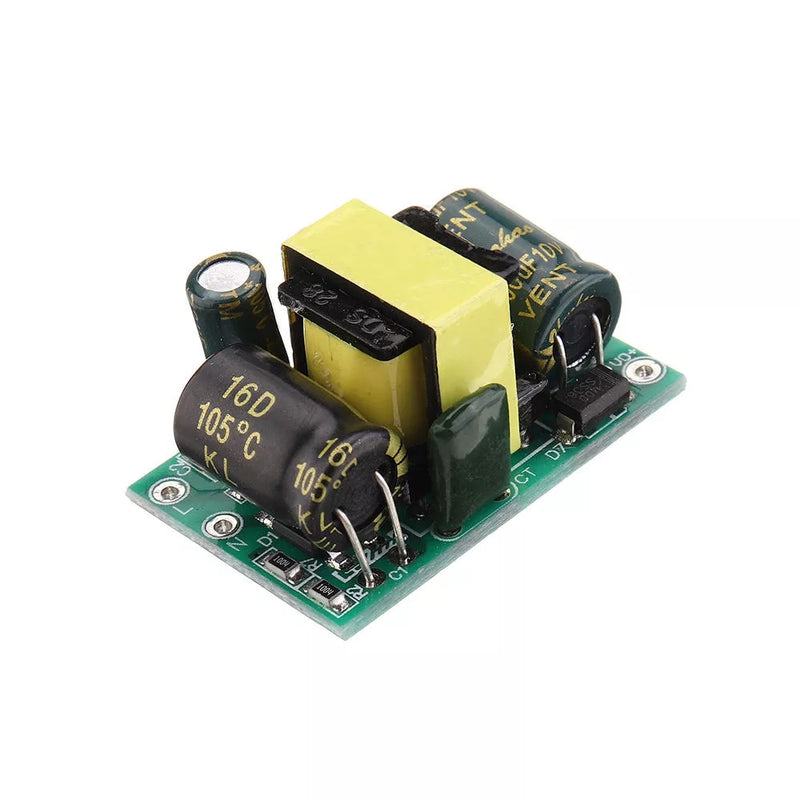

Details Pictures:
