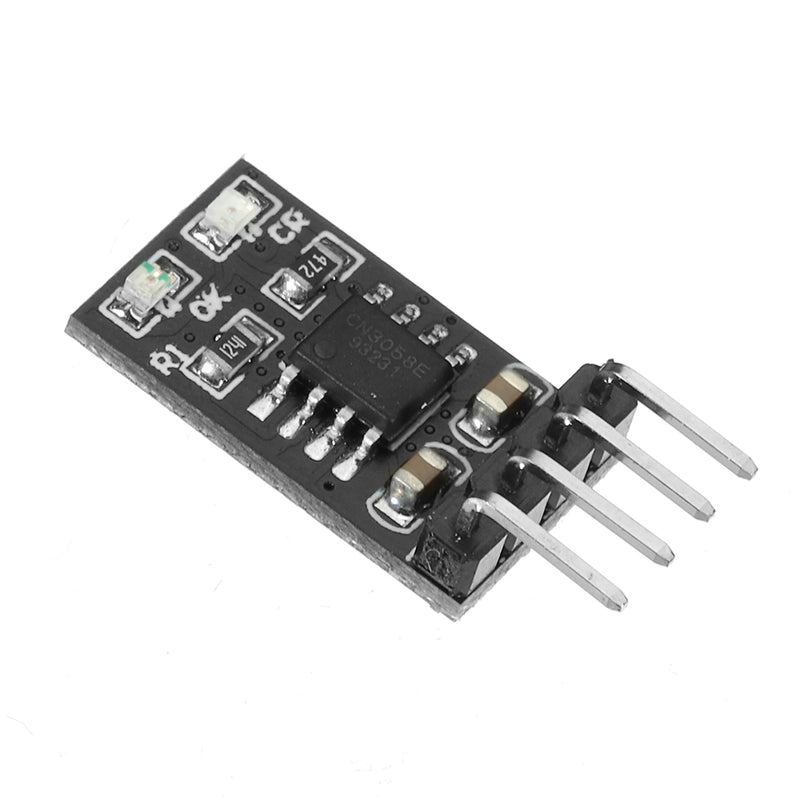

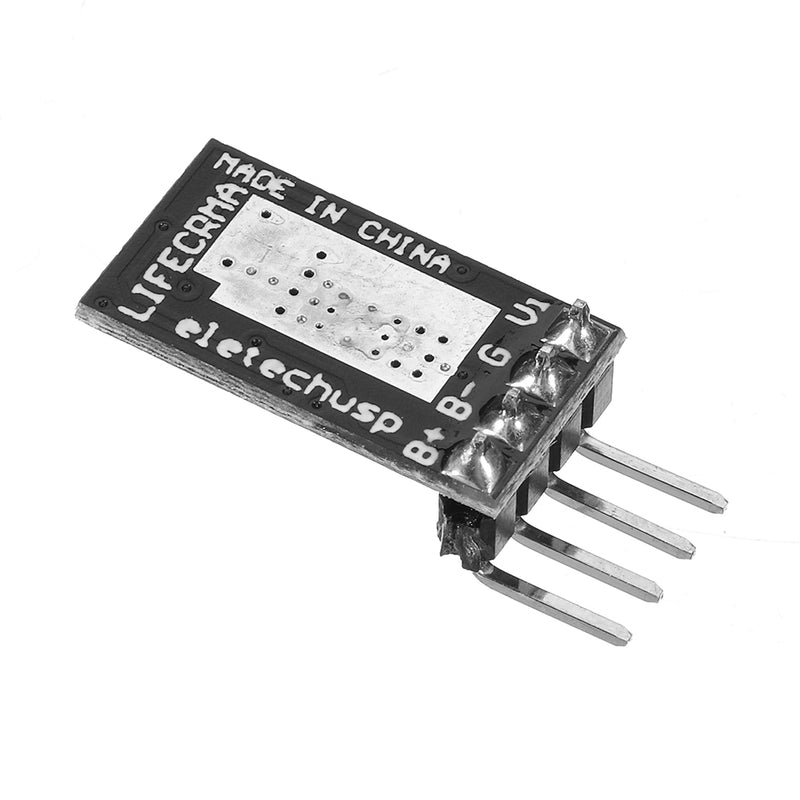

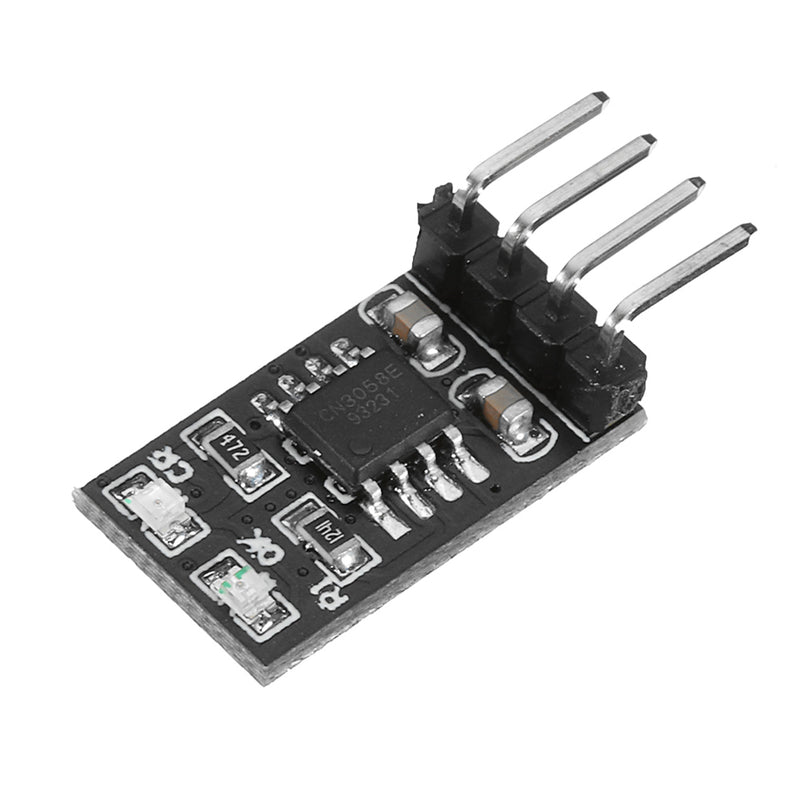

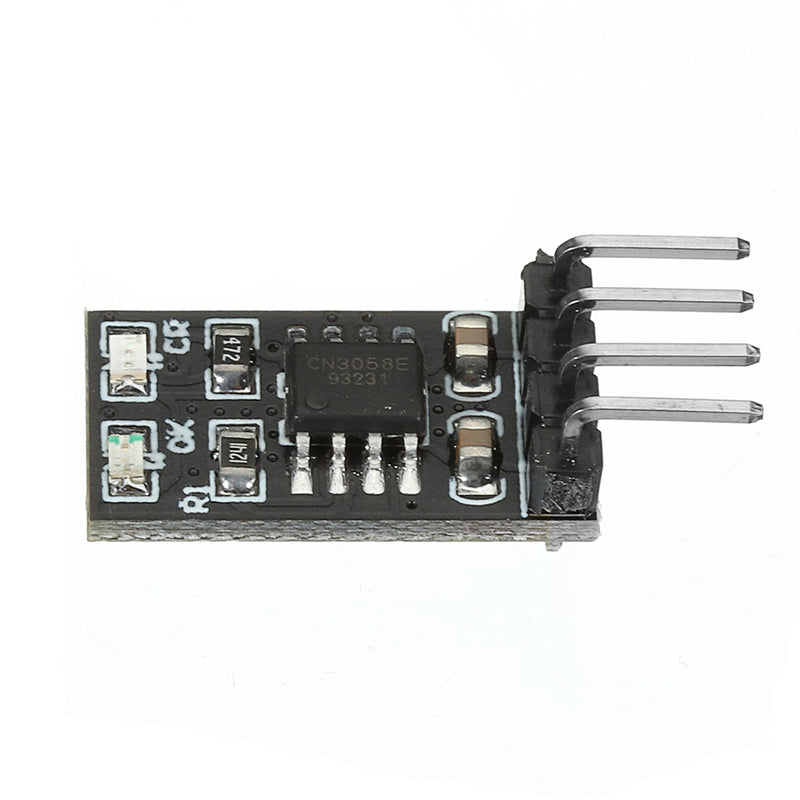

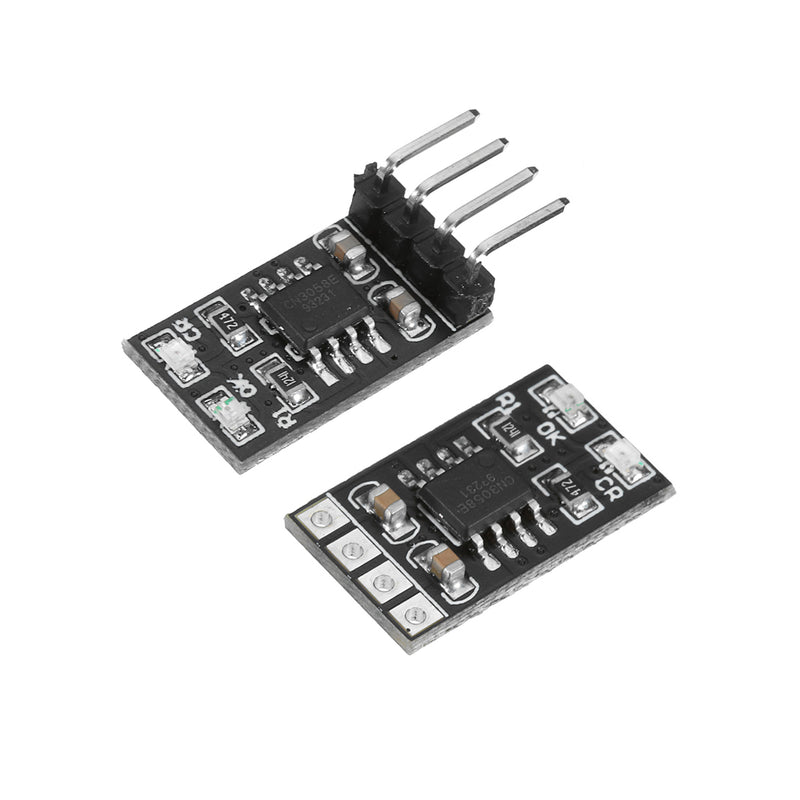

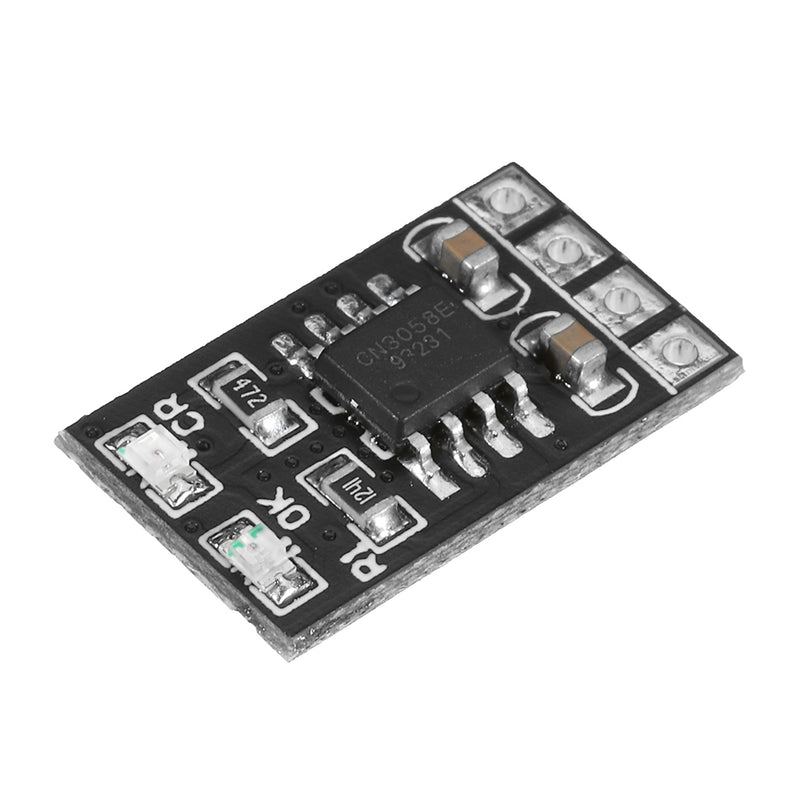

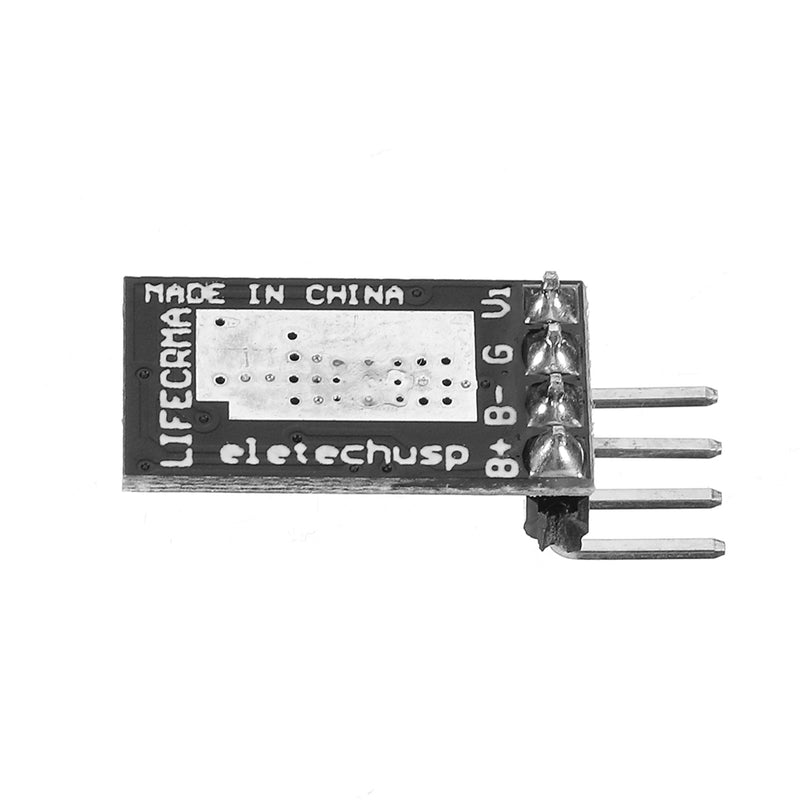

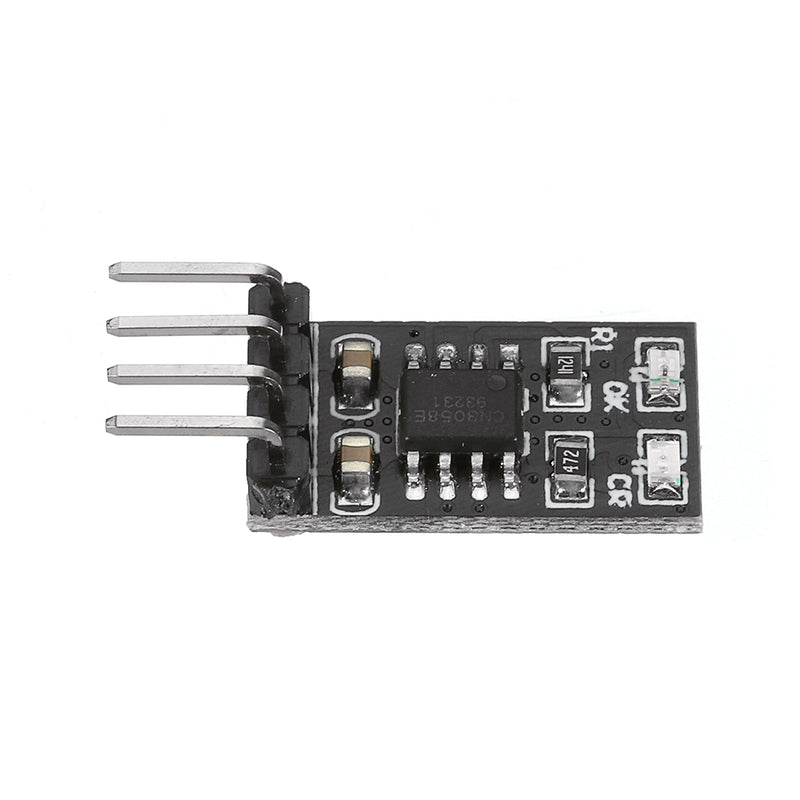

Description:
1. Complete Charge Management for Single Cell LiFePO4 Battery
2. Power supply voltage DC 3.8-6V, Charging output voltage DC 3.6V;
3. The maximum charge current/output current is 1A, but you can change the current by changing the value of the R1 resistor.
4. Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge
5. Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
6. Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed
7. C/10 Charge Termination
8. Automatic Recharge
9. Battery Temperature Sensing
10. Battery Overvoltage Protection
11. Led indicator: ''CR'' LED is charge status indicator, ''OK'' LED is fully charged OR Constant voltage mode;
12. Operating Ambient Temperature: -40℃ to +85℃
13. Size 18mm x 10.16mm x 2.7mm
14. Weight : 0.9g(With Pin), 0.6g(No Pin)
Applications:
Car battery charging
Children's toy car, toy airplane
Solar battery charging
Mobile Loudspeaker
Electric Bicycle Charger
UPS Uninterruptible power supply
Portable Industrial and Medical Equipment
Standalone Battery Chargers
Hand-held Equipment
Battery-Backup Systems
Portable Industrial and Medical Equipment
Miner's lamp
LiFePO4 battery applications
Package includes:

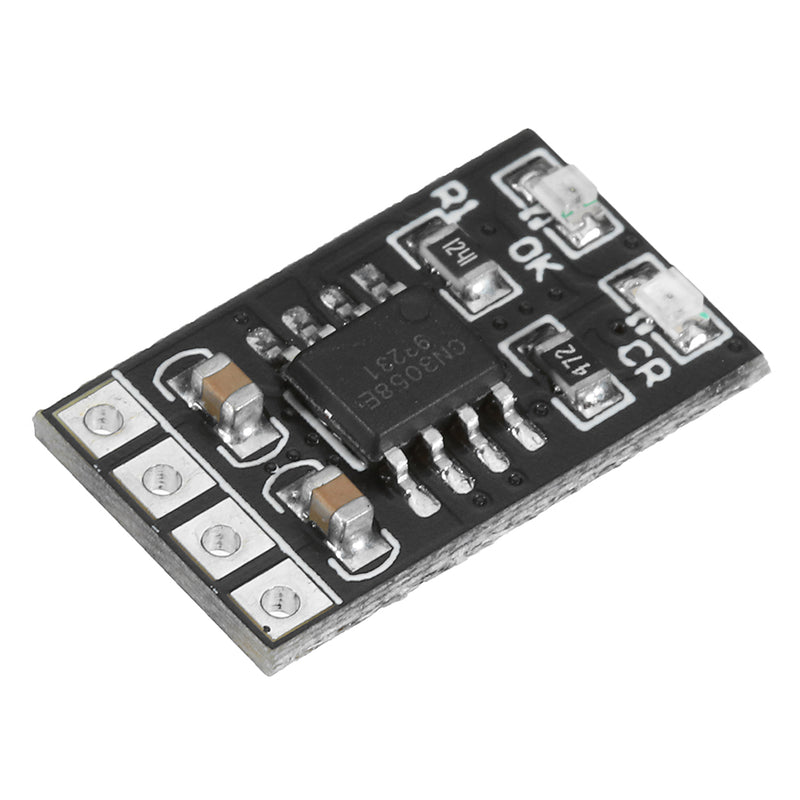

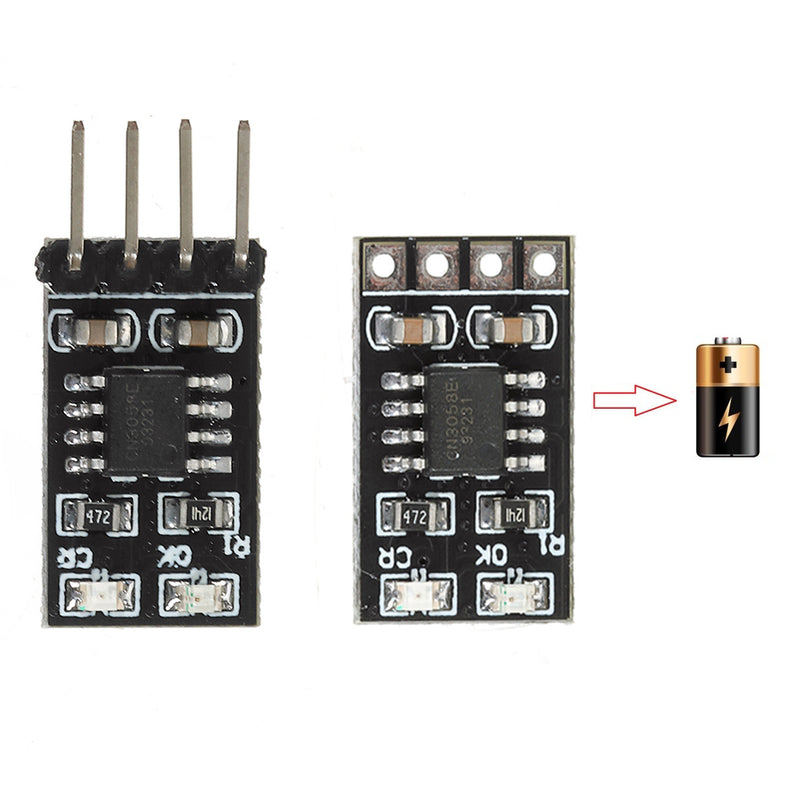

1 x 1A 3.2V Single Cell LiFePO4 Battery Dedicated charging module
