Description:
4 in 1 charge/Discharger(boost)/battery protection/Battery level indicator modules

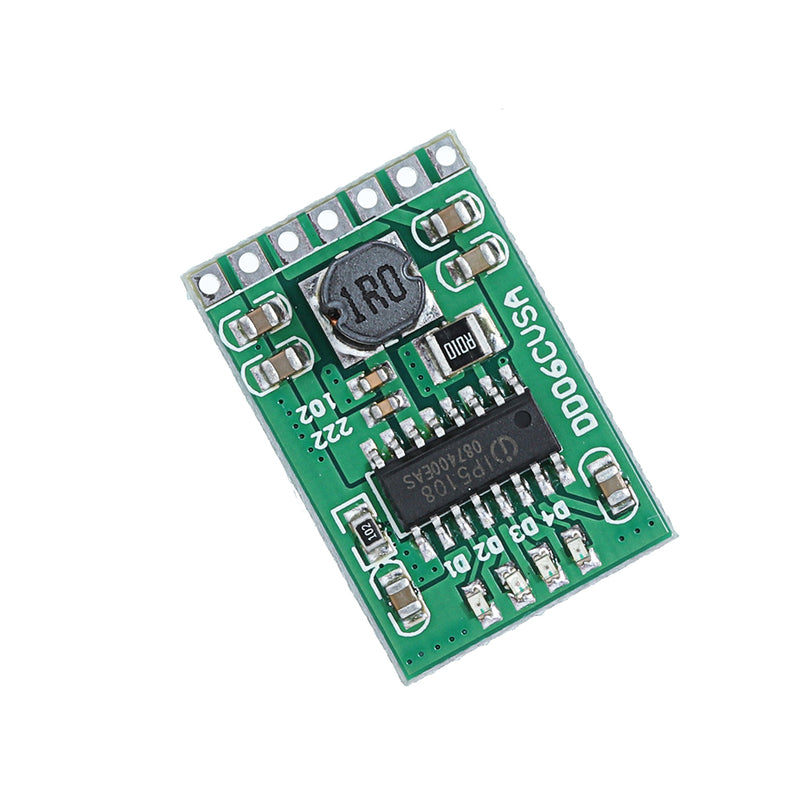

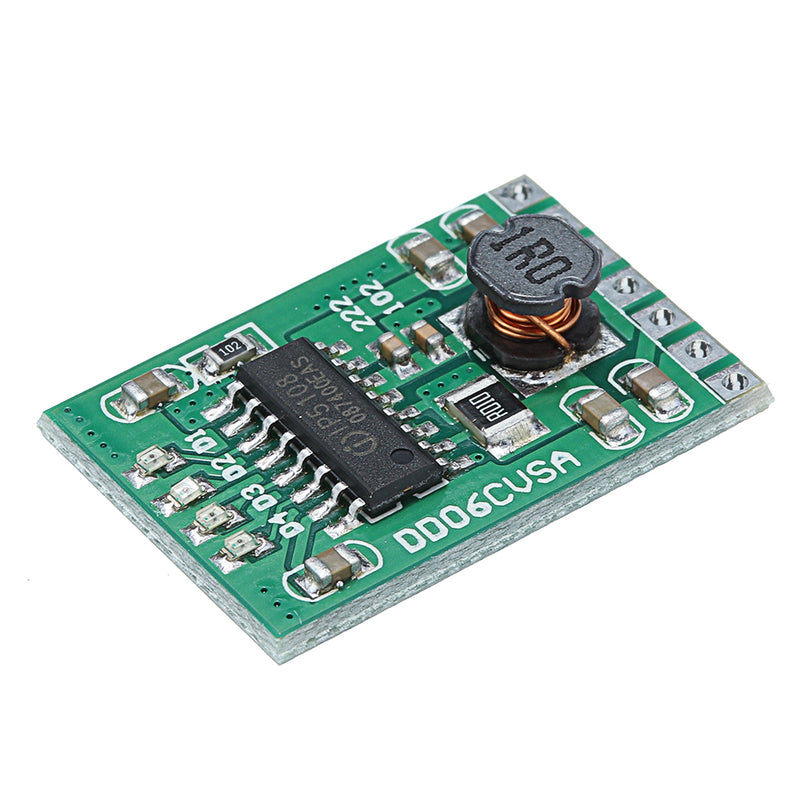

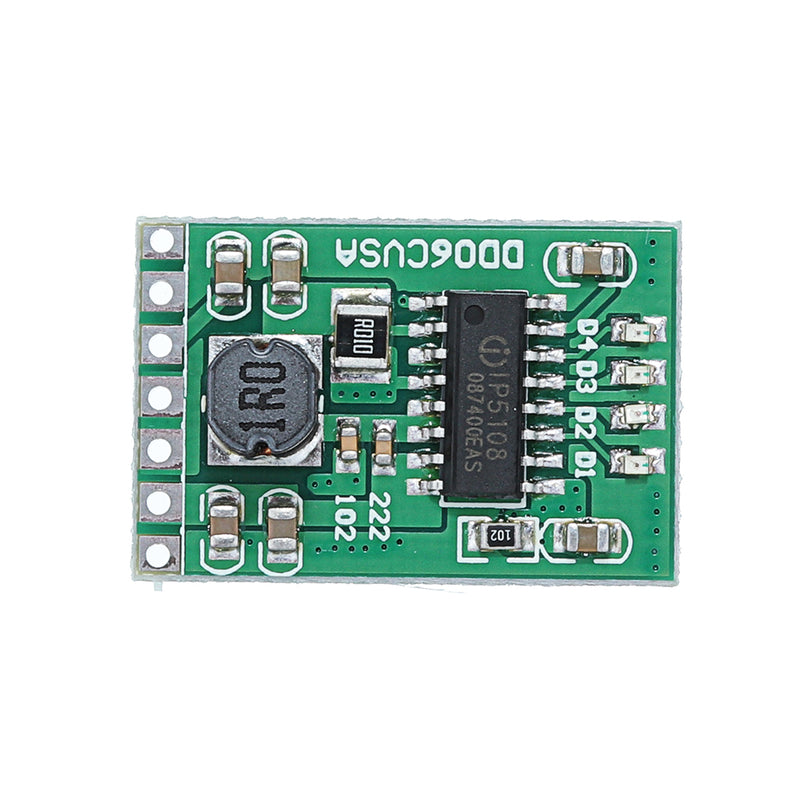

DD06CVSA is a multifunctional 3.7V/4.2V mobile power module,4 in 1 Function: charge, discharge, and battery protection.
It is very suitable for DIY mobile power.
Charge voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging current : 0-2.1A
Charge quiescent current : 100uA
Full charge voltage : 4.2V+-1%.
Discharge current : 0-3.5A;
Discharge quiescent current : 50uA
Discharge conversion efficiency : maximum 96%
Output voltage : 5V
Output current : 0-2.1A;
Operating ambient temperature : -20° to +85°

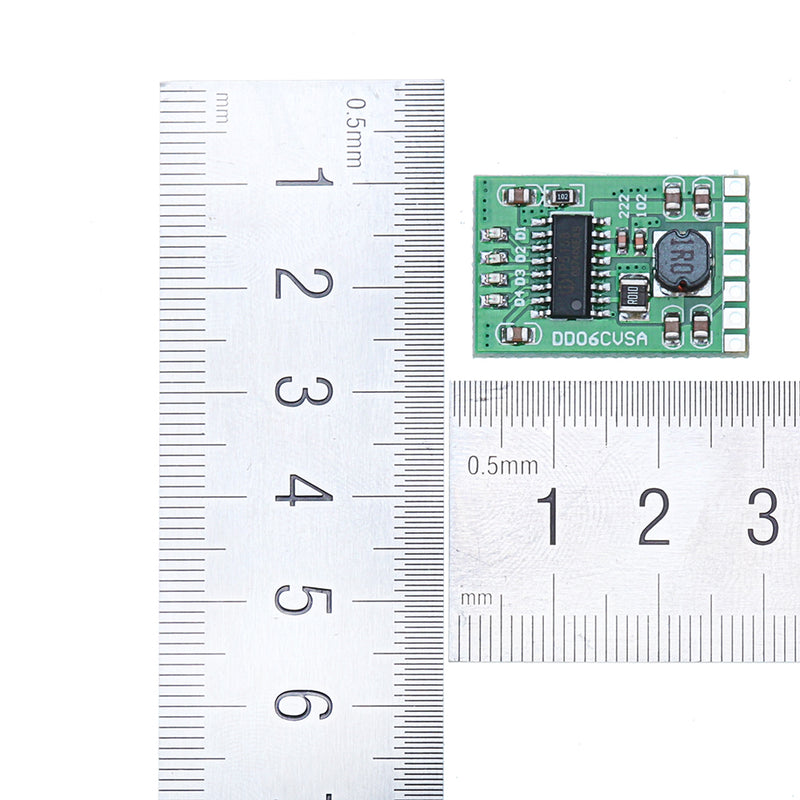

Size : 26.7 x 18.1 x 5.7mm
Weight: 1.9g
Comes with battery protection, do not need battery protection board
(if your battery comes with a protective board, it does not matter)
Overcurrent protection(OCP)
Overvoltage protection(OVP)
Short circuit protection(SCP)
Over-temperature protection(OTP)

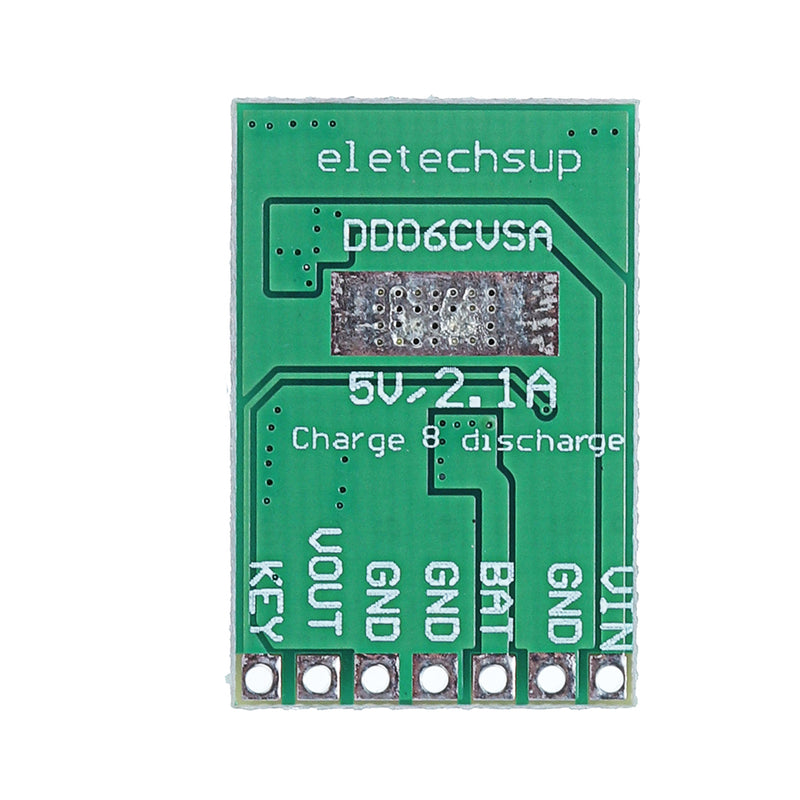

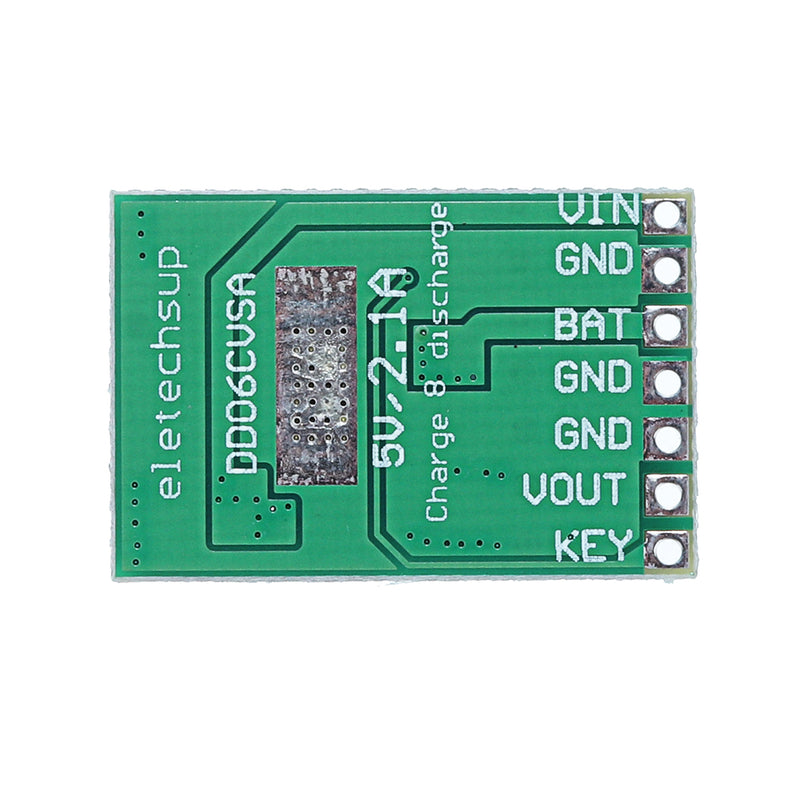

Pin description:
1. VIN: Charging port +
2. GND: Charging port -
3. BAT: Battery port +
4. GND: Battery port -
5. GND: Output port -
6. VOUT: Output port +
7. KEY: Output trigger port (Low pulse trigger)
1. In discharge mode (In the charging mode, the KEY function is invalid), the KEY Trigger once, turns on the output; Continuous trigger twice: turn off the output.
2. When the load access, it will automatically turn on the output.
But if the load is less than 50MA, the output will be turned off after 30 seconds
NOTE:
If the output load current is less than 50MA, turn off the output after 30 seconds.
If the output load current is greater than 50MA, continuous turn on the output
This module is not suitable for uninterruptible power supply(ups).
Applications:
Battery-powered equipment
Lithium Battery 18650 14500
Mobile phone DIY
UPS power supply equipment DIY
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Bluetooth Wifi Applications
MCU development board
Packing includes:
3 x DD06CVSA 5V/2.1A Power Module
