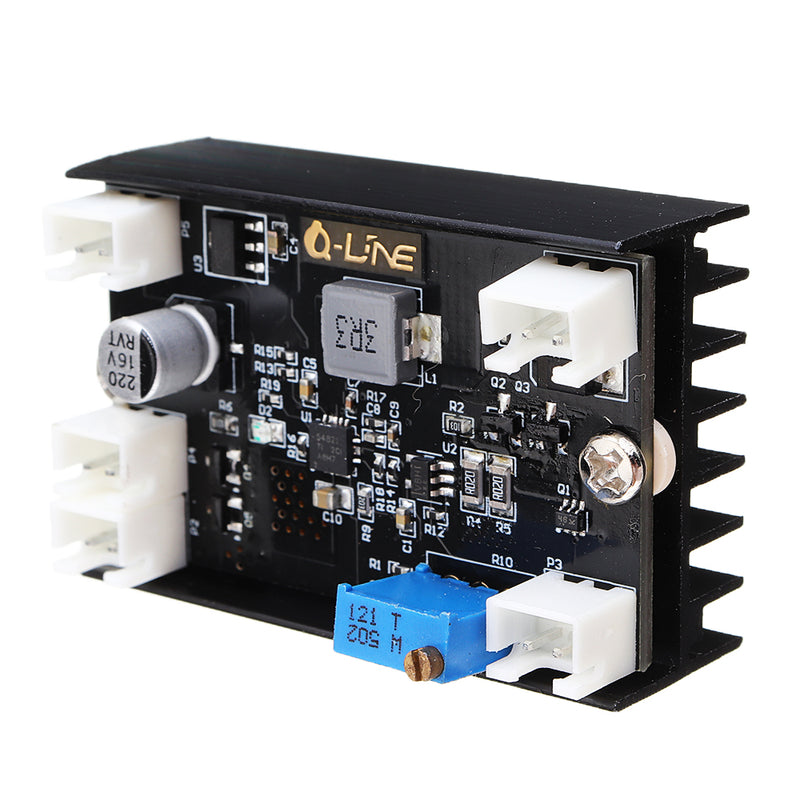

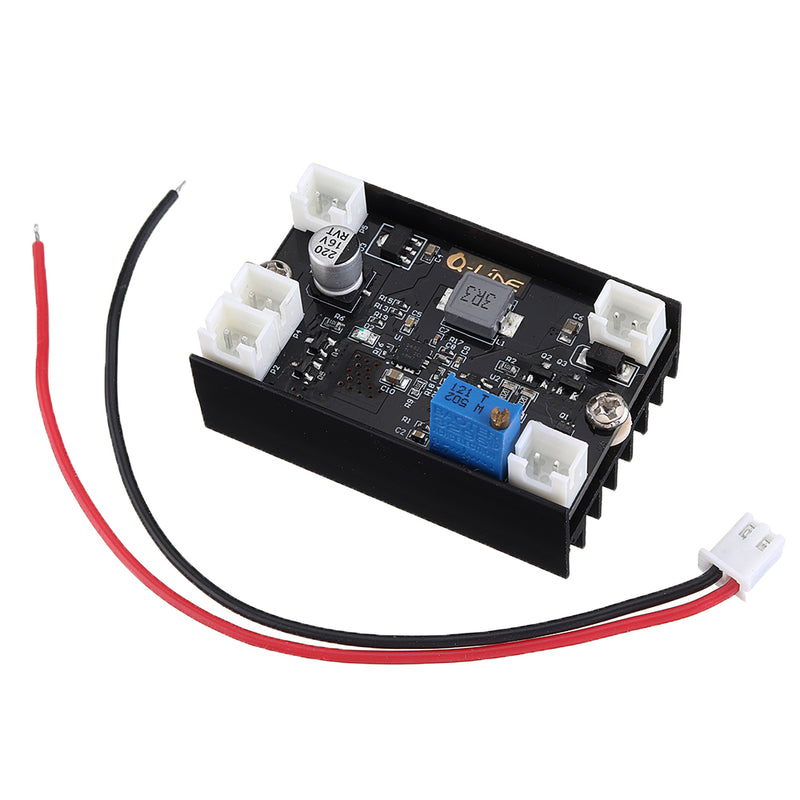

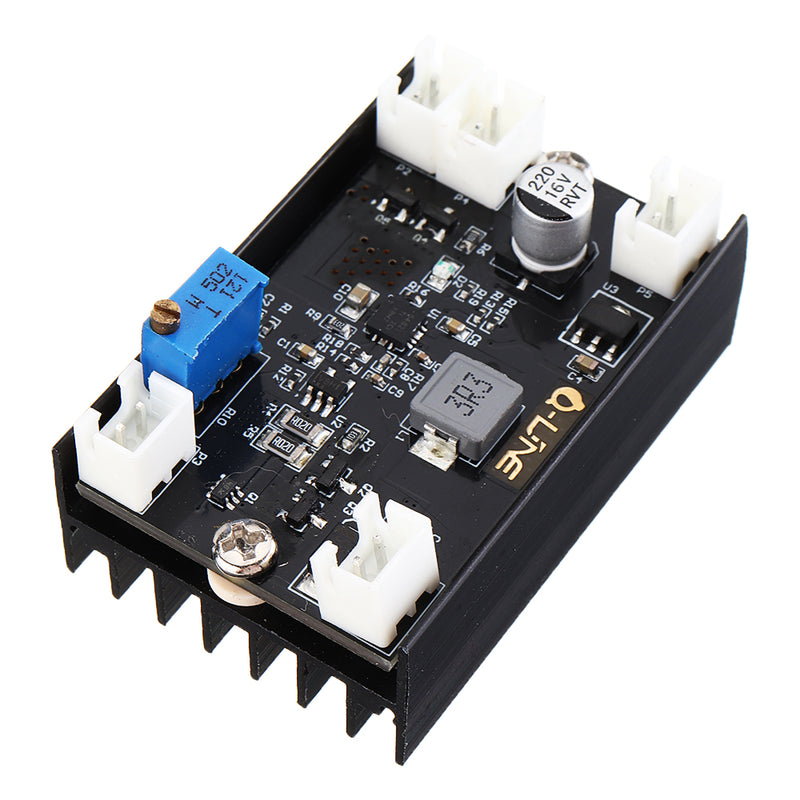

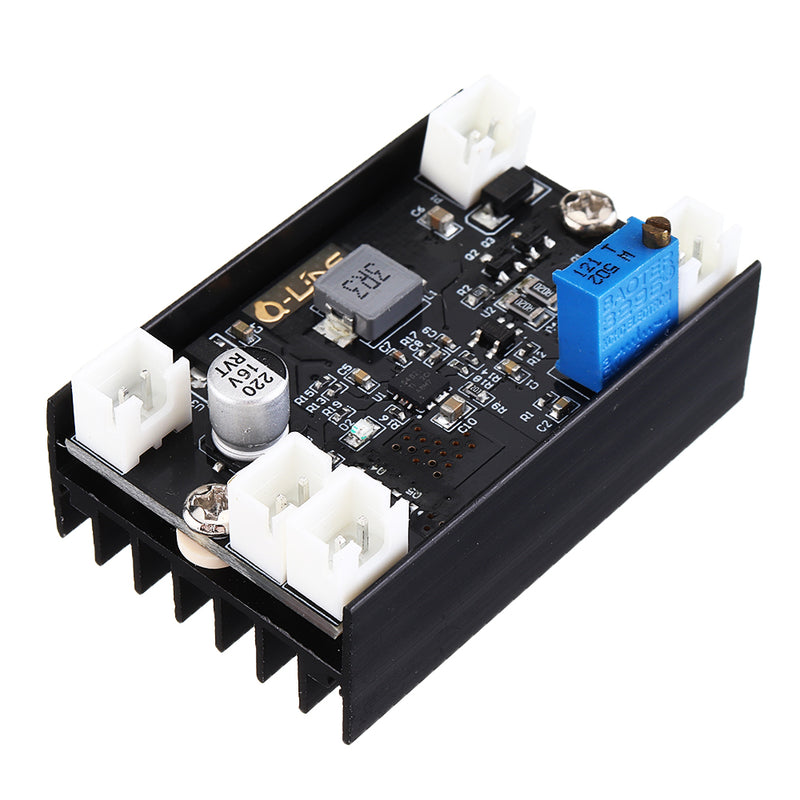

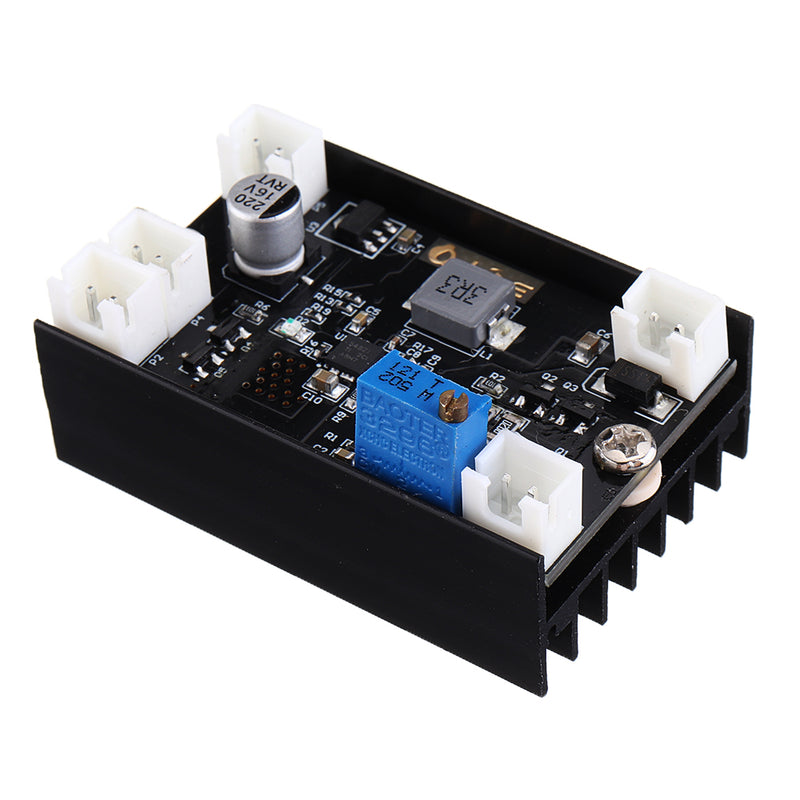

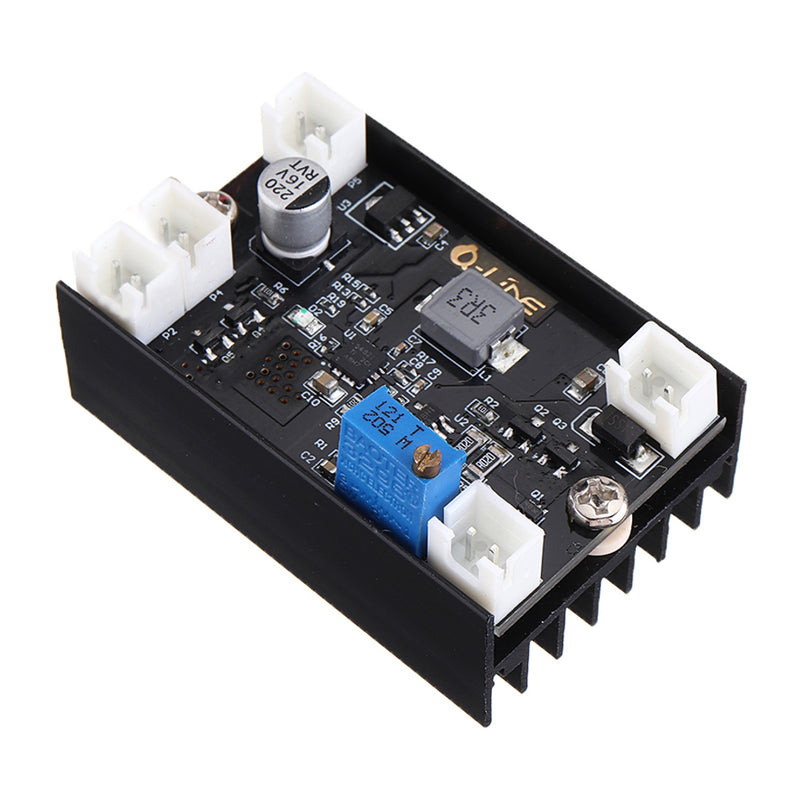

Feature:Suitable for high-end laser drive, high efficiency, low heat generation
Applicable to all kinds of stage lights, DIY engraving machine and 3D printer laser module driver.
Description:
Circuit control: 12V step-down circuit, constant current output (current adjustable)
Output Specifications: Max 5A
Scope of application: 1W-3W-4.75W 405/445/450/520nm red, green and blue laser drive circuit

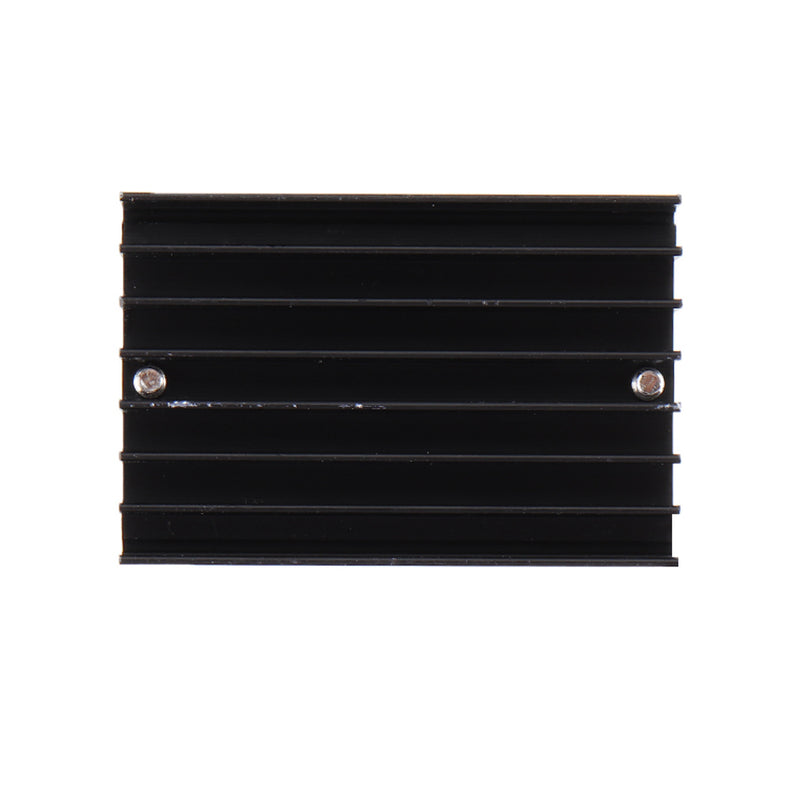

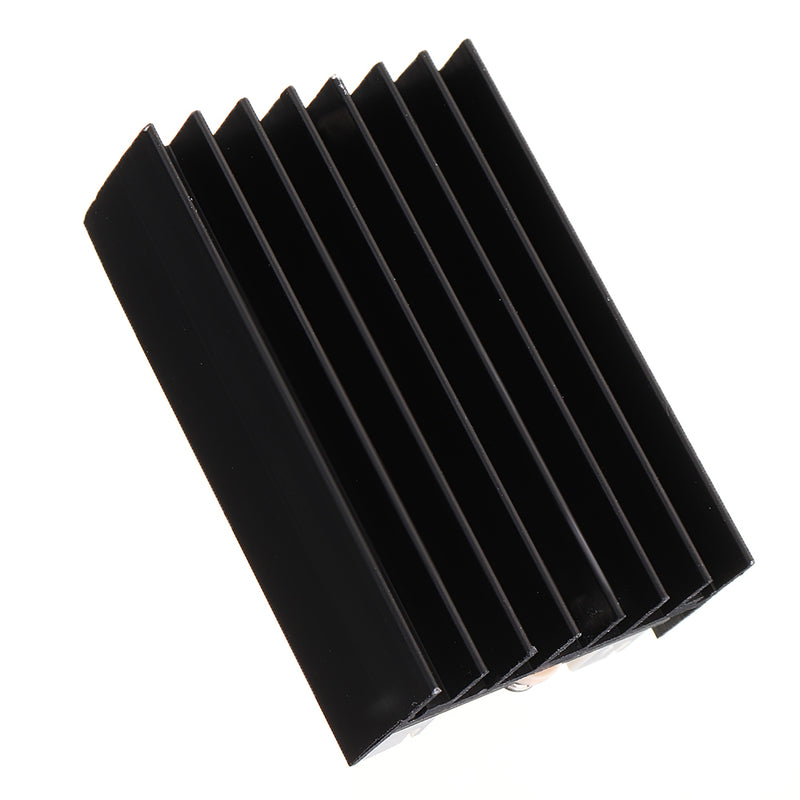

Dimensions: 32.5*50mm (width * length), component height with aluminum base 24mm
Frequency control: 0-150Khz
Modulation voltage: 0-5V (0V off, 5V on)
Input voltage: 12V (9-18V)
TTL modulation description: 0-5V voltage signal (0 is off, 5 is on, the frequency determines the speed of laser light flashing), positive and negative as shown below

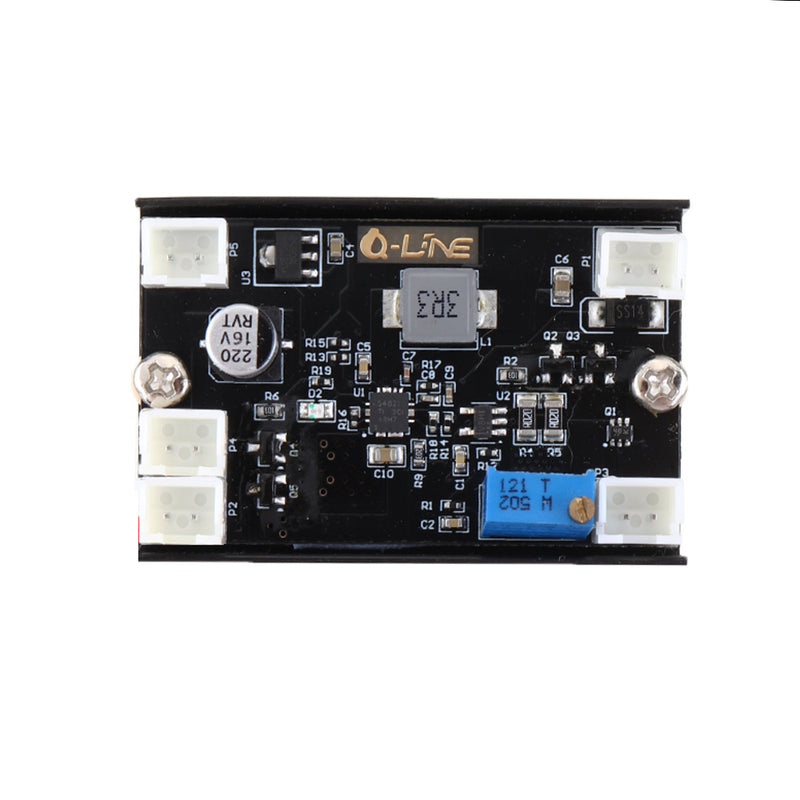

The pin description is as follows:

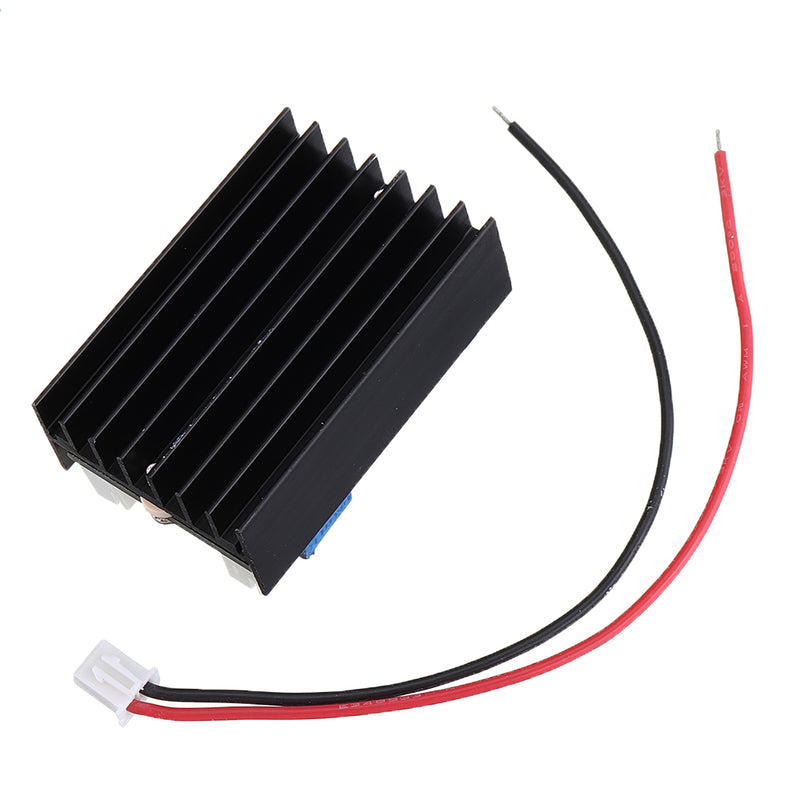

Package includes:
1 x Step Down Constant Current Drive
