Feature:
Input voltage: AC 85-264V or DC 110-370V
Frequency range: 47-63Hz
Input current: 0.5/115VAV, 0.25/230VAC
Inrush current: 10A/230VAC(Cold start)
Conversion efficiency: 78%
Standby power consumption: ≤150mW/230VAC
Output voltage: 12V (±1%)
Rated current: 1A
Rated power: 12W
Ripple: ≤100mV
Switching frequency: 20-65KHz
Operating temperature: -30-70℃
Working humidity: 20-90%, Non-condensing
Package included:

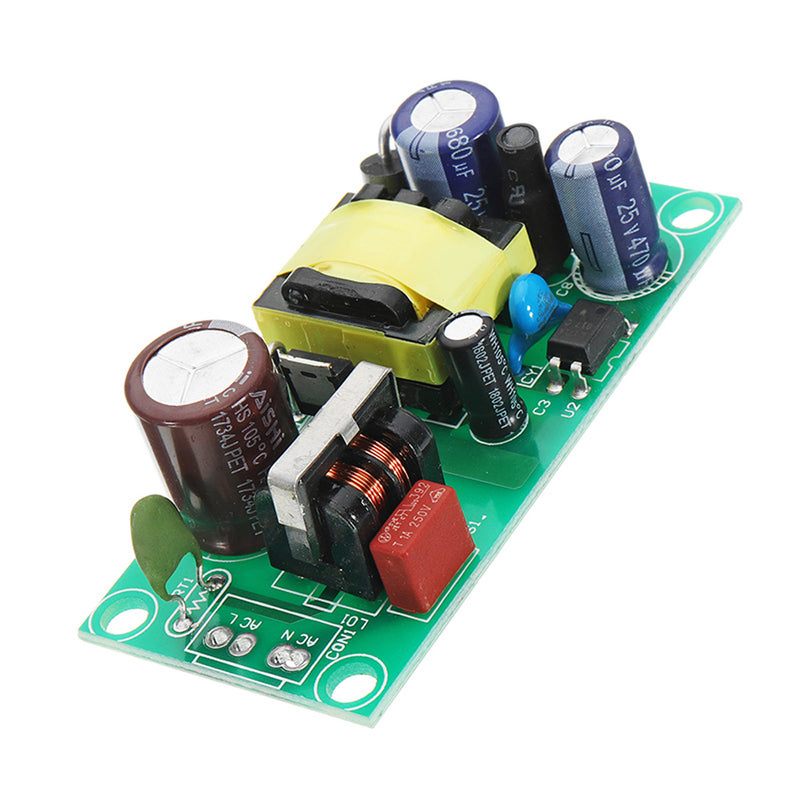

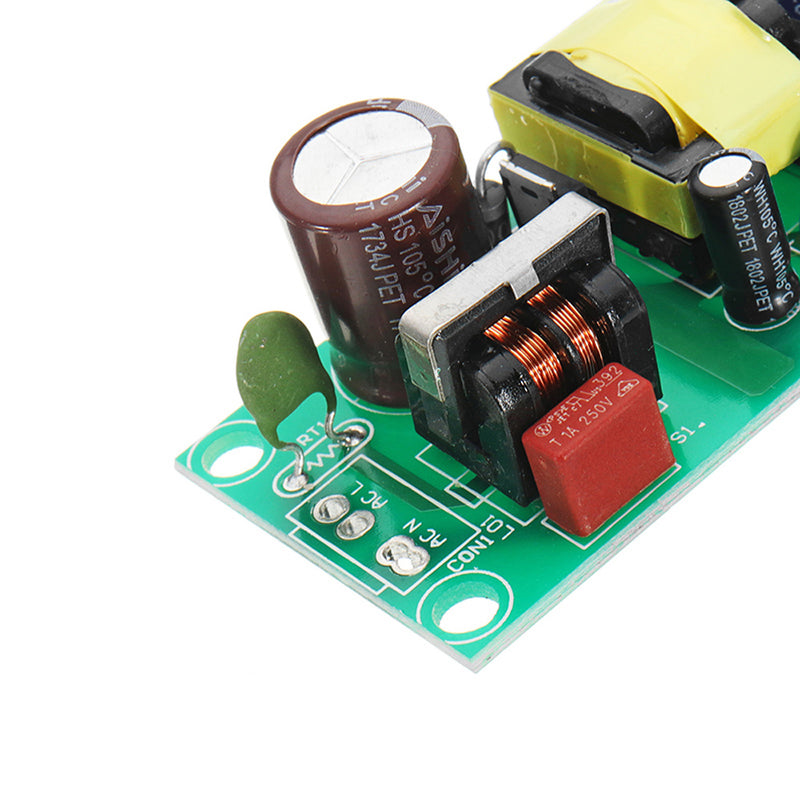

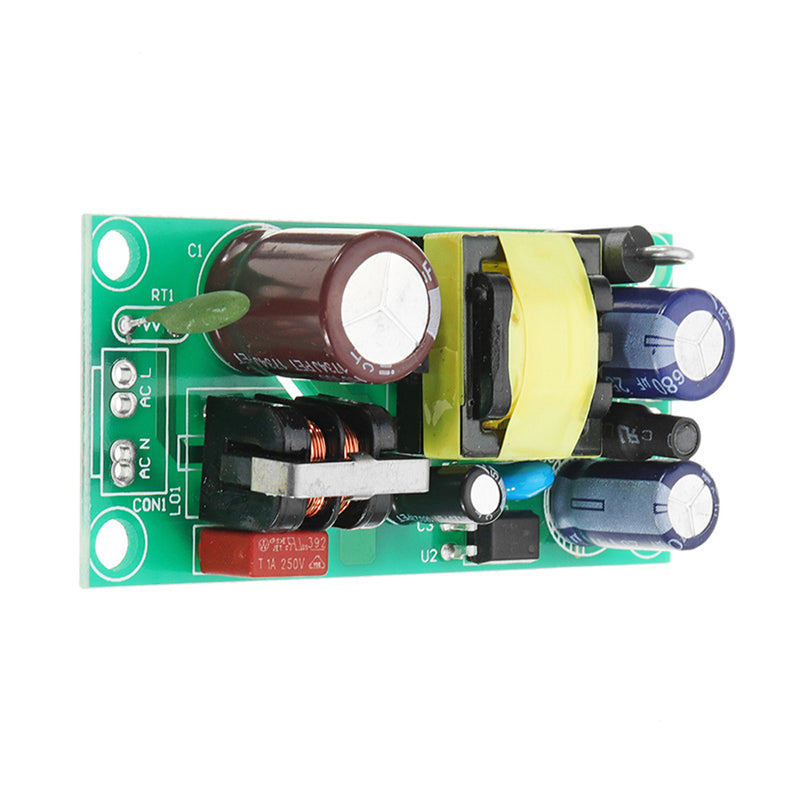

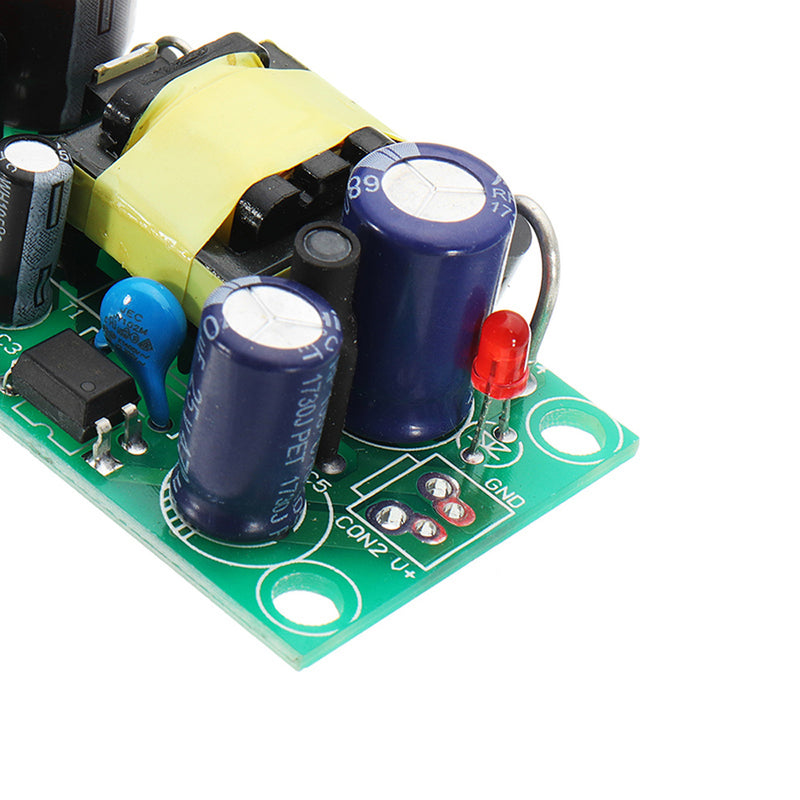

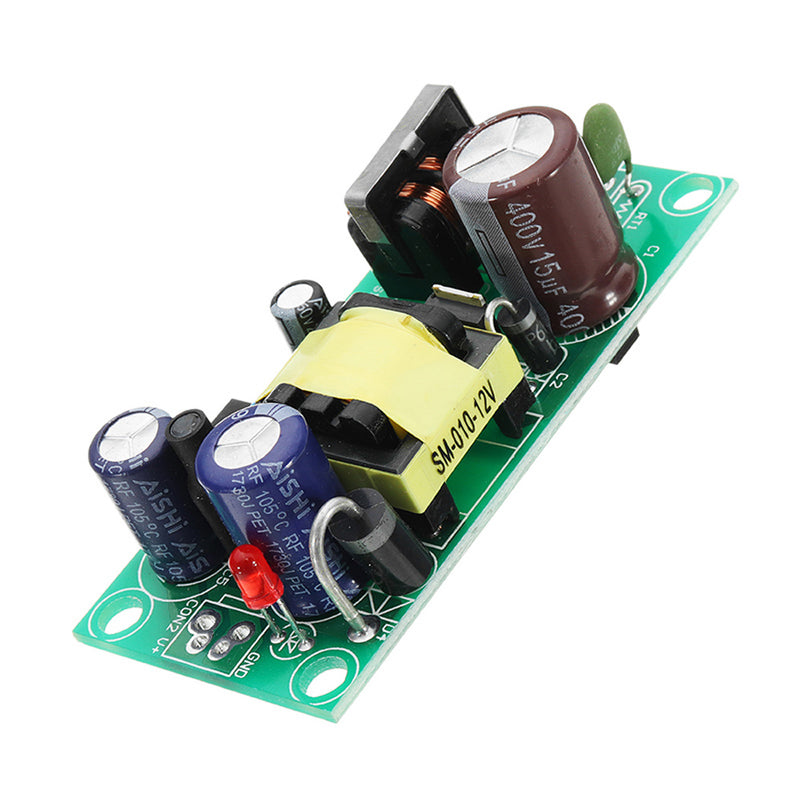

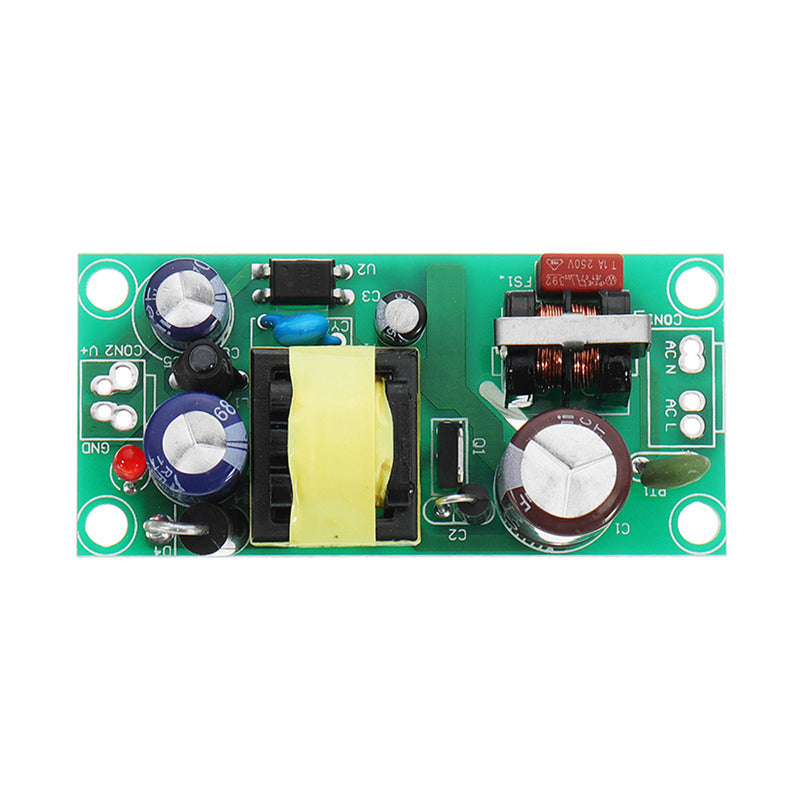

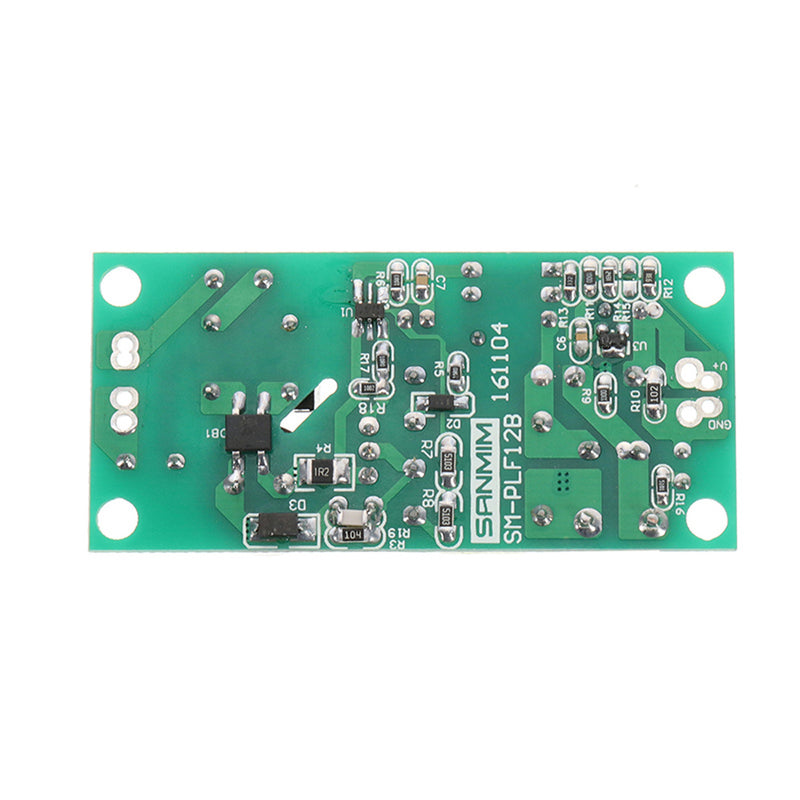

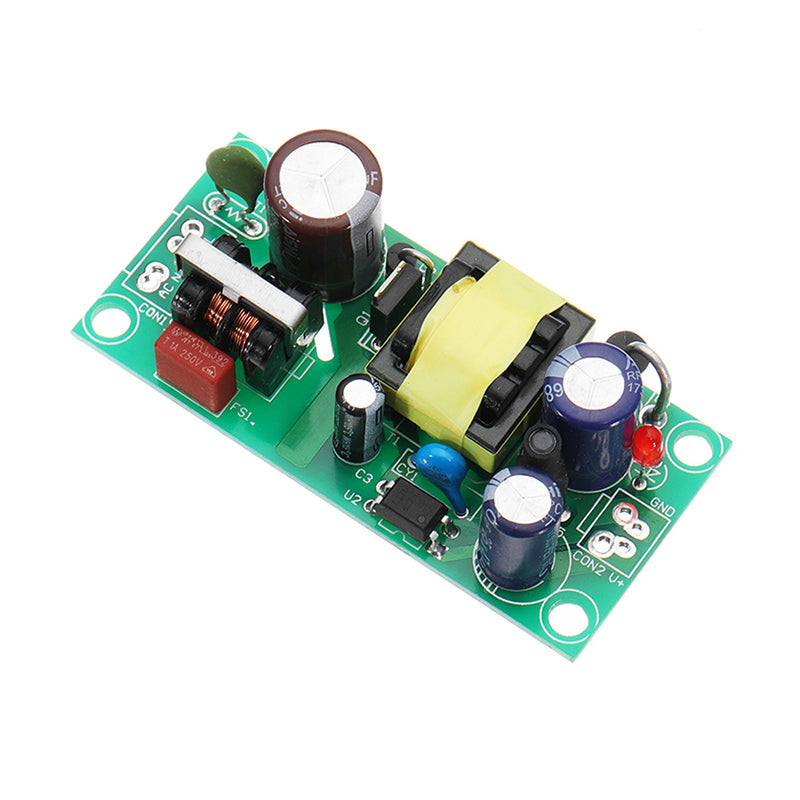

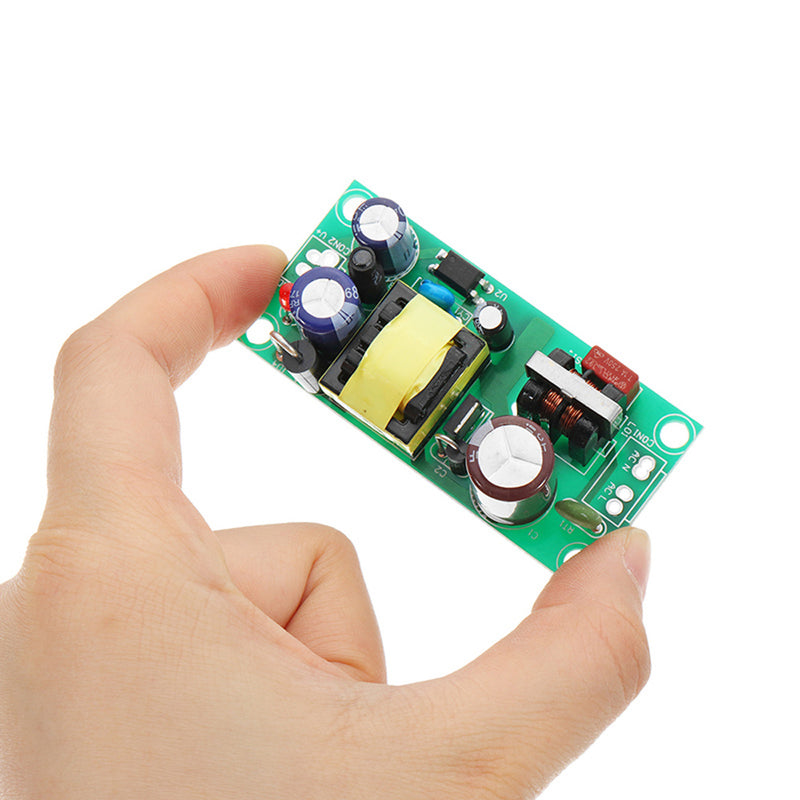

5 x AC-DC 220V To 12V1A Isolation Switch Power Module
