Overview:
The A_S-1WR2 family is specifically designed for applications in the board power system that require a set of voltages that are isolated from the input supply. This product is suitable for
to:
1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin);
2. Requirements isolation between input and output (isolation voltage ≤ 1500VDC);
3. The output voltage stability is not high.
Specifications:
Input voltage: 4.5-5.5V DC
Output voltage: ±5V DC
Output current: ±100/10mA (max/min)
Full load efficiency: 76/80
Maximum capacitive load: 100uF
Features:
- High power density
- Up to 86% efficiency
- Operating temperature range: -40°C to +105°C

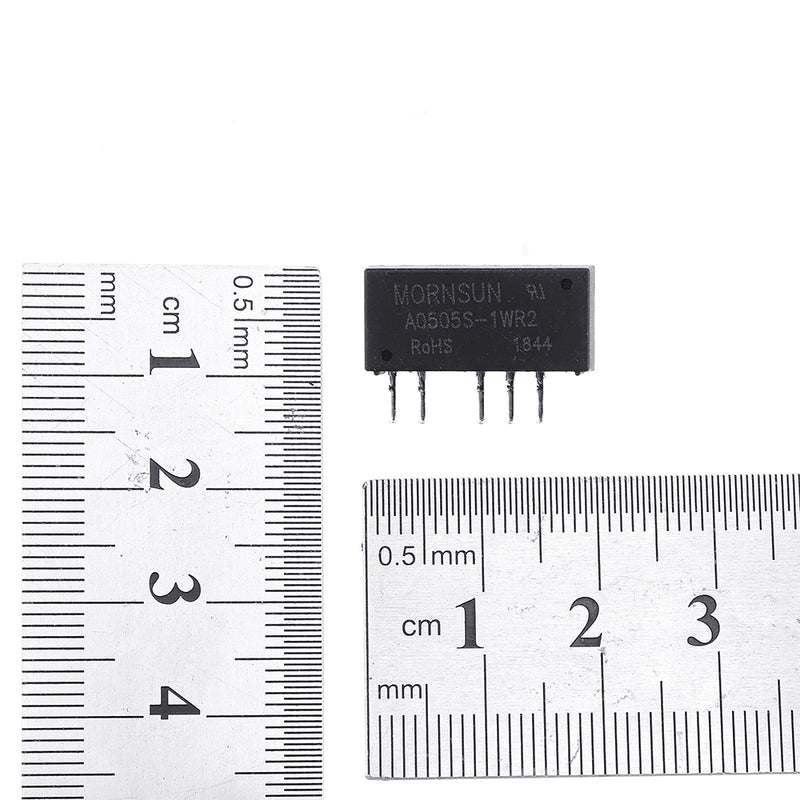

- Small SIP / DIP package
- International standard pin mode
- Isolation voltage 1500VDC
Package Included:

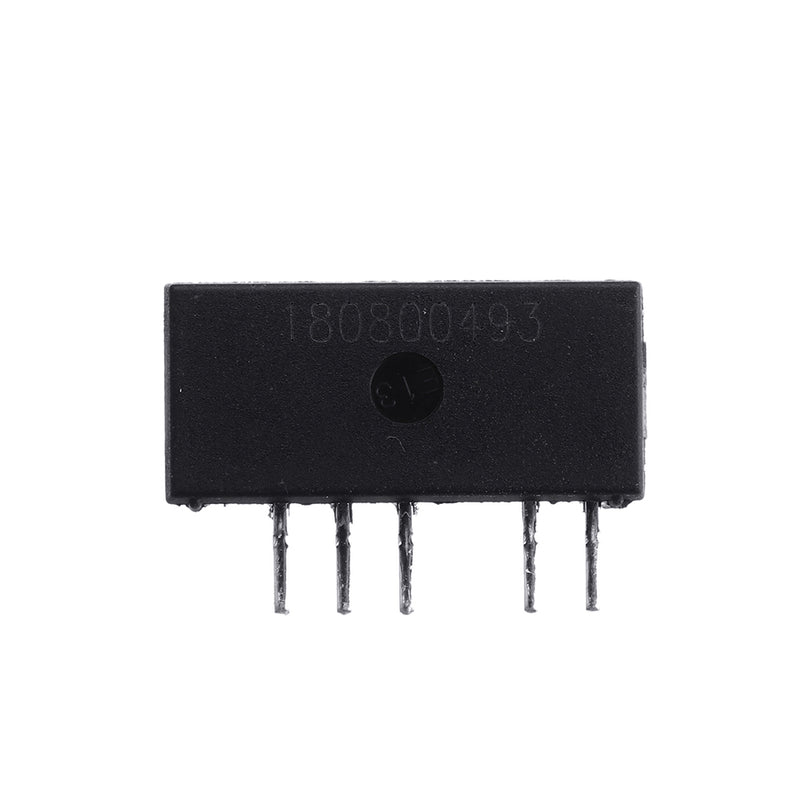

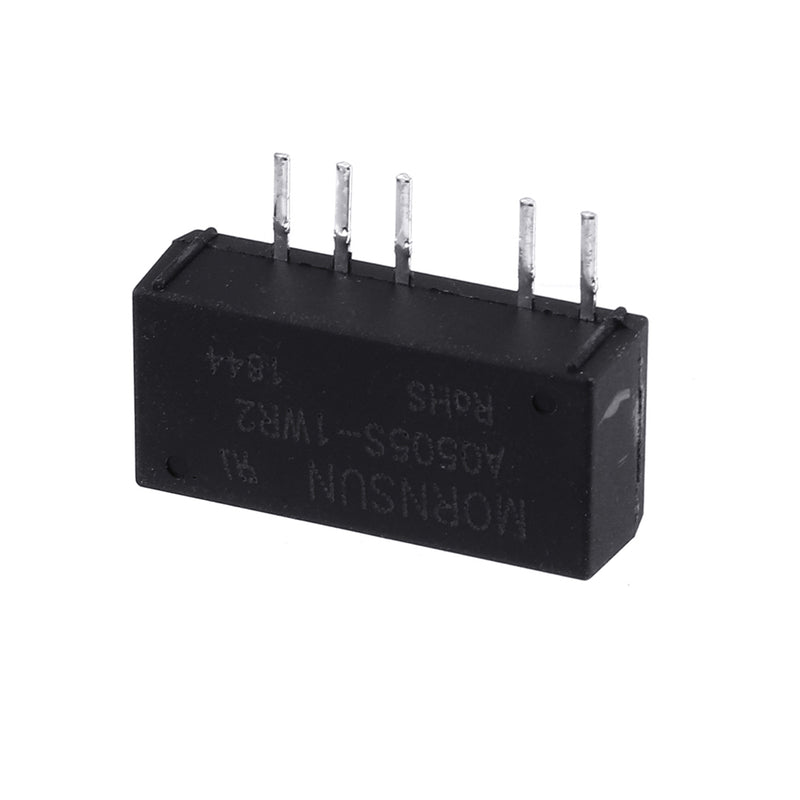

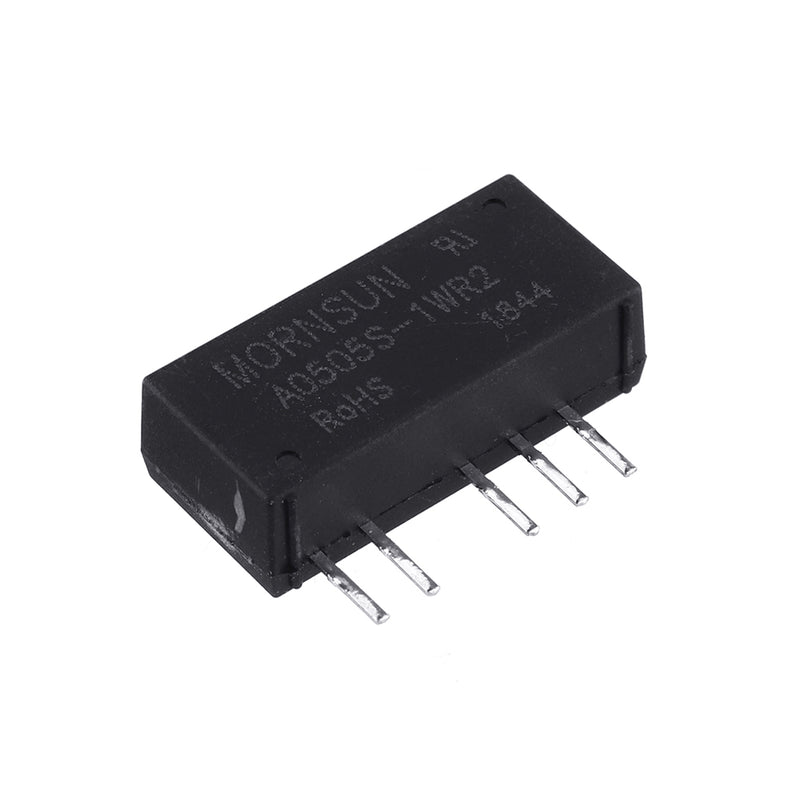

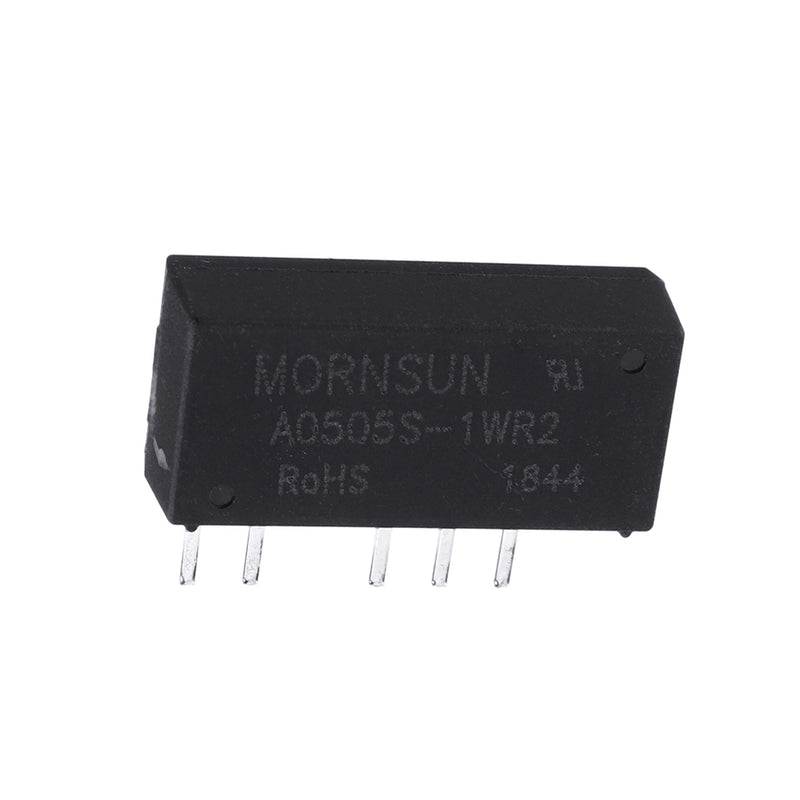

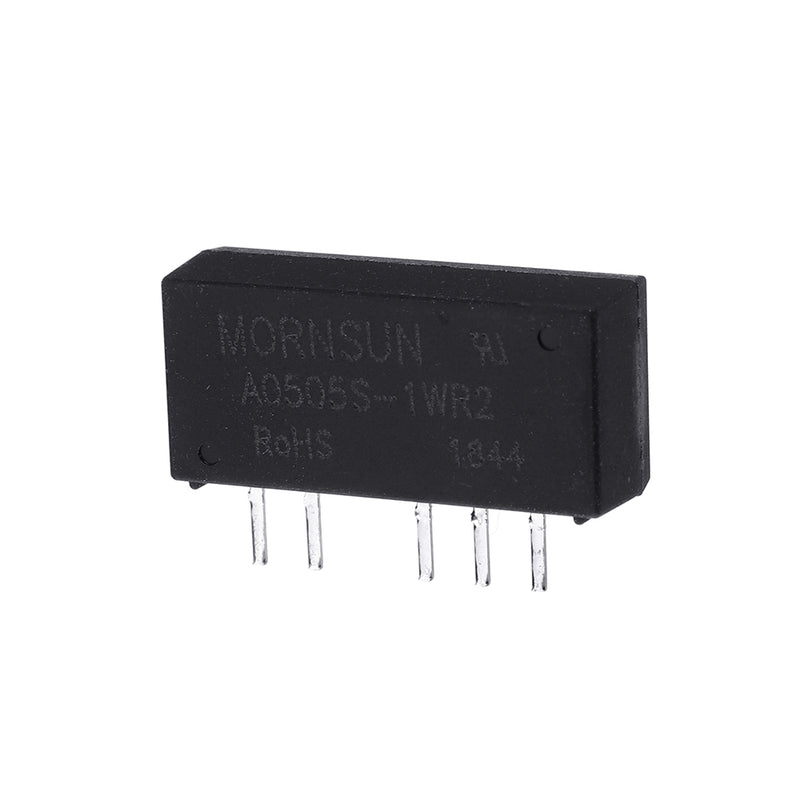

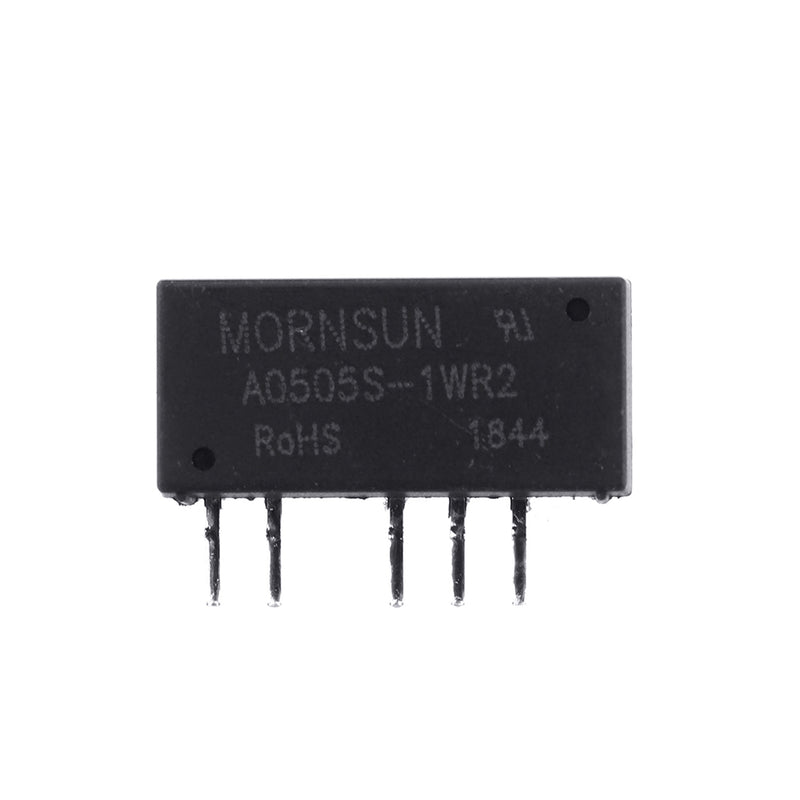

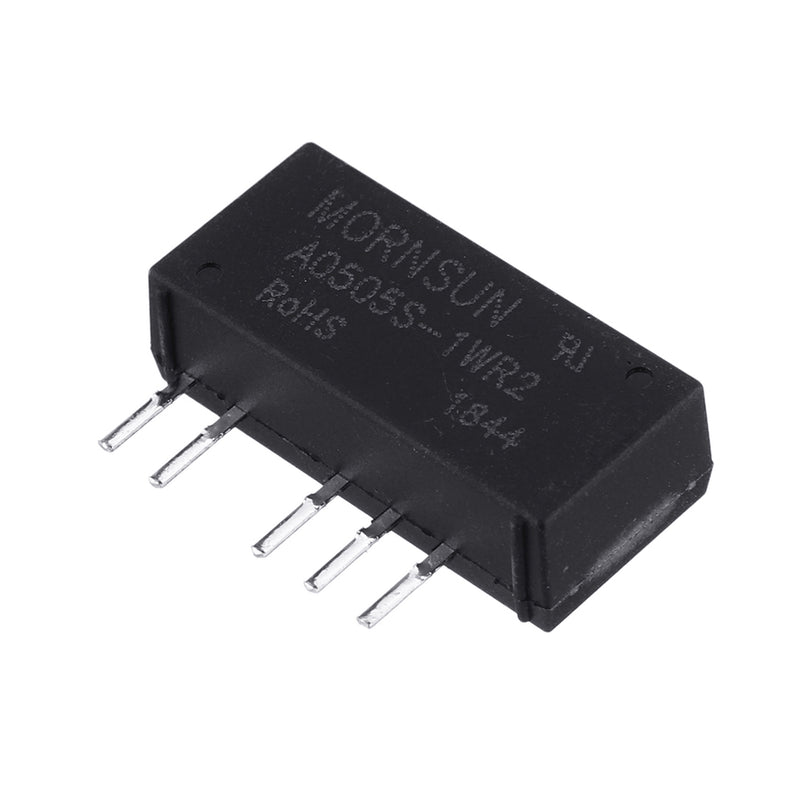

1 x A0505S-1WR2 DC-DC Power Supply Module Input 4.5-5.5V Output ±5V
