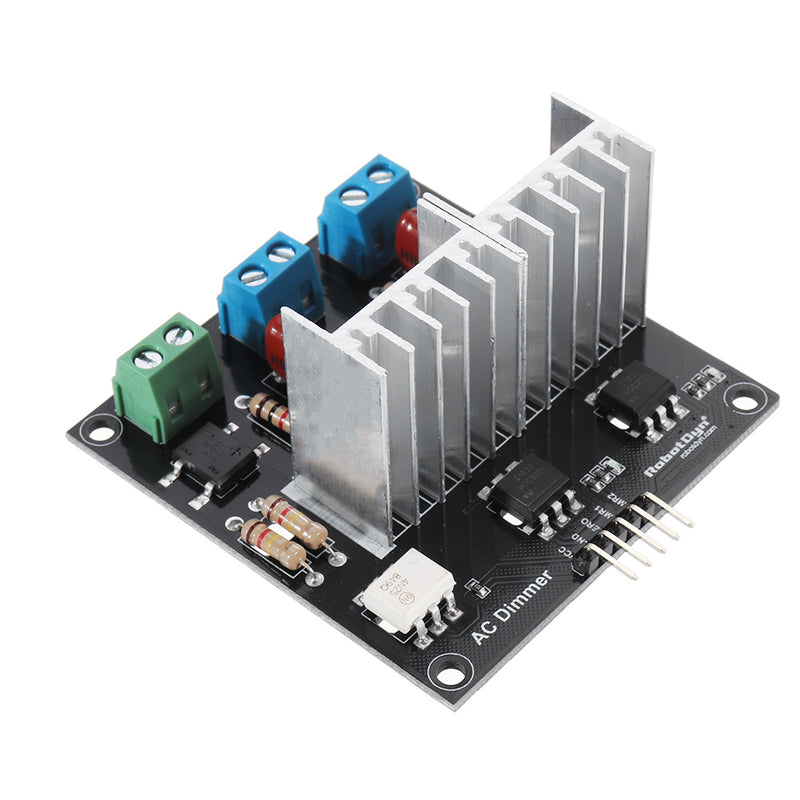

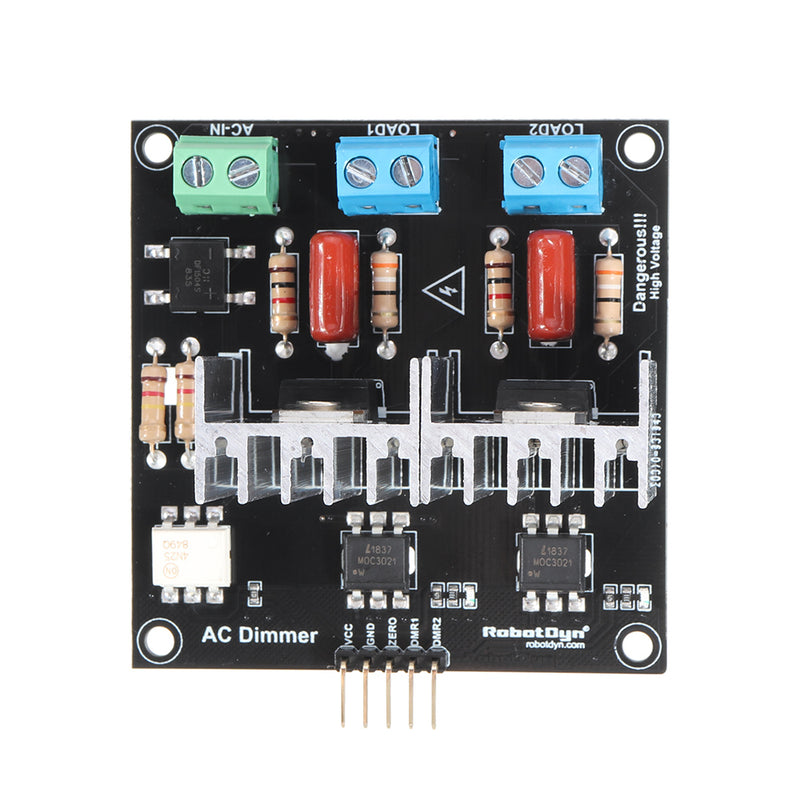

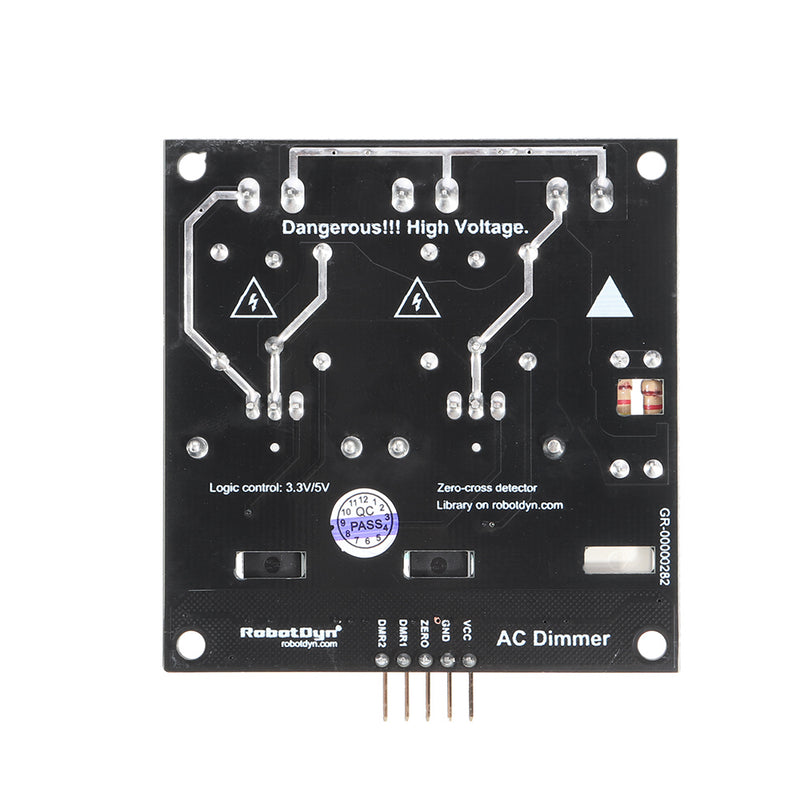

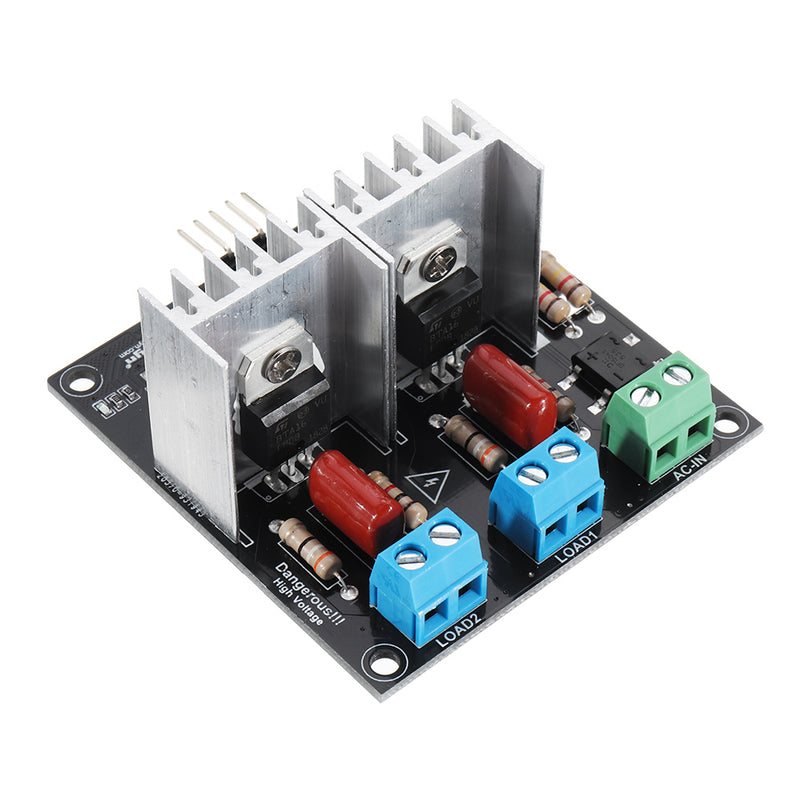

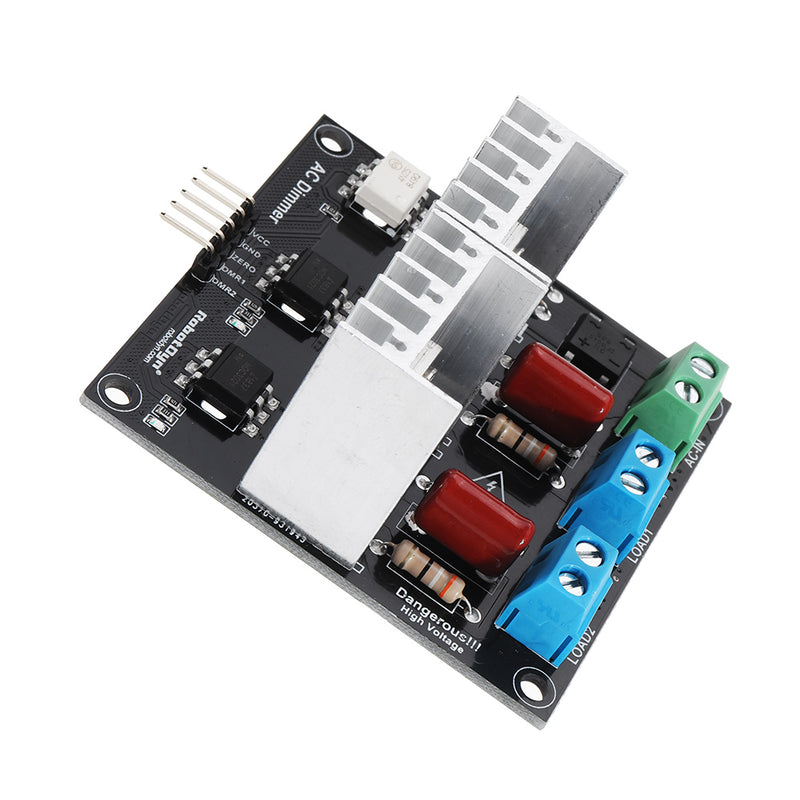

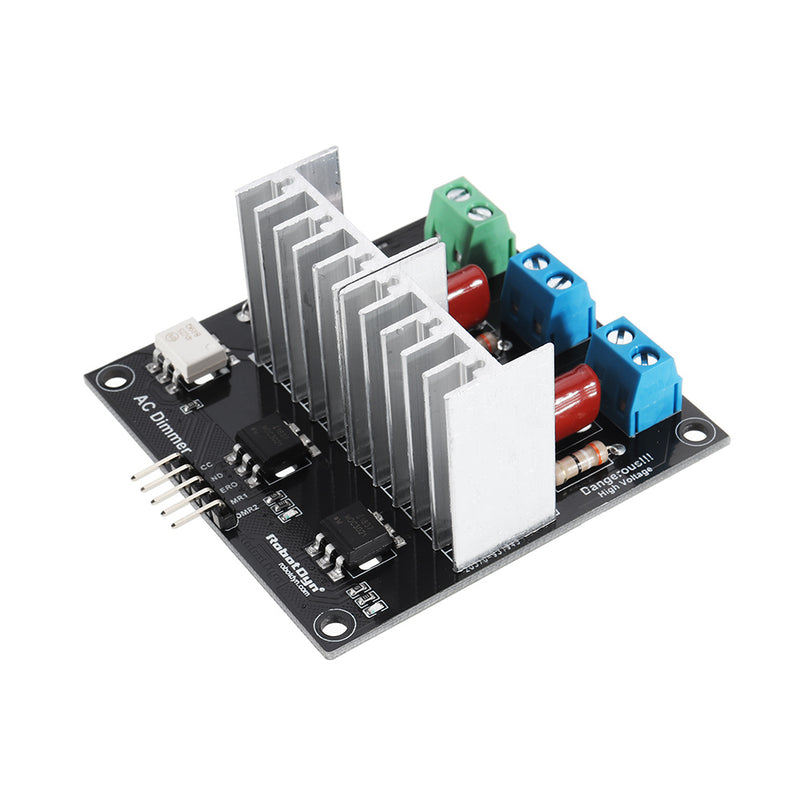

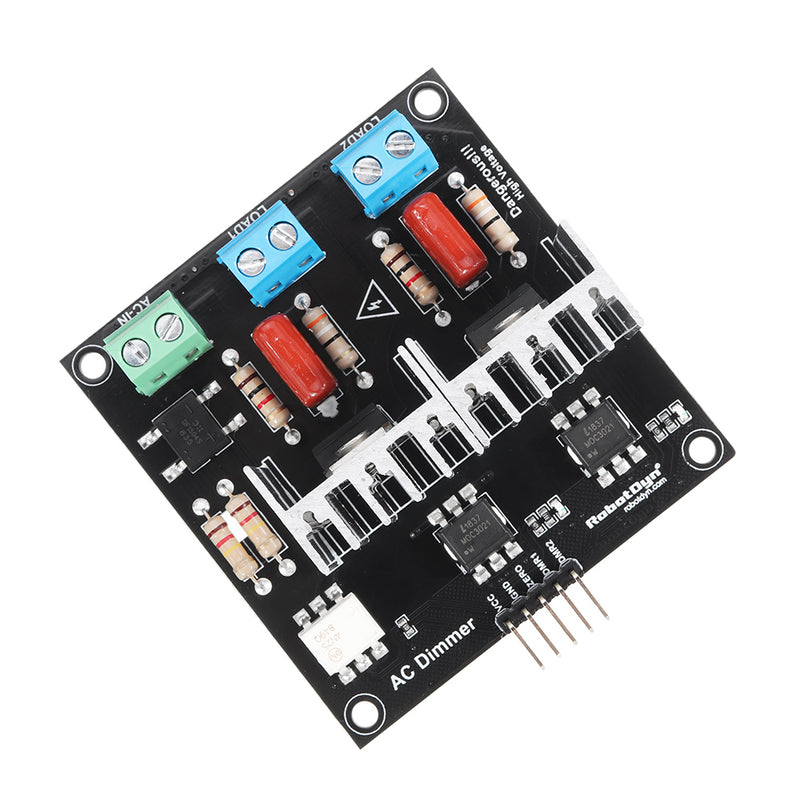

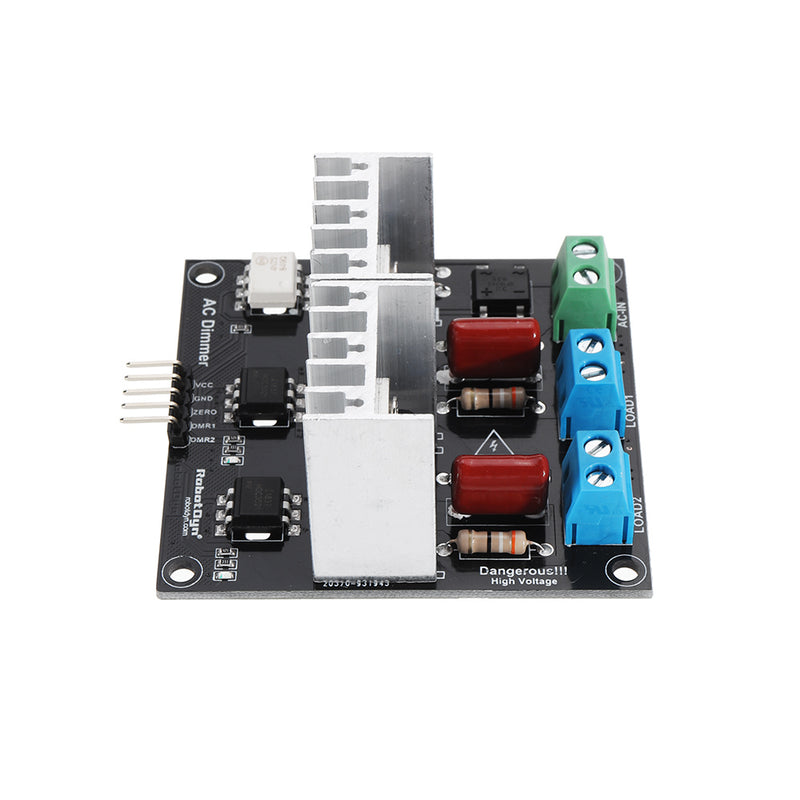

Overview:

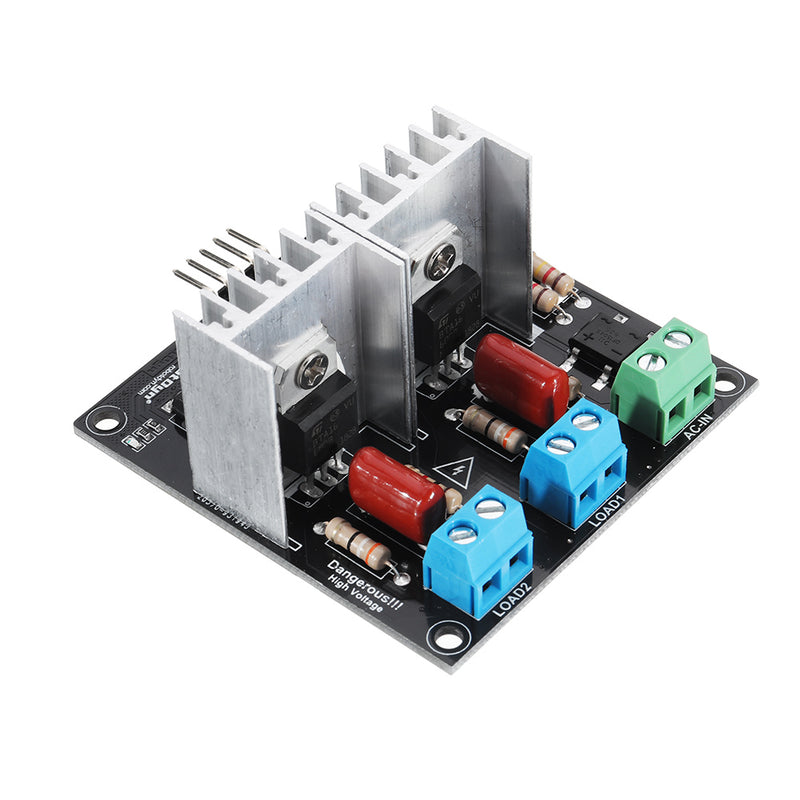

This is the good old AC Dimmer, but with 2 channels.
This one also can control the alternating current voltage in the same way.
It can be used with lamps, elements, fans, pumps, air cleaners, etc. So it’s the same thing, but twice bigger.
In the tutorial, you can see a simple example of what can be done with it.
Specification:
Power |
600V - 16A |
AC frequency |
50/60 Hz |
TRIAC |
BTA16 - 600B |
Isolation |
Optocoupler |
Logic level |
3.3V/5V |
Zero point |
Logic level |
Modulation (DIM/PWM) |
Logic level ON/OFF TRIAC |
Signal current |
>10mA |
Environment: |
For indoor and outdoor use |
Operating temperatures: -20°C to 80°C |
Operating humidity |
Dry environment only |
ROHS3 |
Compliant |
Environment:
For indoor and outdoor use
Operating temperatures: −20°C to 80°C
Operating humidity: Dry environment only
ROHS3 Compliant
Documents:
Documents (Instruction manuals, schematics, etc), links:
Library and sketch examples:
Package includes:
1 x AC Light Dimmer Controller
