Overview:
The B_S-1WR2 family is specifically designed for applications in the board power system that require a set of voltages that are isolated from the input supply. This product is suitable for
to:
1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin);
2. Requirements isolation between input and output (isolation voltage ≤ 1500VDC);
3. The output voltage stability and output ripple noise are not high.
Specifications:
Input voltage: 10.8-13.2V DC
Output voltage: 5V DC
Output current: 200/20mA (max/min)
Full load efficiency: 76/80
Maximum capacitive load: 220uF
Features:
- High power density
- Up to 86% efficiency
- Operating temperature range: -40°C to +105°C
- Small SIP / DIP package
- International standard pin mode
- Isolation voltage 1500VDC
Package Included:

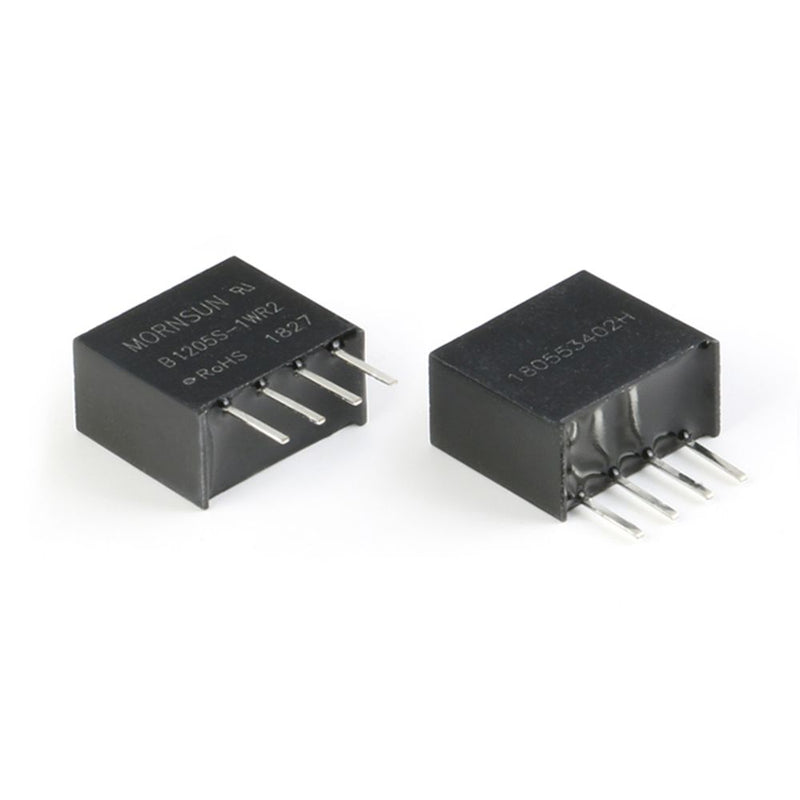

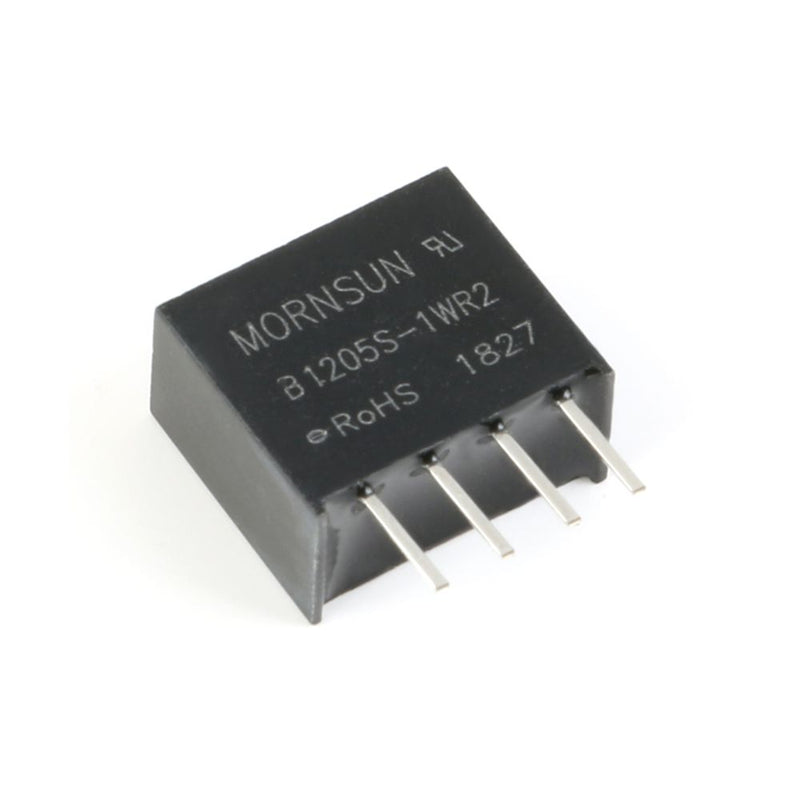

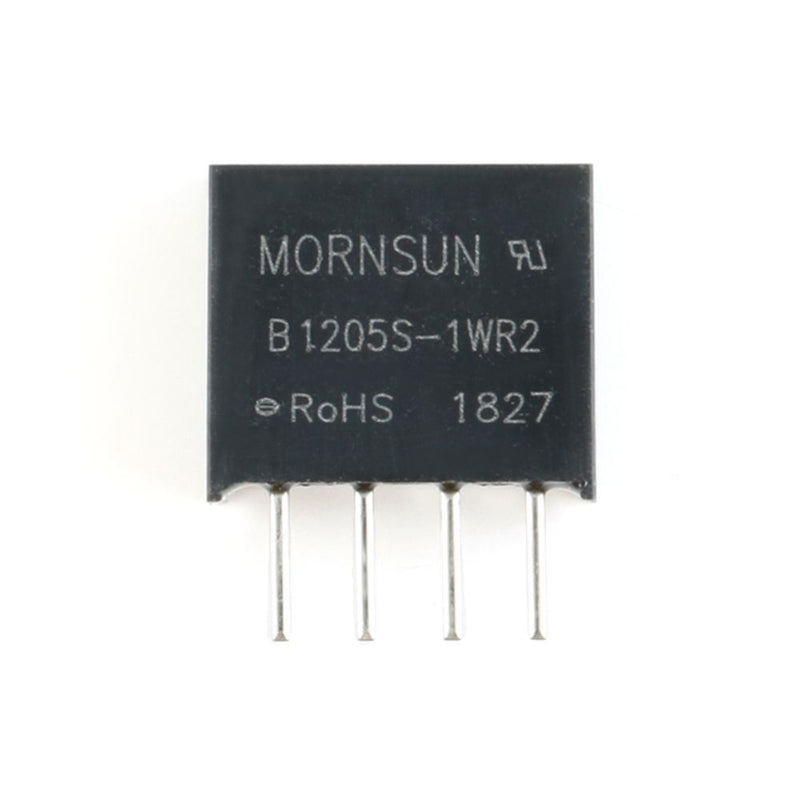

1 x B1205S-1WR2 DC-DC Power Supply Module Input 12V Output 5V
