Transformer: Product ID: 1210628
Introduction:This circuit voltage can be from 0 v, output current can be ma from 2 to 3 a continuously adjustable, set the output current, if the experiment circuit exceeds the current (including short circuit), the circuit protection immediately, not cause danger such as burning device.
Feature:
Input voltage: 24V AC
Input current: 3A maximum
Output voltage: 0 to 30V continuous adjustable
Output current: 2mA - 3A continuously adjustable
output voltage ripple: minimum 0.01%
All straight inserted element, make easy, only an adjustable components ( used to adjust the voltage of 0 v )
LED indicator for output over current, when the current exceeds the set data circuit protection, LED lighting, over load and short circuit protection Minimum current (2mA) under the measurable leds and zener diode
Notice:
Power production belongs to the high voltage large current circuit, please be sure to carefully, otherwise may cause harm to the personal safety
Package included:

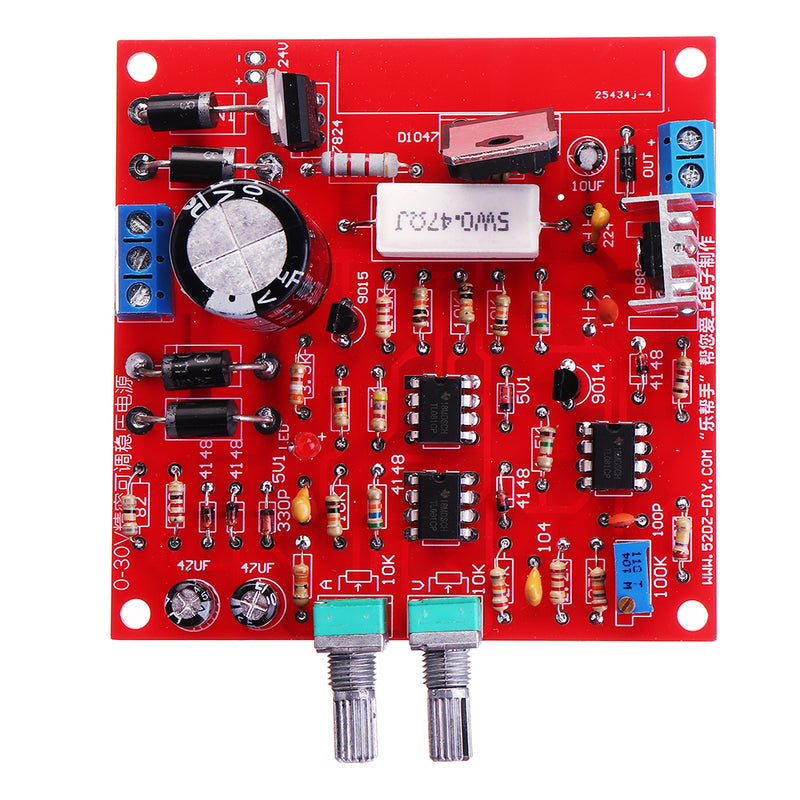

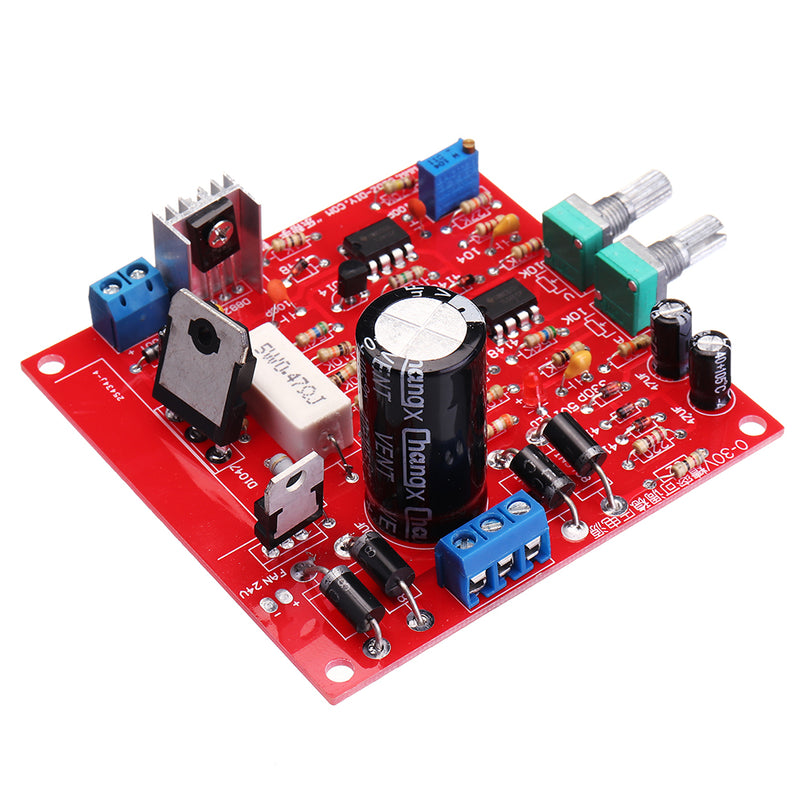

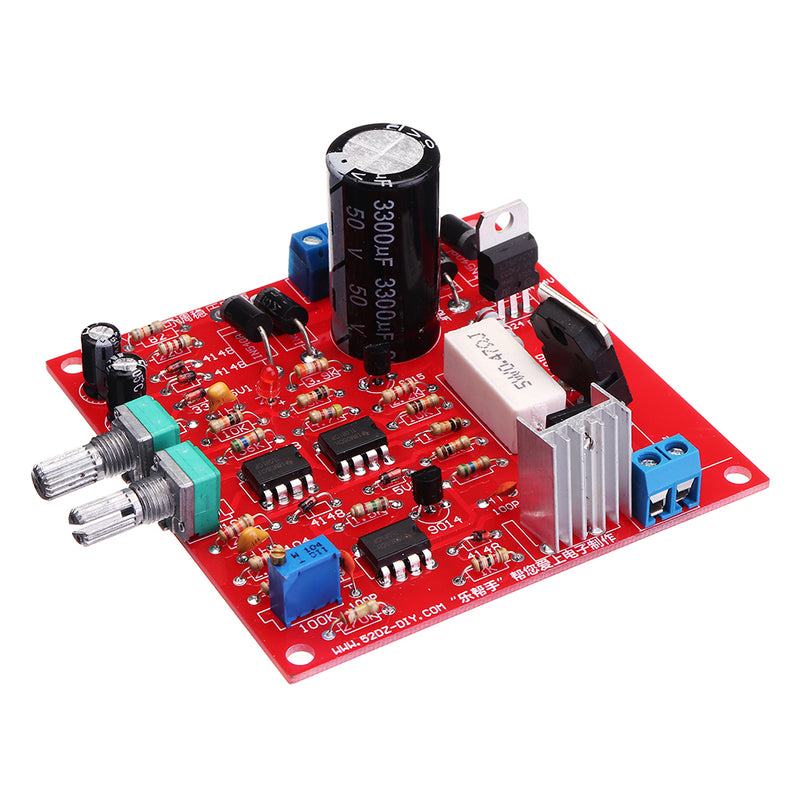

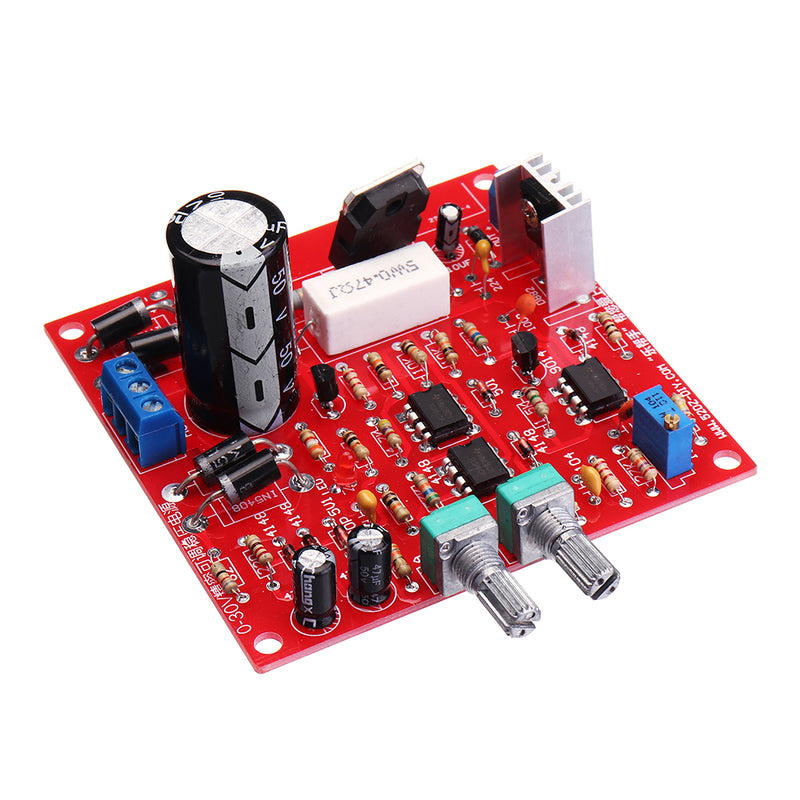

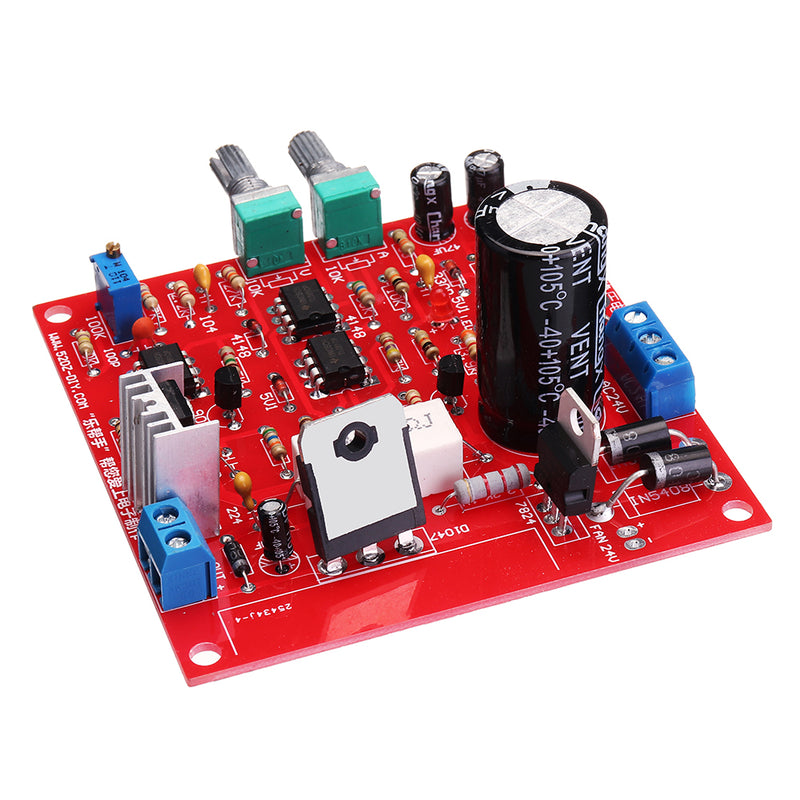

1 x Adjustable DC Regulated Power Supply Module
