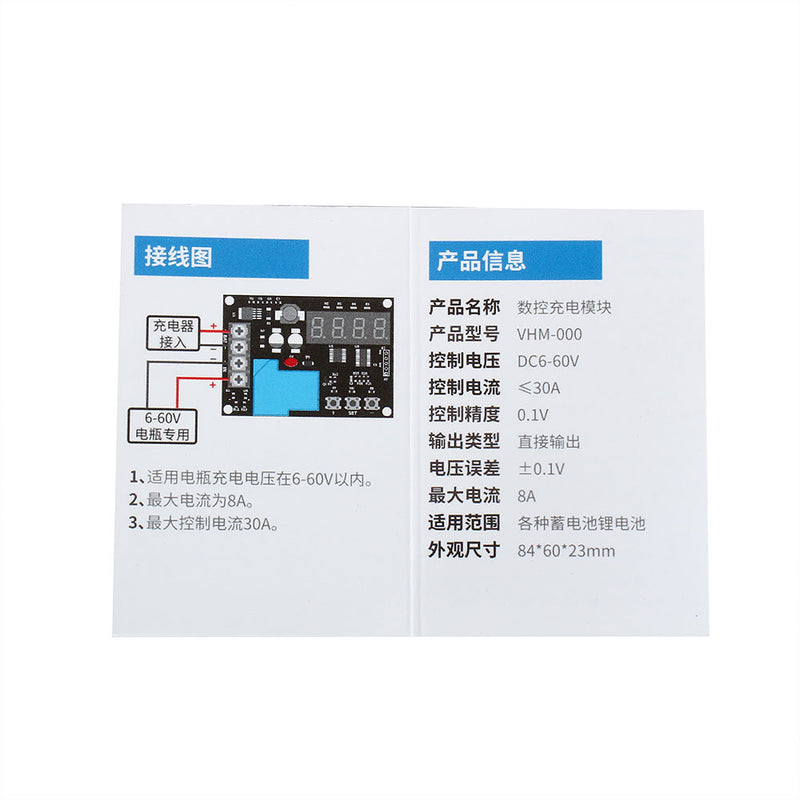

Specifications:
Model:XH-M600
Control Voltage :DC 6-60V
Control Current: max 30A
Control Precision:0.1V
Output Type:direct output
Voltage Tolerance:+/-0.1V
Application Fields: DC 6-60V battery
Size: 84*60mm
Using Method:
1:connect to battery(if not,won't have display)
2:press the "+" display upper limit volatge , long press will flashing ,then set the upper limit volatge (H)
3:press the "-" display lower limit volatge , long press will flashing ,then set the lower limit volatge (L)
4:connect to the charger
5:press the set close the display to save electricity
Package Included:

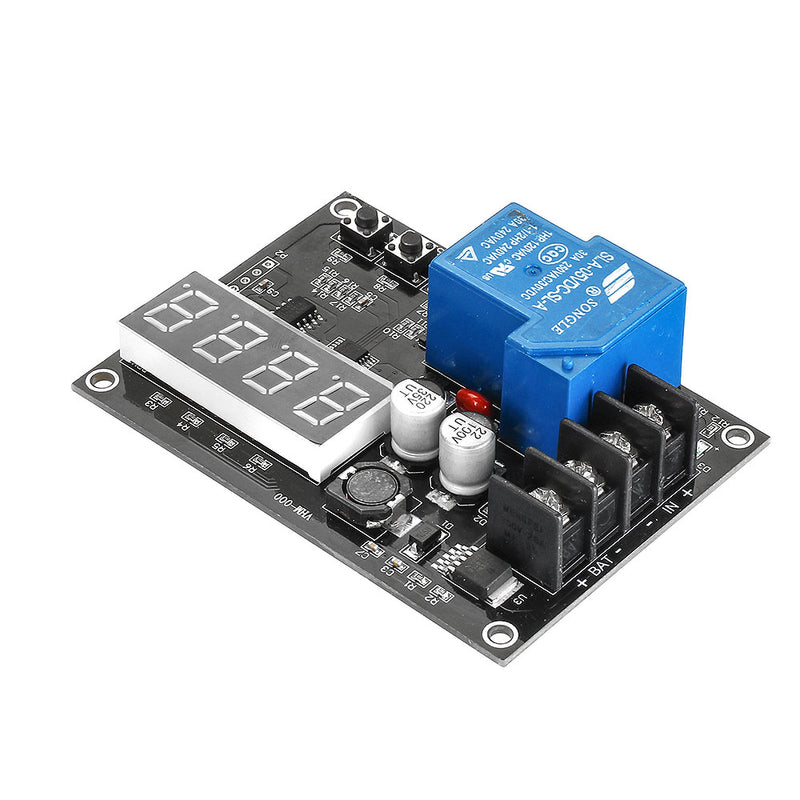

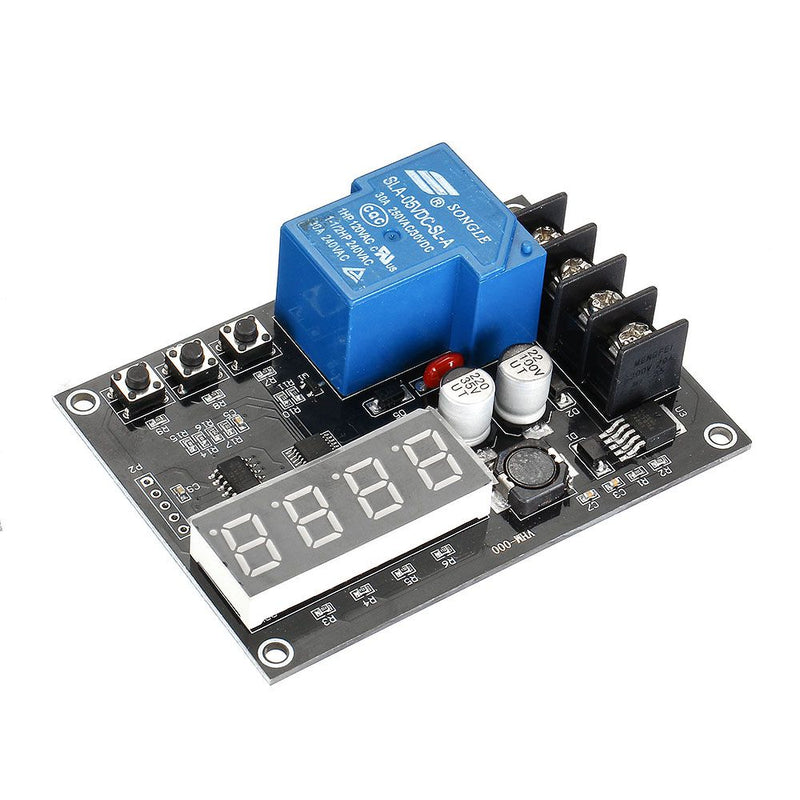

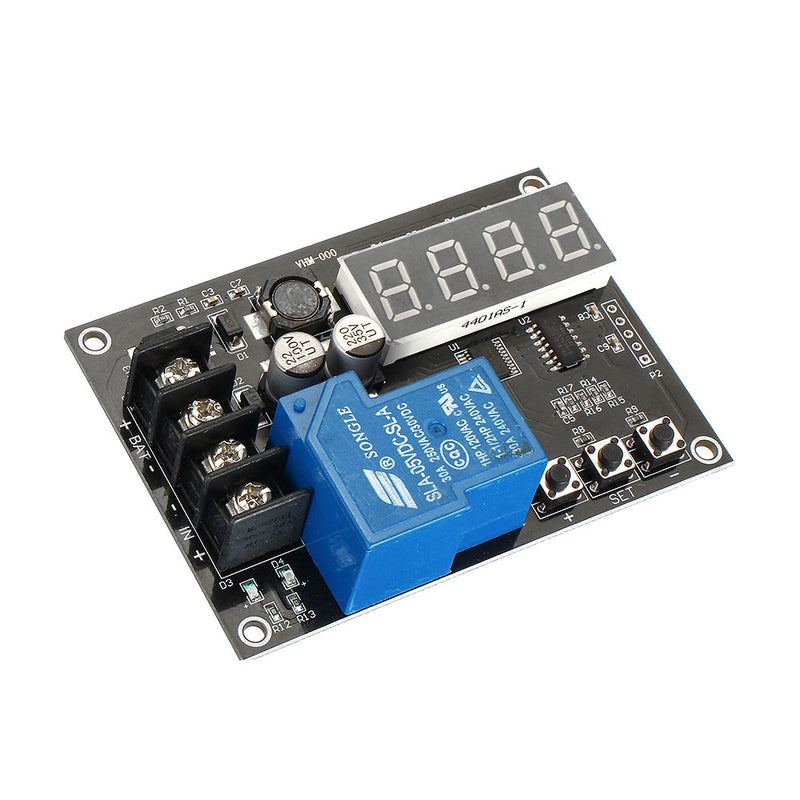

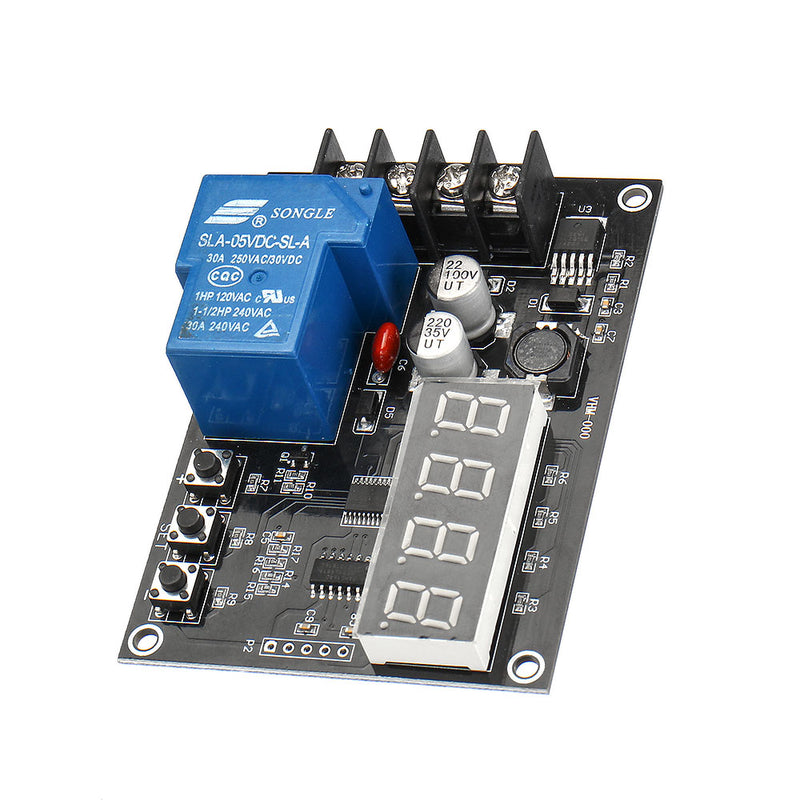

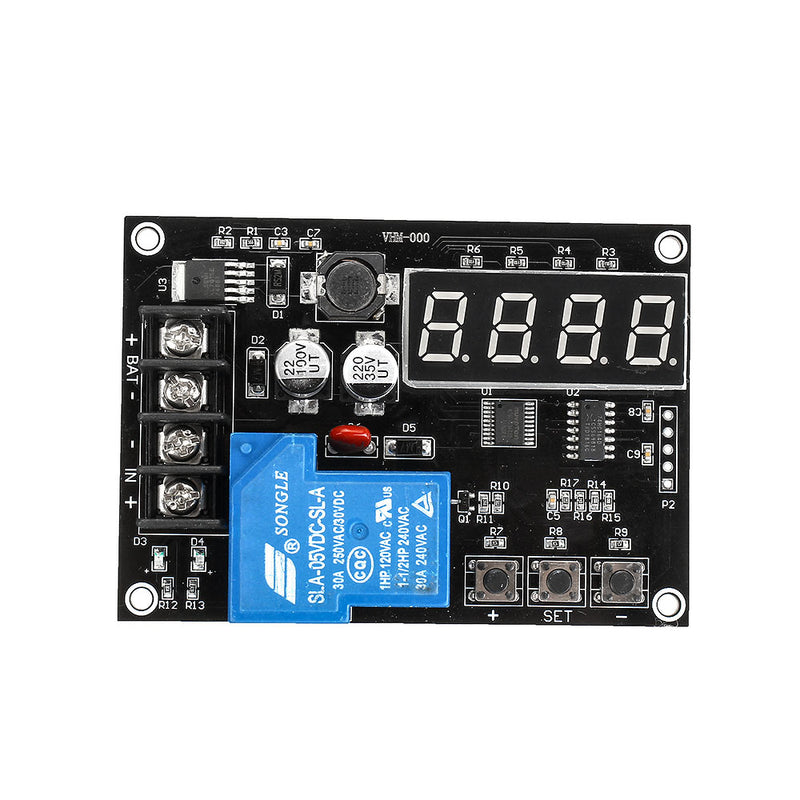

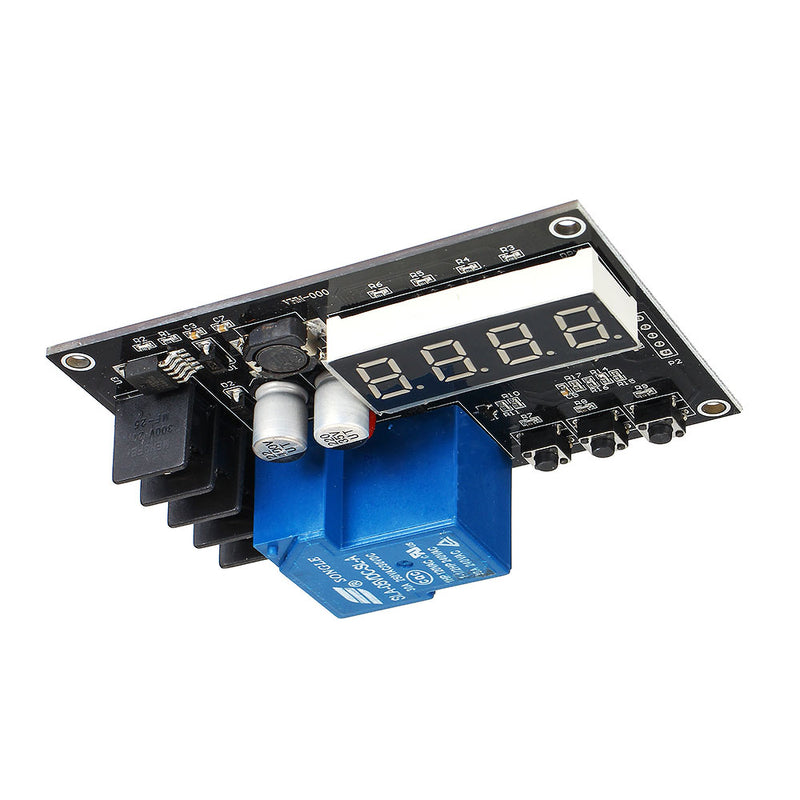

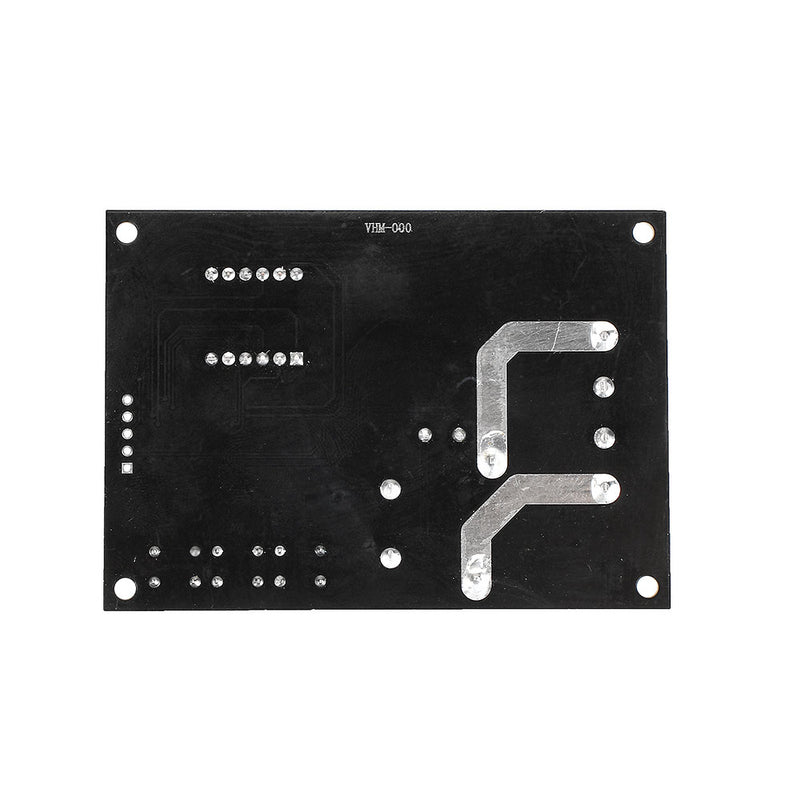

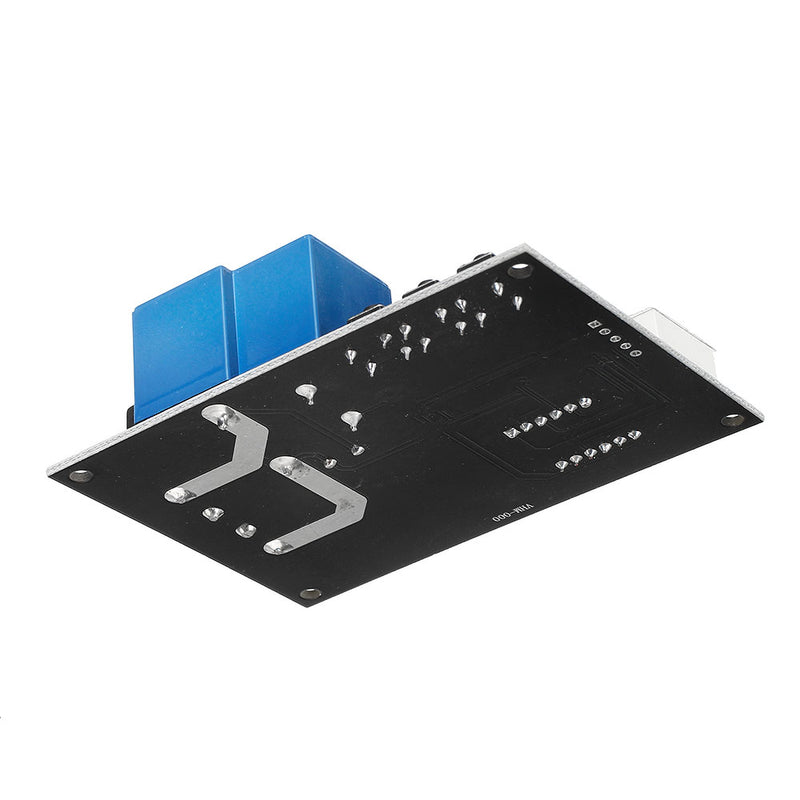

1 x XH-M600 Charge Control Module DC 6-60V
