Feature:Input voltage: AC110-220V
Output voltage: AC110-220V
Maximum load: 100W
Function:
1. L: Channel 1 & Channel 2 FireWire common input;
2. L1: Firewire output of channel 1;
3. L2: Firewire output of channel 2;
4. GND: Channel 1 & Channel 2 wall mechanical switch common input terminal;
5. SW1: the output end of channel 1 wall mechanical switch;
6. SW2: Channel 2 wall mechanical switch output;
7. Network configuration / local on / off key: Press and hold for more than 7S until the network indicator flashes quickly to configure the WIFI account and password for the WiFi switch through the APP; short press can be used to control channel 1 on / off

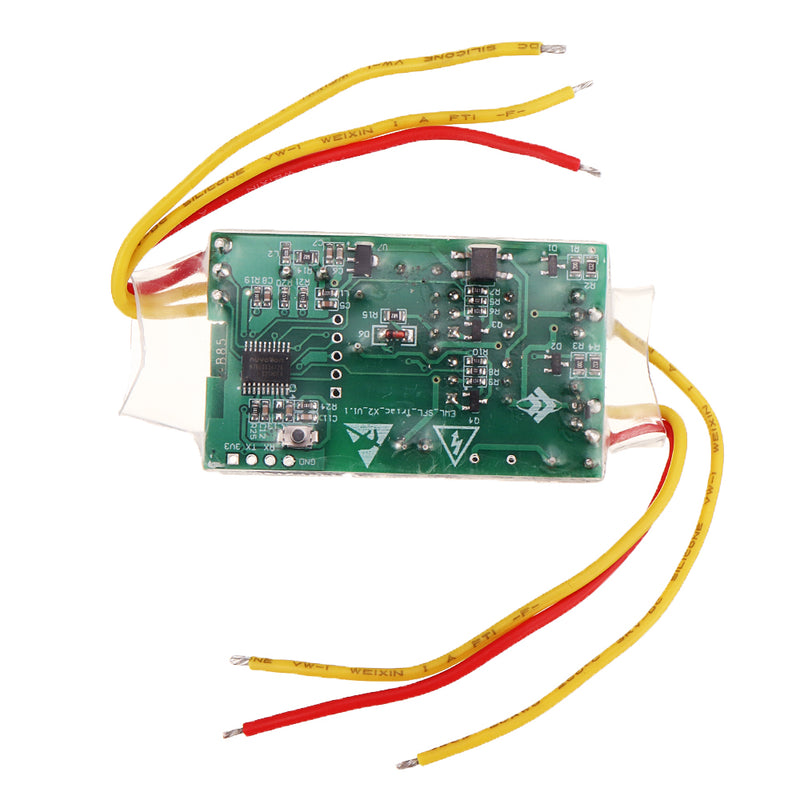

8. GND, RX, TX, 3V3: ESP8285 WiFi module program programming port, which can be used for secondary development firmware flashing (the network configuration key must be kept pressed during the flashing).

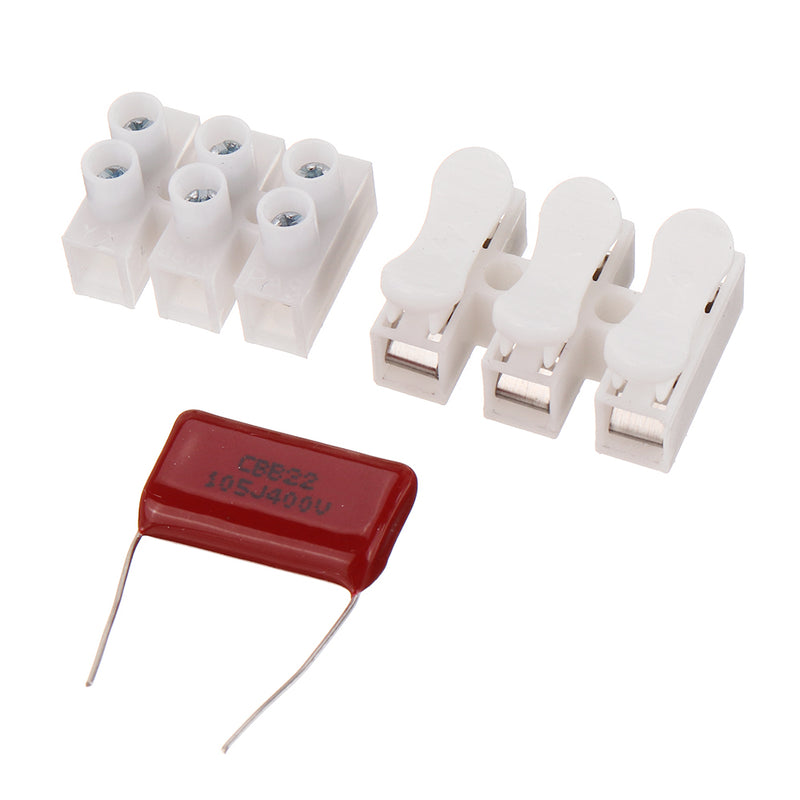

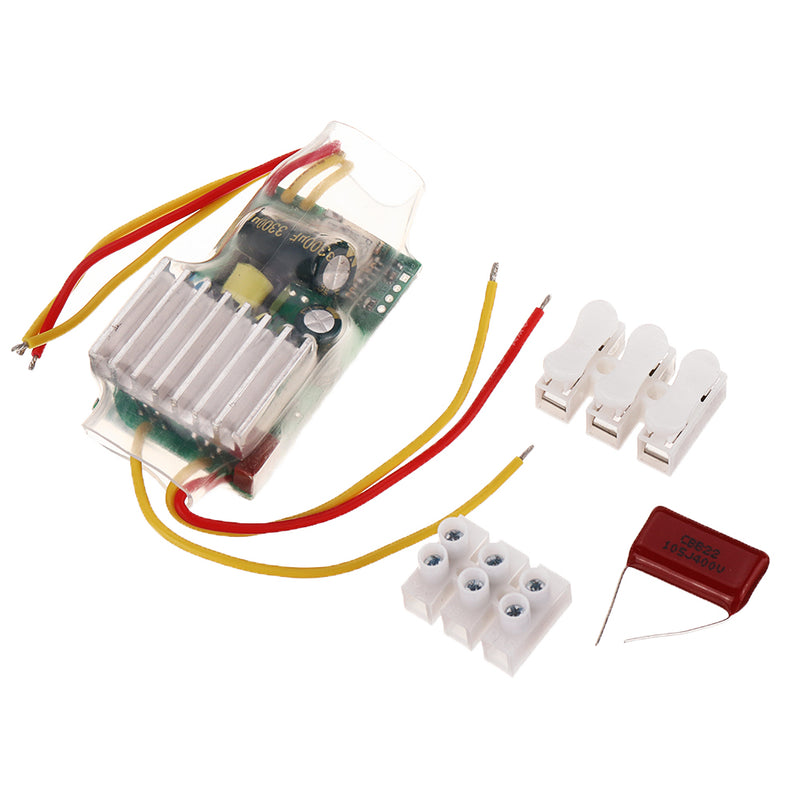

Package includes:
1 x Smart Switch
