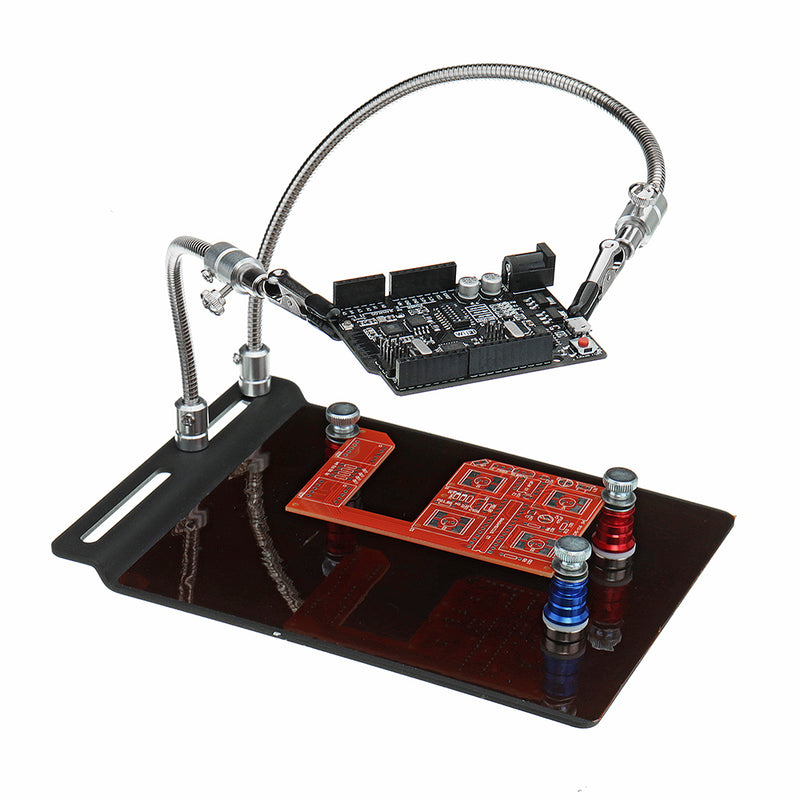

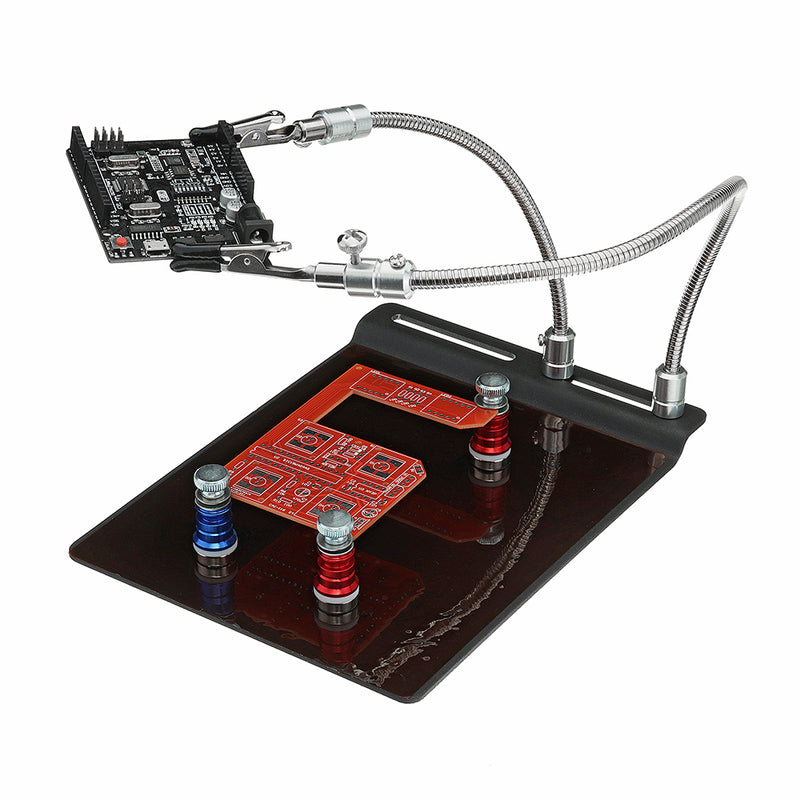

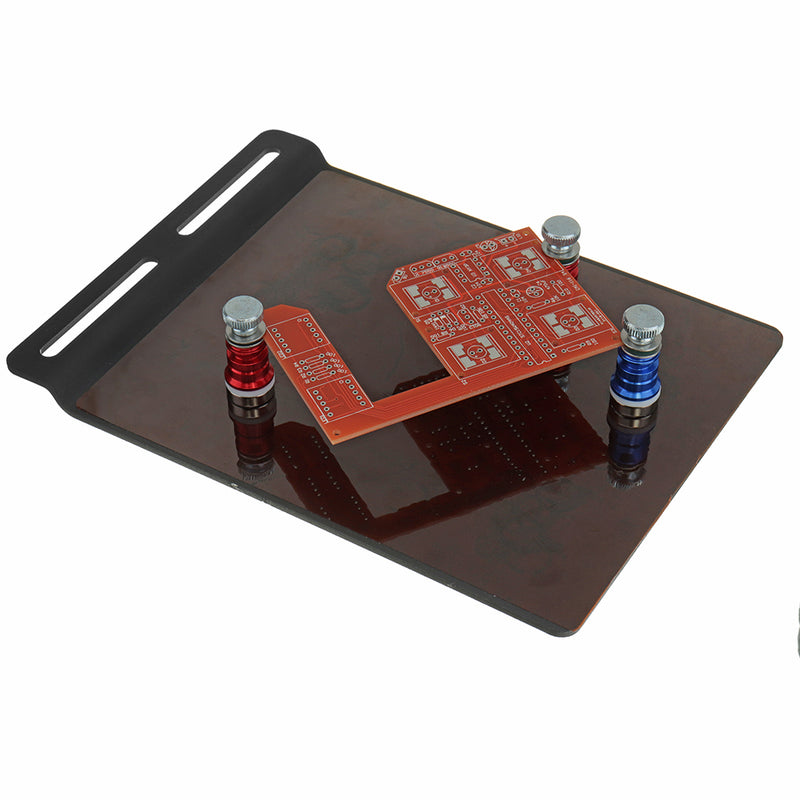

Features:A new universal magnetic fixture.
Help you to repair and repair easily.

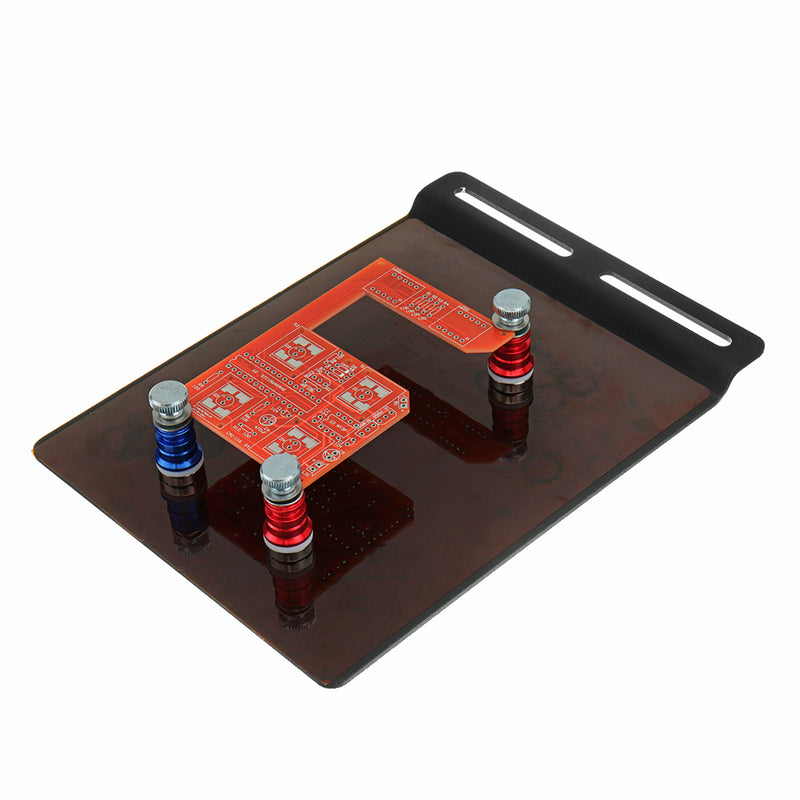

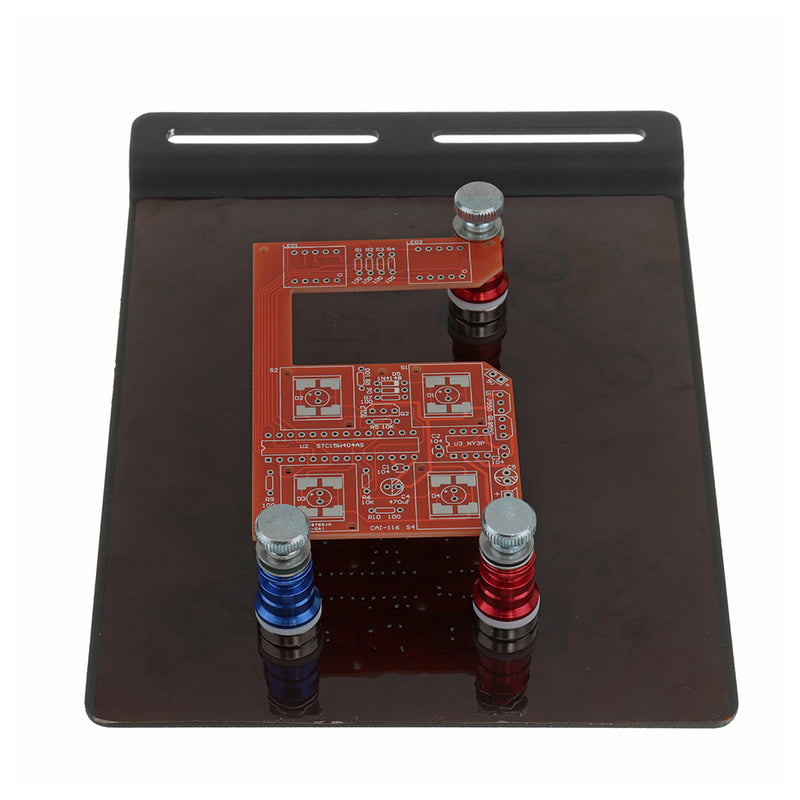

Randomly move the position of the red and blue magnetic column.

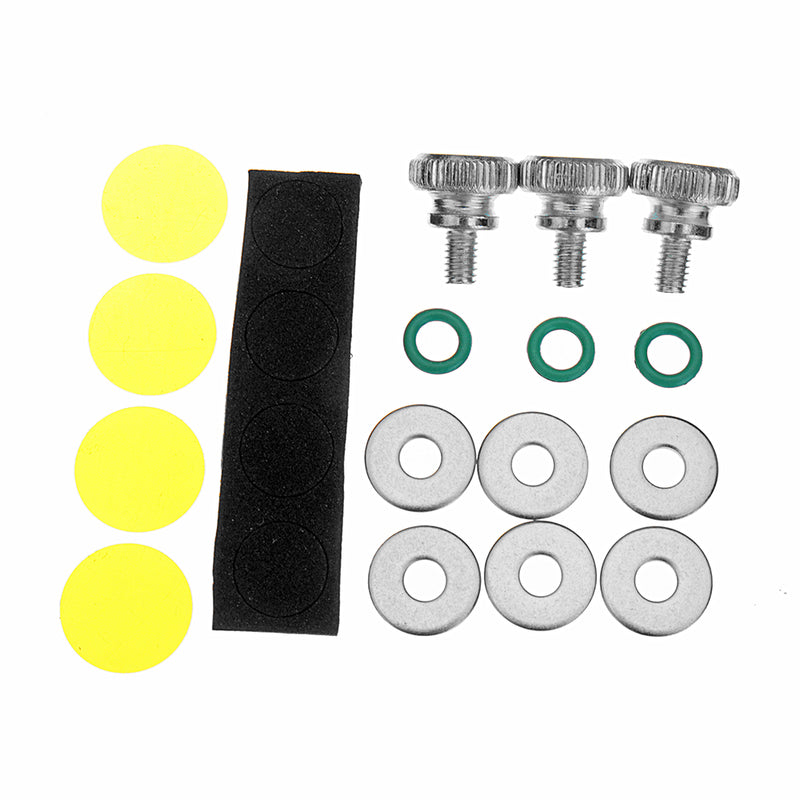

The insulating sheet help you to regulate friction and insulation.Comes with 3 pairs of red and blue magnetic column combination.
Base size: 200 x 145mm.
The base dimension is upgraded, the usable area expands twice times.
The user can be more convenient to operate, which can provide the welding efficiency.

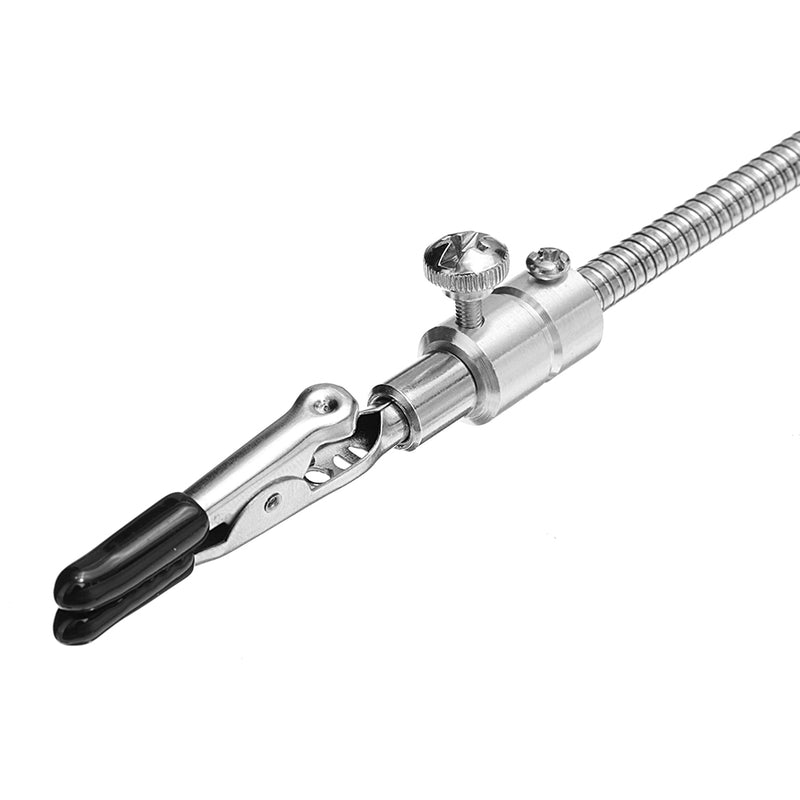

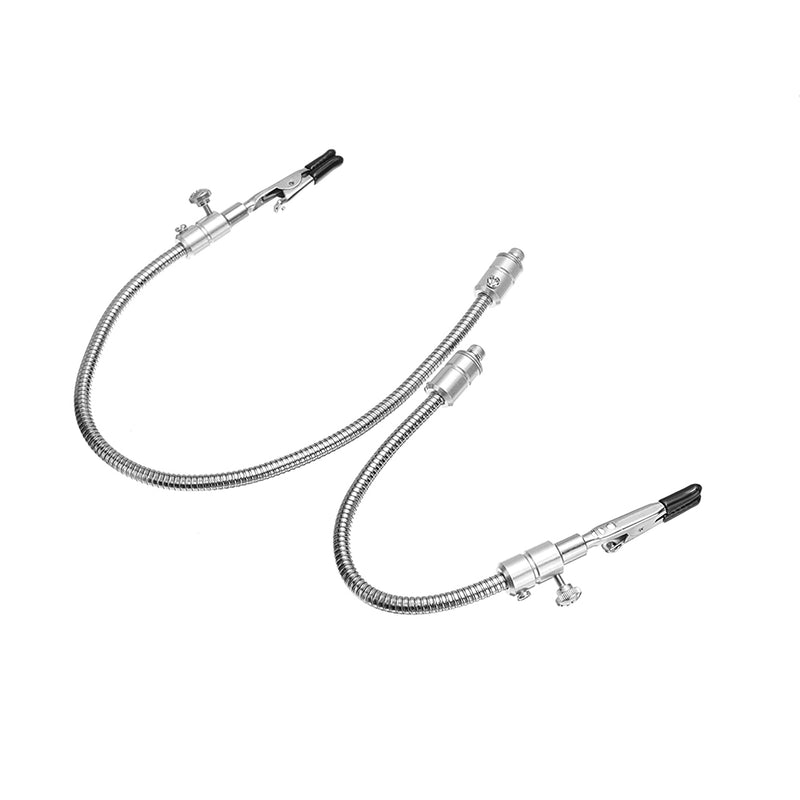

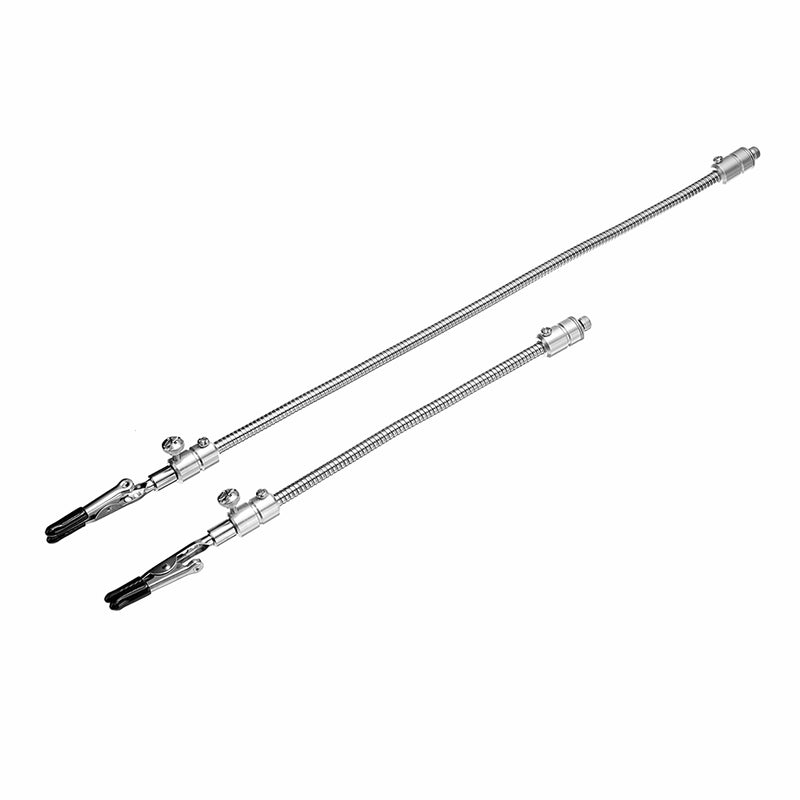

Comes with 160mm short arm (YP-003-1), and 300mm long arm (YP-003-2).
The plate uses a high quality spray treatment.
All the fixed columns are electrochemically processed.

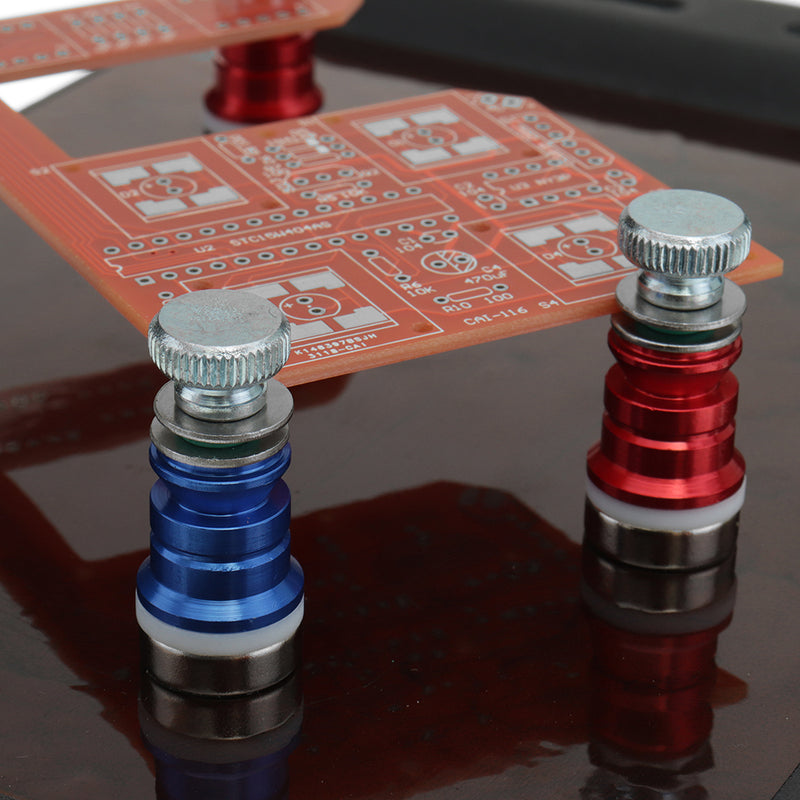

The red and blue colors of the stationary columns are attracted to each other, so the use of red and blue columns for fixing the small plates will make the combination even better.
After electrification, column is insulated and can hold the PCB for debugging or maintenance, but it should still not touch the solder joints or lines as much as possible.
Package Included:
1 x YP-004 PCB Fixture Base3 x Pairs Red and Blue Magnetic Column1 x Insulating Sheet 1 x 160mm Short Arm
1 x 300mm Long ArmDetail Pictures:
