Item Name: RSP1 FM AM SSB CW Aviation Band Simple 10KHz to 1GHz SDR Radio Receiver Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Simple 10KHz to 1GHz SDR Receiver Compatible with FM AM SSB CW Aviation Band RSP1 Software Defined Circuit Ham Radio Receivers
Feature:
SDR RSP1 Software Defined Radio Receiver, Amateur Radio Ham.

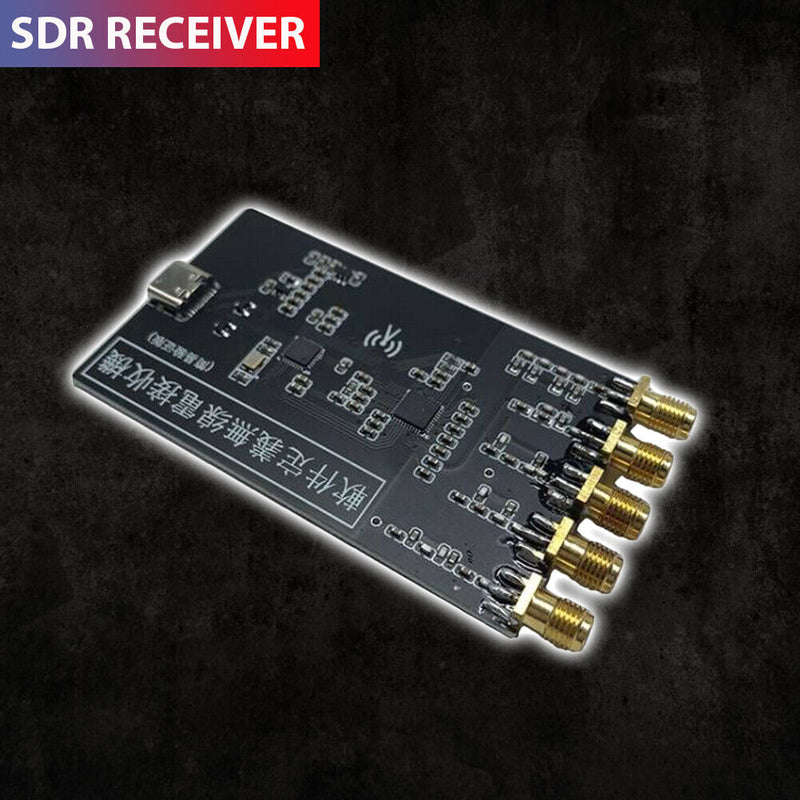

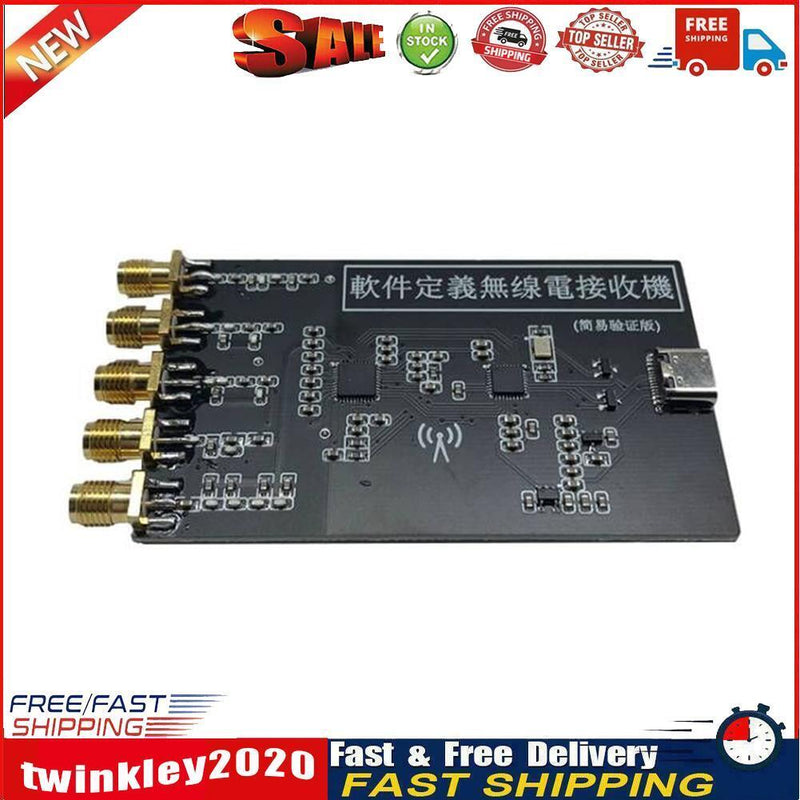

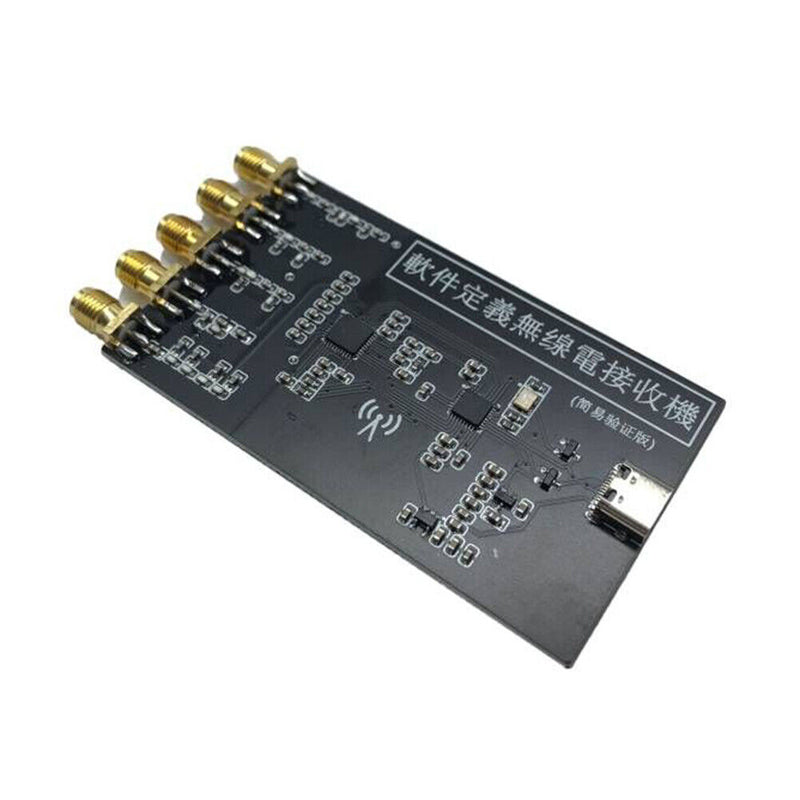

The msi2500 msi001 solution simplifies the SDRplay RSP1 circuit, the interface is a USB Type-C interface (for Android mobile phone interface), a double-layer board, adopts the Jialichuang SMT SMT process, and the 5 antenna interfaces correspond to different frequency bands.
The effective frequency range is 10KHz to 1GHz, the ADC resolution is 12bit, and the whole segment is 10M real-time visual bandwidth (10M wide signal range can be monitored in real time, such as 430-440MHz).
FM frequency modulation, AM amplitude modulation, SSB single sideband, CW constant amplitude telegraph, ATC control, regional modulation, aviation, railway frequency bands, ADS-B broadcast automatic dependent surveillance, wide and narrowband analog, digital intercom, DMR digital intercom, DRM Digital broadcast, SSTV imagery, NOAA weather cloud map, radio astronomy monitoring, ISS International Space Station and more.

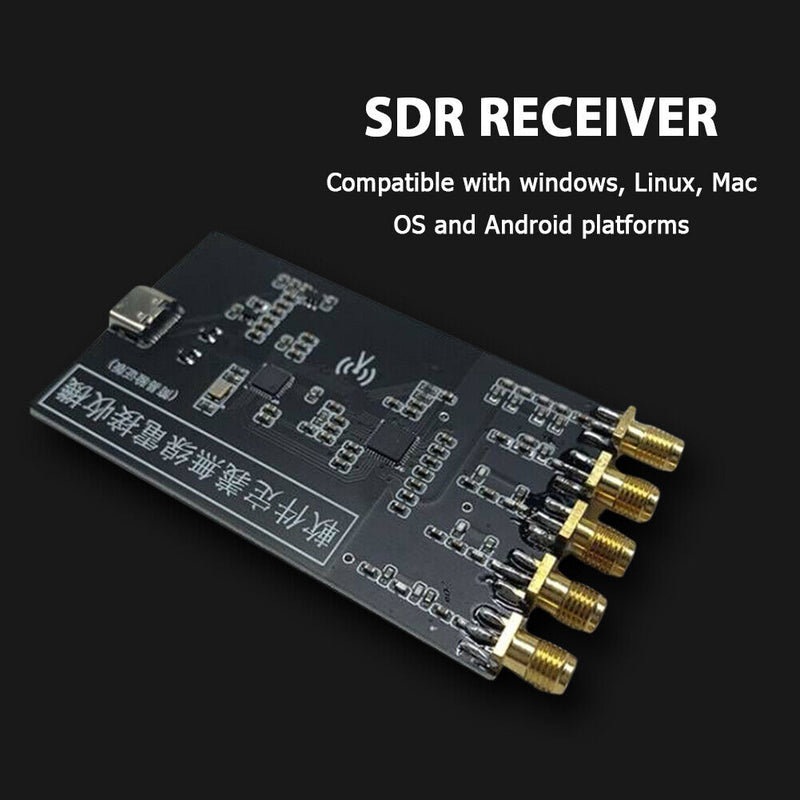

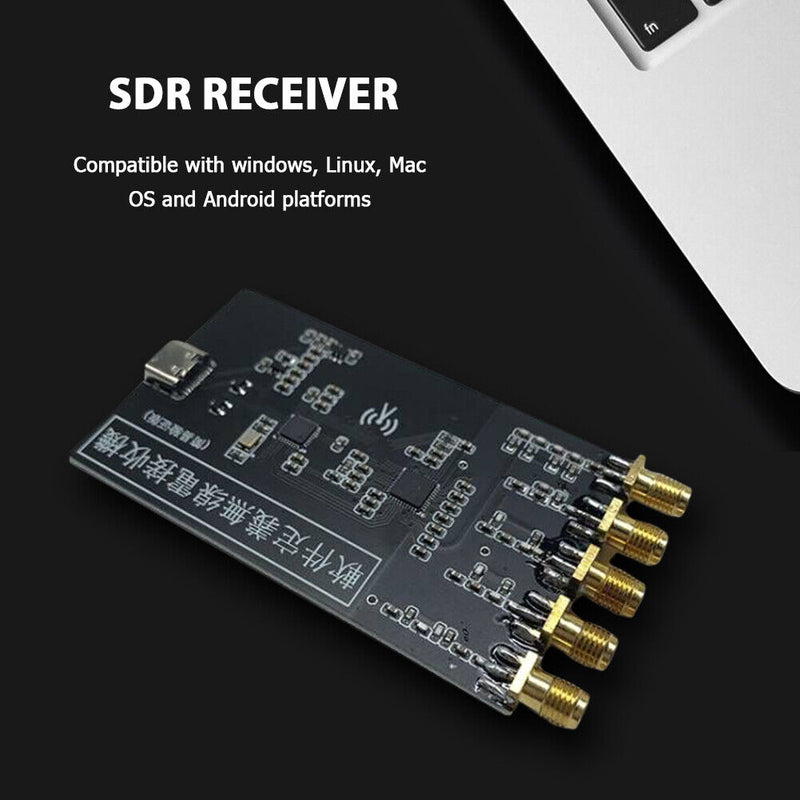

Compatible with the four major platforms of for Windows / Linux / Mac OS, and for Android, and perfectly supports mainstream software such as for SDRuno / SDR Sharp / HDSDR / SDR consol / GNURadio, and for SDR Touch. (for Android devices need to support OTG)
Specification:
Product size: 87*48*10mm
Product weight: 40g
Packing size: 100*70*15mm
Packing weight: 40g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
