Item Name: 1000 Yards Digital 7x Range Finder Telescope Distance V5Y0 Golf Hot H6O4. Description
100% brand new, high quality
Mode: Green mode and regular mode
The farthest test distance: 930 meters (about 850m)
Battery: 2 CR 2032 3 V batteries (included)
Size: about 90mm50mm38mm
When used as a 7x spotting scope, it is very suitable for outdoor activities (boating, photography, etc.).
Main parameter index:
Objective lens: 28mm
Eyepiece: 16mm
Resolution: 13
Magnification: 7 times
The farthest test distance: 930 yards (1 yard = 0.914 meters)
Viewing angle: 7.8

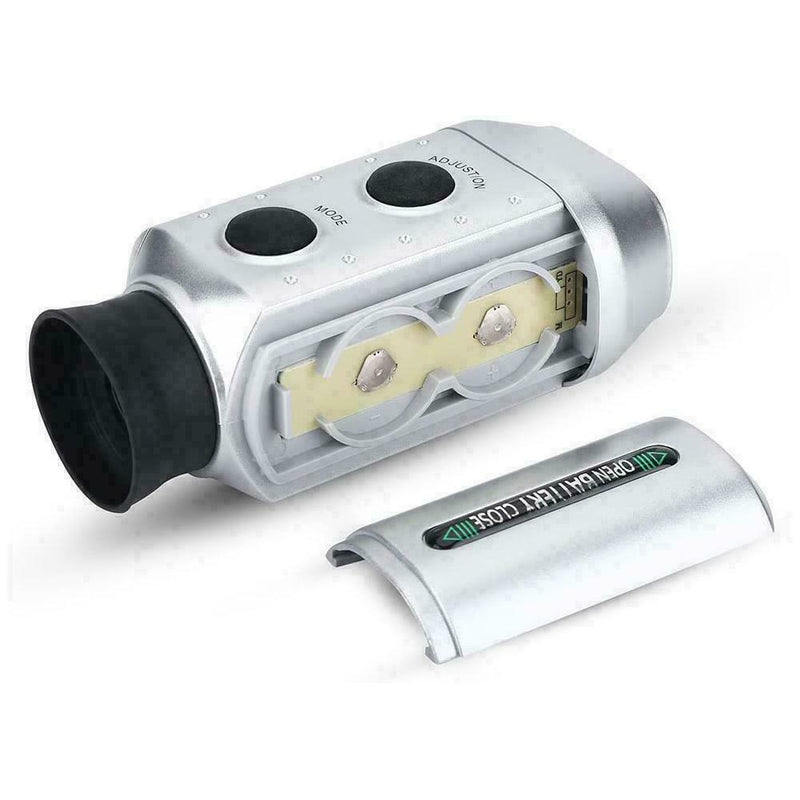

Power supply: use two cr2032 button batteries
One feature

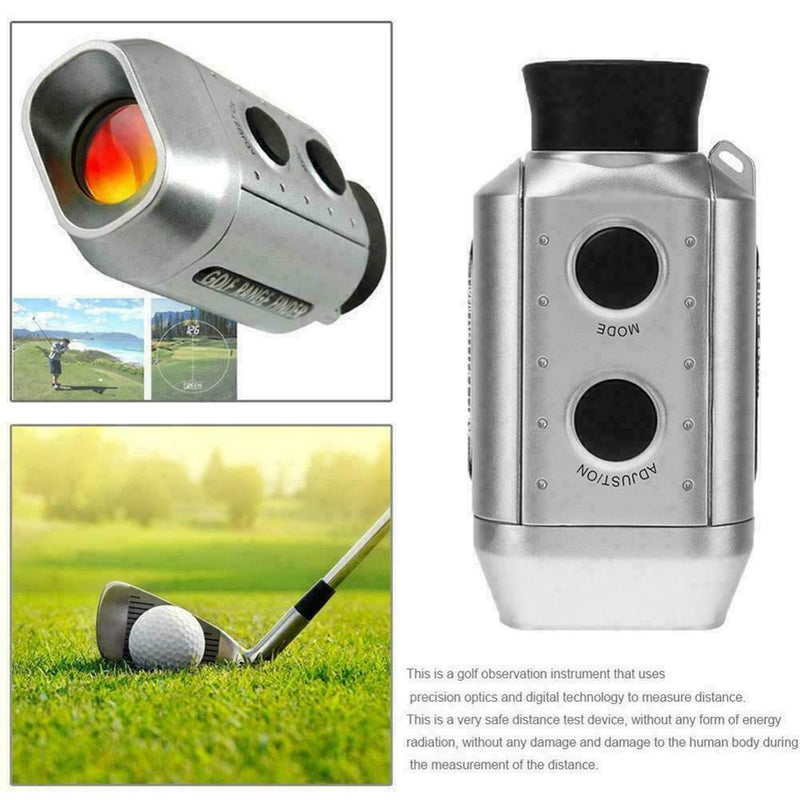

This is a newly invented golf observation instrument that uses precision optics and digital technology to measure distance. This is a very safe distance testing device. It does not emit any form of energy and does not cause any damage to the human body during the activities of measuring distance. And destruction.
Two two functions
1.GREEN MODE (turf function)
This feature is specially designed for golfers, you can easily get the distance between your holes.
2.GENERAL MODE (general function)
This function is suitable for ordinary situations.First, you enter the height of the target to measure the distance between you and the target.
Instructions
1.Press the switch/adjustment key to start the instrument, and An will directly enter the lawn function.
2. When playing golf:
The height of the ruler in yards (2.6 yards) has been entered.
(1) Align the bottom line of the screen with the horizontal line of the lawn.
(2) Press the switch/adjustment button to adjust the position of the scan line up to the top of the golf flagpole.
(3) The number will appear at the top of the screen, reminding you of the distance to the hole.
3. Used to measure the distance of special targets
When the function key is pressed, the instrument enters the general function state, and the screen will display three digits and one decimal point.
If you want to check the distance between you and the target, please enter its height.
(1) Press the switch/adjustment key to enter the general function status, the screen will display three digits and one decimal point.
(2) Press the function key to move to the tens digit, and then press the switch/adjustment key to input the number, the range is also 0 to 9.
(3) Repeat the above steps to set the number of digits and one digit below the decimal point.
(4) Press the function key to end the above input process.
(5) According to the height you input, the screen will display the minimum distance you can measure.
(6) Align the bottom line of the screen with the bottom line of the target.
(7) Press the switch/adjustment key to adjust the position of the scan line up to the top of the target.
(8) A number will appear at the top of the screen to remind you of the distance between you and the target.
Precautions
1. The displayed distance is consistent with the entered height unit.
2. The power will automatically switch after 60 seconds after the operation.
3. Attention! Please do not use this product to observe the sun with naked eyes, it will cause permanent damage to your eyes
Quality first, provide the best service. Customers are our friends.
Stylish design, 100% brand new and high quality!
Note:
1. For photos, please allow slight color difference
2. Due to manual measurement, the size may be different
Package Included:
1pc golf rangefinder
A
