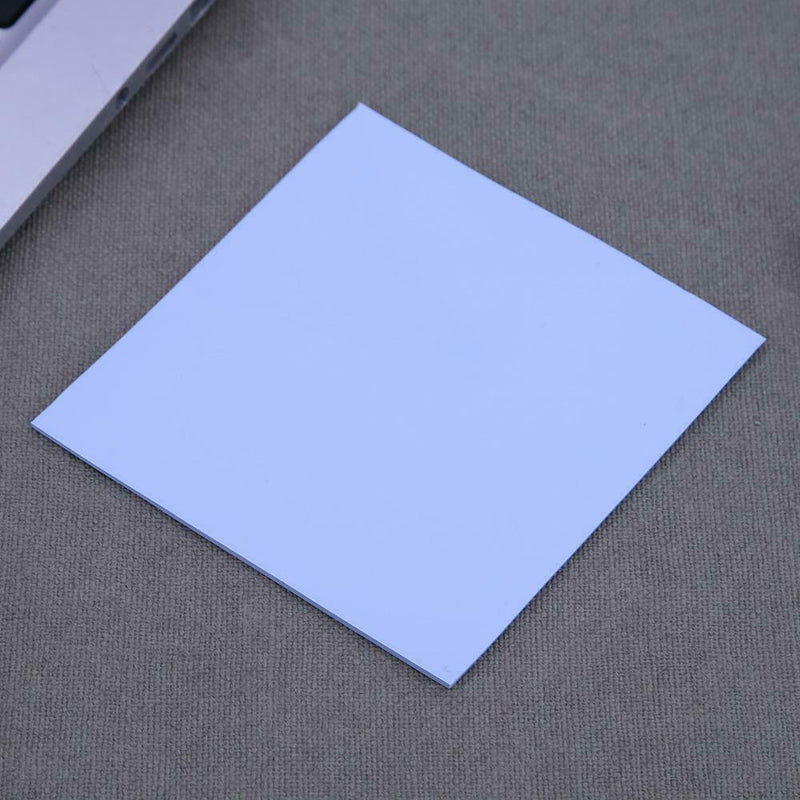

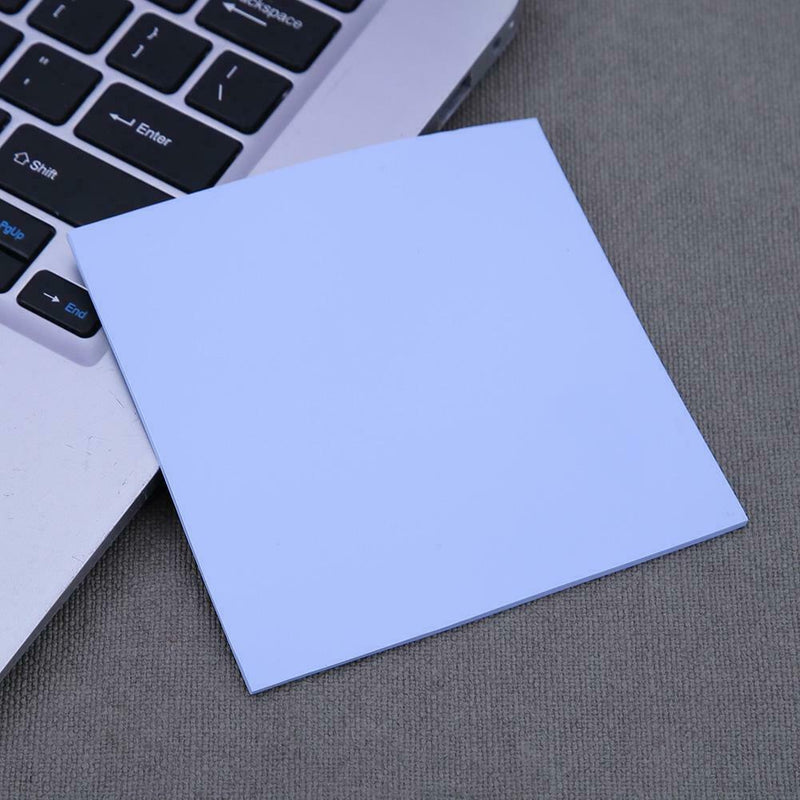

100x100mm 0.5mm Silicone Thermal Pad Sheet Computer CPU Graphics Chip Heat Sink
0.5mm Thermal Pad Sheet Heat Sink for Computer CPU Graphics Chip 100x100mm
Specifications:

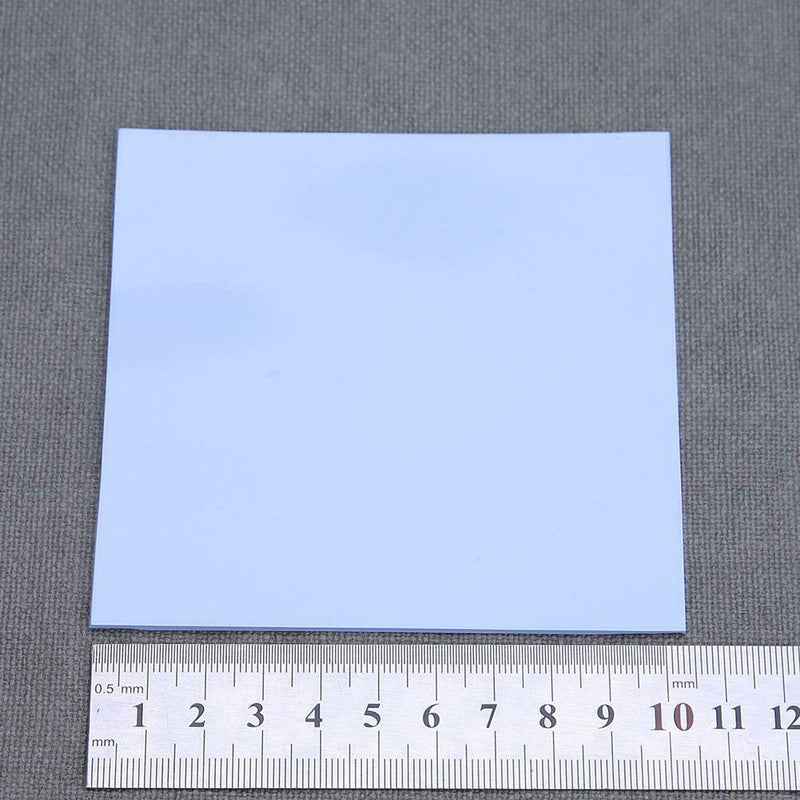

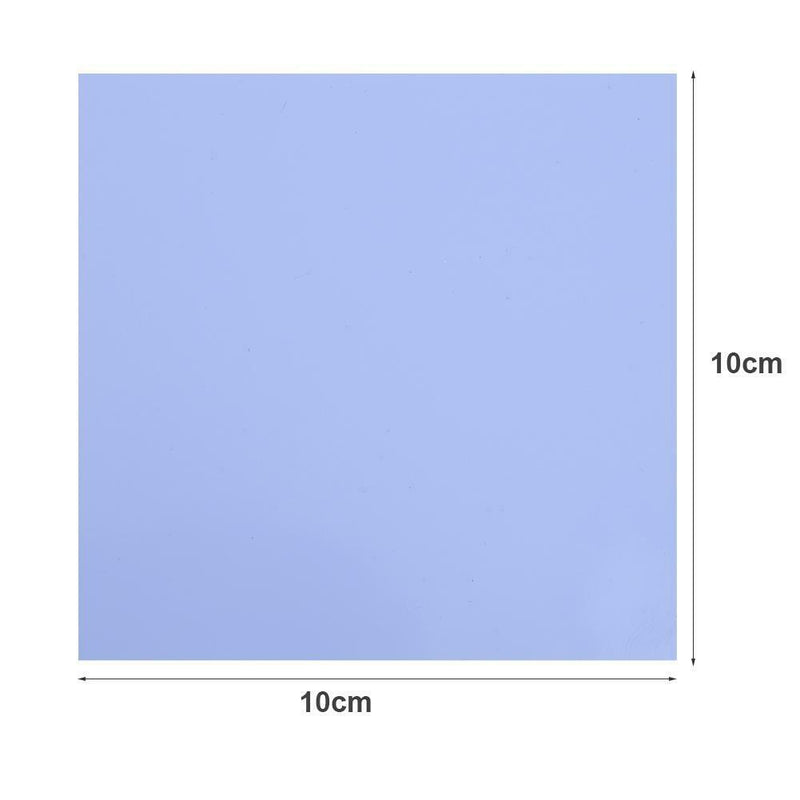

Size: 100 x 100mm/3.94
x 3.94in
Weight: 50g
Features:

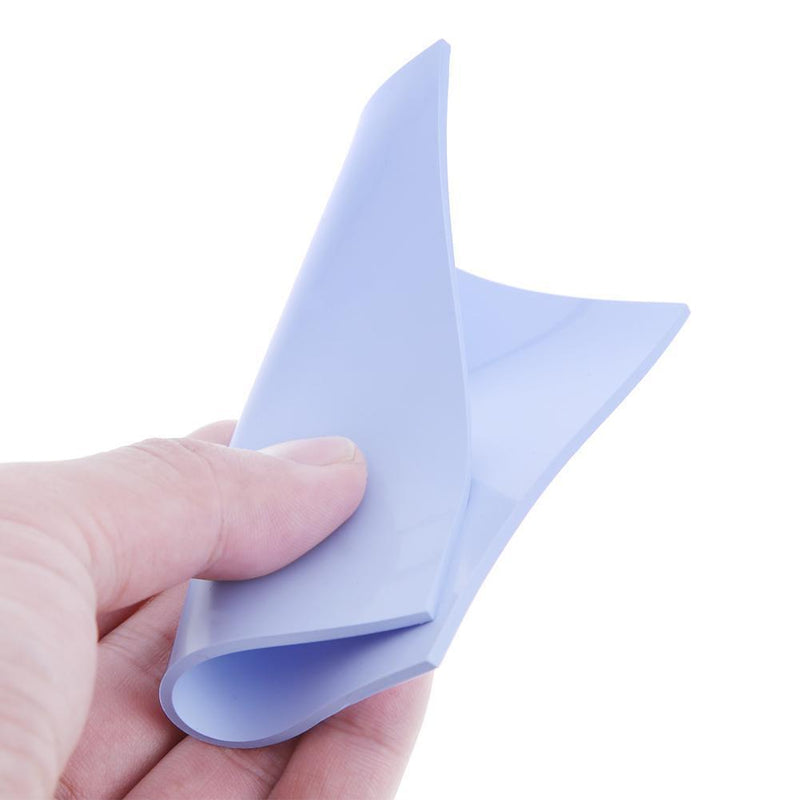

Super soft, a
little sticky, good thermal conductivity, easy to cut, feels like plasticine,
but has a certain degree of plasticity, super insulation, there is a sense of
cool put on the arm!
Application: affixed to the graphics card, video memory, Bridge chip, IC
controller, power crystal, electrical and electronic products control board,
TFT-LCD, switching power supply, LED lamps, etc.
How to use:
1, clear dust on the radiator and fan, clear the old thermal products
2, make sure the chip and the radiator can be directly contacted
3, determine the contact location of the chip and the radiator on the radiator
4, peel off the release paper
5, thermal sheet pasted at the location determined in step 3 (the bottom of the
radiator is better than the surface of the chip)
6, press the thermal sheet for several times, especially the edge part, to make
it close to the radiator surface
7, wait for about 2 minutes, carefully peel off the other side of the release
paper from the thermal sheet, that is OK.
