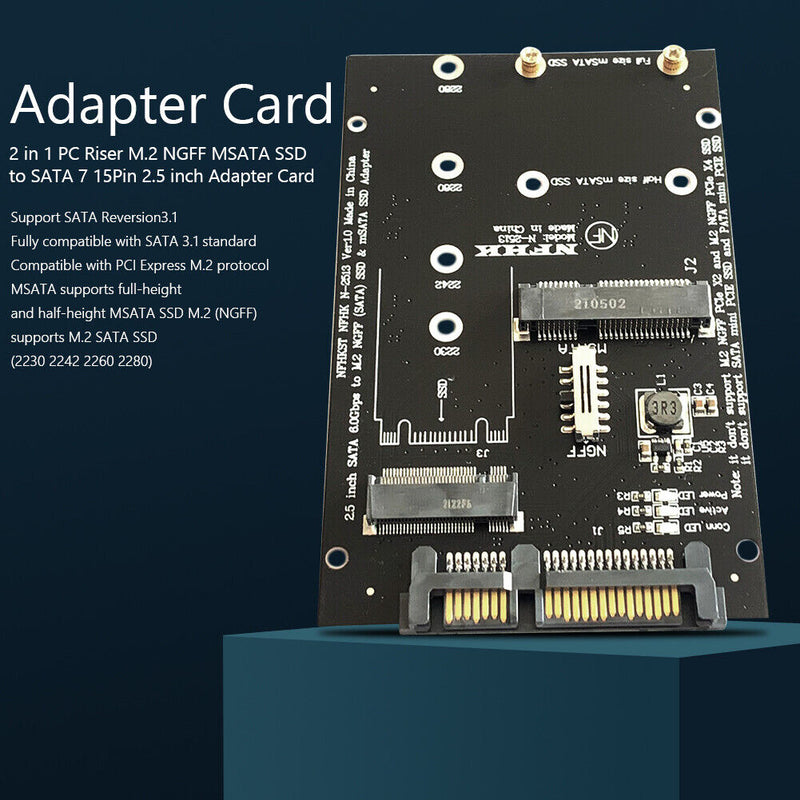

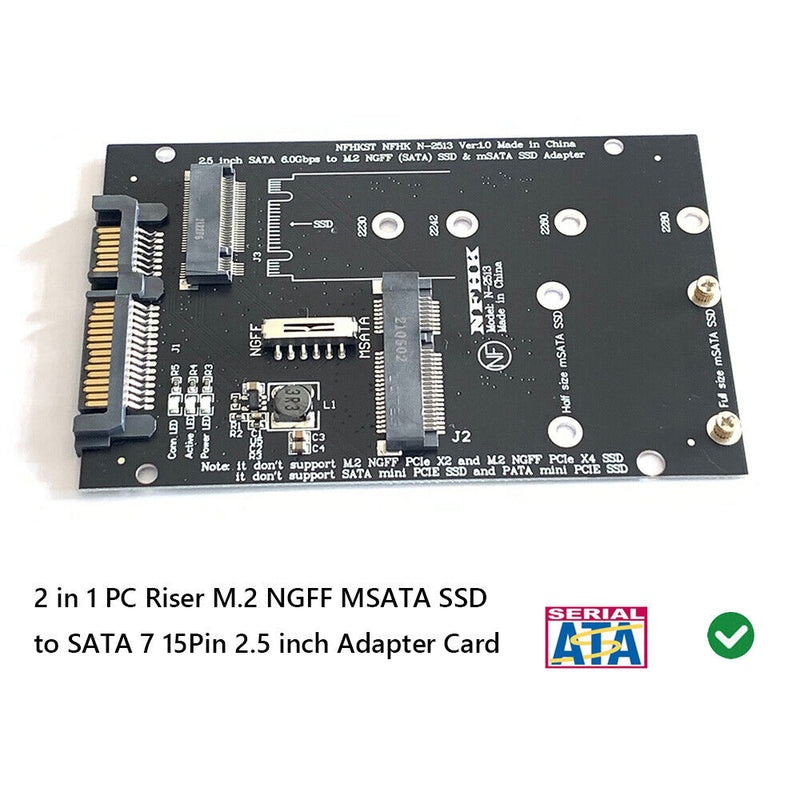

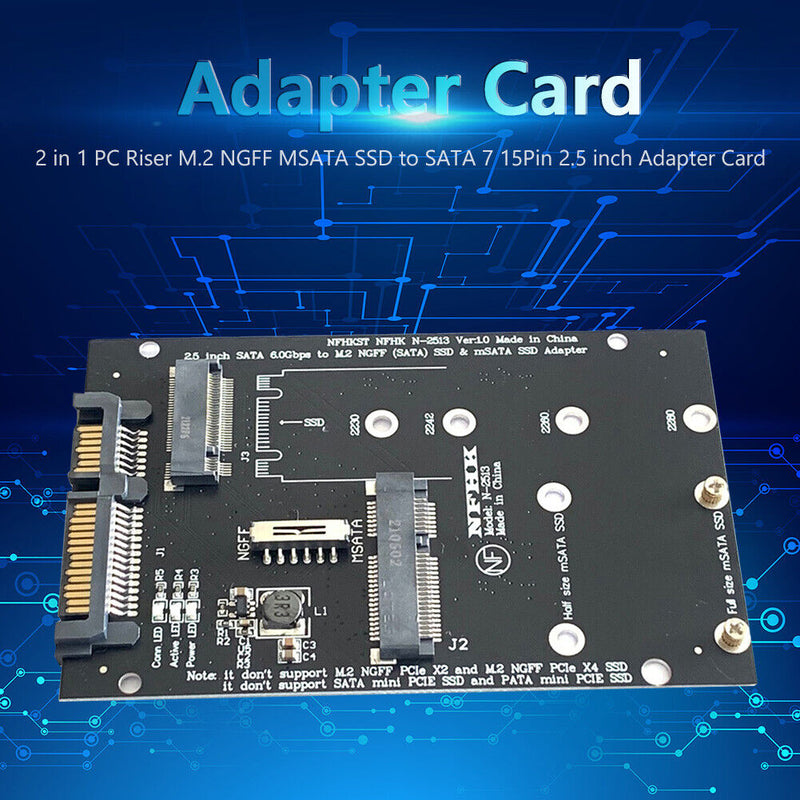

M.2 NGFF MSATA SSD to SATA 7 15Pin 2.5 inch Adapter Card 2 in 1 Desktop Computers Riser Converter
Feature:
1: This product supports solid-state hard drives defined by the mSATA interface in mini PCI-e, mSATA is not equal to 1.8-inch MICRO SATA. At the same time, this product also supports M.2 NGFF SATA protocol solid state hard drive to 2.5 inch sata interface, but two hard drives cannot be used at the same time, if you insert two hard drives at the same time, only one of the hard drives can be read.
2: There are three pin definitions for the SSD with mini PCI-e interface, one is called mSATA, which is more common on Lenovo and THINPAD machines, and can also be called INTEL defined interface the other is called SATA MINI PCI-E, It is more common in EPC for ASUS and some tablet computers, also called for ASUS-defined interface there is also a PATA-defined interface, which is essentially an IDE interface, which is more common in Dell MINI 9 and other machines. The three interface definitions are completely the same in appearance and cannot be distinguished by the naked eye, so please be sure to distinguish the interface definitions of your solid state drives!
3: M.2 NGFF SSD has three protocols: SATA protocol, NVME PCIe x2 protocol and NVME PCIe X4 protocol. This adapter card only supports SATA protocol.
4: Support SATA Reversion3.1
Fully compatible with SATA 3.1 standard
Compatible with PCI Express M.2 protocol

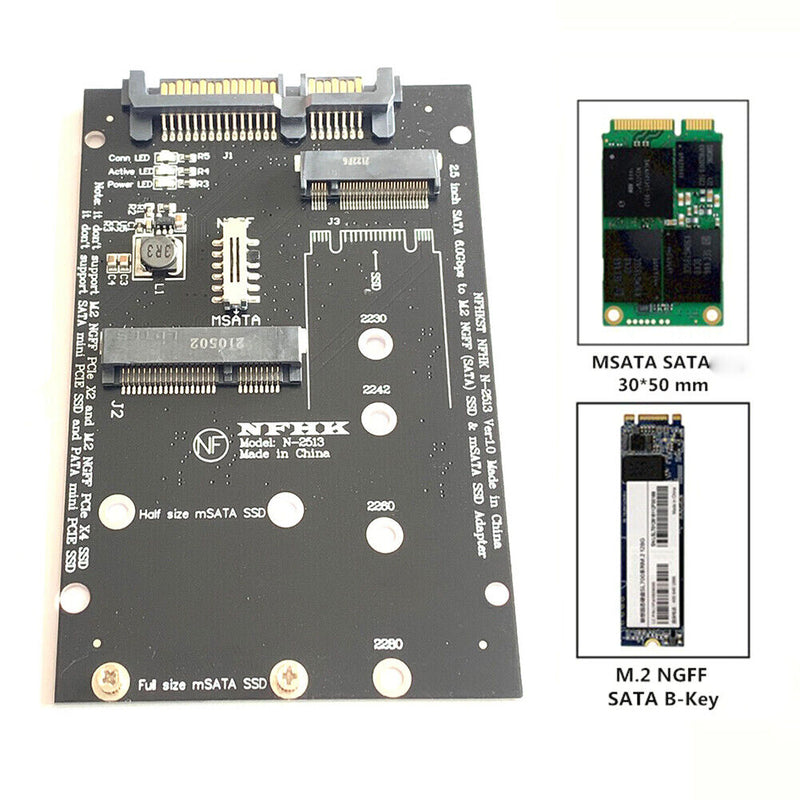

MSATA supports full-height and half-height MSATA SSD
M.2 (NGFF) supports M.2 SATA SSD (2230 2242 2260 2280)
Specification:
Weight: 21g
Size: 101x64mm/3.98x2.52in
Introduction:

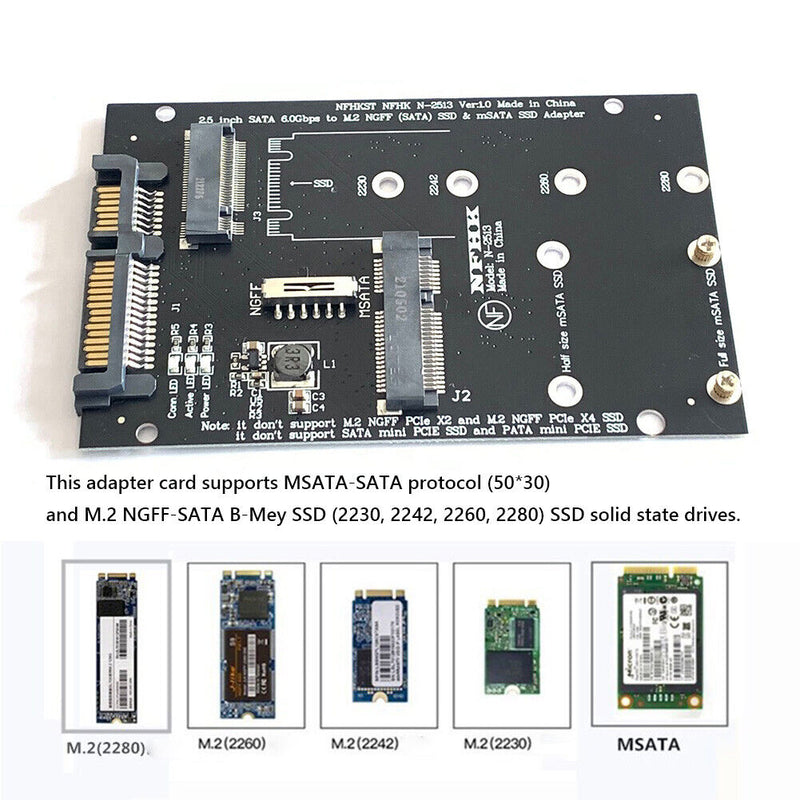

This adapter card supports MSATA-SATA protocol (50*30) and M.2 NGFF-SATA B-Mey SSD (2230, 2242, 2260, 2280) SSD solid state drives.
Notice:

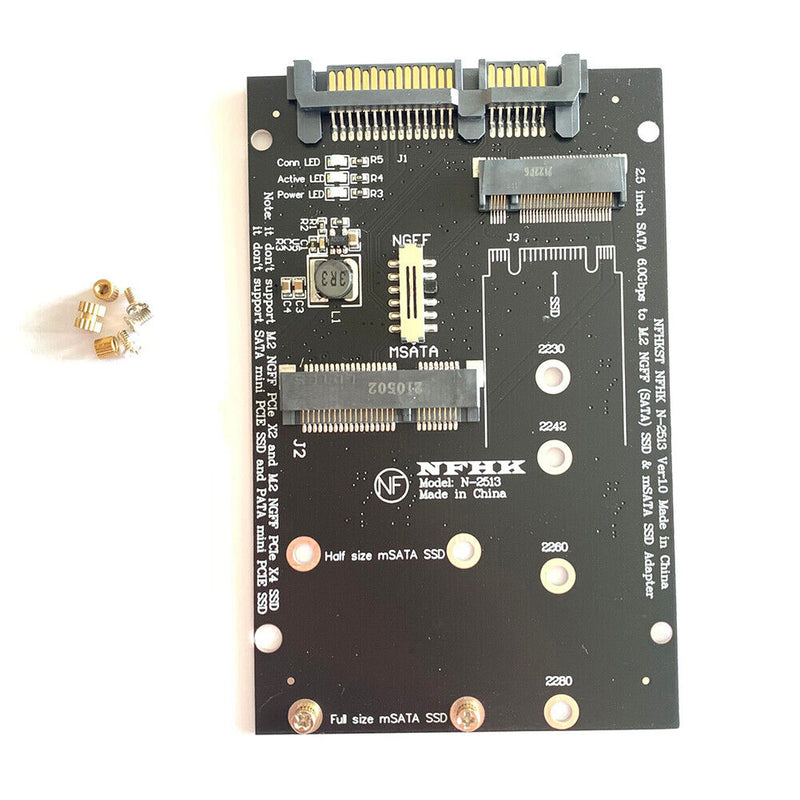

Two hard drives cannot be used at the same time! Turn the switch to NGFF to read the M.2 NGFF SSD, and turn the switch to mSATA to read the mSATA SSD.
The adapter card only converts the interface form and does not change any performance.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
