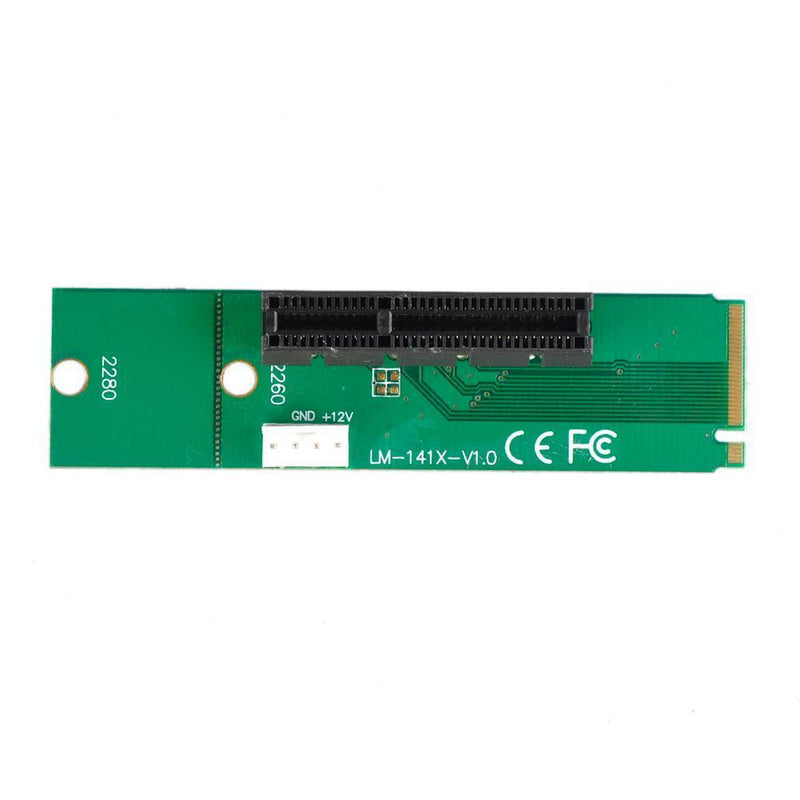

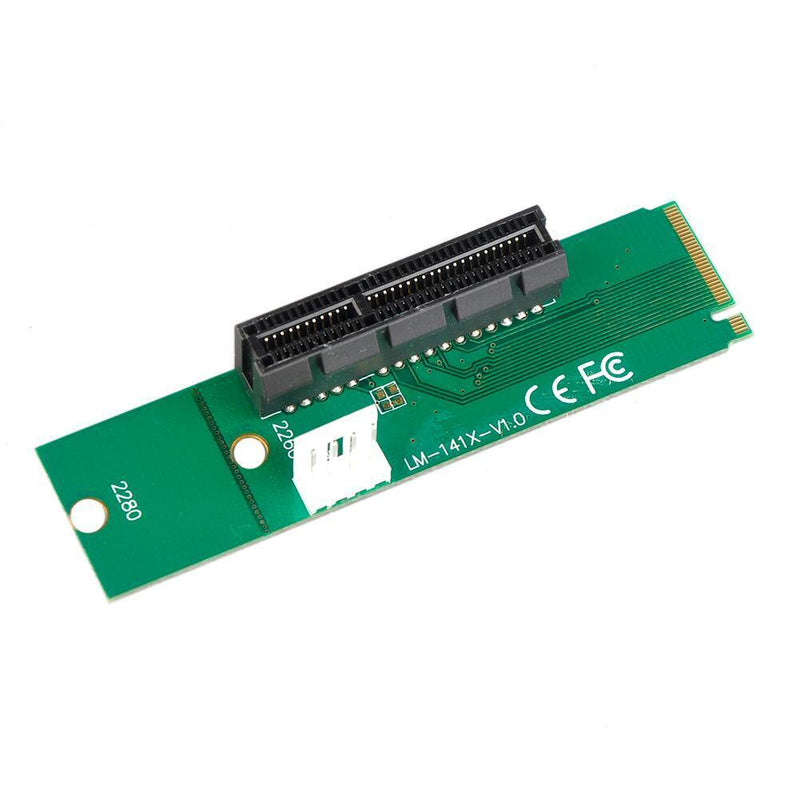

2pcs NGFF M2 to PCI-e 4x Slot Riser Cards M Key M.2 to PCI Express Adapters Converters
Descriptions:
1. The user can use the standard PCI-e 1x / 4x card M.2 NGFF M keyway in the desktop or notebook computer.
2. Transparent operating system, no software driver is required.
3. Support data transmission to 4 GB / S. Support socket 3 (M key).
4. You can use the PCI-E 4X female socket and the NGFF M.2 Key M male connector.
5. The floppy disk 4pin power connector can be used to stabilize the power supply.
Features:
1. PCI-E X4 to M.2 NGFF adapter, Micro SATA cable PN M2-PCIE-1X4X.
2. M.2 Specification Revision 0.9-3.
3. Support 2260/2280 type M.2 SSD module slot.
4. Only support 3 port PCI-e slot based on M.2 slot.
5. Serial SATA specification reversal 3.2.
6. Easy to install, no driver needed.
7. Support any operating system, such as Windows, WinCE, and Linux, etc.
8. This adapter uses a differential wire, rounting wire, support the PCI-E 4X signal.
Specifications:
Weight: approx.20g/pc
Packing size: approx.130x90x15mm/5.11x3.54x0.59''
Material: environmental protection PCB board

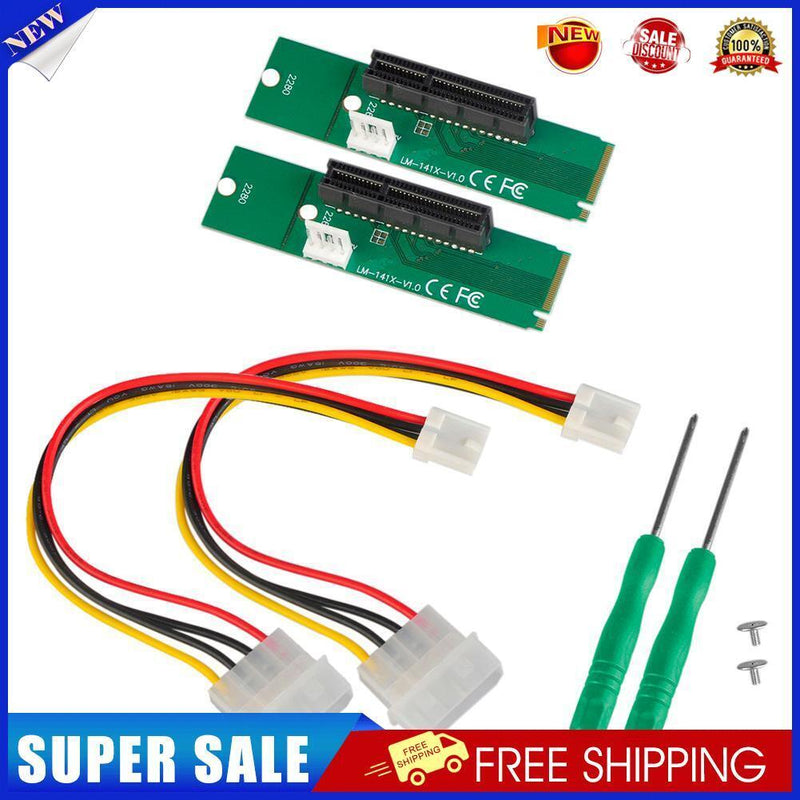

Quantity: 2pcs
Connection mode:
If the USB1X is transferred to the 16X transfer wire, the M2 adapter card can not be inserted into a small 4PIN power supply cable.
Warm Tips:
1. This interface is NGFF M2 KEY-M interface PCI-E 4X protocol, SATA protocol can not be used, can not be transferred.
2. The USB interface with the mining line need not insert power line 8 card machine.

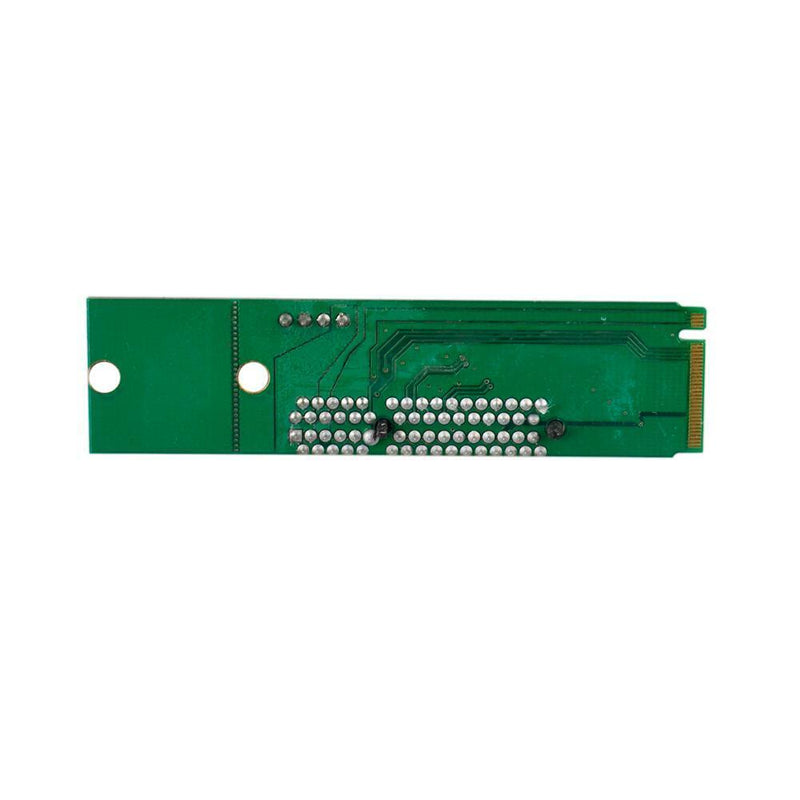

3. NGFF to PCI-E X4 adapter card, the use of this adapter card can transform M.2 NGFF interface to a common PCI-E X4 interface, there are 2 fixed holes on the board, 22*60 mm, 22*80 mm, respectively, according to the length of the slot in your machine, you can break the location.
Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
