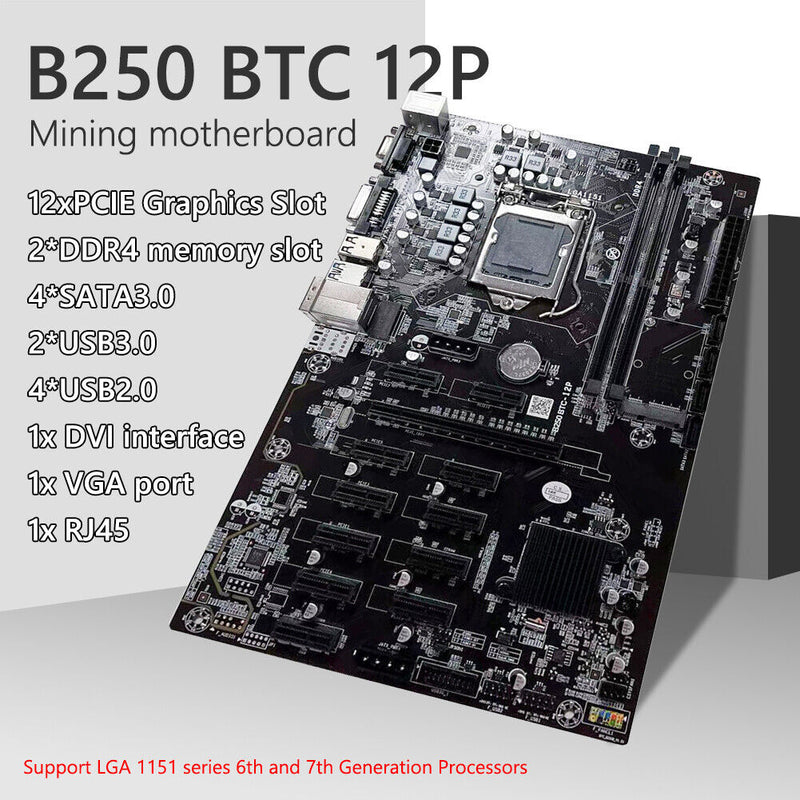

B250 BTC 12P Mining Motherboard+Switch SATA Cable DDR4 for LGA1151 Miner Board Computer USB3.0 12XGraphics Card Slot Kit Accessory
Feature:
1. Superb configuration. Using for Intel B250 high-speed chipset, stable power supply.

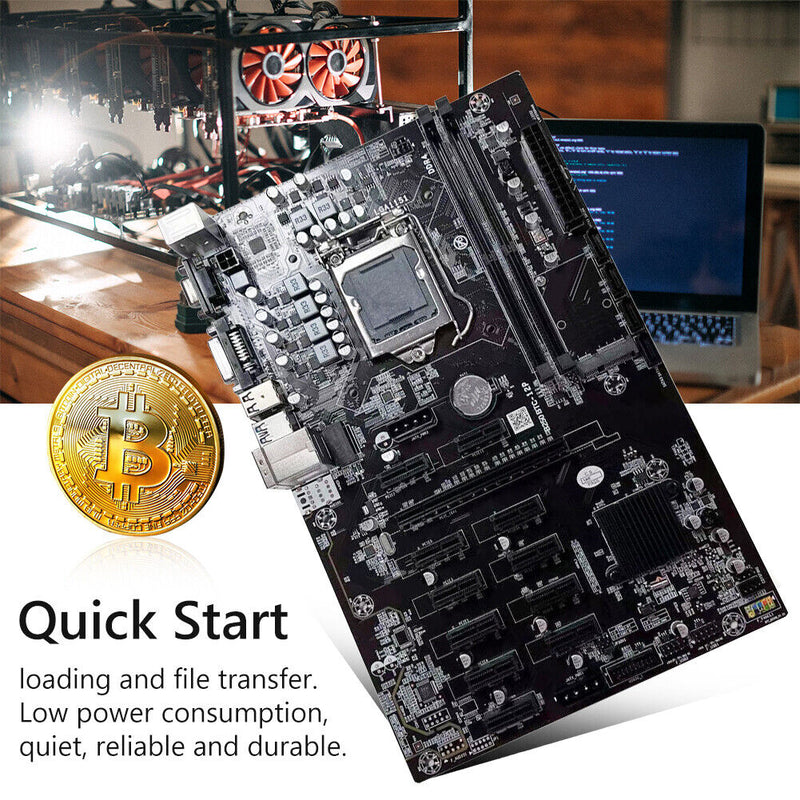

2. Fast startup, loading, and file transfer. Low power consumption, quiet, reliable and durable.
Durable materials. This product is made of high quality material, durable, long service life, firm and stable use
4. 12xPCI-E multi-graphics card support. 1*PCI-E 16X+11*PCI-E 1X.

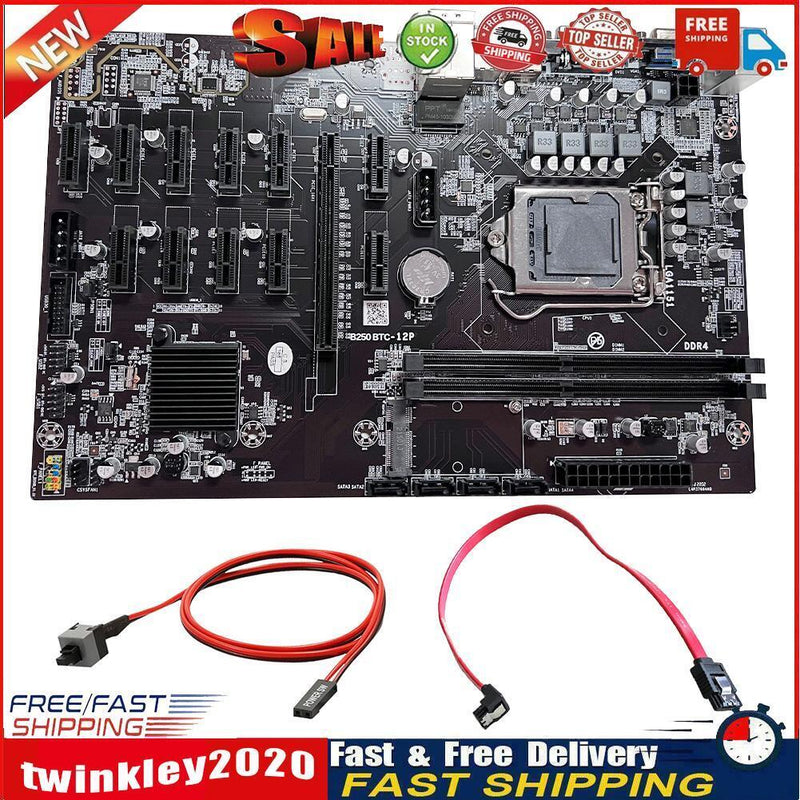

5. Switch line applicable scope: ATX architecture computer, POWER switch POWER and RESET restart switch Touch the switch, one end is inserted into the POWER socket of the motherboard, and the other end is connected to the chassis panel. This line is used for power supply and reset. The whole length of the line is about 50cm
SATA2.0 data line, double head shrapnel, with shielding layer, is the DIY installed high performance accessories, high speed, stable connection You can use it to connect SATA main disk, or as a server hard disk connection is very good!
Specification:
Chipset: Uses for Intel B250 high-speed chipset
Processor: Supports for LGA 1151 series 6 /7 generation processors
Memory: 2*DDR4 DIMM slots for installing 2133, 2400, 2800, or 3000MHz dimms (16GB)
Display chip: Integrated for Intel HD Graphics core Graphics card
Display output: VGA/DVI/1*PCI-E 16X /11*PCI-E 1X
Network: 1* RTL8105 100 MBIT nic chip
Storage: 4 x SATA disk ports
Voice frequency: silent card

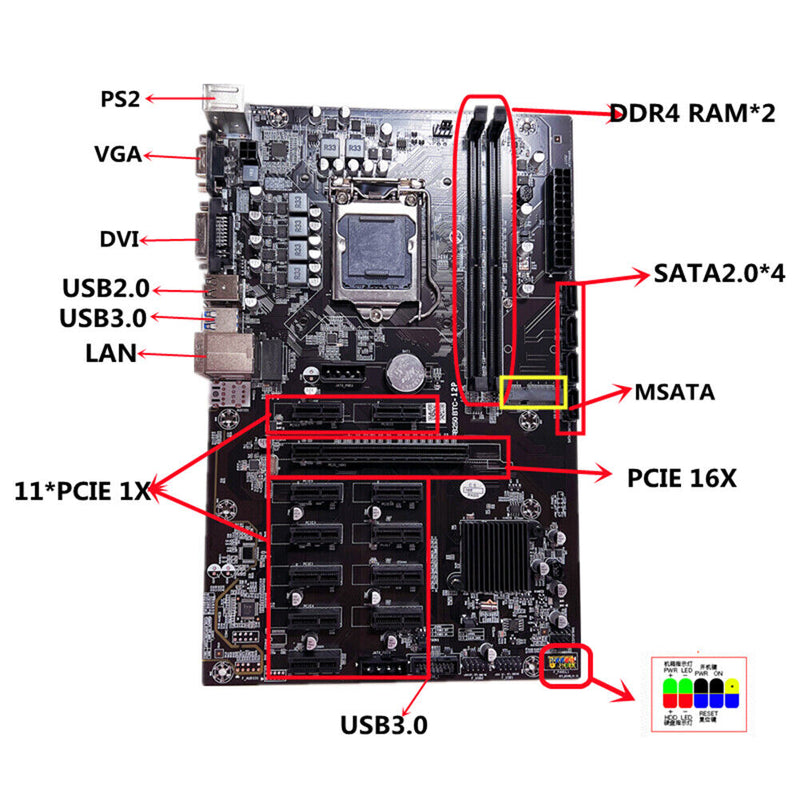

The I/O interface:
2 * USB3.0 interface
4 * USB2.0 interface
1 * DVI interface
1 * VGA interface
1* RJ45 network port
1 * PS / 2 interface
Built-in I/O interface:
2 * USB3.0 pin
4 * USB2.0 pin
1 * COM pin
1* F-panel Function buttons and indicator pins on the front panel
Storage port type: SATA 3 MSATA
Back interface: PS/2,DVI-I,4* USB2.0 1* RJ45 3*Audio Jacks 2 * USB3.0
Onboard network function: 1 x RJ45
Number of PCI slots: None
PCIEx1:11
PCIEx16:1
BIOS: AMI 64Mb Flash ROM
Supported system: for Windows 7/8.1/10
Heat dissipation system: A radiator and a fan are required
Power type: supports ATX 24P+ATX 4P 12V power supply ports
Operating temperature: -10 ~ 60
Operating humidity: 5%-95% relative humidity, no condensation
Motherboard size: 190mm x 285mm/7.5x11.2in
Net weight: 0.48 kg
The use of computer host switch line:
1. Plug the POWER end of the label into the corresponding pin of the motherboard
2. Switch end connected to the chassis panel, can be used
3. If the computer case is used for a long time, the Power and Reset keys will fail, resulting in the failure of boot and repeated startup.
Note:
Slot base plate color may be different for each batch, the product is constantly optimized and upgraded, if there are details adjustment did not update the page introduction in time, please understand!
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
