Item Name: B250 BTC 12xPCI-E Mining Motherboard for LGA 1151 DDR4 with SATA2.0 Cable Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
B250 BTC 12P Mining Motherboard for LGA 1151 DDR4 with SATA2.0 Cable Miner Board Set PCI-E 1X/16X Desktop Computer 12XGraphics Card Slot Accessory No CPU
Feature:
1. Exquisite configuration. Adopt for Intel B250 high-speed chipset to provide stable power supply.
2. Quick startup, loading and file transfer. Low power consumption, quiet, reliable and durable.
3. Durable materials. This product is made of high-quality materials, which is durable, long in service life and stable in use.
4. 12xPCI-E multi-graphics card support. 1*PCI-E 16X+11*PCI-E 1X.
5. B250 BTC mining motherboard +SATA2.0 hard disk data cable package: SATA2.0 data cable, double-headed shrapnel, with shielding layer, is a high-performance accessory for DIY installation, with high speed and stable connection You can use it to connect to SATA main disk, or connect as server hard disk, which is very good!
Specification:
Type: B250 BTC 12PMotherboard
Chipset: for Intel B250 high-speed chipset is adopted.
Processor: this motherboard support LGA 1151 series 6th/7th generation processors.
In-memory: the motherboard itself has 2* DDR4 DIMM memory slot, and supports 2133/2400/2800/3000MHz memory, with the maximum support of 16GB.
Display chip: integrated with for Intel HD Graphics core graphics card.
Output: VGA/DVI/1*PCI-E 16X /11*PCI-E 1X.
Network: 1* RTL8105 100m network card chip.
Storage: 4* SATA hard disk interface.
Frequency: no sound card.

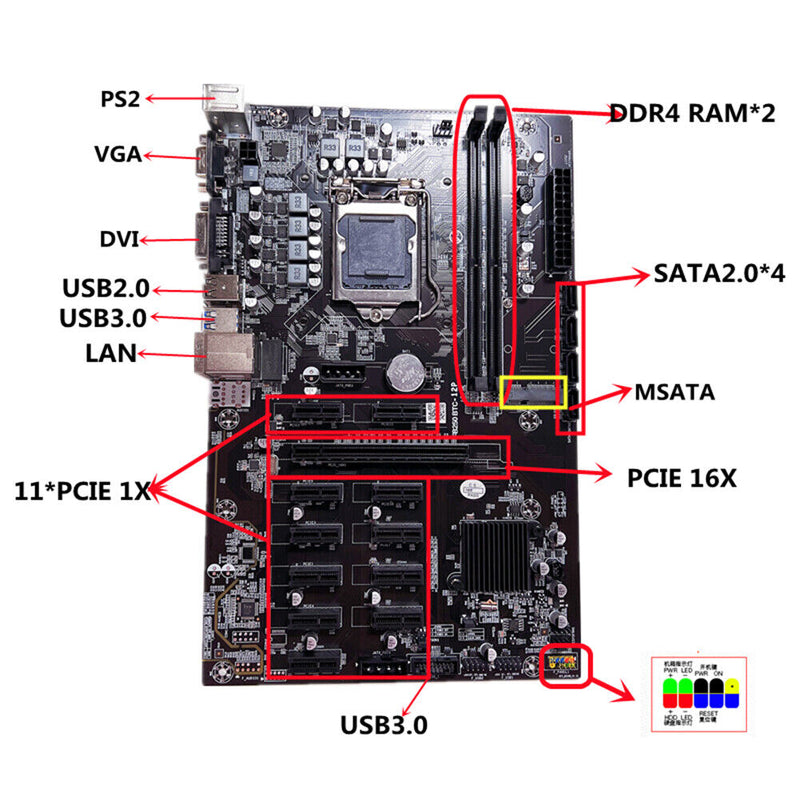

I/O interface:
2* USB3.0 interface.
4* USB2.0 interface.
1* DVI interface.
1* VGA interface.
1* RJ45 network interface.
1*PS/2 interface.
Built-in I/O interface:
2*USB3.0 pin.
4* USB2.0 pin.
1* COM pin.
1* F-PANEL front panel function buttons and indicator pins.
Storage interface type: SATA 3 MSATA
Back interface: PS/2,DVI-I,4* USB2.0 1* RJ45 3*Audio Jacks 2*USB3.0
Onboard network function: 1* RJ45.
PCI slot number: none.
Pciex1: 11 PCs.
Pciex16: 1.
BIOS: AMI 64Mb Flash ROM
Supported system:for Windows 7/ 8.1/ 10.
Cooling system: self-equipped radiator and fan are required.
Type of power supply: support ATX 24P+ATX 4P 12V power supply interface.
Working temperature:-10 ~ 60.
Working humidity: 5%-95% relative humidity without condensation.
Main board size: 190mm x 285mm/7.5x11.2in
Net weight: 0.48kg.
Note:
The color of slot bottom plate may be different in each batch, and the products are constantly optimized and upgraded. Please understand if the page introduction is not updated in time due to the adjustment of details!
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
