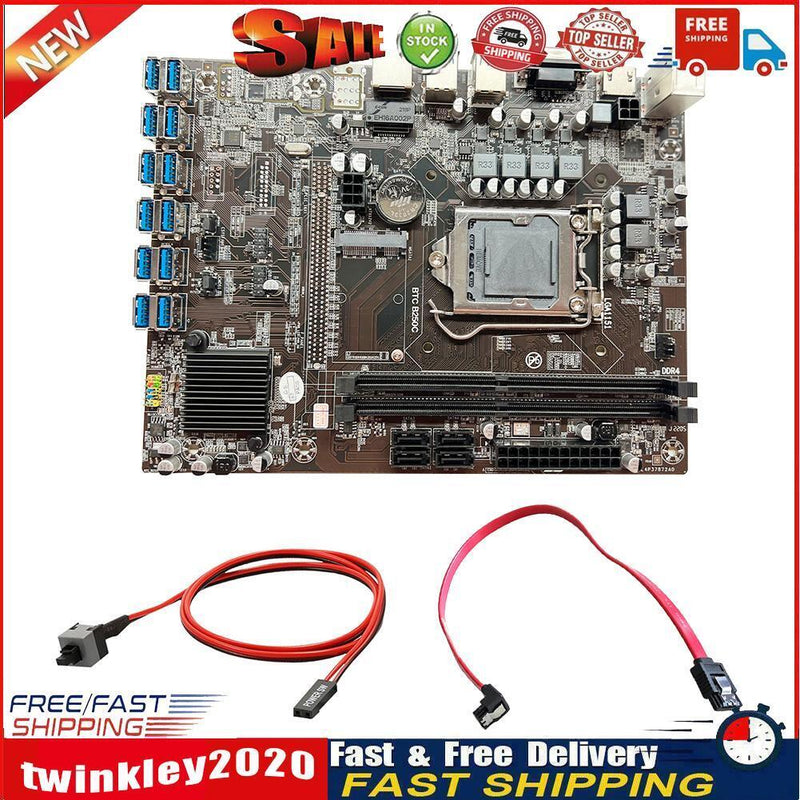

B250C BTC Mining Motherboard+SATA Switch Cable 12xPCIE to USB3.0 GPU Slot for LGA1151 Miner Board Kit Desktop Computer Support DDR4
Feature:
1. Innovative design, directly convert PCIE 1X to USB3.0 interface, reduce intermediate switching links, reduce cost, reduce signal attenuation, and make long-term operation more stable
2. Upgrade to HDMI-Compatible HD display interface, convenient and practical
3, Support core 6 generation, 7 generation series CPU, easy to use for LGA1151 low-cost CPU, low investment, efficient mining
4. Durable materials. This product is made of high quality materials, durable, long service life, firm and stable use
5. Switch line applicable scope: ATX architecture computer, POWER switch POWER and RESET restart switch Touch the switch, one end is inserted into the POWER socket of the motherboard, and the other end is connected to the chassis panel. This line is used for power supply and reset. The whole length of the line is about 50cm
6. SATA2.0 data line: double-headed shrapnel, with shielding layer, is a high performance accessory of DIY installation, high speed, stable connection You can use it to connect SATA main disk, or as a server hard disk connection is very good!
Specification:

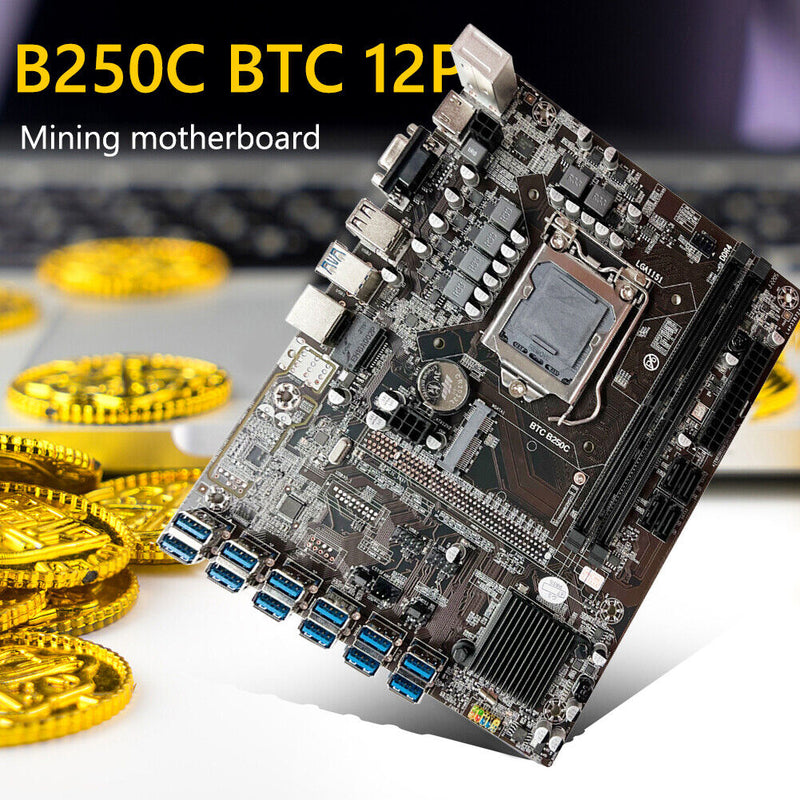

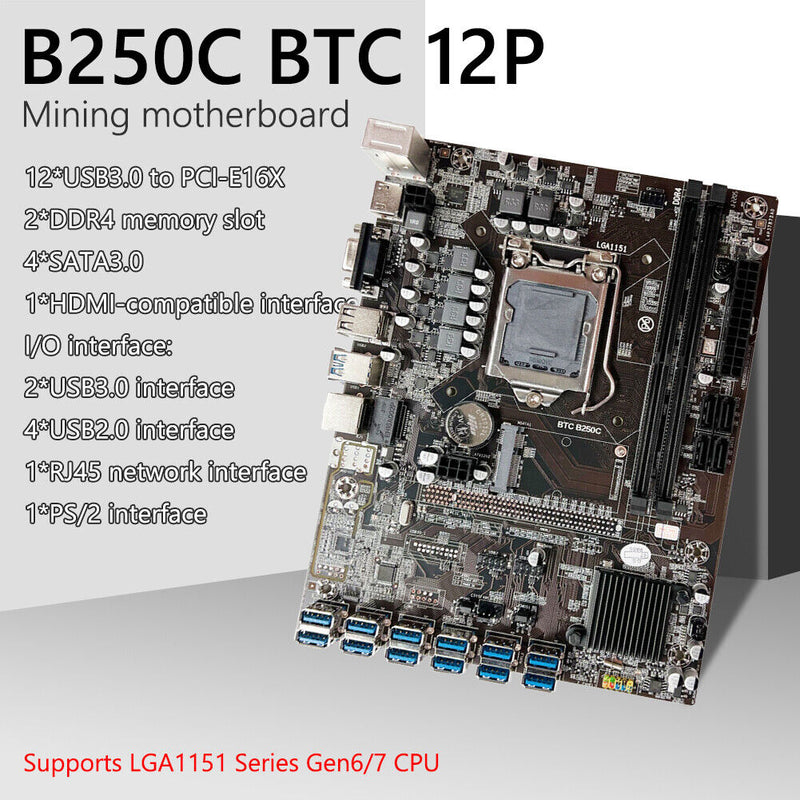

Model: B250C BTC 12xUSB
Processor: Supports for LGA 1151 series cpus, such as generation 6 or 7
Chipset: Uses Intel B250 high-speed chipset
Memory: provides 2 x DDR4 DIMM slots for installing 2133, 2400, 2800, or 3000MHz dimms. The maximum memory size is 16GB
Display chip: Integrates Intel HD Graphics core Graphics card

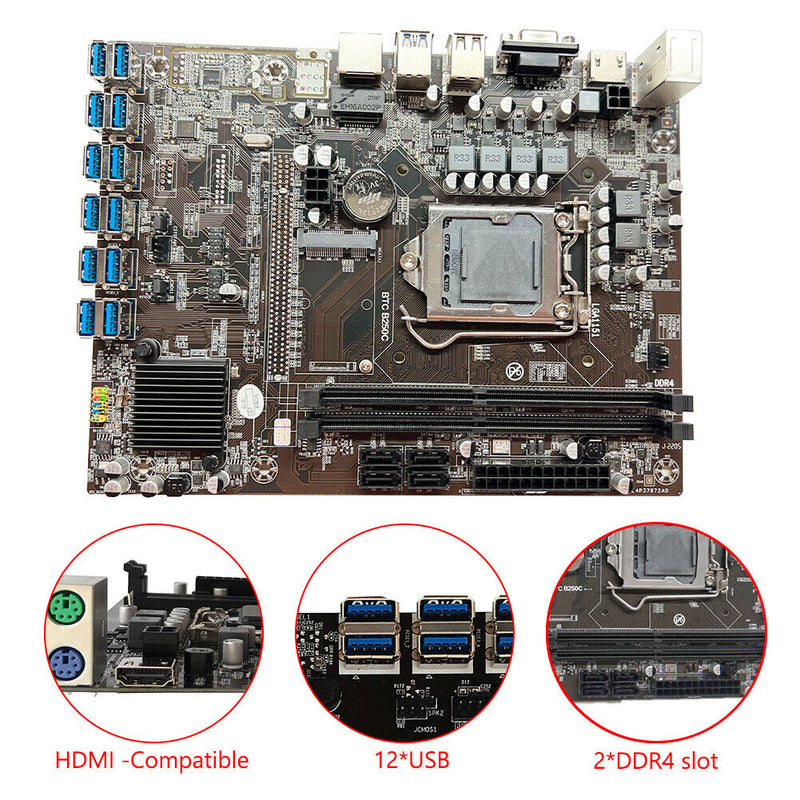

Display output: HDMI-Compatible/12*USB3.0 to PCI-E16X
Network: 1*RTL8111F GIGABit nic chip
Storage: 4 x SATA disk ports

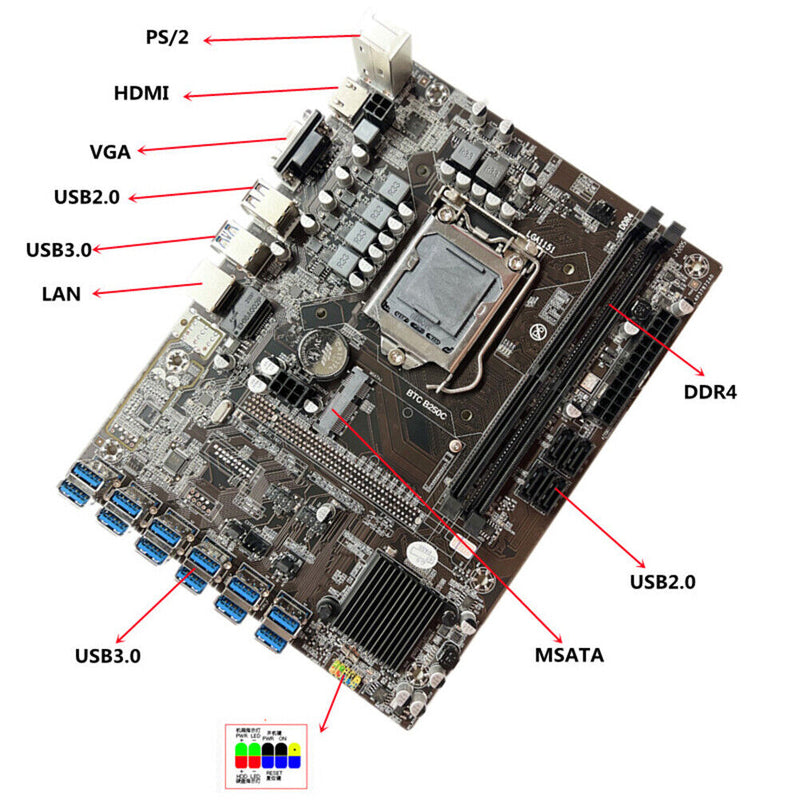

The I/O interface:
2 * USB3.0 interface
4 * USB2.0 interface

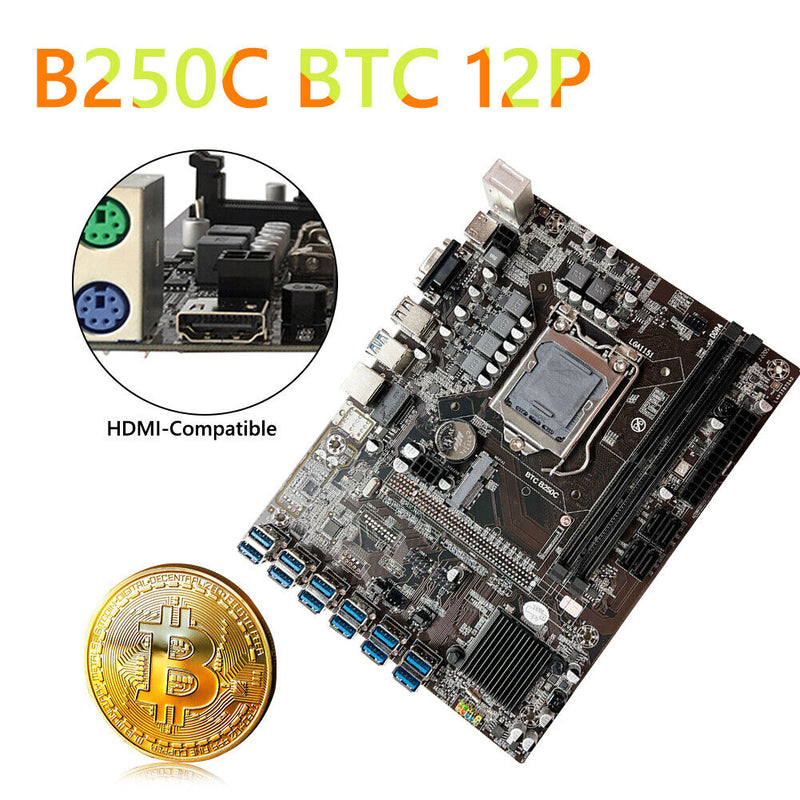

1 * HDMI-Compatible interface
1*RJ45 Gigabit network port
1 * PS / 2 interface
1*VGA interface
Built-in I/O interface:
1 x USB3.0 pins 2 x USB2.0 pins
1 * COM pin
1* F-panel Function buttons and indicator pins on the front PANEL
BIOS: AMI 64Mb Flash ROM
Power supply type: Supports ATX 24P+ATX 4P
Socket Type: for LGA 1151
Supported MEMORY types: DDR4(2133/240/2600)
Storage port type: SATA disk port MSATA

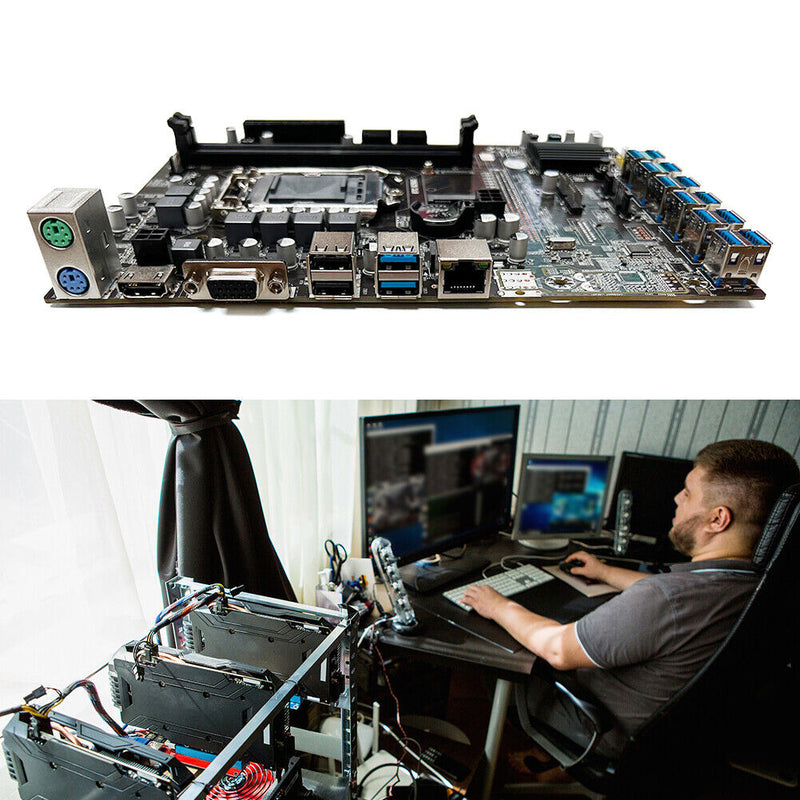

Back interface: P/S keyboard and mouse, HDMI-Compatible USB2.0 2,USB3.0 2,RJ45 1
Onboard network function: 100 MB
Net weight: 0.39kg
Size: 23 * 18.5 CM/9x7.3in
The use of computer host switch line:
1. Plug the POWER end of the label into the corresponding pin of the motherboard
2. Switch end connected to the chassis panel, can be used
3. If the computer case is used for a long time, the Power and Reset keys will fail, resulting in the failure of boot and repeated startup.
Note:
Due to the huge
